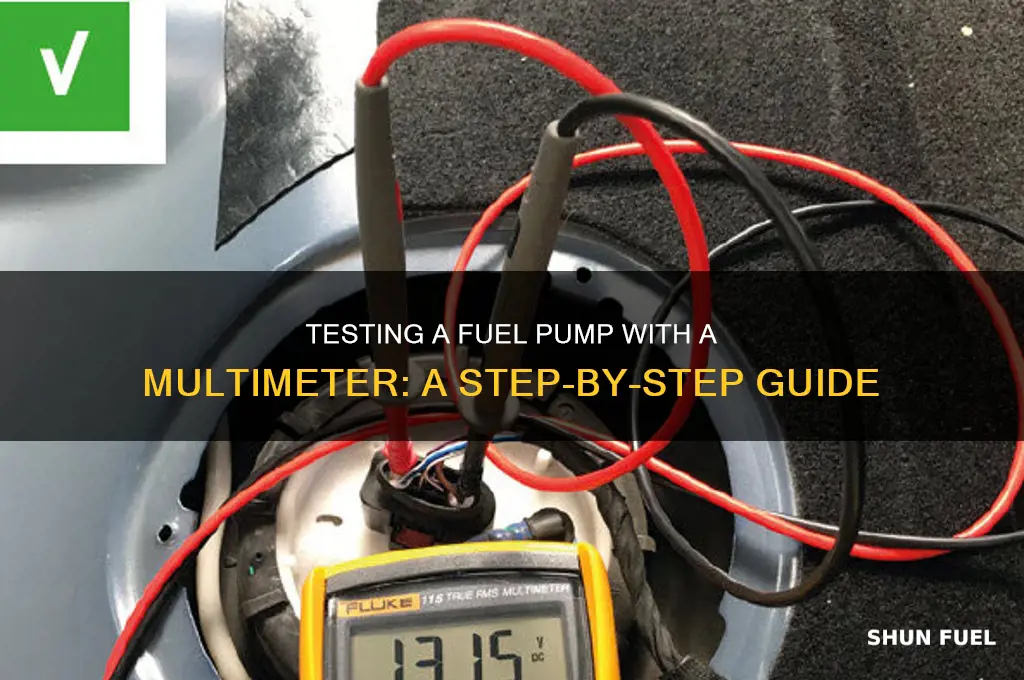

Testing a fuel pump with a multimeter is a straightforward process that helps diagnose whether the pump is functioning correctly or needs replacement. Begin by ensuring the vehicle is turned off and the fuel pump relay is accessible. Disconnect the fuel pump connector and set your multimeter to measure resistance or voltage, depending on the test. For a resistance test, connect the multimeter leads to the fuel pump terminals and compare the reading to the manufacturer’s specifications. For a voltage test, start the vehicle and check for the correct voltage at the pump’s connector. If the readings are outside the expected range, the fuel pump may be faulty. Always refer to the vehicle’s service manual for specific details and safety precautions.
| Characteristics | Values |
|---|---|
| Purpose of Test | To check the electrical functionality of the fuel pump using a multimeter. |
| Tools Required | Multimeter, screwdriver, safety gloves, and safety goggles. |
| Safety Precautions | Disconnect the battery to prevent electrical accidents. |
| Locate Fuel Pump | Typically found in the fuel tank or near the engine bay. |
| Access Fuel Pump Connector | Disconnect the fuel pump electrical connector. |
| Set Multimeter | Set to resistance (ohms) or voltage (DC) mode depending on the test. |
| Resistance Test | Measure resistance across the fuel pump terminals (refer to manual for specs). |
| Voltage Test | Connect multimeter in parallel to the fuel pump connector and check voltage while cranking the engine. |
| Expected Resistance Range | Typically 1-20 ohms (varies by vehicle; check manufacturer specs). |
| Expected Voltage Reading | Should match battery voltage (12V) when the pump is activated. |
| Diagnosis | Low resistance/voltage indicates a faulty fuel pump or wiring issue. |
| Reassembly | Reconnect the fuel pump connector and battery after testing. |
| Additional Tips | Test fuel pump relay and fuse if initial tests are inconclusive. |
| Professional Help | Consult a mechanic if unsure or if the pump needs replacement. |
Explore related products
What You'll Learn
- Check Power Supply: Verify voltage at pump connector using multimeter set to DC volts
- Test Ground Connection: Ensure proper grounding by measuring resistance between ground and battery
- Measure Resistance: Check pump’s internal resistance with multimeter in ohms mode
- Inspect Fuel Pressure: Use multimeter indirectly via pressure gauge to assess pump performance
- Verify Current Draw: Measure amperage draw with multimeter in series with pump circuit
Check Power Supply: Verify voltage at pump connector using multimeter set to DC volts
A faulty fuel pump can leave you stranded, but before replacing it, verify the power supply is reaching the pump. This critical step isolates the issue, saving time and money. Using a multimeter set to DC volts, you can directly measure the voltage at the pump connector, ensuring the electrical system is functioning correctly.
Steps to Verify Voltage:
- Locate the Pump Connector: Consult your vehicle’s manual or a repair guide to identify the fuel pump connector, typically found near the fuel tank.
- Set Multimeter to DC Volts: Turn the multimeter dial to the DC voltage setting, usually denoted by a V with a straight line (─). For most vehicles, set the range to 20V to safely measure the expected 12V supply.
- Connect Multimeter Probes: Attach the red probe to the positive terminal of the pump connector and the black probe to the negative terminal. Ensure a secure connection to avoid inaccurate readings.
- Start the Vehicle: With the ignition on or the engine running (depending on your vehicle), observe the multimeter reading. A healthy fuel pump should show a voltage close to the battery voltage (typically 11.5V to 12.5V).
Cautions:
Always disconnect the battery before accessing the fuel pump connector to prevent electrical hazards. If working with a running engine, exercise extreme caution to avoid moving parts and fuel spills.
Verifying voltage at the pump connector is a straightforward yet essential diagnostic step. A reading within the expected range confirms the power supply is intact, narrowing down potential issues to the pump itself or other components. If voltage is absent or low, inspect the fuse, relay, and wiring harness for faults. This methodical approach ensures accurate troubleshooting and informed repairs.
