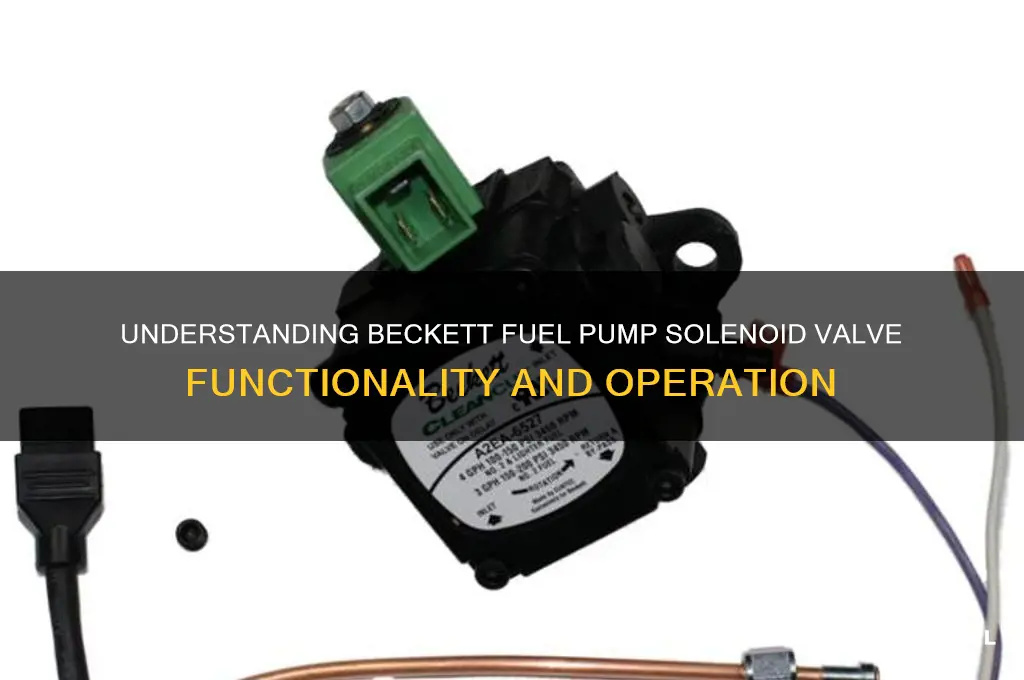

A Beckett fuel pump solenoid valve is a critical component in fuel oil systems, designed to control the flow of fuel to the burner by opening and closing in response to an electrical signal. When the thermostat calls for heat, an electrical current is sent to the solenoid coil, generating a magnetic field that pulls the plunger open, allowing fuel to pass through the valve and reach the burner. Once the heating cycle is complete, the current is cut off, the magnetic field dissipates, and a spring returns the plunger to its closed position, stopping the fuel flow. This mechanism ensures precise fuel delivery, enhances system efficiency, and improves safety by preventing fuel leaks when the system is inactive. Understanding its operation is essential for troubleshooting and maintaining optimal performance in oil-fired heating systems.
Explore related products
What You'll Learn
- Solenoid Valve Basics: Electromagnetic coil, plunger, and spring mechanism control fuel flow
- Activation Process: Current energizes coil, lifts plunger, allowing fuel to pass
- Deactivation Process: Current stops, spring returns plunger, blocking fuel flow
- Role in Fuel Pumps: Regulates fuel pressure and delivery to the combustion chamber
- Common Issues: Failure due to dirt, wear, or electrical malfunctions
Solenoid Valve Basics: Electromagnetic coil, plunger, and spring mechanism control fuel flow
The solenoid valve in a Beckett fuel pump operates on a deceptively simple principle: electromagnetism. At its core lies an electromagnetic coil, a tightly wound wire that generates a magnetic field when energized by an electric current. This magnetic field exerts a force on a plunger, typically made of ferromagnetic material, positioned within the coil's center. The plunger, in turn, is connected to a spring mechanism. When the coil is energized, the plunger is drawn towards the coil, overcoming the spring's resistance and opening a pathway for fuel flow. Conversely, when the current is cut, the spring pushes the plunger back to its original position, closing the valve and halting fuel flow.
This mechanism allows for precise control of fuel delivery, a critical function in ensuring efficient combustion and preventing fuel wastage.
Understanding the interplay between the electromagnetic coil, plunger, and spring is crucial for troubleshooting and maintenance. A weak or damaged coil may fail to generate sufficient magnetic force to overcome the spring tension, resulting in a valve that remains closed even when energized. Conversely, a worn-out spring may not exert enough force to close the valve completely, leading to fuel leakage. Regular inspection and testing of these components are essential to ensure optimal performance and prevent potential safety hazards.
The Beckett fuel pump solenoid valve's design exemplifies the elegance of simplicity in engineering. By harnessing the fundamental principles of electromagnetism and mechanical forces, it achieves precise control over fuel flow without relying on complex mechanisms. This simplicity translates to reliability and ease of maintenance, making it a trusted component in various fuel-burning applications.
For optimal performance, it's recommended to use a coil with a voltage rating compatible with the system's power supply. Typically, Beckett fuel pump solenoid valves operate on 120V or 24V AC. The spring constant should be carefully selected to ensure the plunger opens and closes with the desired force, balancing responsiveness and durability. Regular cleaning and lubrication of the plunger and valve seat are essential to prevent debris buildup and ensure smooth operation. By understanding the basics of solenoid valve operation and adhering to these maintenance practices, users can maximize the lifespan and efficiency of their Beckett fuel pump systems.
