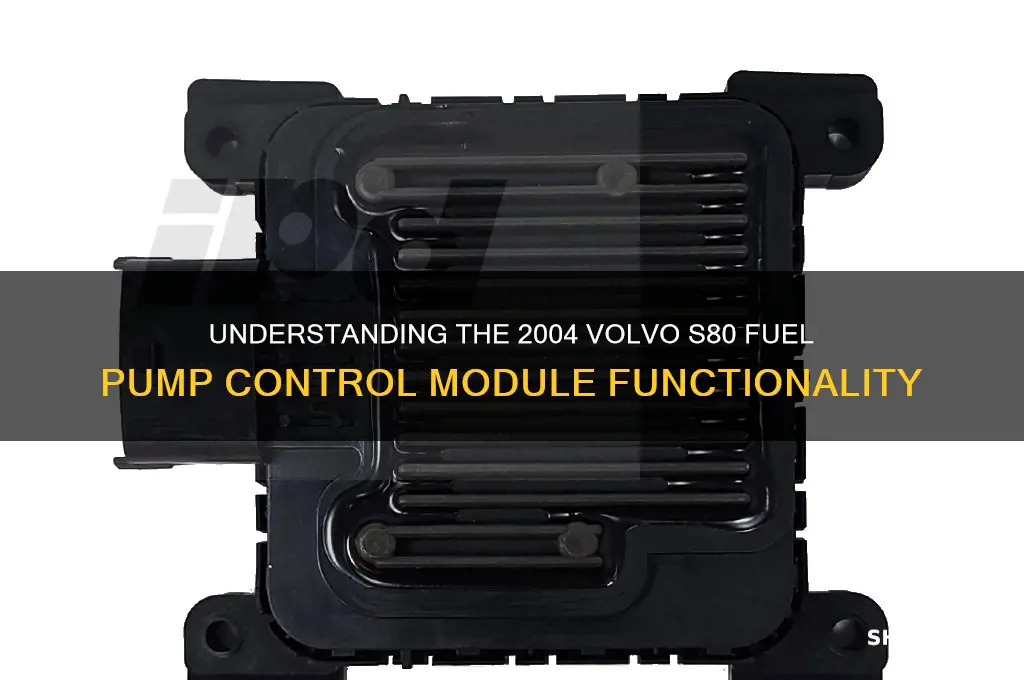

The 2004 Volvo S80's fuel pump control module (FPCM) is a critical component of its fuel delivery system, designed to regulate the operation of the electric fuel pump. Located near the fuel tank, the FPCM monitors fuel pressure and ensures optimal fuel delivery to the engine. It receives signals from the engine control module (ECM) and adjusts the fuel pump's speed and output based on factors such as engine load, throttle position, and driving conditions. The FPCM also incorporates safety features, such as shutting off the fuel pump in the event of a collision or detecting a malfunction, to prevent fuel leaks and potential hazards. By precisely managing fuel flow, the FPCM contributes to efficient combustion, improved performance, and reduced emissions in the 2004 Volvo S80.
Explore related products
What You'll Learn
Fuel Pump Relay Activation
The 2004 Volvo S80's fuel pump control module relies on precise relay activation to ensure the fuel pump operates only when necessary, balancing efficiency and safety. The fuel pump relay acts as a high-current switch, controlled by the engine control module (ECM), which activates the fuel pump to deliver fuel to the engine during ignition and operation. This relay is crucial because the ECM’s low-current output cannot directly power the fuel pump’s high-current demand. Instead, the relay amplifies the signal, allowing the pump to engage without overloading the ECM.
Activation of the fuel pump relay follows a specific sequence. When the ignition is turned on, the ECM sends a ground signal to the relay’s control circuit, energizing its coil. This closes the relay’s high-current contacts, completing the circuit to the fuel pump. The pump then primes the fuel system by running for approximately 2–3 seconds, ensuring fuel is available for immediate engine start. If the engine is already running, the relay remains active as long as the ECM detects the need for fuel delivery, based on inputs like engine speed and load.
A critical safety feature tied to relay activation is the inertia switch, often referred to as the fuel pump cut-off switch. In the event of a collision, this switch disconnects power to the fuel pump relay, preventing fuel delivery and reducing the risk of fire. The switch can be manually reset if triggered accidentally, restoring relay functionality. This dual-safety mechanism highlights Volvo’s emphasis on both performance and protection in the S80’s fuel system design.
Diagnosing relay activation issues requires a systematic approach. If the fuel pump fails to engage, check the relay for proper operation by swapping it with a known-good relay of the same type (typically a 4-pin SPST relay). Measure voltage at the pump connector with a multimeter; if power is absent, the relay or its circuit may be faulty. Additionally, inspect the ECM’s ground signal to the relay control terminal—a missing signal indicates a potential ECM or wiring issue. Always consult a wiring diagram for the 2004 S80 to accurately trace circuits and verify connections.
Understanding fuel pump relay activation in the 2004 Volvo S80 underscores its role as a bridge between the ECM’s commands and the fuel pump’s mechanical action. By ensuring the relay functions correctly, owners can maintain optimal fuel delivery, enhance vehicle reliability, and address potential issues before they escalate. This knowledge empowers both DIY enthusiasts and professionals to troubleshoot effectively, preserving the S80’s performance and safety standards.
