Testing a Chevy fuel pump relay is a crucial diagnostic step when troubleshooting fuel delivery issues in your vehicle. The fuel pump relay acts as a switch, controlling the power supply to the fuel pump, and a faulty relay can lead to engine stalling, difficulty starting, or even complete fuel pump failure. To test the relay, you’ll need a multimeter and a basic understanding of electrical circuits. Start by locating the relay, typically found in the underhood fuse box or near the fuel pump itself. With the ignition off, remove the relay and inspect it for physical damage. Next, use the multimeter to check for continuity across the relay’s terminals, ensuring the internal contacts are functioning properly. Additionally, you can perform an in-circuit test by swapping the fuel pump relay with a similar relay (e.g., the horn relay) to see if the fuel pump activates. If the pump works with the swapped relay, the original fuel pump relay is likely defective and needs replacement. Always consult your vehicle’s manual for specific relay locations and testing procedures.
| Characteristics | Values |
|---|---|
| Relay Location | Typically found in the under-hood fuse/relay box or near the fuel pump. |
| Tools Required | Multimeter, jumper wires, battery source (if needed). |
| Testing Method 1: Power Check | Measure voltage at relay’s power pin (usually Pin 85 or 86) with key ON. |
| Expected Result (Power Check) | Should read battery voltage (12V). |
| Testing Method 2: Ground Check | Check continuity between ground pin (Pin 85 or 86) and vehicle chassis. |
| Expected Result (Ground Check) | Should show continuity (0 ohms). |
| Testing Method 3: Coil Activation | Apply 12V to the coil pins (Pins 86 and 85) to activate the relay. |
| Expected Result (Coil Activation) | Clicking sound indicates proper operation. |
| Testing Method 4: Output Circuit | Measure voltage at output pin (Pin 30) with relay activated. |
| Expected Result (Output Circuit) | Should read battery voltage (12V) if relay is functioning. |
| Testing Method 5: Resistance Check | Measure resistance between coil pins (Pins 86 and 85). |
| Expected Result (Resistance Check) | Typically 50-120 ohms (varies by model). |
| Symptoms of Failure | No fuel pressure, engine cranks but won’t start, or intermittent starting. |
| Replacement | Replace relay if any test fails or symptoms persist. |
| Safety Precautions | Disconnect battery before testing to avoid electrical hazards. |
Explore related products
What You'll Learn
- Relay Location Identification: Find the fuel pump relay in the fuse box under the hood
- Multimeter Testing Procedure: Use a multimeter to check for continuity and proper voltage
- Symptoms of Failure: Recognize signs like no start, stalling, or engine misfires
- Swap Relay for Diagnosis: Replace with a known good relay to confirm if it’s faulty
- Wiring and Ground Check: Inspect wiring harness and ground connections for damage or corrosion
Relay Location Identification: Find the fuel pump relay in the fuse box under the hood

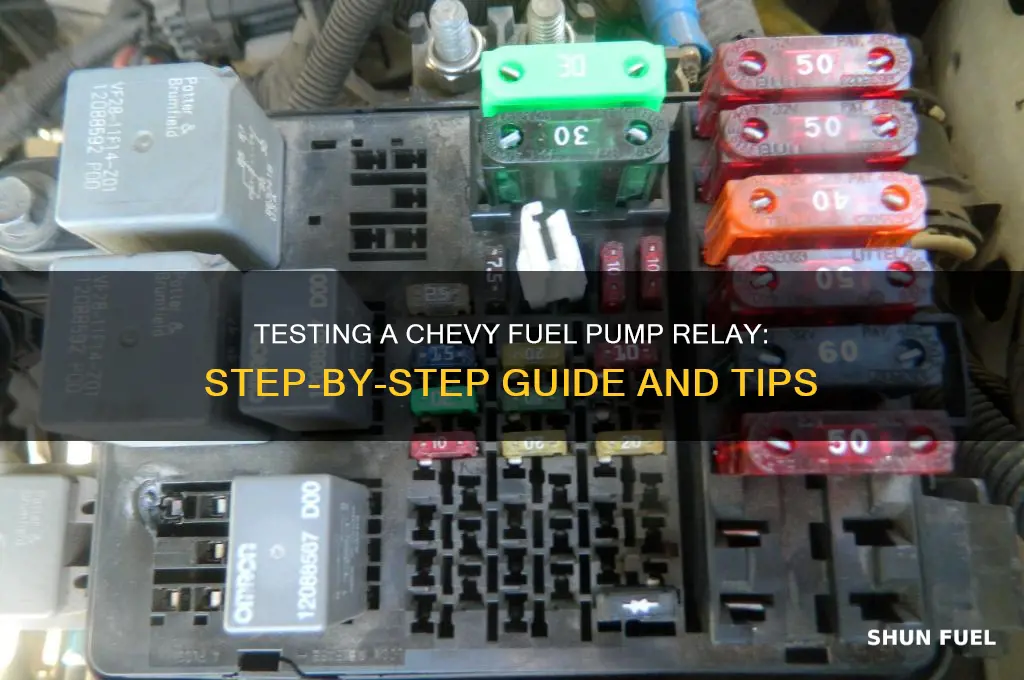

The fuel pump relay in a Chevy is typically housed within the under-hood fuse box, a centralized hub for critical electrical components. This location is strategic, as it allows for easy access during maintenance while protecting the relay from extreme under-hood temperatures. To begin your search, consult your vehicle’s owner’s manual, which often includes a diagram of the fuse box layout. If the manual is unavailable, online resources specific to your Chevy model can provide accurate guidance. Identifying the correct relay is crucial, as the fuse box contains multiple relays, each serving different functions.
Once you’ve located the fuse box, typically near the battery or along the firewall, open its cover to reveal a grid of fuses and relays. Relays are usually larger than fuses and often have a distinct shape, such as a rectangle or square with multiple prongs. The fuel pump relay may be labeled with a symbol or abbreviation like "FUEL" or "FP." If labels are unclear, compare the relays’ sizes and positions to the diagram in your manual or online resource. Some relays may be color-coded, but this varies by model, so rely on the diagram for accuracy.
Testing the fuel pump relay requires removing it from the fuse box, but before doing so, ensure the ignition is off to prevent electrical mishaps. Gently pull the relay straight out of its slot, avoiding excessive force that could damage the socket. If the relay is stubborn, use a flathead screwdriver to carefully pry it out, taking care not to bend the prongs. Once removed, inspect the relay for visible signs of damage, such as burnt marks or corrosion, which could indicate a malfunction.
For a practical tip, keep a spare relay on hand if you suspect the current one is faulty. Swapping it with a known-good relay from another slot in the fuse box can quickly determine if the relay is the issue. If the fuel pump engages with the spare relay, the original is likely defective and needs replacement. Always reinsert relays firmly to ensure proper electrical contact, and double-check the fuse box cover is securely closed to protect against debris and moisture.
In summary, identifying the fuel pump relay in the under-hood fuse box is a straightforward process with the right resources. By consulting your manual or online diagrams, you can accurately locate and test the relay, ensuring your Chevy’s fuel system operates reliably. This step is essential for diagnosing fuel pump issues and maintaining your vehicle’s performance.
Understanding the Fuel Pump System in a 2005 Chrysler 300
You may want to see also
Explore related products
Multimeter Testing Procedure: Use a multimeter to check for continuity and proper voltage
A multimeter is an indispensable tool for diagnosing fuel pump relay issues in a Chevy, offering precise insights into continuity and voltage levels. Begin by setting your multimeter to the continuity or resistance mode, typically denoted by a diode symbol or an omega (Ω) sign. With the ignition off, locate the fuel pump relay in the under-hood fuse/relay box—consult your Chevy’s manual for exact placement. Pull the relay out and identify its terminals, usually labeled as 30 (power in), 87 (power out), and 85/86 (control circuit). Place the multimeter probes on the 30 and 87 terminals; a reading of near-zero resistance indicates a functional internal switch, confirming continuity.
Next, verify proper voltage across the relay. Switch the multimeter to the DC voltage setting (20V range is sufficient). Turn the ignition to the "on" position but do not start the engine. Connect one probe to terminal 30 and the other to a good ground (like the battery negative terminal). You should see battery voltage (typically 12V), confirming power is reaching the relay. Move the probe to terminal 87; if the relay is engaged, you’ll read the same voltage here, indicating power is being delivered to the fuel pump circuit.
A critical step often overlooked is testing the control circuit (terminals 85 and 86). With the multimeter still in DC voltage mode, place one probe on terminal 85 and the other on 86. Have an assistant turn the ignition to the "on" position. If the relay is functioning, you’ll observe a voltage drop (usually 0.5V or less) as the control circuit activates the relay. No voltage change suggests a faulty control signal from the ECU or a wiring issue.
Caution: Always ensure the multimeter leads are correctly inserted into the appropriate jacks for voltage or continuity testing to avoid damaging the device. Additionally, avoid touching probes to multiple terminals simultaneously, as this can short-circuit the system. If you’re unsure about relay orientation, note its position before removing it to avoid reinstalling it incorrectly.
In conclusion, multimeter testing provides a systematic approach to diagnosing fuel pump relay problems in a Chevy. By confirming continuity and voltage across specific terminals, you can isolate whether the relay, control circuit, or power supply is at fault. This method not only saves time but also eliminates guesswork, ensuring you address the root cause rather than replacing parts unnecessarily.
Checking Fuel Pump Voltage on a 2006 Kia Optima: A Step-by-Step Guide
You may want to see also
Explore related products
Symptoms of Failure: Recognize signs like no start, stalling, or engine misfires
A failing fuel pump relay in your Chevy can manifest in several ways, often mimicking symptoms of other engine issues. One of the most common signs is a no-start condition, where the engine cranks but refuses to fire. This occurs because the relay fails to send power to the fuel pump, leaving the engine starved for fuel. If you’ve recently replaced the fuel pump or checked the fuel filter and still encounter this issue, the relay is a prime suspect.
Another telltale symptom is engine stalling, particularly during acceleration or under load. When the relay malfunctions intermittently, it can cut power to the fuel pump momentarily, causing the engine to stall. This behavior is unpredictable and often worsens over time as the relay degrades further. If your Chevy stalls randomly and restarts after a brief wait, the relay’s inconsistent operation could be the culprit.
Engine misfires are also a red flag, especially if they occur alongside a rough idle or loss of power. A failing relay may not deliver a steady voltage supply to the fuel pump, leading to fluctuations in fuel pressure. This inconsistency can cause the air-fuel mixture to become too lean or rich, resulting in misfires. If you notice a check engine light accompanied by erratic engine behavior, testing the fuel pump relay should be high on your diagnostic list.
To pinpoint the issue, start by listening for the fuel pump’s priming sound when you turn the ignition to the "on" position. If you hear nothing, the relay may not be engaging the pump. Next, swap the fuel pump relay with a similar one (e.g., the horn relay) and observe if the symptoms persist. If the problem moves to the new relay’s function, the original relay is likely faulty. Always consult your Chevy’s service manual for relay location and compatibility before testing.
In summary, recognizing symptoms like no-start conditions, stalling, and engine misfires can help you isolate a failing fuel pump relay. These signs, combined with basic diagnostic steps, allow you to address the issue before it escalates into costlier repairs. Early intervention not only saves money but also ensures your Chevy remains reliable on the road.
Bypassing the 1993 Lexus SC300 Fuel Pump Control Relay: A DIY Guide
You may want to see also
Explore related products
Swap Relay for Diagnosis: Replace with a known good relay to confirm if it’s faulty
A faulty fuel pump relay can leave you stranded, but pinpointing the culprit isn't always straightforward. Before condemning the relay, consider a simple yet effective diagnostic technique: swapping it with a known good one. This method eliminates guesswork and provides concrete evidence of the relay's condition.
By temporarily replacing the suspect relay with a confirmed working unit, you create a controlled experiment. If the fuel pump engages and the engine starts, the original relay is likely the problem. This approach bypasses the need for complex electrical testing, making it accessible even to those with limited mechanical experience.
Execution is key. Locate the fuel pump relay, typically found in the under-hood fuse box. Consult your Chevy's manual for the exact location. With the ignition off, swap the relays, ensuring they are properly seated. Attempt to start the engine. If successful, the original relay is faulty. If not, the issue likely lies elsewhere in the fuel delivery system.
Caution: Always exercise caution when working with electrical components. Ensure the ignition is off before handling relays to prevent accidental short circuits.
This swap method is a valuable tool in your diagnostic arsenal. It's a quick, cost-effective way to isolate the relay as the source of the problem, saving you time and potentially unnecessary repairs. Remember, a systematic approach to troubleshooting is crucial for efficient and accurate diagnosis.
How Fuel Pump Efficiency Impacts Engine Performance and Power Output
You may want to see also
Explore related products
Wiring and Ground Check: Inspect wiring harness and ground connections for damage or corrosion
Corroded or damaged wiring and ground connections are silent saboteurs of fuel pump relay performance. Even a seemingly minor issue can lead to erratic fuel delivery, stalling, or complete engine failure. Before condemning the relay itself, a thorough inspection of the wiring harness and grounds is crucial.
This process involves a systematic visual and tactile examination. Start by locating the fuel pump relay, typically found in the underhood fuse box or near the fuel tank. Trace the wiring harness leading to and from the relay, paying close attention to areas prone to chafing, such as sharp edges, moving components, and areas exposed to heat or moisture. Look for frayed wires, cracked insulation, exposed conductors, or signs of burning.
Ground connections are equally critical. Locate the ground points for the fuel pump circuit, often found on the engine block, chassis, or fuel tank. Inspect these connections for corrosion, looseness, or damage. Corrosion appears as a greenish or whitish powdery substance, while loose connections may exhibit signs of arcing or overheating.
Utilize a multimeter to verify continuity in the wiring harness and ground circuits. Set the multimeter to the continuity setting and touch the probes to the corresponding terminals. A beep or low resistance reading indicates a good connection, while no beep or high resistance suggests a problem.
Remember, a compromised wiring harness or ground connection can mimic fuel pump relay failure. By meticulously inspecting these components, you can save time, money, and frustration by addressing the root cause of the issue before replacing potentially functional parts. This simple yet crucial step is an essential part of any fuel pump relay diagnostic procedure.
Understanding the Fuel Pump System in a 2004 Saturn Vue
You may want to see also
Frequently asked questions
The fuel pump relay is typically located in the under-hood fuse/relay box. Refer to your vehicle’s manual or the diagram on the fuse box cover to identify the exact relay. It’s often labeled as "FUEL PUMP" or "FP."
First, locate the relay and swap it with a similar relay in the fuse box (e.g., the horn relay). Start the vehicle to see if the fuel pump operates. If it does, the original relay is likely faulty. Alternatively, use a multimeter to test for continuity and proper voltage across the relay terminals.
Symptoms include the engine not starting, stalling, or difficulty starting. You may also hear no fuel pump hum when turning the key to the "ON" position. A check engine light or fuel pressure issues could also indicate a faulty relay.
