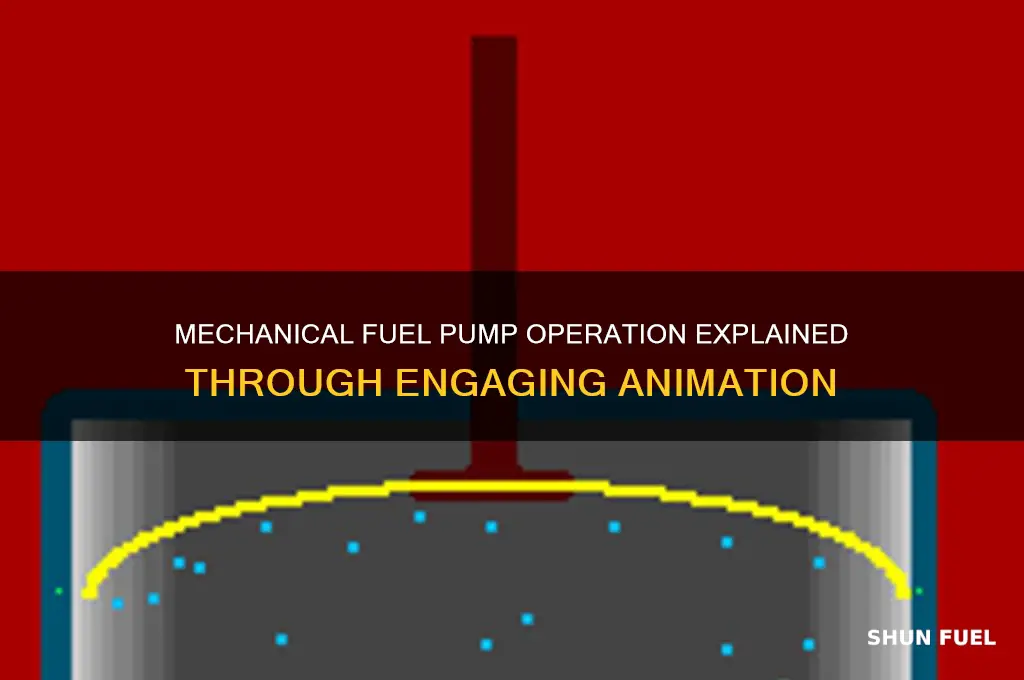

A mechanical fuel pump is a vital component in internal combustion engines, responsible for delivering fuel from the tank to the carburetor or fuel injection system. To understand its operation, an animation can effectively illustrate the process: as the engine runs, the camshaft or crankshaft drives the pump’s diaphragm or plunger, creating a vacuum that draws fuel into the pump chamber. The diaphragm or plunger then compresses the fuel, forcing it through a one-way valve and into the fuel line, where it is delivered to the engine at the required pressure. This animated visualization highlights the pump’s mechanical simplicity, efficiency, and role in ensuring consistent fuel supply for optimal engine performance.
| Characteristics | Values |
|---|---|
| Type of Pump | Mechanical (typically diaphragm or plunger type) |
| Power Source | Engine camshaft or crankshaft (driven by mechanical linkage) |
| Fuel Flow Direction | One-way (from fuel tank to carburetor/fuel injection system) |
| Operation Principle | Creates suction to draw fuel from the tank and pressure to deliver it to the engine |
| Components | Diaphragm/plunger, inlet and outlet valves, cam/eccentric lobe, housing, fuel lines |
| Valve Mechanism | Check valves (ball or flap type) to ensure unidirectional flow |
| Pressure Regulation | None (pressure depends on engine demand and pump design) |
| Fuel Compatibility | Gasoline, diesel (design varies slightly for each) |
| Maintenance | Periodic inspection, replacement if worn or leaking |
| Advantages | Simple, reliable, no electrical components |
| Disadvantages | Limited pressure control, dependent on engine speed |
| Typical Applications | Older carbureted engines, small engines (lawnmowers, generators) |
| Animation Focus | Diaphragm/plunger movement, valve operation, fuel flow path |
Explore related products
What You'll Learn
- Pump Components Overview: Visualize diaphragm, inlet/outlet valves, lever arm, and camshaft interaction in animation
- Suction Stroke Animation: Show diaphragm expansion, fuel entry via inlet valve, and chamber filling
- Compression Stroke Animation: Depict diaphragm compression, inlet valve closure, and fuel discharge through outlet valve
- Valve Operation Animation: Highlight one-way valve function, ensuring unidirectional fuel flow during pump cycles
- Camshaft Drive Animation: Illustrate camshaft rotation, lever arm oscillation, and diaphragm actuation timing
Pump Components Overview: Visualize diaphragm, inlet/outlet valves, lever arm, and camshaft interaction in animation
A mechanical fuel pump's operation hinges on the synchronized dance of its core components, each playing a critical role in delivering fuel from tank to engine. Visualizing this process through animation reveals the intricate interplay between the diaphragm, inlet and outlet valves, lever arm, and camshaft. The diaphragm, a flexible membrane, acts as the heart of the pump, expanding and contracting to create pressure differentials. Inlet and outlet valves, akin to one-way gates, ensure fuel flows in the correct direction, preventing backflow. The lever arm, connected to the diaphragm, translates the camshaft’s rotational motion into the linear motion needed for diaphragm movement. Finally, the camshaft, driven by the engine’s timing, provides the rhythmic push that drives the entire mechanism. Together, these components form a seamless system, efficiently drawing and delivering fuel with each engine cycle.
To fully grasp the pump’s operation, consider the animation as a step-by-step breakdown. As the camshaft rotates, its lobe presses against the lever arm, forcing it downward. This motion pulls the diaphragm outward, creating a vacuum that opens the inlet valve and draws fuel into the pump chamber. When the camshaft lobe rotates away, the lever arm rebounds, pushing the diaphragm inward. This compresses the fuel, closing the inlet valve and opening the outlet valve, which directs the fuel toward the engine. The animation should highlight this cyclical process, emphasizing how each component’s timing and function are critical to maintaining consistent fuel delivery. For instance, a misaligned camshaft or a faulty valve could disrupt the flow, leading to engine performance issues.
From a practical standpoint, understanding these interactions is essential for troubleshooting and maintenance. For example, a stiff diaphragm or a worn lever arm can reduce pump efficiency, causing symptoms like hard starting or rough idling. Animations can illustrate how wear and tear affect component performance, offering visual cues for diagnosing problems. For DIY enthusiasts, this knowledge is invaluable. Regularly inspecting the pump for leaks, ensuring the camshaft lobe is not excessively worn, and replacing diaphragms every 50,000–70,000 miles (depending on the vehicle) can prevent costly repairs. Animations can also demonstrate proper disassembly and reassembly techniques, making maintenance tasks more accessible.
Comparing the mechanical fuel pump to its electric counterpart underscores the elegance of its simplicity. While electric pumps rely on external power sources and complex electronics, mechanical pumps derive their energy directly from the engine, making them inherently reliable in older vehicles. However, this simplicity comes with trade-offs, such as dependence on engine speed and susceptibility to mechanical wear. Animations can juxtapose these systems, highlighting the mechanical pump’s direct, camshaft-driven operation versus the electric pump’s continuous, sensor-controlled flow. This comparison not only educates but also helps viewers appreciate the engineering choices behind each design.
In conclusion, an animation of a mechanical fuel pump’s components offers more than just visual appeal—it provides a dynamic learning tool. By focusing on the diaphragm, valves, lever arm, and camshaft, viewers can dissect the pump’s operation, understand its vulnerabilities, and apply this knowledge to real-world scenarios. Whether for educational purposes or practical troubleshooting, such animations bridge the gap between theory and practice, making complex mechanical processes accessible and engaging.
How Fuel Pump Issues Can Drain Your Car Battery: Explained
You may want to see also
Explore related products
Suction Stroke Animation: Show diaphragm expansion, fuel entry via inlet valve, and chamber filling
The suction stroke in a mechanical fuel pump is a critical phase where the diaphragm’s expansion creates a vacuum, drawing fuel into the pump chamber. To animate this effectively, begin by illustrating the diaphragm in its relaxed state, then show it expanding downward as the camshaft activates the rocker arm. This movement must be smooth and exaggerated enough to clearly demonstrate the vacuum effect. Use a translucent diaphragm to allow viewers to see the chamber’s interior, ensuring the mechanism’s operation is visible. Highlight the inlet valve opening as fuel enters, ensuring it’s synchronized with the diaphragm’s expansion for accuracy.
In designing the animation, focus on clarity and realism. The fuel entry should be depicted as a steady stream, with particles or color gradients to represent the liquid’s movement. Label the inlet valve and chamber to avoid confusion, especially for viewers unfamiliar with mechanical systems. A side-by-side comparison of the pump’s cross-section and external view can enhance understanding, showing how the diaphragm’s movement translates to fuel intake. This dual perspective ensures both the internal mechanics and external components are comprehensible.
Practical tips for animators include using a slow-motion effect during the diaphragm’s expansion to emphasize the vacuum creation. Add a subtle sound effect, like a soft whoosh, to reinforce the suction action. For educational purposes, include a timeline or step-by-step breakdown alongside the animation. For instance, mark the first 0.5 seconds as "Diaphragm Expansion," the next 0.3 seconds as "Inlet Valve Opens," and the final 0.7 seconds as "Chamber Filling." This structured approach aids retention and clarity.
A persuasive argument for this animation style is its ability to bridge the gap between theory and practice. By visually breaking down the suction stroke, learners can better grasp how mechanical fuel pumps operate under real-world conditions. For example, showing fuel entering the chamber at a rate of 2-3 liters per minute (typical for small engines) adds a layer of realism. This specificity not only educates but also builds confidence in troubleshooting or maintaining such systems.
Finally, consider the animation’s application in different contexts. For automotive training, emphasize the pump’s role in carbureted engines, where consistent fuel delivery is crucial. For hobbyists, focus on the pump’s simplicity and reliability compared to electric alternatives. By tailoring the animation’s details—such as diaphragm material (rubber vs. synthetic) or valve design—to the audience, its utility expands. This adaptability ensures the animation remains a versatile tool for diverse learners.
Understanding the Fuel Pump System in a 190E Mercedes-Benz
You may want to see also
Explore related products
Compression Stroke Animation: Depict diaphragm compression, inlet valve closure, and fuel discharge through outlet valve
The compression stroke in a mechanical fuel pump is a critical phase where the diaphragm’s movement transforms potential energy into kinetic force, propelling fuel through the system. To animate this, begin by illustrating the diaphragm in its relaxed state, allowing fuel to enter via the open inlet valve. As the camshaft rotates, the diaphragm is pushed inward, compressing the fuel chamber. This action forces the inlet valve to close, sealing the chamber and ensuring no fuel escapes backward. Simultaneously, the pressure builds until it overcomes the resistance of the outlet valve, which then opens, discharging fuel into the carburetor or fuel line. Use a color gradient to show pressure changes—blue for low pressure, red for high—to make the process visually intuitive.
Instructively, the animation should follow a step-by-step sequence to clarify the mechanics. Start with the diaphragm at rest, then show the camshaft’s lobe pressing against the diaphragm’s center, causing it to flex inward. Highlight the inlet valve’s closure with a distinct snapping motion, emphasizing its role in preventing backflow. Next, depict the fuel molecules compressing tightly within the chamber, building pressure until the outlet valve lifts open. End with the fuel exiting the pump, using a flowing arrow to indicate direction and speed. Include a timeline at the bottom of the animation to synchronize each action with the camshaft’s rotation, ensuring viewers grasp the timing and sequence.
Comparatively, while electric fuel pumps rely on continuous motor operation, mechanical pumps depend on the engine’s reciprocating motion, making their compression stroke uniquely tied to the camshaft’s rhythm. This distinction is key to understanding why mechanical pumps are less common in modern vehicles but remain essential in carbureted engines. Animate this contrast by splitting the screen: one side shows a mechanical pump’s diaphragm compressing in sync with the camshaft, while the other depicts an electric pump’s steady, motor-driven operation. Label each component differently (e.g., green for mechanical, blue for electric) to highlight their differences.
Persuasively, a well-executed compression stroke animation can demystify the inner workings of a mechanical fuel pump, making it an invaluable tool for mechanics, students, and DIY enthusiasts. Focus on realism by incorporating subtle details like the diaphragm’s flexing material or the valves’ spring tension. Add a cross-sectional view of the pump to reveal internal components, ensuring viewers understand how each part interacts. Include a slow-motion replay option to allow closer inspection of critical moments, such as the outlet valve opening under pressure. By making the animation both educational and engaging, you empower viewers to troubleshoot or maintain their fuel systems with confidence.
Descriptively, imagine the compression stroke as a choreographed dance: the diaphragm flexes inward like a muscle contracting, the inlet valve snaps shut like a trapdoor, and the outlet valve yields gracefully under pressure, releasing fuel in a smooth, controlled stream. Enhance this imagery by adding sound effects—a soft hiss as the inlet valve closes, a faint click when the outlet valve opens. Use dynamic lighting to highlight moving parts, casting shadows that shift with the diaphragm’s motion. For added practicality, include a pressure gauge in the animation, showing values rise from 0 to 4–6 psi as the stroke progresses, providing a tangible metric for viewers to associate with the process.
Testing Your 2010 Chrysler 300's Electric Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Valve Operation Animation: Highlight one-way valve function, ensuring unidirectional fuel flow during pump cycles
A mechanical fuel pump's efficiency hinges on the seamless operation of its one-way valve, a critical component ensuring unidirectional fuel flow. In an animation, this valve’s function should be visually emphasized to clarify its role in maintaining consistent fuel delivery. Start by illustrating the valve’s resting position, typically closed, to block reverse flow. As the pump’s diaphragm or plunger moves, show the valve opening only when pressure differential allows fuel to pass in one direction. Use contrasting colors or motion trails to highlight the fuel’s path, making it clear that backflow is mechanically impossible. This visual clarity helps viewers grasp how the valve safeguards the pump’s effectiveness.
To animate the valve’s operation effectively, break it into distinct phases: idle, compression, and release. During the idle phase, depict the valve as a rigid barrier, sealing the fuel chamber. As compression begins, show the valve flexing or lifting in response to pressure, allowing fuel to flow forward. In the release phase, the valve snaps shut, preventing any backward movement of fuel. Incorporate a split-screen comparison with a malfunctioning valve to underscore the consequences of bidirectional flow, such as fuel starvation or pump damage. This step-by-step approach not only educates but also engages by demonstrating the valve’s dynamic role in real-time pump cycles.
When designing the animation, prioritize simplicity without sacrificing accuracy. Avoid overloading the viewer with unnecessary details; instead, focus on the valve’s material properties (e.g., flexible rubber or spring-loaded metal) and its interaction with the pump mechanism. Add a slow-motion segment to highlight the valve’s instantaneous response to pressure changes, ensuring viewers understand its precision. Include a cross-sectional view of the valve to reveal its internal structure, such as a flapper or ball mechanism, which reinforces the concept of unidirectional flow. Practical tips, like noting how valve wear can lead to fuel leaks, add real-world relevance to the animation.
From a persuasive standpoint, emphasize the one-way valve as the unsung hero of mechanical fuel pumps. Without it, engines would suffer from inconsistent fuel delivery, leading to poor performance or failure. Use dramatic visuals, such as a split-screen showing smooth fuel flow with a functioning valve versus erratic flow without it, to drive home its importance. Include a statistic, like how a worn valve can reduce pump efficiency by up to 30%, to quantify its impact. By framing the valve as indispensable, the animation not only educates but also fosters appreciation for this small yet vital component.
Finally, consider the animation’s practical application in troubleshooting. Include a troubleshooting guide within the animation, such as visual cues for diagnosing valve failure (e.g., fuel backflow or unusual pump noises). Add a call-to-action encouraging viewers to inspect their valves regularly, especially in older vehicles or high-mileage engines. By blending technical explanation with actionable advice, the animation becomes a dual-purpose tool—both educational and utilitarian. This approach ensures the content resonates with mechanics, enthusiasts, and casual learners alike.
Does PCM Control Fuel Pump in Ford F150? Explained
You may want to see also
Explore related products
Camshaft Drive Animation: Illustrate camshaft rotation, lever arm oscillation, and diaphragm actuation timing
The camshaft drive system is the heartbeat of a mechanical fuel pump's operation, orchestrating a precise dance of components to deliver fuel efficiently. To animate this process effectively, start by visualizing the camshaft’s rotation as the primary driver. The camshaft, typically driven by the engine’s timing belt or chain, rotates at half the engine speed, ensuring synchronized fuel delivery with the engine’s intake cycle. Highlight this rotation with a smooth, continuous motion, using color gradients or shading to emphasize the lobes’ movement. This sets the foundation for understanding the subsequent actions of the lever arm and diaphragm.
Next, focus on the lever arm oscillation, which translates the camshaft’s rotary motion into linear movement. As the camshaft lobe rises, it pushes the lever arm upward, creating a rocking motion. This oscillation should be depicted with a clear pivot point and exaggerated movement to illustrate how the arm’s tip engages the diaphragm. Use dashed lines or arrows to show force vectors, ensuring viewers grasp the mechanical advantage and timing of this interaction. The lever arm’s design, often a simple yet robust steel or alloy component, should be rendered with realistic material textures to enhance visual authenticity.
Diaphragm actuation timing is the critical finale of this sequence. As the lever arm presses the diaphragm downward, it compresses the fuel chamber, forcing fuel through the outlet valve. Animate the diaphragm’s flexing with a gradual deformation, emphasizing its elasticity and the pressure buildup. Synchronize this action with the camshaft’s rotation and lever arm’s oscillation, using a timeline or frame-by-frame breakdown to highlight the precise timing. For added clarity, include a pressure gauge animation showing the fuel pressure spike during compression, reinforcing the pump’s functionality.
To enhance the animation’s educational value, incorporate a split-screen comparison of a worn vs. new diaphragm. A degraded diaphragm may exhibit slower response times or incomplete sealing, leading to fuel delivery inefficiencies. This visual contrast underscores the importance of maintenance and component integrity. Additionally, label key components with tooltips or annotations, ensuring viewers can follow the process without prior knowledge. Practical tips, such as checking for diaphragm cracks during routine inspections, can be embedded as on-screen text or voiceover commentary.
Finally, conclude the animation with a slow-motion replay of the entire cycle, allowing viewers to absorb the intricate timing and interplay of components. Pair this with a simplified schematic overlay, highlighting the camshaft, lever arm, and diaphragm in isolation. This dual presentation reinforces learning and caters to both visual and analytical learners. By combining technical accuracy with engaging visuals, the animation becomes a powerful tool for understanding the camshaft drive system’s role in mechanical fuel pump operation.
Does the BCM Control the Fuel Pump? Exploring the Connection
You may want to see also
Frequently asked questions
A mechanical fuel pump is a device used in internal combustion engines to draw fuel from the tank and deliver it to the carburetor or fuel injection system. It operates using the motion of the engine, typically driven by a camshaft or eccentric lobe, which moves a diaphragm or plunger to create suction and pressure, forcing fuel through the system.
In an animation, a diaphragm-type mechanical fuel pump shows the diaphragm being pushed and pulled by a lever connected to the camshaft. When the diaphragm is pulled outward, it creates a vacuum, drawing fuel into the pump. When it is pushed inward, the fuel is pressurized and pushed out through the outlet, delivering it to the engine.
An animation of a mechanical fuel pump typically highlights the inlet and outlet valves, diaphragm or plunger, camshaft or eccentric lobe, and the housing. It demonstrates how the camshaft’s rotation drives the diaphragm or plunger, how the valves open and close to control fuel flow, and how the fuel is transferred from the tank to the engine.
