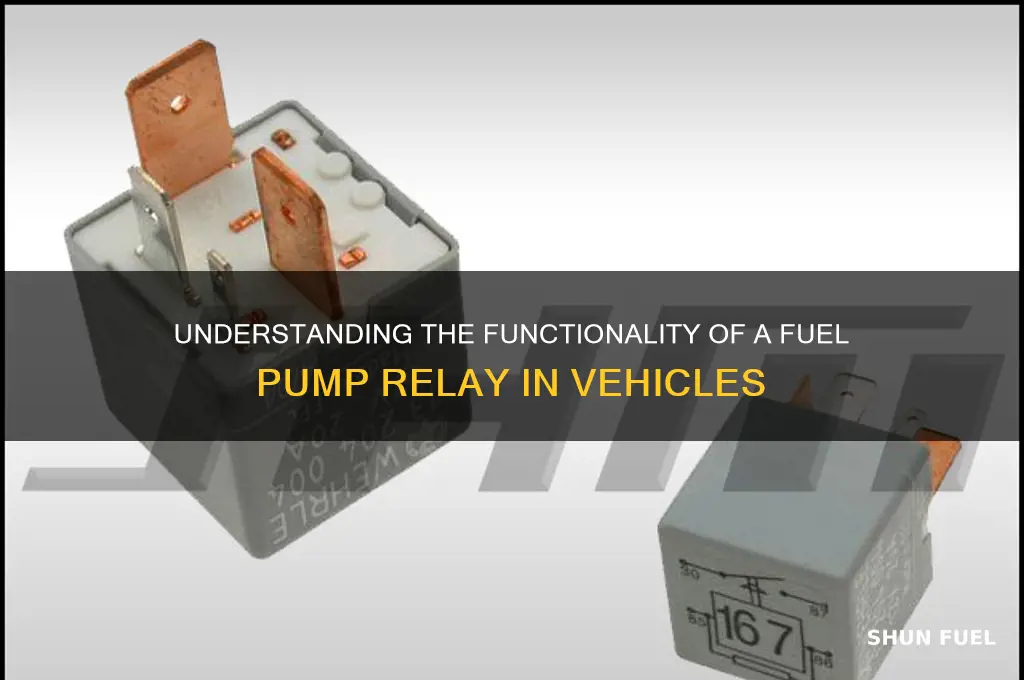

A fuel pump relay is a crucial component in a vehicle's fuel system, acting as an electrical switch that controls the power supply to the fuel pump. When the ignition is turned on, the relay receives a signal from the engine control unit (ECU) or ignition switch, which activates the relay, allowing current to flow to the fuel pump. This ensures the pump operates only when necessary, conserving energy and preventing the fuel system from running continuously. The relay typically consists of a coil, contacts, and a set of terminals, with the coil generating a magnetic field when energized, which closes the contacts and completes the circuit to the fuel pump. If the relay fails, the fuel pump may not receive power, leading to engine stalling or failure to start, making it essential to understand its operation for proper vehicle maintenance and troubleshooting.
| Characteristics | Values |
|---|---|
| Function | Controls the power supply to the fuel pump, ensuring it operates only when needed. |
| Location | Typically found in the fuse box or relay panel under the hood or near the fuel pump. |
| Power Source | Draws power from the vehicle's battery through the ignition switch. |
| Activation | Activated when the ignition is turned on, sending power to the fuel pump. |
| Deactivation | Deactivates when the ignition is turned off, cutting power to the fuel pump. |
| Priming Feature | Some relays include a priming function to activate the fuel pump briefly when the ignition is first turned on. |
| Protection | Protects the fuel pump from running continuously, reducing wear and fire risk. |
| Components | Includes a coil, contacts, and a switch mechanism. |
| Voltage | Operates on the vehicle's standard voltage (usually 12V). |
| Current Handling | Designed to handle the high current required by the fuel pump. |
| Failure Symptoms | Engine stalling, difficulty starting, or no fuel delivery if the relay fails. |
| Diagnostic Methods | Tested using a multimeter to check for continuity and proper switching. |
| Replacement | Relays are typically replaced as a whole unit if faulty. |
| Compatibility | Must match the vehicle's specific fuel pump and electrical system requirements. |
| Safety Feature | Prevents fuel pump operation in case of accidents or electrical faults. |
| Durability | Designed to withstand high temperatures and vibrations under the hood. |
Explore related products
What You'll Learn
- Relay Basics: Electromagnetic switch controls fuel pump power, activated by ignition signal
- Circuit Operation: Relay connects battery to pump when energized, ensuring efficient power flow
- Failure Symptoms: Pump inoperative, engine stalls, or fails to start due to relay malfunction
- Testing Methods: Use multimeter to check continuity, voltage, and resistance across relay terminals
- Replacement Process: Locate relay, disconnect battery, swap faulty relay with compatible replacement securely
Relay Basics: Electromagnetic switch controls fuel pump power, activated by ignition signal
The fuel pump relay is a critical component in modern vehicles, acting as the gatekeeper for power delivery to the fuel pump. At its core, this relay is an electromagnetic switch that responds to the ignition signal, ensuring the fuel pump operates only when necessary. This mechanism is essential for efficiency and safety, preventing the pump from running continuously and reducing the risk of fuel system issues. Understanding its function begins with recognizing its role as a responsive, energy-efficient switch.
To grasp how this relay works, imagine a simple on-off switch controlled by a magnet. When the ignition key is turned, the vehicle’s computer sends a low-power signal to the relay. This signal energizes a coil inside the relay, creating a magnetic field that pulls a switch closed. Once closed, the switch allows high-current power from the battery to flow directly to the fuel pump, activating it. This design ensures the pump doesn’t draw power unless the engine is in operation, conserving energy and extending the pump’s lifespan.
One practical example of this system in action is during engine startup. When the ignition is engaged, the relay receives a signal, typically around 12 volts, which triggers the electromagnetic coil. This action completes the circuit, delivering up to 20 amps of power to the fuel pump. Without the relay, the ignition switch would have to handle this high current directly, leading to premature wear and potential failure. The relay acts as a buffer, protecting the ignition system while ensuring reliable fuel delivery.
A key takeaway is the importance of maintaining this relay for optimal vehicle performance. Symptoms of a failing relay include difficulty starting the engine, stalling, or a fuel pump that runs continuously. Regularly checking for corrosion, loose connections, or a burnt-out coil can prevent these issues. For DIY enthusiasts, testing the relay involves using a multimeter to verify continuity in the switch contacts when the coil is energized. Replacement relays are typically affordable, costing between $10 and $50, making them an accessible fix for common fuel system problems.
In comparison to older mechanical fuel systems, the electromagnetic relay represents a leap in efficiency and reliability. Its ability to isolate high-current circuits from low-current control signals is a cornerstone of modern automotive design. By understanding this basic principle, drivers and mechanics alike can diagnose and address fuel pump issues more effectively, ensuring their vehicles run smoothly and safely.
Lexus IS250 Fuel Pump Count: Understanding Your Vehicle's System
You may want to see also
Explore related products
Circuit Operation: Relay connects battery to pump when energized, ensuring efficient power flow
The fuel pump relay is a critical component in a vehicle's fuel system, acting as a switch that controls the flow of electricity from the battery to the fuel pump. When the ignition is turned on, the relay receives a signal from the engine control unit (ECU), which energizes the relay's coil. This creates a magnetic field that pulls the relay's contacts together, completing the circuit between the battery and the fuel pump. As a result, the fuel pump receives the necessary power to operate, drawing fuel from the tank and delivering it to the engine.
To understand the efficiency of this process, consider the alternative: a direct connection between the battery and the fuel pump. This would result in a constant draw of power, even when the engine is off, leading to unnecessary battery drain and potential safety hazards. By using a relay, the system ensures that the fuel pump only operates when needed, conserving energy and reducing the risk of electrical issues. For instance, in modern vehicles, the fuel pump relay is often designed to provide a specific current, typically around 10-15 amps, which is sufficient to power the pump without overloading the circuit.
From a practical standpoint, diagnosing a faulty fuel pump relay involves a systematic approach. Start by checking the relay's terminals for corrosion or loose connections, as these can disrupt the circuit. Next, use a multimeter to test the relay's coil resistance, which should typically fall within the range of 50-120 ohms, depending on the vehicle's specifications. If the relay fails this test, it’s likely defective and needs replacement. Additionally, listen for the fuel pump's priming sound when the ignition is turned on; a lack of sound could indicate a relay issue, preventing power from reaching the pump.
Comparing the fuel pump relay to other electrical switches highlights its unique role in managing high-current loads. Unlike a simple toggle switch, the relay uses a low-current signal to control a much higher-current circuit, making it ideal for applications where efficiency and safety are paramount. For example, while a standard light switch directly connects the power source to the load, the fuel pump relay acts as an intermediary, ensuring that the high-current fuel pump circuit is only activated when the ECU deems it necessary. This design minimizes energy waste and protects the system from potential short circuits.
In conclusion, the circuit operation of a fuel pump relay exemplifies a blend of simplicity and ingenuity. By connecting the battery to the pump only when energized, the relay ensures efficient power flow, conserves energy, and enhances system safety. Whether you're troubleshooting a fuel system issue or simply appreciating the mechanics of your vehicle, understanding this process underscores the importance of relays in modern automotive design. Always refer to your vehicle's manual for specific relay specifications and replacement procedures to maintain optimal performance.
2005 Corvette Fuel Pump Count: Unveiling the Exact Number
You may want to see also
Explore related products
Failure Symptoms: Pump inoperative, engine stalls, or fails to start due to relay malfunction
A fuel pump relay is a critical component in a vehicle's fuel system, acting as a switch that controls power to the fuel pump. When the ignition is turned on, the relay energizes, allowing the fuel pump to deliver fuel from the tank to the engine. However, a malfunctioning relay can lead to severe issues, such as the fuel pump becoming inoperative, causing the engine to stall or fail to start. These symptoms often arise from common relay failures, including corroded contacts, internal short circuits, or a broken coil. Diagnosing these issues early can prevent costly repairs and ensure vehicle reliability.
One of the most noticeable failure symptoms is an engine that fails to start, despite a fully functional ignition system. When the fuel pump relay malfunctions, it may not send power to the pump, resulting in a lack of fuel pressure. To troubleshoot, check the relay for clicking sounds when the ignition is turned on—a silent relay often indicates a failure. A practical tip is to swap the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay) to see if the issue resolves. If the engine starts after the swap, the original relay is likely faulty and needs replacement.
Engine stalling while driving is another red flag, often caused by an intermittent relay failure. This occurs when the relay temporarily loses contact, cutting power to the fuel pump and starving the engine of fuel. Drivers may notice the engine sputtering or losing power before stalling. To diagnose, use a multimeter to test the relay’s continuity and voltage output. A reading of 0 volts when the ignition is on confirms a relay malfunction. In such cases, replacing the relay with a high-quality part rated for the vehicle’s voltage (typically 12V) is essential to prevent recurrence.
Preventive maintenance can significantly reduce the risk of relay-related failures. Inspect the relay and its socket for corrosion or loose connections every 30,000 miles or during routine service. Cleaning the contacts with electrical contact cleaner and ensuring a snug fit can extend the relay’s lifespan. Additionally, avoid exposing the relay to excessive heat or moisture, as these conditions accelerate wear. For older vehicles (over 10 years), consider proactively replacing the relay as a precautionary measure, given the increased likelihood of component degradation over time.
In summary, a malfunctioning fuel pump relay can manifest as a non-starting engine, stalling, or an inoperative fuel pump. Diagnosing these issues involves simple tests like relay swapping or multimeter checks, while preventive measures such as regular inspections and timely replacements can mitigate risks. Understanding these failure symptoms and their causes empowers vehicle owners to address problems efficiently, ensuring optimal fuel system performance and vehicle dependability.
How to Prime Your RX8 Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Testing Methods: Use multimeter to check continuity, voltage, and resistance across relay terminals
A faulty fuel pump relay can leave you stranded, but diagnosing the issue doesn't have to be a mystery. A multimeter, a versatile tool found in most toolboxes, becomes your detective in this scenario, allowing you to test the relay's functionality by checking continuity, voltage, and resistance across its terminals.
Understanding these tests empowers you to pinpoint the problem and make informed decisions about repair or replacement.
Continuity: The Path of Least Resistance
Think of continuity as a clear, unobstructed pathway for electricity. To test for continuity, set your multimeter to the continuity setting (often represented by a diode symbol or a sound wave). With the relay disconnected from the circuit, touch the multimeter probes to the corresponding terminals. If the relay is functioning correctly, the multimeter will beep or display a low resistance value, indicating a complete circuit. No beep or a high resistance reading suggests a broken connection within the relay, signaling a likely failure.
Remember, always consult your vehicle's manual for specific terminal designations as they can vary.
Voltage: Powering the Pump
Voltage testing reveals whether the relay is receiving the necessary electrical signal to activate the fuel pump. Set your multimeter to the DC voltage setting and connect the red probe to the relay's power input terminal and the black probe to a good ground. With the ignition on, the multimeter should display battery voltage (typically around 12 volts). If no voltage is present, the issue lies upstream of the relay, possibly in the wiring or the ignition switch.
Resistance: Measuring the Coil's Strength
The relay's coil is an electromagnet that, when energized, pulls the contacts together, completing the circuit to the fuel pump. Measuring resistance across the coil terminals (usually marked as "85" and "86") provides insight into its health. Consult your vehicle's manual for the expected resistance value, typically ranging from 50 to 150 ohms. A significantly higher or lower reading indicates a faulty coil, requiring relay replacement.
Practical Tips for Accurate Testing
- Safety First: Always disconnect the battery before working on any electrical components.
- Clean Connections: Ensure relay terminals are clean and free of corrosion for accurate readings.
- Reference Manual: Your vehicle's manual is your bible for terminal identification and expected values.
- Compare Sides: If your vehicle has a dual-relay system, compare readings between the two relays for consistency.
By mastering these multimeter tests, you can diagnose fuel pump relay issues with confidence, saving time and money on unnecessary repairs. Remember, a systematic approach and attention to detail are key to successful automotive troubleshooting.
Accessing the Fuel Pump in Your 2006 VW Passat: A Guide
You may want to see also
Explore related products
Replacement Process: Locate relay, disconnect battery, swap faulty relay with compatible replacement securely
The fuel pump relay is a critical component in your vehicle's fuel system, acting as a switch that controls power to the fuel pump. When it fails, your engine may struggle to start or stall unexpectedly. Replacing a faulty relay is a straightforward task that can save you from costly repairs or roadside breakdowns. To begin the replacement process, you’ll need to locate the relay, which is typically found in the fuse box under the hood or inside the cabin. Consult your vehicle’s manual for the exact location, as it varies by make and model. Once identified, the relay is usually labeled clearly, making it easy to spot among other fuses and relays.
Before proceeding, safety is paramount. Disconnect the battery to prevent electrical mishaps. This step is non-negotiable, as working on a live electrical system can lead to short circuits or personal injury. Use a wrench or socket to loosen the battery terminal, starting with the negative cable to minimize risk. With the power source disabled, you can safely remove the faulty relay. Most relays are designed for easy removal—simply pull it straight out of its slot. Take note of its orientation and pin configuration, as this will help ensure the new relay is installed correctly.
Swapping the relay requires a compatible replacement. Verify the part number or consult a trusted auto parts supplier to ensure compatibility. A mismatched relay can cause further issues, such as improper voltage regulation or overheating. Once you have the correct part, insert it into the slot with firm, even pressure. Ensure it clicks into place securely, as a loose relay can lead to intermittent power delivery to the fuel pump. Reattach the battery cables, tightening them to the manufacturer’s torque specifications.
After installation, test the system to confirm the repair. Turn the ignition to the "on" position (without starting the engine) and listen for the fuel pump priming, which sounds like a brief humming noise. If the pump engages, start the engine to ensure it runs smoothly. This final step verifies that the relay is functioning correctly and that power is being delivered consistently to the fuel pump. By following these steps meticulously, you can restore your vehicle’s fuel system reliability and avoid future disruptions.
Understanding the Fuel Pump Amp Draw in a 1991 Honda Civic
You may want to see also
Frequently asked questions
A fuel pump relay is an electrical switch that controls the power supply to the fuel pump. It ensures the fuel pump operates only when the engine is running or being started, conserving energy and preventing unnecessary fuel pump wear.
The fuel pump relay works by receiving a signal from the ignition switch or engine control unit (ECU). When activated, it completes the circuit, allowing battery voltage to reach the fuel pump, which then delivers fuel to the engine.
Common symptoms include difficulty starting the engine, stalling, reduced fuel pressure, or a fuel pump that doesn’t run when the ignition is turned on. These issues often indicate the relay is not functioning properly.
Yes, a failing fuel pump relay can cause the engine to stall while driving if it interrupts power to the fuel pump, cutting off the fuel supply to the engine.
You can test a fuel pump relay by checking for continuity using a multimeter, swapping it with a similar relay in the fuse box, or listening for the fuel pump humming sound when the ignition is turned on. If the relay fails these tests, it likely needs replacement.
