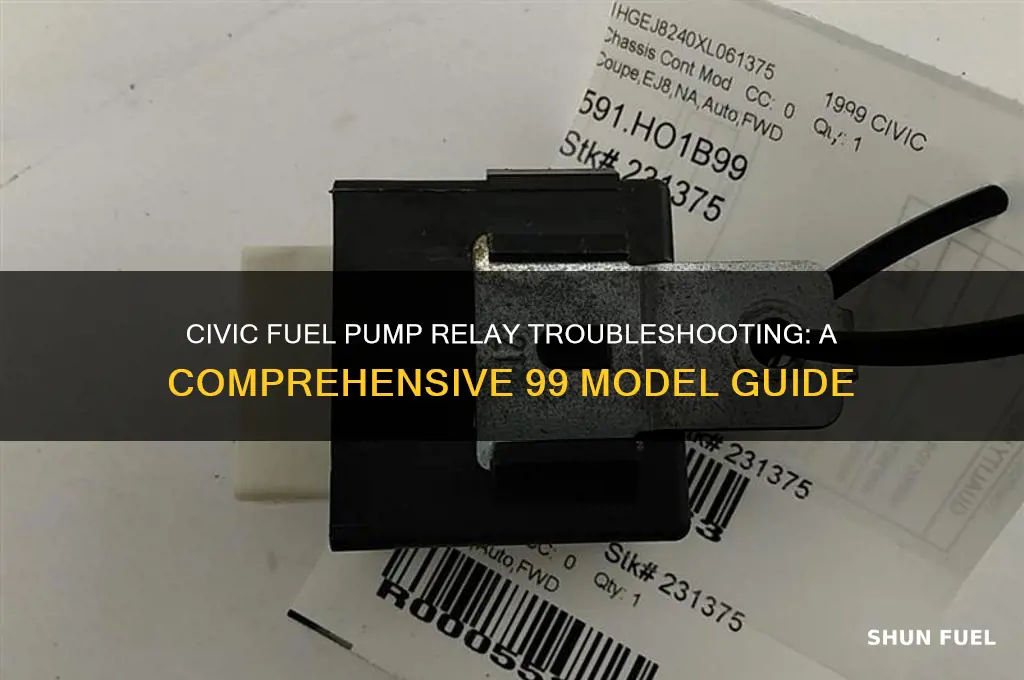

The 99 Civic fuel pump relay is a critical component in the Honda Civic's fuel delivery system, responsible for controlling the power supply to the fuel pump. Located in the under-hood fuse box, this relay ensures that the fuel pump operates only when the engine is running or being started, conserving energy and enhancing safety. Understanding how the 99 Civic fuel pump relay functions is essential for diagnosing common issues such as engine stalling, difficulty starting, or a complete failure to start, as these symptoms often point to a faulty relay. Proper maintenance and timely replacement of this relay can prevent fuel system malfunctions and ensure the vehicle's reliability.
| Characteristics | Values |
|---|---|
| Location | Under the dashboard, near the fuse box or driver's side kick panel. |
| Function | Controls power to the fuel pump, ensuring it operates only when necessary. |
| Pin Configuration | Typically 4-pin relay (two for power input, two for fuel pump control). |
| Voltage | Operates on 12V DC. |
| Resistance | Internal coil resistance usually around 50-150 ohms. |
| Common Issues | Failure to start, stalling, or fuel pump not priming. |
| Testing Method | Use a multimeter to check for continuity and proper switching. |
| Replacement Part Number | Honda part number: 39510-S04-952 or equivalent aftermarket relay. |
| Compatibility | Fits 1996-2000 Honda Civic models (varies by submodel). |
| Price Range | $10-$30 USD (varies by brand and retailer). |
| DIY Difficulty | Moderate (requires locating the relay and basic electrical testing). |
Explore related products
What You'll Learn
- Relay Location and Identification: Find the fuel pump relay in the under-dash fuse box
- Testing the Relay: Use a multimeter to check for continuity and proper function
- Common Symptoms of Failure: Engine no-start, stalling, or whining fuel pump noises
- Replacement Steps: Disconnect battery, swap relay, and reconnect for quick fix
- Preventive Maintenance Tips: Regularly inspect relay and clean connections to avoid issues
Relay Location and Identification: Find the fuel pump relay in the under-dash fuse box
The fuel pump relay in a 1999 Honda Civic is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Located in the under-dash fuse box, this relay acts as a switch, controlling power to the fuel pump. Identifying and accessing it requires a methodical approach, as the under-dash area can be crowded with other components. Start by locating the fuse box, typically positioned near the driver’s left knee, beneath the steering column. It’s a rectangular unit with a removable cover, often labeled with a diagram indicating the position of each fuse and relay.
Once you’ve identified the under-dash fuse box, remove the cover to reveal the array of fuses and relays. The fuel pump relay is usually labeled as "PGM-FI MAIN" or "FUEL PUMP RELAY" on the diagram. If the diagram is missing or unclear, refer to your vehicle’s manual or an online resource specific to the 1999 Civic. The relay itself is a small, cube-shaped component with a plug-in connector. It’s important to note that relays can sometimes be swapped with others of similar appearance, so verify the correct position by cross-referencing the diagram or testing with a multimeter.
To remove the fuel pump relay, gently pull it straight out of its socket. Avoid tugging on the wires, as this can cause damage. If the relay is stubborn, use a flat-head screwdriver to carefully pry it out, taking care not to bend any pins. Testing the relay can be done using a multimeter to check for continuity between the pins, or by swapping it with a known working relay from another position in the fuse box. This diagnostic step is crucial if you suspect the relay is faulty, as a malfunctioning fuel pump relay can lead to starting issues or stalling.
Practical tips for this process include working in a well-lit area to clearly see the components and using a magnetic tray to keep track of screws or small parts. If you’re unsure about any step, consult a professional or a trusted repair guide. Identifying and accessing the fuel pump relay in the under-dash fuse box is a straightforward task with the right approach, ensuring you can troubleshoot or replace it efficiently. This knowledge empowers you to address fuel system issues directly, saving time and potential repair costs.
Fuel Pump Replacement: Timeframe and Tips for a Smooth DIY Repair
You may want to see also
Explore related products
Testing the Relay: Use a multimeter to check for continuity and proper function
A faulty fuel pump relay in a 1999 Honda Civic can lead to poor engine performance or even a no-start condition. Testing the relay with a multimeter is a straightforward way to diagnose the issue before replacing parts unnecessarily. Begin by locating the fuel pump relay, typically found in the under-hood fuse box. Consult your vehicle’s manual for the exact location, as it may vary slightly depending on the trim level. Once identified, remove the relay by pulling it straight out of its socket. This initial step ensures you’re working with the correct component and sets the stage for accurate testing.
To test for continuity, set your multimeter to the ohms (Ω) setting. Identify the relay’s terminals, usually labeled as 30, 87, 85, and 86. Place the multimeter probes on terminals 30 and 87, which correspond to the power input and output. A functional relay should show continuity (low resistance, typically less than 1 ohm) when the circuit is closed. If there’s no continuity, the relay is likely defective. Repeat this test with terminals 85 and 86, which control the relay’s activation. Proper continuity here indicates the internal coil is functioning, but lack of it suggests a broken coil or internal wiring issue.
Beyond continuity, testing the relay’s proper function involves simulating its operation. Apply 12 volts to terminal 85 and ground terminal 86. If the relay is working, you should hear a clicking sound, and continuity between terminals 30 and 87 should be restored. Use the multimeter to confirm this. If the relay fails to click or show continuity under power, it’s time for a replacement. This step ensures the relay not only has intact internal connections but also responds correctly to electrical signals.
Practical tips can streamline the process. Always disconnect the battery before testing to prevent short circuits. If the relay clicks but the fuel pump doesn’t activate, check the pump’s fuse and wiring for faults. Keep a relay diagram handy to avoid terminal confusion. Testing with a known-good relay as a reference can also confirm your diagnosis. By methodically checking continuity and function, you can pinpoint whether the relay is the culprit or if the issue lies elsewhere in the fuel system.
Accessing the Fuel Pump in a 1997 Grand Prix: A Guide
You may want to see also
Explore related products
Common Symptoms of Failure: Engine no-start, stalling, or whining fuel pump noises
A failing fuel pump relay in a 1999 Honda Civic often announces its demise through distinct symptoms that drivers should not ignore. One of the most alarming signs is an engine no-start condition. When the relay fails, it disrupts the electrical circuit that powers the fuel pump, preventing it from delivering fuel to the engine. This results in a vehicle that cranks but refuses to start, leaving drivers stranded. If you’ve recently experienced this issue, check the fuel pump relay first, as it’s a common culprit and a relatively inexpensive fix compared to other fuel system components.
Stalling is another red flag that your fuel pump relay may be on its last legs. Unlike a no-start, stalling occurs when the engine abruptly shuts off while driving. This happens because the relay intermittently fails to supply power to the fuel pump, causing fuel delivery to halt. The engine starves for fuel, leading to a sudden loss of power. If your Civic stalls at random intervals, especially during acceleration or under load, inspect the relay for signs of wear or corrosion. A multimeter can help diagnose the issue by testing for continuity when the relay is engaged.
Whining noises from the fuel tank area are a less obvious but equally critical symptom of relay failure. The fuel pump naturally emits a faint hum during operation, but a loud, persistent whine indicates excessive strain or impending failure. When the relay malfunctions, it can cause the fuel pump to run continuously or operate inefficiently, leading to overheating and premature wear. If you hear unusual noises from the fuel tank, particularly after turning the ignition on but before starting the engine, it’s a strong indicator that the relay or pump itself needs attention.
To address these symptoms, start by locating the fuel pump relay in your 1999 Civic, typically found in the under-hood fuse box. Swap it with a relay of the same type (e.g., another fuel pump relay or one with identical part numbers) to test for immediate improvement. If the issue persists, inspect the wiring harness for damage or loose connections. For long-term reliability, consider replacing the relay with a high-quality OEM or aftermarket part. Regularly cleaning the fuse box contacts with electrical cleaner can also prevent corrosion, a common cause of relay failure in older vehicles.
Understanding Mikuni Single Fuel Pump: Mechanism, Function, and Operation Explained
You may want to see also
Explore related products
Replacement Steps: Disconnect battery, swap relay, and reconnect for quick fix
Before tackling the fuel pump relay replacement on your 1999 Honda Civic, prioritize safety. The car's electrical system operates at 12 volts, enough to cause a nasty shock if mishandled. Always disconnect the negative battery terminal first, using a 10mm wrench. This simple step prevents accidental short circuits and ensures a safe working environment.
Remember, the battery is typically located in the engine bay, and the negative terminal is usually marked with a "-" symbol.
With the battery disconnected, locate the fuel pump relay. In most 99 Civics, it's found in the under-dash fuse/relay box on the driver's side. Consult your owner's manual for the exact location. Relays are often color-coded and labeled, making identification easier. Once located, gently pry out the old relay using a small flathead screwdriver. Be careful not to damage the surrounding components.
Replacing the relay is a straightforward swap. Ensure the new relay is the correct type, matching the part number and pin configuration of the original. Simply insert the new relay into the slot, making sure it clicks securely into place.
After the relay is installed, reconnect the negative battery terminal. Tighten the nut securely with the 10mm wrench. Now, the moment of truth: turn the ignition key to the "On" position (without starting the engine). Listen for the fuel pump to prime – a brief humming sound should be audible from the fuel tank area. If you hear it, you've successfully replaced the fuel pump relay.
If there's no sound, double-check your connections and ensure the new relay is correctly seated. If the problem persists, further diagnosis may be needed.
Stock STI Fuel Pump LPH: Understanding Its Flow Rate and Performance
You may want to see also
Explore related products
Preventive Maintenance Tips: Regularly inspect relay and clean connections to avoid issues
The fuel pump relay in a 1999 Honda Civic is a critical component that ensures your engine receives the necessary fuel for operation. Over time, this relay can accumulate dirt, corrosion, or loose connections, leading to intermittent or complete fuel pump failure. Regular inspection and cleaning of the relay and its connections are simple yet effective preventive measures that can save you from unexpected breakdowns and costly repairs.
Inspection Process: Begin by locating the fuel pump relay, typically found in the under-hood fuse box. Consult your Civic’s manual for the exact position. With the ignition off, remove the relay by gently pulling it straight out of its slot. Visually inspect the relay for signs of damage, such as cracked housing or burnt marks. Also, examine the relay’s pins and the corresponding slots in the fuse box for corrosion, dirt, or debris. Use a bright LED flashlight to ensure no detail is missed.
Cleaning Techniques: If corrosion or dirt is present, clean the relay and its connections using a mixture of baking soda and water (1 tablespoon baking soda to 1 cup water). Dip an old toothbrush into the solution and scrub the relay pins and slots gently. For stubborn corrosion, use electronic contact cleaner, applying it sparingly and allowing it to evaporate completely before reinstallation. Avoid using sandpaper or abrasive materials that can damage the delicate components.
Reinstallation and Testing: Once cleaned, reinsert the relay firmly into its slot, ensuring it clicks into place. Turn the ignition to the "ON" position (without starting the engine) and listen for the fuel pump’s priming cycle, a brief humming sound that confirms the relay is functioning. If the sound is absent or irregular, swap the fuel pump relay with another identical relay in the fuse box (e.g., the AC compressor relay) to determine if the issue lies with the relay itself or the circuit.
Frequency and Additional Tips: Perform this inspection and cleaning every 12 months or 12,000 miles, whichever comes first, as part of your routine maintenance schedule. Keep a log of inspections to track the relay’s condition over time. Additionally, consider applying a thin layer of dielectric grease to the relay pins after cleaning to prevent future corrosion. This proactive approach ensures your 99 Civic’s fuel pump relay remains reliable, minimizing the risk of fuel delivery issues and extending the lifespan of your vehicle’s fueling system.
Mastering Fuel Pump Bypass Adjustment in Product Engineering
You may want to see also
Frequently asked questions
The fuel pump relay in a 1999 Honda Civic is an electrical switch that controls power to the fuel pump. It ensures the pump only operates when the engine is running or being started, conserving energy and preventing unnecessary fuel flow.
The fuel pump relay in a 1999 Honda Civic is typically located under the dashboard on the driver's side, near the fuse box. It may also be found in the under-hood fuse box, depending on the model.
To test the fuel pump relay, use a multimeter to check for continuity across the relay terminals. You can also swap it with a similar relay (e.g., the horn relay) to see if the fuel pump activates. If the pump works with the swapped relay, the original relay is likely faulty.
Symptoms of a bad fuel pump relay include difficulty starting the engine, stalling, or no fuel pressure. The engine may crank but not start, or it may start briefly and then die due to lack of fuel delivery.
To replace the fuel pump relay, locate it in the fuse box, disconnect the battery, remove the old relay by pulling it straight out, and insert the new relay in the same position. Ensure it clicks into place securely, then reconnect the battery and test the system.
