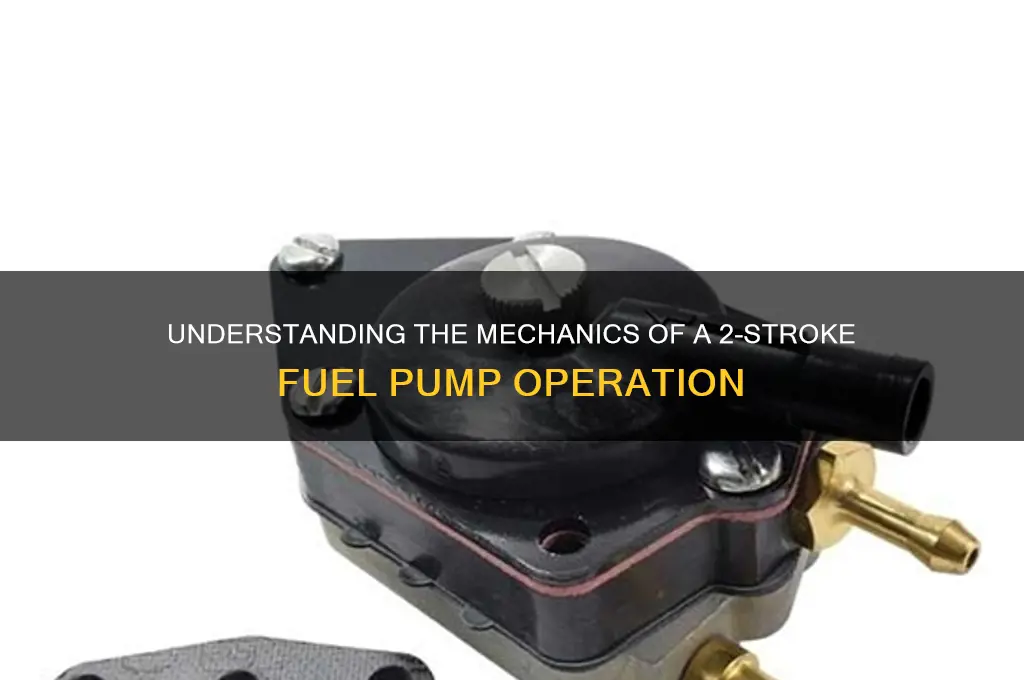

A 2-stroke fuel pump is a critical component in two-stroke engines, designed to deliver a precise mixture of fuel and air to the combustion chamber during each cycle. Unlike four-stroke engines, which have separate intake and compression strokes, two-stroke engines combine these processes into a single cycle, requiring a specialized fuel delivery system. The 2-stroke fuel pump operates by drawing fuel from the tank and metering it into the crankcase or directly into the intake stream, often using a diaphragm or piston mechanism. This system ensures that the correct fuel-air ratio is maintained, enabling efficient combustion and power generation. Understanding how a 2-stroke fuel pump works is essential for optimizing engine performance, troubleshooting issues, and ensuring proper maintenance in applications ranging from motorcycles and outboard motors to chainsaws and small generators.
| Characteristics | Values |
|---|---|
| Operation Principle | Uses a diaphragm or piston to create suction and pressure for fuel delivery. |
| Fuel Delivery | Delivers a precise amount of fuel-oil mixture to the engine for combustion. |
| Cycle Timing | Operates in sync with the 2-stroke engine's intake cycle (every revolution). |
| Power Source | Typically driven by the engine's crankshaft via a mechanical linkage. |
| Fuel-Oil Mixing | Ensures a consistent fuel-oil ratio (e.g., 50:1) for lubrication. |
| Check Valves | Includes inlet and outlet check valves to control fuel flow direction. |
| Diaphragm/Piston Movement | Alternates between suction (draws fuel) and compression (delivers fuel). |
| Pressure Regulation | Maintains optimal fuel pressure for efficient engine performance. |
| Maintenance | Requires periodic cleaning and diaphragm/seal replacement to prevent leaks. |
| Applications | Commonly used in motorcycles, outboard motors, chainsaws, and small engines. |
| Efficiency | High efficiency due to direct mechanical drive and precise fuel metering. |
| Lubrication | Relies on oil mixed with fuel for engine lubrication (no separate oil pump). |
| Design Simplicity | Simple, compact design with fewer moving parts compared to 4-stroke systems. |
| Environmental Impact | Higher emissions due to oil burning in the combustion process. |
| Cost | Generally lower cost compared to more complex fuel injection systems. |
Explore related products
What You'll Learn
- Intake Process: Air-fuel mix enters crankcase via open ports during downward piston movement
- Compression Phase: Piston rises, compressing mix in crankcase and cylinder simultaneously
- Power Stroke: Spark plug ignites mix, forcing piston down and powering the engine
- Exhaust Cycle: Piston uncovers exhaust port, expelling spent gases as fresh mix enters
- Fuel Pump Mechanism: Diaphragm or rotary pump delivers precise fuel-oil mix to intake
Intake Process: Air-fuel mix enters crankcase via open ports during downward piston movement
The intake process in a 2-stroke engine is a symphony of precision and timing, where the downward movement of the piston orchestrates the entry of the air-fuel mixture into the crankcase. As the piston descends, it uncovers the intake ports, creating a pathway for the mixture to flow from the carburetor or fuel injection system into the engine’s lower chamber. This phase is critical because it not only prepares the engine for combustion but also assists in scavenging residual exhaust gases from the previous cycle. The simplicity of this design allows for lightweight, high-power-to-weight ratio engines, making 2-strokes popular in motorcycles, outboard motors, and chainsaws.
To visualize this process, imagine a piston moving downward in a cylinder, creating a partial vacuum in the crankcase. This vacuum draws the air-fuel mixture through the open intake ports, which are strategically positioned in the cylinder wall. The timing of this event is crucial; the ports must open at the right moment to ensure optimal filling of the crankcase. In a typical 2-stroke engine, the intake port opens when the piston is about 20 to 30 degrees before bottom dead center (BDC), allowing sufficient time for the mixture to enter before the piston begins its upward stroke. This timing ensures that the crankcase is fully charged with the air-fuel mixture, ready to be compressed and transferred into the combustion chamber.
One practical tip for maintaining efficiency during this process is to ensure the intake ports and carburetor (or fuel injection system) are clean and free of debris. Clogged ports or a malfunctioning carburetor can disrupt the flow of the air-fuel mixture, leading to poor engine performance or even failure. Regular maintenance, such as cleaning the carburetor jets and inspecting the intake ports for carbon buildup, can prevent these issues. For example, a carburetor cleaner with a 50:1 ratio of cleaner to water can effectively remove deposits without damaging internal components. Additionally, using a fuel stabilizer in the gas tank can prevent varnish buildup, ensuring consistent fuel delivery to the intake system.
Comparatively, the intake process in a 2-stroke engine differs significantly from that of a 4-stroke engine, where the crankcase is sealed and does not play a role in the intake cycle. In a 2-stroke, the crankcase acts as a pressurization chamber, relying on the piston’s movement to draw in and compress the air-fuel mixture. This design eliminates the need for valves, reducing complexity and weight but also requiring precise timing and lubrication, typically achieved by mixing oil with the fuel. For instance, a common oil-to-fuel ratio for 2-stroke engines is 50:1, ensuring adequate lubrication of the piston, cylinder, and crankshaft during operation.
In conclusion, the intake process in a 2-stroke engine is a finely tuned operation that leverages the piston’s downward movement to draw the air-fuel mixture into the crankcase. Understanding the timing, mechanics, and maintenance requirements of this process is essential for optimizing engine performance and longevity. By keeping the intake system clean, using the correct fuel-oil mixture, and ensuring precise port timing, enthusiasts and mechanics can maximize the efficiency and reliability of 2-stroke engines in various applications.
Fuel Pump and Sending Unit Compatibility: How They Work Together
You may want to see also
Explore related products
Compression Phase: Piston rises, compressing mix in crankcase and cylinder simultaneously
The compression phase in a 2-stroke engine is a symphony of simultaneous actions, where the piston’s upward movement orchestrates a dual compression process. As the piston rises, it compresses the air-fuel mixture in the cylinder, preparing it for ignition. Simultaneously, the piston’s movement creates a partial vacuum in the crankcase, compressing a fresh charge of air-fuel mix drawn in during the intake stroke. This dual compression is critical for the engine’s efficiency, ensuring a potent combustion event while priming the next cycle.
To visualize this, imagine a piston moving upward in a sealed cylinder. The space above the piston shrinks, compressing the mixture to a ratio typically between 8:1 and 12:1, depending on the engine design. Below the piston, the crankcase acts as a secondary compression chamber. A reed valve or rotary valve ensures the fresh mixture enters the crankcase during the intake stroke but remains sealed during compression, allowing it to be pressurized. This pressurized mix in the crankcase is essential for the subsequent transfer phase, where it will be forced into the cylinder.
One practical tip for maintaining optimal compression is to regularly inspect the piston rings and cylinder walls for wear. Worn components can reduce compression efficiency, leading to poor performance and increased fuel consumption. For small engines like those in motorcycles or chainsaws, a compression test using a gauge can diagnose issues. A healthy 2-stroke engine should register between 100 and 130 psi, though this varies by design. If readings fall below 80 psi, consider a rebuild or replacement.
Comparatively, 4-stroke engines compress only the cylinder’s mixture during their dedicated compression stroke, while the crankcase remains at atmospheric pressure. In contrast, the 2-stroke’s simultaneous compression in both cylinder and crankcase allows for a lighter, simpler design, ideal for applications requiring high power-to-weight ratios, such as outboard motors or dirt bikes. However, this efficiency comes with trade-offs, including higher emissions and oil consumption, as oil must be mixed with fuel to lubricate the engine.
In conclusion, the compression phase in a 2-stroke engine is a masterclass in multitasking. By compressing the mixture in both the cylinder and crankcase simultaneously, it maximizes efficiency and power output within a compact design. Understanding this process not only highlights the engine’s ingenuity but also underscores the importance of maintenance to preserve its performance. Whether you’re tuning a racing kart or servicing a lawnmower, mastering this phase ensures your 2-stroke engine runs at its best.
Testing a 1997 Dodge Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
$126.99 $133.69
Power Stroke: Spark plug ignites mix, forcing piston down and powering the engine
The power stroke is the moment of truth in a 2-stroke engine's cycle, where the spark plug ignites the air-fuel mixture, transforming chemical energy into mechanical power. This process begins as the piston nears the top of its compression stroke. The spark plug fires, creating a controlled explosion that drives the piston downward with significant force. This downward movement is the power stroke, the phase that actually propels the engine and, by extension, the vehicle or machinery it powers. Understanding this step is crucial, as it’s the heart of the engine’s functionality and efficiency.
To maximize the effectiveness of the power stroke, the air-fuel mixture must be precisely timed and optimally compressed. The spark plug typically ignites the mixture when the piston is about 10 to 20 degrees before top dead center (BTDC). This timing ensures that the expanding gases have maximum leverage to push the piston down. For example, in a high-performance 2-stroke motorcycle engine, the ignition timing might be fine-tuned to 15° BTDC to balance power output and fuel efficiency. Proper timing is critical; too early or too late can result in reduced power, increased fuel consumption, or even engine damage.
The power stroke’s efficiency also depends on the quality of the air-fuel mixture and the compression ratio. A lean mixture (more air, less fuel) may burn slower, reducing power, while a rich mixture (more fuel, less air) can lead to incomplete combustion and wasted fuel. For instance, a 2-stroke outboard motor might operate optimally with a fuel-to-oil ratio of 50:1, ensuring lubrication without compromising combustion efficiency. Additionally, a higher compression ratio, often around 8:1 to 10:1 in 2-stroke engines, increases the force of the power stroke by packing more air-fuel mixture into the cylinder.
Practical tips for maintaining a strong power stroke include regular spark plug replacement, as worn plugs can cause misfires or incomplete combustion. For small engines like those in chainsaws or weed trimmers, replacing the spark plug every 100 hours of operation is a good rule of thumb. Another tip is to use high-quality, clean fuel to prevent carbon buildup, which can interfere with proper combustion. For enthusiasts tuning their 2-stroke engines, experimenting with ignition timing adjustments in 1° increments can help find the "sweet spot" for maximum power without overheating.
In comparison to 4-stroke engines, the 2-stroke power stroke is more intense but occurs less frequently relative to crankshaft rotation. While a 4-stroke engine completes one power stroke every two crankshaft rotations, a 2-stroke engine achieves this with every single rotation. This makes 2-stroke engines lighter and simpler but also more fuel-hungry and emissions-prone. However, their high power-to-weight ratio makes them ideal for applications like dirt bikes, jet skis, and model airplanes, where weight and simplicity are prioritized over fuel efficiency.
Does Your Fuel Pump Run Constantly? Understanding Its Operation and Issues
You may want to see also
Explore related products
Exhaust Cycle: Piston uncovers exhaust port, expelling spent gases as fresh mix enters
The exhaust cycle in a 2-stroke engine is a symphony of precision and timing, where the piston’s movement orchestrates the expulsion of spent gases and the introduction of a fresh fuel-air mixture in a single stroke. As the piston nears the bottom of its power stroke, it begins to uncover the exhaust port, a strategically placed opening in the cylinder wall. This moment is critical: the pressure differential between the cylinder and the exhaust system creates a rapid outflow of combustion byproducts, clearing the way for the next cycle. The process is not just about removal; it’s a choreographed exchange, where the inertia of the outgoing gases helps draw in the fresh mixture through the intake port, which opens shortly after. This scavenging effect is a hallmark of 2-stroke efficiency, but it demands exacting port timing and piston design to maximize performance.
To visualize this, imagine a high-speed dance: the piston drops, the exhaust port opens, and spent gases rush out like a curtain falling. Simultaneously, the intake port—often located opposite the exhaust—begins to allow the fresh fuel-air mix into the crankcase or directly into the cylinder, depending on the engine design. This overlap is deliberate, leveraging the momentum of the exhaust flow to create a partial vacuum that pulls in the new mixture. For optimal scavenging, the exhaust port is typically larger and opens earlier than the intake, ensuring complete evacuation of combustion residues. In racing applications, tuning this timing can involve adjusting port heights or using expandable exhausts to fine-tune the flow dynamics, often increasing power by 5-10% in high-performance setups.
One practical challenge in this cycle is ensuring complete expulsion of exhaust gases without losing too much of the incoming fresh charge. Incomplete scavenging can lead to fuel wastage and reduced power, while excessive overlap may cause "short-circuiting," where the fresh mix exits directly through the exhaust. Engineers address this through careful port design, often incorporating deflectors or reed valves to direct flow. For DIY enthusiasts, a simple tip is to inspect the exhaust port for carbon buildup, which can alter timing and reduce efficiency. Cleaning with a carbide burr and ensuring proper port alignment can restore performance, particularly in older engines.
Comparatively, the exhaust cycle in a 2-stroke engine differs significantly from its 4-stroke counterpart, where exhaust and intake occur in separate strokes. This consolidation in 2-strokes allows for higher power-to-weight ratios but introduces complexities in managing gas flow. For instance, in marine outboard motors, the exhaust cycle must account for water cooling, with ports designed to expel gases underwater without compromising efficiency. Here, the timing is even more critical, as improper scavenging can lead to overheating or hydrolocking. Mechanics often recommend using a 50:1 fuel-oil ratio in these engines to ensure adequate lubrication during the rapid exhaust and intake phases.
In conclusion, the exhaust cycle in a 2-stroke engine is a masterclass in simultaneous expulsion and induction, relying on precise timing and port design to optimize performance. Whether in a chainsaw, motorcycle, or boat engine, understanding this process allows for better maintenance and tuning. For those troubleshooting, focus on port cleanliness, timing, and mixture ratios—small adjustments here can yield significant gains in power and efficiency. This cycle’s elegance lies in its simplicity, but its effectiveness depends on meticulous attention to detail.
Understanding the Fuel Pump Setup in a Mag 350 MPI Engine
You may want to see also
Explore related products
Fuel Pump Mechanism: Diaphragm or rotary pump delivers precise fuel-oil mix to intake
In a 2-stroke engine, the fuel pump mechanism is a critical component that ensures the precise delivery of the fuel-oil mixture to the intake. Two primary types of pumps dominate this role: diaphragm and rotary pumps. Each operates on distinct principles but shares the common goal of maintaining the correct fuel-oil ratio, typically around 50:1, depending on the engine specifications. The diaphragm pump uses a flexible membrane that moves up and down, creating a vacuum to draw fuel from the tank and push it toward the carburetor. In contrast, a rotary pump employs a spinning mechanism to generate pressure and move the mixture. Both designs are engineered to handle the unique demands of 2-stroke engines, which require a continuous, accurately measured supply of lubricated fuel.
Consider the diaphragm pump, often favored for its simplicity and reliability. As the engine runs, a mechanical linkage activates the diaphragm, causing it to flex and create suction. This action pulls the fuel-oil mix from the tank into the pump chamber. On the return stroke, the mixture is forced through an outlet valve and into the carburetor. One advantage of this design is its ability to self-prime, making it less prone to airlocks. However, it’s essential to inspect the diaphragm regularly for cracks or wear, as these can lead to leaks or inconsistent fuel delivery. For small engines like those in chainsaws or outboard motors, a diaphragm pump is often the go-to choice due to its compact size and low maintenance requirements.
Rotary pumps, on the other hand, offer a more sophisticated solution, particularly for high-performance 2-stroke applications. These pumps use a gear or vane mechanism to create a steady flow of fuel. The rotating components generate pressure, ensuring a consistent supply even at high engine speeds. This makes rotary pumps ideal for motorcycles, snowmobiles, or marine engines where precision and reliability are paramount. However, their complexity can lead to higher costs and potential maintenance issues, such as worn gears or clogged passages. To mitigate this, regular cleaning and the use of high-quality fuel additives are recommended to prevent debris buildup.
When selecting between a diaphragm and rotary pump, consider the engine’s operating conditions and performance needs. For casual users or applications with intermittent use, a diaphragm pump’s simplicity and cost-effectiveness make it a practical choice. Conversely, enthusiasts or professionals requiring peak performance may opt for a rotary pump despite its higher maintenance demands. Regardless of the type, ensuring the pump delivers the correct fuel-oil ratio is non-negotiable. An improper mix can lead to excessive smoke, poor lubrication, or engine damage. Always refer to the manufacturer’s guidelines for the recommended ratio and inspect the pump periodically to guarantee optimal function.
In practice, troubleshooting a fuel pump issue begins with checking for leaks or blockages. If the engine sputters or fails to start, verify that the pump is delivering fuel by disconnecting the fuel line and cranking the engine. If no fuel flows, the pump may be faulty. For diaphragm pumps, replace the diaphragm if it’s damaged; for rotary pumps, disassemble and clean the internal components. Additionally, ensure the fuel tank vent is clear to prevent vacuum lock, which can starve the pump of fuel. By understanding the mechanics and maintenance of these pumps, users can prolong the life of their 2-stroke engines and maintain efficient operation.
Accessing the Fuel Pump in Your 2006 VW Passat: A Guide
You may want to see also
Frequently asked questions
A 2-stroke fuel pump is designed to deliver fuel to the engine in a 2-stroke engine, which completes a power cycle in one crankshaft revolution. Unlike 4-stroke engines, 2-stroke engines require oil to be mixed with the fuel for lubrication, and the fuel pump often works in conjunction with this oil-fuel mixture. The pump typically operates at a higher frequency and delivers a precise amount of fuel for each combustion cycle.
A 2-stroke fuel pump works by drawing fuel from the tank and delivering it to the carburetor or directly into the engine’s intake system. It operates in sync with the engine’s crankshaft, using a diaphragm or piston mechanism to create suction and pressure. The pump ensures a consistent fuel supply for each power stroke, which occurs every revolution of the crankshaft in a 2-stroke engine.
The key components of a 2-stroke fuel pump include the fuel inlet, outlet, diaphragm or piston, check valves, and a cam or eccentric drive mechanism. The diaphragm or piston moves to create a vacuum, drawing fuel into the pump, while check valves ensure one-way fuel flow. The drive mechanism is typically connected to the engine’s crankshaft for synchronized operation.
Common issues with 2-stroke fuel pumps include clogged fuel filters, worn diaphragms, leaking seals, or improper fuel delivery. To fix these, clean or replace the fuel filter, inspect and replace the diaphragm if damaged, ensure seals are tight, and adjust the pump’s timing if necessary. Regular maintenance and using clean fuel can prevent many of these problems.
