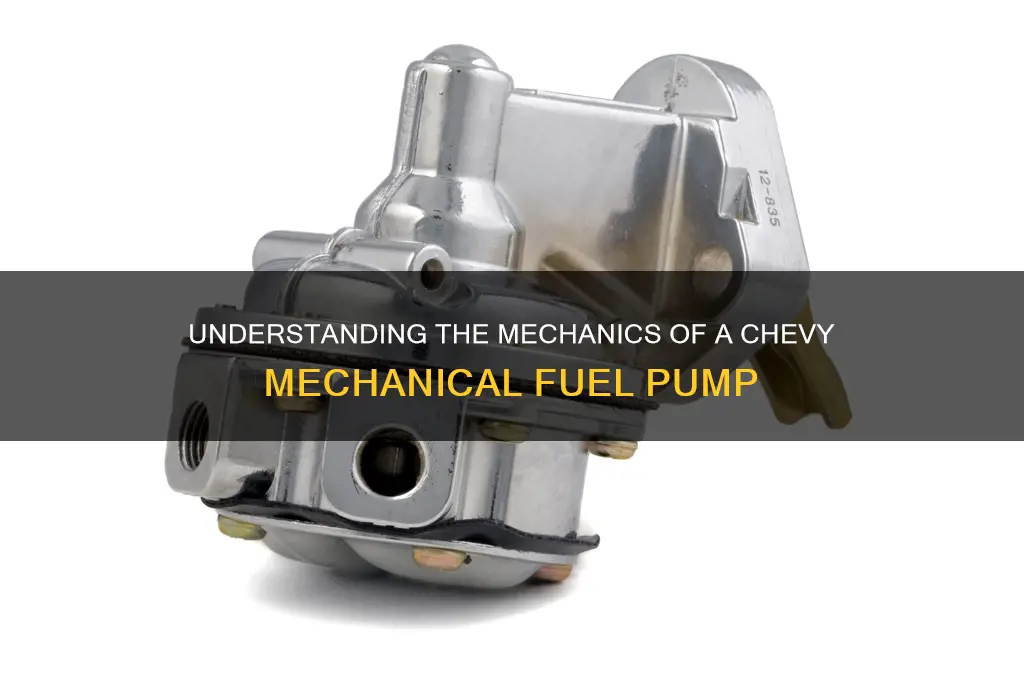

A Chevy mechanical fuel pump is a vital component in older carbureted engines, responsible for drawing fuel from the tank and delivering it to the carburetor under consistent pressure. Unlike modern electric fuel pumps, this pump is driven by the engine's camshaft via an eccentric lobe, which actuates a diaphragm inside the pump. As the diaphragm moves, it creates a vacuum that draws fuel through the inlet valve, then compresses it and forces it out through the outlet valve to the carburetor. The pump's operation is synchronized with the engine's rhythm, ensuring a steady fuel supply to maintain combustion. Its simplicity and reliability make it a hallmark of classic Chevrolet engineering, though it requires periodic maintenance to prevent leaks or failures that could disrupt engine performance.
| Characteristics | Values |
|---|---|
| Type | Mechanical, diaphragm-operated |
| Location | Typically mounted on the engine block near the carburetor |
| Operation | Driven by a camshaft lobe, creating a vacuum to draw fuel |
| Fuel Flow Direction | One-way, from fuel tank to carburetor |
| Pressure Regulation | None (relies on carburetor float bowl for pressure control) |
| Fuel Delivery | Continuous flow while engine is running |
| Priming | Requires manual priming if fuel lines are dry |
| Maintenance | Periodic inspection for leaks, diaphragm replacement as needed |
| Compatibility | Designed for carbureted Chevrolet engines (e.g., small-block V8) |
| Material | Typically cast iron or aluminum body with rubber diaphragm |
| Failure Symptoms | Hard starting, stalling, or loss of power due to insufficient fuel delivery |
| Replacement Interval | Varies, but typically replaced if leaking or failing to pump fuel |
| Advantages | Simple design, reliable, no electrical components |
| Disadvantages | Limited fuel pressure, not suitable for fuel injection systems |
Explore related products
$22.97
What You'll Learn
- Pump Diaphragm Operation: Diaphragm flexes, creating vacuum to draw fuel from tank into pump
- Check Valve Function: One-way valves ensure fuel flows only toward carburetor, preventing backflow
- Camshaft Drive Mechanism: Eccentric lobe on camshaft actuates pump lever for diaphragm movement
- Fuel Inlet and Outlet: Inlet draws fuel, outlet pushes it to carburetor under pressure
- Pressure Regulation: Pump maintains consistent fuel pressure for efficient engine combustion
Pump Diaphragm Operation: Diaphragm flexes, creating vacuum to draw fuel from tank into pump
The diaphragm in a Chevy mechanical fuel pump is the unsung hero of the fuel delivery system. This thin, flexible membrane, typically made of durable materials like nitrile rubber or neoprene, undergoes a rhythmic flexing motion that drives the entire operation. When the diaphragm is drawn downward, it expands the pump chamber, creating a low-pressure zone—a vacuum. This vacuum acts like a magnet, pulling fuel from the tank through the inlet valve and into the pump. Think of it as a mechanical lung, inhaling fuel with each downward stroke.
This flexing action is initiated by the pump’s eccentric cam, which is driven by the engine’s rotation. As the cam lobe presses against the diaphragm’s actuating arm, it forces the diaphragm downward, stretching it like a drumhead. This movement is precise and repetitive, ensuring a steady flow of fuel. The diaphragm’s flexibility is critical; it must withstand thousands of cycles without fatiguing or losing its sealing ability. A worn or cracked diaphragm will compromise the vacuum, leading to poor fuel delivery and engine performance issues.
The vacuum created by the diaphragm’s flexing is not just a passive force—it’s a carefully engineered phenomenon. The strength of the vacuum depends on the diaphragm’s material, thickness, and the speed of the engine. At idle, the diaphragm flexes slower, creating a milder vacuum suitable for low fuel demand. As RPMs increase, the flexing accelerates, generating a stronger vacuum to meet the engine’s higher fuel requirements. This adaptability is what makes mechanical fuel pumps reliable across varying driving conditions.
Maintaining the diaphragm’s integrity is essential for long-term pump performance. Regular inspection for cracks, tears, or hardening is recommended, especially in older vehicles. If the diaphragm fails, fuel flow becomes inconsistent, leading to symptoms like stalling, hesitation, or difficulty starting. Replacement diaphragms are typically inexpensive and can be installed as part of a pump rebuild kit. For DIY enthusiasts, ensure the new diaphragm is properly seated and secured to maintain an airtight seal, as even a small leak can disrupt the vacuum.
In comparison to electric fuel pumps, the mechanical diaphragm system is simpler and more robust, relying on the engine’s motion rather than external power. However, it’s also more sensitive to contamination—dirt or debris in the fuel can abrade the diaphragm, shortening its lifespan. Using a fuel filter and high-quality gasoline can mitigate this risk. Understanding the diaphragm’s role and operation not only demystifies the fuel pump’s function but also empowers owners to diagnose and address issues before they escalate.
Fuel Pump Replacement: Timeframe and Tips for a Smooth DIY Repair
You may want to see also
Explore related products
Check Valve Function: One-way valves ensure fuel flows only toward carburetor, preventing backflow
Fuel flow in a Chevy mechanical fuel pump is a one-way street, thanks to the check valve. This unassuming component, often overlooked, plays a critical role in maintaining consistent fuel delivery to the carburetor. Imagine a bustling highway where traffic only moves in one direction – that's the check valve's job. It allows fuel to be pushed towards the carburetor under pressure but slams shut when the pump cycle reverses, preventing any backflow. This ensures a steady supply of fuel, crucial for smooth engine operation.
Without this one-way traffic control, fuel could slosh back into the tank during the pump's intake stroke, leading to air pockets, inconsistent fuel delivery, and ultimately, engine performance issues.
Think of the check valve as a bouncer at an exclusive club – only fuel molecules with the right "direction" are allowed entry. This valve typically consists of a ball and seat mechanism. When the pump diaphragm pushes fuel forward, the ball lifts off the seat, allowing passage. During the intake stroke, when the diaphragm retracts, the ball is forced back onto the seat, sealing the pathway and preventing fuel from retreating. This simple yet ingenious design ensures a continuous flow of fuel, vital for the carburetor to mix air and fuel in the precise ratio needed for combustion.
This mechanism is particularly important in mechanical fuel pumps, which rely on the engine's camshaft for operation. The pump's cyclical nature means that without a check valve, fuel pressure would fluctuate wildly, leading to erratic engine behavior.
The check valve's effectiveness is paramount, especially during engine startup. When you turn the key, the pump needs to quickly build up pressure to deliver fuel to the carburetor. A faulty check valve, one that leaks or fails to seal properly, would allow fuel to drain back into the tank during this critical phase, making starting difficult or even impossible. Regular inspection and replacement of the check valve, especially in older vehicles, is crucial for maintaining optimal fuel system performance.
A telltale sign of a failing check valve is a hard starting condition, particularly after the vehicle has been sitting for a while. If you suspect a problem, a simple pressure test can help diagnose the issue.
In essence, the check valve is the unsung hero of the Chevy mechanical fuel pump, ensuring a one-way flow of fuel and preventing the chaos of backflow. Its simple design belies its importance, as it plays a vital role in maintaining engine performance and reliability. Understanding its function and recognizing the signs of potential failure can help car enthusiasts and mechanics alike keep their classic Chevys running smoothly.
Understanding the PSI Rating of a 1994 Ford F150 Fuel Pump
You may want to see also
Explore related products
Camshaft Drive Mechanism: Eccentric lobe on camshaft actuates pump lever for diaphragm movement
The camshaft drive mechanism in a Chevy mechanical fuel pump is a marvel of simplicity and precision. At its core, an eccentric lobe on the camshaft serves as the primary actuator, translating the rotational motion of the engine into the reciprocating movement necessary to drive the fuel pump. This lobe, slightly offset from the camshaft’s center, ensures that as the camshaft rotates, it imparts a rocking motion to the pump lever. This design is critical for maintaining synchronization with the engine’s timing, ensuring fuel delivery aligns perfectly with the combustion cycle.
To visualize this process, imagine the camshaft as the conductor of an orchestra, with the eccentric lobe as its baton. As the lobe rotates, it pushes the pump lever up and down, much like a lever on a seesaw. This motion is then transferred to the diaphragm, the flexible component responsible for creating the vacuum and pressure needed to draw fuel from the tank and push it into the carburetor. The efficiency of this mechanism lies in its direct mechanical linkage, which minimizes energy loss and ensures reliable operation even under high engine loads.
One of the key advantages of this design is its robustness. Unlike electric fuel pumps, which rely on external power sources and are prone to electrical failures, the mechanical pump’s camshaft drive mechanism is inherently self-sustaining. It operates directly off the engine’s motion, making it less susceptible to issues like battery drain or wiring faults. However, this reliability comes with the caveat of wear over time. Regular inspection of the camshaft lobe and pump lever for signs of wear or misalignment is essential, as even minor deviations can disrupt fuel delivery and engine performance.
For DIY enthusiasts or mechanics working on older Chevy models, understanding this mechanism is crucial for troubleshooting. If the engine struggles to start or runs unevenly, the first step should be to inspect the camshaft lobe and pump lever for proper engagement. A common issue is a worn lobe, which can reduce the pump’s efficiency. Replacing the camshaft or adjusting the lever’s play can often resolve such problems. Additionally, ensuring the diaphragm is intact and free from cracks is vital, as any compromise here will directly affect the pump’s ability to maintain pressure.
In conclusion, the camshaft drive mechanism in a Chevy mechanical fuel pump exemplifies the elegance of mechanical engineering. By leveraging the eccentric lobe’s motion to actuate the pump lever and diaphragm, it ensures consistent fuel delivery with minimal complexity. While its durability is a strength, proactive maintenance is key to preserving its functionality. For those working on these systems, a keen eye for wear patterns and an understanding of the mechanism’s interplay will go a long way in keeping the engine running smoothly.
Does My Cub Cadet Have a Fuel Pump? Find Out Here
You may want to see also
Explore related products
Fuel Inlet and Outlet: Inlet draws fuel, outlet pushes it to carburetor under pressure
The fuel inlet and outlet are the unsung heroes of a Chevy mechanical fuel pump, working in tandem to ensure a steady supply of fuel to the carburetor. The inlet, typically located at the bottom of the pump, draws fuel from the tank through a combination of suction and gravity. As the pump’s diaphragm moves downward, it creates a vacuum, pulling fuel into the pump chamber. This process is critical, as it relies on the fuel tank’s position relative to the pump—ideally, the tank should be lower than the pump to aid in fuel flow. If the tank is higher, ensure the fuel line has sufficient slope or use a primer bulb to assist initial fuel draw.
Once fuel is drawn into the pump, the outlet takes over, pushing it to the carburetor under pressure. This happens when the diaphragm moves upward, compressing the fuel and forcing it through the outlet line. The pressure generated is modest, typically around 4 to 6 psi, but sufficient for carbureted engines. A check valve in the outlet prevents fuel from flowing backward, ensuring a one-way path to the carburetor. If you notice fuel leaking from the outlet when the engine is off, this valve may be worn and needs replacement.
Consider the fuel lines connecting the inlet and outlet to the tank and carburetor. Use high-quality, ethanol-resistant rubber or nylon lines to prevent degradation and leaks. The inlet line should be larger in diameter than the outlet to minimize flow restriction, typically 3/8-inch for the inlet and 5/16-inch for the outlet. Inspect these lines regularly for cracks, especially if your vehicle uses modern ethanol-blended fuels, which can accelerate material breakdown.
For troubleshooting, if the carburetor isn’t receiving fuel, start by checking the inlet for clogs or kinks in the line. A blocked inlet starves the pump, while a faulty outlet check valve can cause airlocks, disrupting fuel flow. Priming the pump by manually pumping the accelerator or using a primer bulb can help diagnose whether the issue lies with the inlet or outlet. Always ensure the fuel tank has at least a quarter tank of fuel, as running on fumes increases the risk of air entering the system and overworking the pump.
In summary, the fuel inlet and outlet are a dynamic duo, each playing a distinct role in the fuel pump’s operation. The inlet’s ability to draw fuel efficiently depends on proper positioning and line integrity, while the outlet’s pressurized delivery relies on a functional check valve and clear lines. By understanding and maintaining these components, you can ensure your Chevy’s mechanical fuel pump operates reliably, keeping your engine fed and running smoothly.
Ford Taurus Fuel Pump Relay Failure: Common Causes and Solutions
You may want to see also
Explore related products
Pressure Regulation: Pump maintains consistent fuel pressure for efficient engine combustion
Mechanical fuel pumps in Chevy engines are designed to deliver a precise amount of fuel to the carburetor, ensuring optimal combustion. At the heart of this process is pressure regulation, a critical function that maintains consistent fuel pressure regardless of engine speed or load. This consistency is achieved through a diaphragm mechanism within the pump, which responds to changes in engine demand by adjusting the fuel flow rate. For instance, during idle, the pump reduces pressure to match the lower fuel requirements, while under acceleration, it increases pressure to meet the engine’s heightened needs. This dynamic regulation ensures that the carburetor receives the right amount of fuel, promoting efficient combustion and preventing issues like flooding or lean mixtures.
To understand the importance of pressure regulation, consider the consequences of inconsistent fuel delivery. If the pump fails to maintain steady pressure, the engine may experience erratic performance, such as stalling, hesitation, or rough idling. For example, a pressure drop can lead to a lean fuel-air mixture, causing overheating and potential engine damage, while excessive pressure can result in a rich mixture, wasting fuel and fouling spark plugs. Chevy’s mechanical fuel pump addresses these risks by incorporating a pressure relief valve, which opens when pressure exceeds a predetermined threshold (typically around 6-7 psi for most carbureted engines). This valve redirects excess fuel back to the tank, safeguarding the system and ensuring the carburetor operates within its optimal pressure range.
From a maintenance perspective, ensuring proper pressure regulation requires regular inspection and testing of the fuel pump. One practical tip is to check for leaks or damage to the diaphragm, as even small defects can compromise pressure control. Additionally, the pump’s arm should be adjusted according to the manufacturer’s specifications, typically measured by the distance between the pump body and the camshaft lobe. Over time, wear and tear can cause this gap to change, affecting pump performance. For DIY enthusiasts, using a feeler gauge to verify this clearance (often around 0.006-0.010 inches) can help maintain accurate pressure regulation. Always refer to the Chevy service manual for model-specific values.
Comparing mechanical fuel pumps to electric systems highlights the simplicity and reliability of pressure regulation in Chevy’s design. Unlike electric pumps, which rely on external regulators and complex wiring, mechanical pumps integrate regulation directly into their operation. This not only reduces the risk of electrical failures but also ensures immediate response to engine demands. However, this simplicity comes with the caveat of dependency on engine speed; mechanical pumps are driven by the camshaft, meaning they only operate when the engine is running. For this reason, they are best suited for carbureted engines rather than modern fuel-injected systems, which require higher pressures and more precise control.
In conclusion, pressure regulation in a Chevy mechanical fuel pump is a cornerstone of its functionality, ensuring consistent fuel delivery for efficient combustion. By understanding its mechanisms, such as the diaphragm and pressure relief valve, and adhering to maintenance best practices, drivers can preserve their engine’s performance and longevity. While mechanical pumps may not suit all modern applications, their straightforward design and reliability make them a trusted choice for carbureted Chevy engines. Whether troubleshooting or upgrading, prioritizing pressure regulation will always yield a smoother, more responsive driving experience.
Can a Faulty Fuel Pump Trigger Engine Misfires? Explained
You may want to see also
Frequently asked questions
A Chevy mechanical fuel pump is driven by the engine's camshaft and uses a diaphragm to create suction, drawing fuel from the tank and pushing it through the system to the carburetor or fuel injection system.
The main components include the pump body, diaphragm, inlet and outlet valves, rocker arm (connected to the camshaft), and a lever that actuates the diaphragm to create fuel flow.
A mechanical fuel pump is engine-driven and relies on the camshaft for operation, while an electric fuel pump is powered by electricity and operates independently of the engine, often providing higher pressure for fuel injection systems.
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel pressure, and a whining or grinding noise coming from the pump area.
