The 2002 4-cylinder Highlander has fuel injectors. The fuel injector in the Toyota Highlander is a critical component because it sprays the right amount of fuel into the engine cylinder based on the air-fuel mixture specification. A smoking tail pipe is a clear indication that the fuel injectors in your Highlander need to be replaced.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2002 4-cylinder Highlander |
| Fuel Injector Function | Spray fuel into the engine cylinder in the correct amount |
| Fuel Injector Replacement | Affordable and readily available |
| Fuel Injector Set | Comes in sets of 4 or 6 |
| Fuel Filter | Recommended replacement with fuel injectors |
| Common Issues | Stuttering, no power to accelerate, check engine light |
| Possible Causes | Carbon buildup, faulty sensor, ECU sending wrong mixture |
| Troubleshooting | Clean injectors with solvents, replace O-rings |
Explore related products
What You'll Learn
Fuel injector replacement
The 2002 4-cylinder Highlander has fuel injectors, and like any other vehicle, they can get clogged or damaged. Fuel injectors feed gas into the engine's chamber, so clogged or damaged injectors can cause engine problems.
Before attempting to replace the fuel injectors, it is recommended to consult the repair manual for your specific vehicle. This process can be dangerous, so consider getting a professional to do it.
Start with a cold engine, then disconnect the battery. Remove the plastic engine covers and disconnect the electrical connectors on the injectors.
Next, remove the fuel rail by loosening the bolts and brackets holding it in place. Depending on the model, you may need to disconnect the fuel line from the fuel rail. Remove the fuel injectors by gently wiggling them out of their ports. Take note of the orientation of each injector for reinstallation.
Before installing the new fuel injectors, dip their tips into engine oil to prevent leaks. Line up the injectors with their respective holes and press them into place. Reattach the fuel rail and bolt it down. Reconnect the fuel line if it was disconnected earlier.
Finally, reconnect the battery and turn the key to the "on" position. Wait for 10 seconds before cranking the engine. This will refill the fuel pump and lines. Once the engine reaches its normal idle RPM, turn it off.
Fuel Injector Sizing: MPG Impact and Performance Considerations
You may want to see also
Explore related products
Engine issues

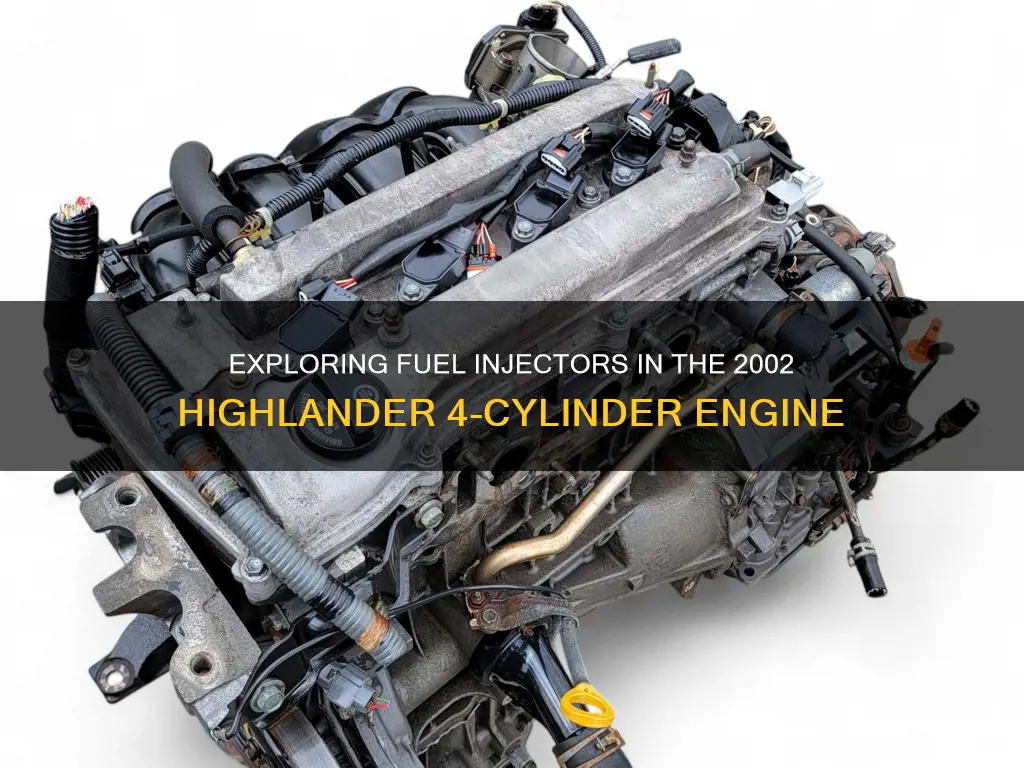

The 2002 4-cylinder Highlander has a 2.4L inline-4 engine. Fuel injectors are present in this model, and issues with them are well documented. Owners have reported problems with fuel injectors, which have required replacement multiple times. This issue is not exclusive to the 4-cylinder model, as V6 owners have also reported similar problems.
The 2002 Toyota Highlander has been the subject of several complaints regarding engine failure. This issue appears to be caused by a manufacturer's design fault, where the engine block causes bolts to break, compromising the cooling system. This can lead to devastating consequences, as the engine can fail without warning, even when the vehicle is well-maintained and serviced regularly.
Check engine light issues are also common in the 2002 Highlander, particularly with the EVAP system. Repairs can be expensive, as they often involve replacing the charcoal canister. However, in some cases, replacing only the EVAP vacuum switching valve (VSV) can fix the problem at a lower cost.
Other engine-related issues reported by owners include stuttering with no power to accelerate, which may be due to carbon build-up on the pistons or a faulty sensor. Some owners have tried using fuel additives and solvents to clean the injectors, with varying degrees of success.
Overheating can also lead to costly engine repairs in the Highlander. Therefore, it is essential to keep an eye on the temperature gauge and address any issues promptly. Regular oil changes are recommended to ensure the engine's longevity, and Toyota recommends 5W-30 oil for both the 4-cylinder and V6 engines in the 2001-2006 Highlander models.
Fuel Injectors in 05 Grand Am: How Many?
You may want to see also
Explore related products
Cleaning injectors
Yes, the 2002 4-cylinder Highlander has fuel injectors. If you are experiencing issues with your fuel injectors, cleaning them may help. Dirty or clogged fuel injectors can affect a vehicle's performance and even prevent it from starting. There is no set schedule for cleaning fuel injectors; however, you can identify the need for cleaning by assessing the vehicle's performance. For example, a stalling or misfiring engine could indicate that the fuel injectors need attention.
To clean your fuel injectors, you will need to follow these general steps:
- Ensure you have the necessary testing equipment to check for issues with the spray pattern of the fuel injector. Petrol is highly flammable, so control the vapours inside a special chamber.
- Use an onboard diagnostic tool (OBD) to check the pressure inside the fuel system. Any reading under 3 bar indicates that it is safe to proceed.
- The engine should be cold before beginning the cleaning process. Do not start if the engine is still hot.
- Locate the fuel injectors in the inlet manifold and disconnect the pipework.
- Use a special liquid compatible with your injector type (petrol or diesel) to test and clean the injectors. The testing machine will spray the fuel through, allowing you to observe the spray pattern and identify any issues.
It is important to note that the cleaning process may vary depending on whether you have a diesel or petrol vehicle. Always consult a professional mechanic or a trusted guide if you are unsure about any steps in the process.
Fuel Injectors: Mileage Impact and Performance Efficiency
You may want to see also
Explore related products
Fuel filter replacement
The 2002 4-cylinder Highlander has fuel injectors, and it is recommended that you replace the fuel filter when replacing the fuel injectors. Here is a step-by-step guide on how to replace the fuel filter:
Firstly, locate the fuse or relay for the fuel pump and unplug it. Try to start the vehicle to ensure you have disconnected the correct circuit. The engine will turn over but not start. Shut off the engine and let it cool if it was running. Check your vehicle's auto repair manual to locate the fuel filter.
Next, connect your garden hose to a water source and ensure it is within easy reach of the vehicle. There is a chance that a small amount of fuel will squirt out when you disconnect the filter, so be cautious. The fuel filter may be secured to the line/hose by flare nuts, quick-connect fittings, or clamps. Here are the methods for undoing each of these types of couplings:
- Flare nuts: Hold the nut on the fuel filter with one flare nut wrench and turn the nut on the fuel line (counter-clockwise) with the other wrench. Repeat on both sides.
- Quick-connect fittings: Remove any clips or retainers with a small screwdriver, then use a special disconnect tool to remove the fuel lines on each side of the filter.
- Rubber hoses and clamps: Loosen the hose clamp with a screwdriver and wiggle the hose off the filter by hand. Use a ratchet and socket to remove any fasteners holding the fuel filter bracket.
Now, you can install the new fuel filter. Secure the fuel filter to the fuel lines by using one of the following methods:
- Flare nuts: Hold the nut on the fuel filter with one wrench and turn the nut on the fuel line (clockwise) with the other wrench. Repeat on both sides.
- Quick-connect fittings: Push the end of the fuel filter into the fitting until you hear it click into place. Reinstall any clips or retainers and repeat on the other end.
- Rubber hoses and clamps: Push the rubber hose down onto the filter and secure it with the clamp. Repeat on both sides.
Finally, restore fuel pressure by reinstalling the fuse or relay. Remove the jack stands and lower the vehicle. Try to start the engine and check for any fuel leaks.
It is important to keep your fuel system properly maintained by changing the fuel filter to prolong the life of the fuel pump. If your vehicle is losing power, it could be due to a clogged fuel filter, which can cause poor acceleration and stalling, and may even prevent your car from starting.
The Magic of Fuel Injectors: Atomization Process Explained
You may want to see also
Explore related products
Toyota dealer diagnostics
The 2002 4-cylinder Highlander has fuel injectors, and issues with these fuel injectors are not uncommon. Some owners of this model have reported issues such as the engine stuttering with no power to accelerate. In some cases, the Check Engine Light came on, and the issue was resolved by replacing the fuel injectors.
When it comes to Toyota dealer diagnostics, there are a few things to keep in mind. Firstly, dealerships will typically charge a diagnostic fee, which can range from $85 to $175, depending on the dealership and the complexity of the issue. This fee is usually applied towards the cost of the repair if the dealership performs the work. It's worth noting that some dealerships may waive the diagnostic fee if the issue is covered under warranty. However, if the issue is not covered under warranty, or if the customer chooses to have the repairs done elsewhere, the diagnostic fee is typically non-refundable.
To avoid unexpected costs, it is recommended to inquire about the diagnostic fee before authorizing any work to be done. Additionally, some dealerships may offer coupons or promotions for free diagnostics, so it is worth keeping an eye out for those offers.
It is also important to understand that the diagnostic process may involve plugging in a scanner to retrieve error codes and identify the issue. In some cases, dealerships may need to involve Toyota Engineering to recommend the appropriate course of action. While dealerships have access to advanced diagnostic equipment, it is possible for individuals to purchase their own code scanners to retrieve basic error codes and reset the car computer. These scanners can be found for as little as $30 to $60.
Overall, while Toyota dealer diagnostics can be costly, it is important to remember that the dealerships have the expertise and equipment to properly diagnose and repair Toyota vehicles. In some cases, taking the vehicle to the dealership may be the best course of action, especially if the issue is complex or if it is covered under warranty.
Engine Control Module: Fuel Injector Management and Precision
You may want to see also
Frequently asked questions
Yes, the 2002 4-cylinder Highlander has fuel injectors.
Fuel injectors spray fuel into the engine cylinder in the correct amount for the current load of the engine as per the specification of the air-fuel mixture.
Faulty fuel injectors can cause your engine to suffer. A smoking tail pipe is a clear indication that your fuel injectors need replacing. Other signs include poor idle, rough running of the engine with low power, and poor fuel economy.
To replace the fuel injectors in a 2002 4-cylinder Highlander, start by relieving fuel pressure and disconnecting the negative battery terminal. Remove the engine cover and air intake duct if necessary. Disconnect the electrical connectors, and remove the fuel supply line and fuel rail mounting bolts. Lift the fuel rail and injectors as a single assembly, replacing O-rings if necessary.
