Regan Brown

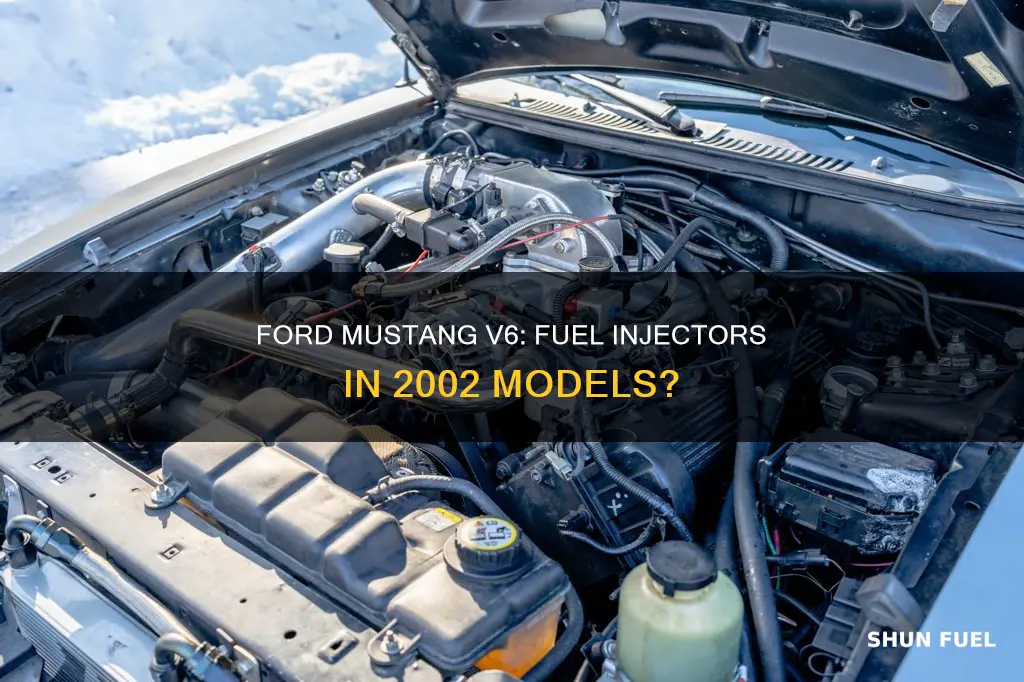

The 2002 Ford Mustang V6 has fuel injectors, and they can be replaced by the average do-it-yourself mechanic. The fuel injectors are responsible for injecting fuel into the Mustang's engine, and they can break down due to clogging or electrical failure. It is recommended that the fuel filter be replaced when replacing the fuel injectors.
| Characteristics | Values |
|---|---|
| Year | 2002 |
| Model | Ford Mustang V6 |
| Engine | 3.8L |
| Fuel Injector Type | Bosch Style |
| Fuel Injector Colour | Yellow |
| Fuel Injector Quantity | 8 |
| Fuel Filter Replacement | Recommended |
| Fuel Injector Kit Price | $504.99 |
| Fuel Injector Price | $168.99 |
Explore related products
What You'll Learn
Fuel injector replacement instructions
Step 1: Prepare the Car
Before starting, ensure the car engine is cold. Disconnect the battery and remove any plastic engine covers using a suitable socket.
Step 2: Access the Fuel Injectors
Remove the air filter housing and the flexible hose attaching it to the throttle body. Disconnect the throttle cables and any coolant or vacuum lines. Remove the upper intake to access the upper manifold bolts.
Step 3: Disconnect Fuel Lines and Electrical Connectors
Use a flat-head screwdriver to disconnect the electrical connectors on each injector. First, insert the fuel line disconnect tools, then twist and pull to slip the end of the fuel lines from the injector rail.
Step 4: Remove the Fuel Injectors
Unbolt the injector fuel rails from the lower manifold. Pry up on the rail and remove the old rubber O-ring seals. Take out the injectors by removing the retaining clips and twisting and pulling until they come loose.
Step 5: Install the New Fuel Injectors
Before installing, dip the injector tips into engine oil to wet the seals and prevent leaks. Press the new injectors into the rail and attach the metal clip, if equipped. Reinstall the fuel rail by lining up the injectors with their respective holes and pressing them into place.
Step 6: Reconnect and Test
Reconnect the fuel line and battery. Turn the key to the 'on' position and wait 10 seconds before attempting to start the engine. This will refill the fuel pump and lines. After the engine reaches normal idle RPM, turn it off and check for any fuel or coolant leaks. If no problems are found, test drive the vehicle.
Safety and Precautions
Always keep fire safety in mind and wear eye protection when working with fuel. Be cautious when disconnecting high-pressure lines and removing injectors to avoid damage to other engine components. It is recommended to use a fuel injector puller for safe removal.
When to Replace Fuel Injectors: Maintenance Guide
You may want to see also
Explore related products
![Detroit Axle - Fuel Pump Module Assembly for Ford 2001-2004 Mustang [Naturally Aspirated] Electric Fuel Pump Module 2002 2003 Replacement](https://m.media-amazon.com/images/I/712MFtJKJxL._AC_UY218_.jpg)
Fuel injector colours and types
Fuel injectors are a vital part of your Mustang's engine as they supply the correct amount of fuel for your application. The formula for calculating the correct size fuel injector for your Mustang is:
> Injector Flow Rate (lb/hr) = (Engine HP) x (BSFC) / (Number of Injectors) x (Injector Duty Cycle)
The colour of the fuel injector at the electrical connector determines the lbs. per hour. Here is a list of injector colours and their corresponding flow rates:
- Grey: 14 lb/hr
- Orange Yellow: 19 lb/hr
- Blue: 24 lb/hr
- Red: 30 lb/hr
- Dark Blue: 36 lb/hr
- Pink (Lavender): 21 lb/hr
- Yellow: 19 lb/hr
Some 2002 Mustang owners have reported that their injectors are red, while others have said they are yellow. One source states that the 2002 Mustang has eight injectors, while another states that it has six. It is possible that this discrepancy is due to different models of the 2002 Mustang.
Cleaning Foreman 500 Fuel Injectors: DIY Guide
You may want to see also
Explore related products
Fuel filter replacement
The fuel filter on a 2002 Ford Mustang V6 is located inside the fuel tank. It is recommended to replace the fuel filter when replacing the fuel injectors.
Step 1: Disconnect the battery
Disconnecting the battery is important for safety reasons and to relieve the fuel system pressure. This will make it easier to work on the fuel filter and reduce the risk of injury or a fire hazard.
Step 2: Raise the vehicle
Use a jack to safely raise the vehicle and ensure it is securely supported.
Step 3: Locate the fuel filter
The fuel filter is located inside the fuel tank on the passenger side, below the trunk area, next to the fuel tank.
Step 4: Disconnect the filter push connect fittings
Use a fuel line wrench to disconnect the filter push connect fittings. This will allow you to access and remove the fuel filter.
Step 5: Unsnap the filter from the bracket and remove it
Once the fittings are disconnected, unsnap the filter from its bracket and remove it carefully.
Step 6: Install the new fuel filter
To install the new fuel filter, simply reverse the removal procedure. Secure the new fuel filter in place and reconnect the filter push connect fittings.
Step 7: Lower the vehicle and reconnect the battery
Once the new fuel filter is installed, lower the vehicle and reconnect the battery.
It is important to note that replacing fuel injectors and fuel filters can be a complex task, and it is always recommended to seek professional assistance if you are unsure about any part of the process.
Additionally, when working on any fuel system, it is crucial to take appropriate safety precautions to prevent injuries and accidents. Always work in a well-ventilated area and avoid open flames or sparks that could ignite fuel vapors.
Mastering Fuel Injector Timing on a 460 Ford Engine
You may want to see also
Explore related products
Fuel pump duty cycle
The 2002 Ford Mustang V6 uses a Fuel Pump Driver Module (FPDM) to communicate diagnostic information to the powertrain control module (PCM) through the Fuel Pump Monitor (FPM) circuit. This information is sent by the FPDM as a duty cycle signal. The FPM circuit is spliced into the Fuel Pump Power (FP PWR) circuit and is used by the PCM for diagnostic purposes. The PCM sources a low-current voltage down the FPM circuit.
The fuel pump duty cycle can be monitored with data logging software and a tuner. If the duty cycle is nearing 100%, it is recommended to install a boost-a-pump to give the Mustang a larger safety margin. The boost-a-pump is an excellent choice for someone who needs more fuel for their Mustang as it can be used with single and dual fuel pump setups.
Return-style fuel systems have a return line that takes excess or unused fuel back to the tank, and the cycle is continuous. This style of the system has a constant fuel flow, which means the fuel pump is constantly operating at 100% duty cycle. Return systems are more beneficial in big horsepower applications where there is a high demand for fuel.
On the other hand, returnless fuel systems are quite different and more complicated. The fuel pressure is controlled by the amount of voltage being sent to the pump and other electronics. In a returnless system, the fuel pump is not operating at 100% of its duty cycle. Instead, the FPDM sends pulses of power that tell the fuel pump how to respond.
Fuel Injector Issues: Sitting Pretty or Sitting Badly?
You may want to see also
Explore related products
Fuel injector flow rates
The 2002 Ford Mustang V6 has fuel injectors, and they can be replaced by the owner of the vehicle. The fuel injectors in this model are Bosch style, and while they are durable, they can sometimes break down due to clogging or electrical failure.
There are a few factors that can affect the flow rate of a fuel injector. One factor is the pressure at which the injector is tested. The flow rate can vary depending on whether it is tested at a higher or lower pressure. For example, fuel injectors are often rated at 36.25 PSI / 2.5 BAR, 43.5 PSI / 3 BAR, or 55 PSI / 3.7 BAR. However, most injectors will flow more fuel at a higher pressure. Additionally, the flow rate can be affected by particles in the fuel system, with particles as little as 10 microns (0.01mm) impacting injector performance. Contamination and corrosion due to moisture in the fuel system can also cause wear and tear on fuel injectors over time.
It is important to note that the flow rate of a fuel injector cannot be determined by the part number alone. Instead, it is influenced by various factors, including the manufacturer, date of manufacture, and batch codes. To calculate the flow rate of a specific injector, one can use an online flow rate calculator. By inputting the known flow rate and pressure as the "old" values, and the desired pressure as the "new" value, the calculator can estimate the flow rate at the new pressure.
