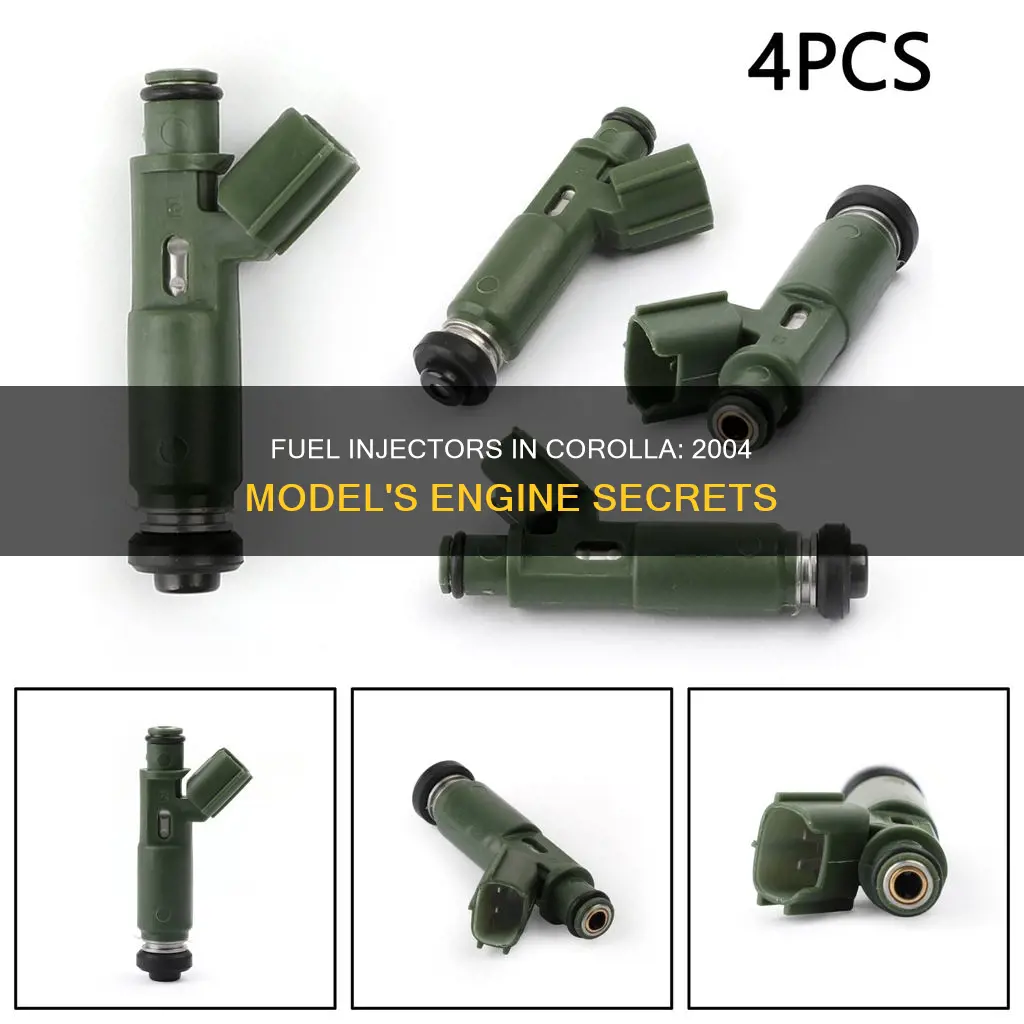

The 2004 Toyota Corolla is equipped with a set of four fuel injectors. These injectors are responsible for spraying fuel into the engine, where it mixes with air to enable combustion. Over time, these injectors can become dirty or malfunction, leading to issues such as decreased engine performance, power, and acceleration. Fortunately, replacing the fuel injectors in a 2004 Corolla is a straightforward process, and replacement parts are readily available from various manufacturers.
| Characteristics | Values |
|---|---|
| Year | 2004 |
| Make | Toyota |
| Model | Corolla |
| Engine | 1.8L 1ZZFE |
| Fuel Injector Set | 4 |
| Fuel Injector Type | Remanufactured, Stock replacement, New |
| Fuel Injector Brands | Beck Arnley, ACDelco, Standard, GB Remanufacturing, DeatschWerks, Injector Dynamics, Fel-Pro, DENSO |
| Fuel Injector Price | $9999-$24199 |
| Fuel Injector Kit | O-Ring Kit Upper and Lower |
Explore related products
What You'll Learn
Fuel injector replacement
The 2004 Toyota Corolla has fuel injectors, and while they usually last a decade or more, they may need to be replaced if they wear out or get clogged. Here is a step-by-step guide on how to replace the fuel injectors on a 2004 Toyota Corolla.
Step 1: Start with a cold car
Before beginning any work on your car, it is important to ensure the engine is cold. This is because a hot engine can cause burns and make some components brittle, which may cause them to break.
Step 2: Disconnect the battery
Open the vehicle's hood and disconnect the battery. Take the ground cable off the battery's negative post to disable power to the ignition and fuel system.
Step 3: Remove the air cleaner element
Remove the air cleaner element from the top of the throttle body.
Step 4: Disconnect the harness from the injectors
Remove the harness from the injectors. You may need to use pliers for this step.
Step 5: Unscrew the mounting bolts
Unscrew the mounting bolts to the injector retainer bracket and remove the bracket.
Step 6: Remove the injectors
Gently wiggle the injectors until they pop out. You may need to press on any clips to remove each injector from the fuel rail. Then, pull out the injectors from the throttle body.
Step 7: Clean the throttle body and injector housing
Use a non-abrasive cleaner to wipe out the throttle body and injector housing with a lint-free cloth.
Step 8: Disconnect the fuel rail
If your engine has an intake that is transverse-mounted or overlaps the fuel rail, you must remove the intake before removing the fuel rail. Disconnect the fuel rail from the fuel lines.
Step 9: Remove the mounting bolts securing the fuel rail
Unscrew the mounting bolts that secure the fuel rail onto the engine.
Step 10: Remove the fuel rail
Lift the fuel rail off the injectors. This may require a good amount of force as the injectors are attached to the rail, and the sprayer tips are a snug fit in the intake manifold.
Step 11: Clean the injector ports
Use a non-abrasive cleaner to wipe out the injector ports with a lint-free cloth.
Step 12: Install the new injectors
Before installing the new injectors, dip the injector tips into a small amount of engine oil to prevent leaks. Then, install the injectors into the throttle body and install the injector retainer bracket.
Step 13: Secure the injector retainer bracket
Tighten the retainer bracket bolts 1/8 turn from the centre to the outside.
Step 14: Reattach the harness and air cleaner housing
Hook up the harness to the fuel injectors and install the air cleaner housing and element onto the top of the throttle body.
Step 15: Install the new O-rings
Install new O-rings onto the new injectors.
Step 16: Install the injectors into the intake ports
Place the injectors into the intake ports and push them down into place.
Step 17: Reinstall the fuel rail
Line up the injectors with their corresponding holes and carefully slide the fuel rail into place. Screw in the mounting bolts all the way down hand-tight and turn them an additional 1/8 turn to secure them.
Step 18: Reattach the fuel line
If you disconnected the fuel line earlier, reconnect it now.
Step 19: Reconnect the battery
Plug in the fuel injector electrical connections and reconnect the battery.
Step 20: Start the engine
Turn the key to the "on" position and wait 10 seconds before turning to engine start. After the engine reaches its normal idle RPM, turn the engine off.
Step 21: Monitor the engine
Check the dash for any engine lights and listen to the engine operation for any cylinders not firing correctly. If the engine light comes on, further diagnosis of the fuel system may be needed.
Please note that this process may vary depending on the specific model of your 2004 Toyota Corolla, and it is recommended to consult a repair manual or a professional mechanic if you are unsure about any steps.
Cleaning Fuel Injectors: Removing Carbon Buildup
You may want to see also
Explore related products
Fuel injector issues
Fuel injectors can occasionally fail, and issues with them can lead to engine problems. Fuel injector issues can be tricky to diagnose, and there are many potential causes for their failure. As fuel passes through the injectors, they are susceptible to contamination and carbon build-up, which can restrict the flow of fuel. This can lead to less fuel flow for the same injection time, causing high emissions, poor fuel economy, and poor engine performance.
Other symptoms of fuel injector issues include engine stalling, rough idling, and poor gas mileage. In some cases, fuel injector issues can lead to engine failure that prevents your car from starting. If the "Check Engine Light" comes on, it could mean that the fuel injector is dirty or malfunctioning and supplying too little or too much fuel to the engine. A fuel leak could also be a sign of a crack in the rubber seals or in the fuel injector itself.
To diagnose a bad fuel injector, you can perform a physical inspection and verify that it is receiving a signal from the ECU. A spray pattern test can also be conducted to check for problems with how the fuel is delivered into the engine cylinders. This test is best performed by a professional. Other diagnostic methods include using an oscilloscope to measure electrical pulses sent to the injector and checking for misfires or engine codes.
To prevent fuel injector issues, regular maintenance is important. This includes regularly checking and replacing the air filter if it is dirty or clogged. Fuel injectors should also be cleaned periodically to prevent dirt and debris from causing blockages or other performance issues.
STP Fuel Injector Cleaner: How Much to Use?
You may want to see also
Explore related products
Fuel injector cleaning
Yes, a 2004 Corolla has fuel injectors. Fuel injectors deliver fuel to your car’s combustion chamber. They spray just enough fuel into the chamber for your engine to burn effectively.
Fuel injectors can clog with carbon deposits. This can cause a rough idle, lack of power, or hesitation when accelerating. To prevent this, fuel contains detergent additives that attempt to stop fuel injectors from clogging. However, these are not always effective, and gunk in the fuel supply can cause a clog. Rust from your vehicle's gas tank or a bad fuel filter can also contribute to clogged fuel injectors.
A true injector cleaning procedure involves attaching a pressure canister to the fuel line and using a high-powered cleaner instead of fuel. You pour the cleaning solvent into the pressure canister, attach a compressed air line, and set the air pressure to what the fuel pump would normally provide. Then, you remove the fuel pump relay and start the engine using only the cleaner as fuel. Once you've used about one or two pints of the cleaner, you can put everything back together.
You can also clean fuel injectors by removing them from the engine. This allows you to thoroughly remove gunk. First, disconnect the fuel supply and remove the fuel rails. Then, remove the rubber o-ring from the fuel rail side of the injector. Attach a rubber hose to the opening using hose clamps to prevent any spills. You will need to connect one side of an electrical lead to the injectors and the other side to the positive terminal of your vehicle's battery. Only connect the lead when you are ready for a spark. To ensure a complete clean, disconnect the rubber hose from the rail side and attach it to the outflow side. Then, allow the cleaner to flow through the injectors in the opposite direction.
Alternatively, you can use a gas additive injector cleaner. You simply pour it into your gas tank.
Using Throttle Body Cleaner for Fuel Injectors: Effective Solution?
You may want to see also
Explore related products
Fuel injector costs
Fuel injectors are essential for a car's performance and efficiency. However, without proper maintenance and care, they will eventually wear down and require replacement. Some signs that indicate a need for fuel injector replacement include a decrease in fuel economy, a decrease in performance, and an increase in fuel consumption.
The cost of replacing fuel injectors can vary depending on several factors, such as the make and model of the vehicle, the severity of the issue, the quality of parts used, labour rates, and your location. The type and age of the vehicle also play a significant role in determining the cost.
The average cost of fuel injector replacement typically ranges from $500 to $2,500, with individual fuel injectors costing under $40 to several hundred apiece. Labour costs can range from $276 to $406, while parts can cost between $150 and $400, or $453 and $540, depending on the source.
It is worth noting that purchasing refurbished or remanufactured fuel injectors can be a more cost-effective option, offering similar reliability and effectiveness as new injectors at a lower price. Additionally, routine maintenance and the use of high-quality fuel can prolong the life of fuel injectors and potentially prevent the need for replacement.
Cleaning Fuel Injectors: 98 Durango Maintenance Guide
You may want to see also
Explore related products
$21.24 $23.16
Fuel injector installation
Yes, a 2004 Corolla has fuel injectors. Here is a detailed, step-by-step guide on how to install fuel injectors on your 2004 Corolla.
Step 1: Install a nine-volt battery saver
Insert a nine-volt battery saver into the cigarette lighter of your 2004 Corolla. This step is optional but recommended as it maintains the vehicle's settings.
Step 2: Disconnect the battery
Open the hood of your vehicle and disconnect the battery. Remove the ground cable from the negative post of the battery to disable the power to the ignition and fuel system.
Step 3: Remove the air cleaner element
Take out the air cleaner element from the top of the throttle body.
Step 4: Disconnect the harness
Disconnect the harness from the injectors.
Step 5: Remove the injector retainer bracket
Unscrew the mounting bolts and remove the injector retainer bracket.
Step 6: Pull out the injectors
Gently wiggle and pull out the injectors from the throttle body. You may need to use a small flathead screwdriver to remove or depress any metal clips holding the injectors in place.
Step 7: Clean the throttle body and injector housing
Use a non-abrasive cleaner to wipe the throttle body and injector housing with a lint-free cloth.
Step 8: Disconnect the fuel rail
Remove the engine cover if there is one, and use a quick-disconnect tool to disconnect the fuel rail from the fuel lines.
Step 9: Remove the fuel rail
Lift the fuel rail off the injectors. This may require some force as the injectors are attached securely to the rail. Be careful not to deform or bend the fuel rail.
Step 10: Install new O-rings
Before installing the new injectors, it is recommended to dip the injector tips into engine oil or a small cup of gasoline. This lubricates the O-rings, preventing leaks. Install new O-rings onto the new injectors, ensuring you do not reuse old O-rings.
Step 11: Install the new injectors
Slide the new injectors into their slots on the fuel rail, following the same orientation as the original injectors. Line up the injectors with their respective holes and press them into place.
Step 12: Reattach the fuel rail
Align the fuel rail with the injectors and press it down until it stops. Reattach any metal clips, if applicable.
Step 13: Bolt down the fuel rail and reattach the fuel line
Secure the fuel rail by tightening the bolts. Reattach the fuel line to the fuel rail.
Step 14: Start the engine and check for leaks
Turn the key to the "on" position and wait 10 seconds before attempting to start the engine. After the engine reaches its normal idle RPM, turn it off. Use a flashlight to inspect the injectors and fuel rail for any signs of fuel leaks.
Step 15: Test drive
If no leaks are detected, start the vehicle and let it run for a minute. Inspect the engine and under the vehicle for any leaks. If the injectors are installed correctly, your 2004 Corolla should run smoothly.
Note: Always refer to your vehicle's repair manual for specific instructions and safety precautions. It is recommended to replace fuel injectors with original manufacturer equipment (OEM) for optimal performance and compatibility.
When to Use Fuel Injector Cleaner: Frequency Guide
You may want to see also
Frequently asked questions
Yes, the 2004 Toyota Corolla has a fuel injector.
Fuel injectors are responsible for injecting fuel as a fine spray so that it can be mixed with air inside the engine, allowing for an efficient combustion process.
The 2004 Corolla has a set of 4 fuel injectors.
Over time, fuel injectors can experience wear and tear, leading to decreased performance or sudden failure. Common issues include decreased power and acceleration, increased risk of misfires, engine stalling, and reduced fuel efficiency.
