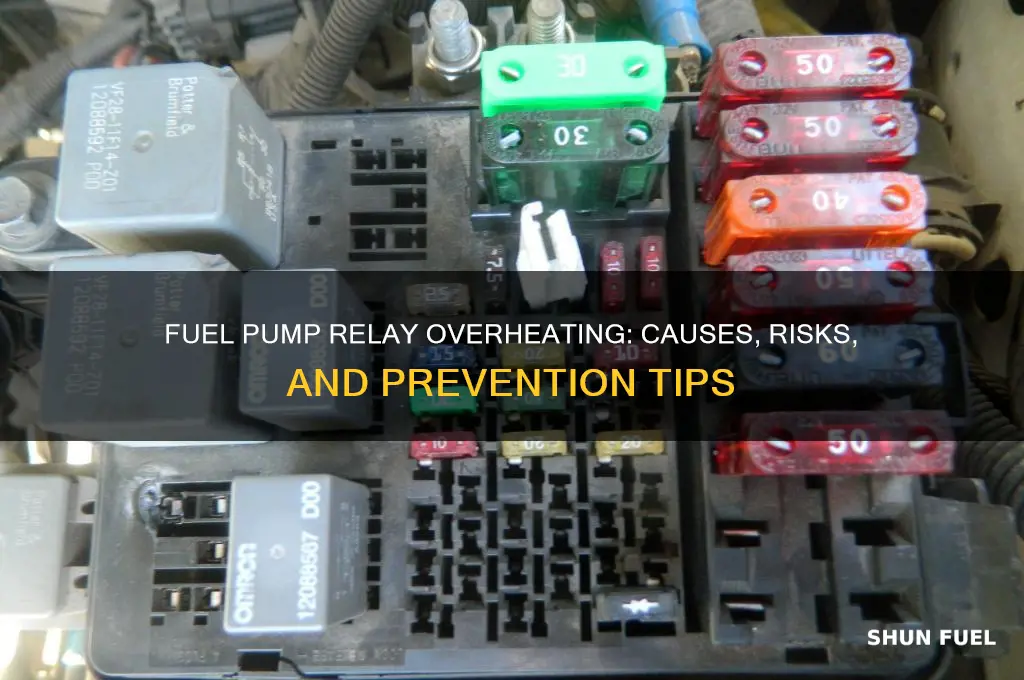

Fuel pump relays play a crucial role in the operation of a vehicle's fuel system by controlling the power supply to the fuel pump. As an electrical component, it is normal for a fuel pump relay to generate some heat during operation due to the resistance in the circuit. However, excessive heat can indicate an issue, such as a malfunctioning relay, a high-resistance connection, or an overloaded circuit. Understanding whether a fuel pump relay getting hot is normal or a cause for concern is essential for maintaining the reliability and safety of a vehicle's fuel delivery system.
| Characteristics | Values |
|---|---|
| Normal Operating Temperature | Fuel pump relays can get warm during operation, typically up to 140°F (60°C). |
| Excessive Heat Causes | High current draw, faulty relay, poor electrical connections, or prolonged use. |
| Signs of Overheating | Relay clicking, burning smell, melted plastic, or intermittent fuel pump operation. |
| Safety Concerns | Overheating can lead to relay failure, electrical shorts, or fire hazards. |
| Prevention Measures | Regular inspection, ensuring proper grounding, using correct relay specifications, and avoiding overloading. |
| Typical Lifespan | Relays can last 100,000+ miles if not subjected to excessive heat or stress. |
| Diagnostic Methods | Multimeter testing for resistance, visual inspection for damage, and monitoring temperature with an infrared thermometer. |
| Common Misconceptions | Relays getting slightly warm is normal; excessive heat indicates a problem. |
| Replacement Cost | Typically $20-$50 for the relay, plus labor if professionally installed. |
| Impact on Fuel Pump | Overheated relays can cause erratic fuel pump operation or complete failure. |
Explore related products
What You'll Learn
Normal Operating Temperature Range
Fuel pump relays, like any electrical component, generate heat during operation due to resistance in the circuit. Understanding their normal operating temperature range is crucial for diagnosing potential issues and ensuring vehicle safety. Typically, a fuel pump relay should operate within a temperature range of 60°C to 85°C (140°F to 185°F) under normal driving conditions. This range accounts for the heat generated by the relay’s internal coil and the surrounding engine bay environment. Exceeding this range may indicate an overloaded relay, poor grounding, or a failing component, while temperatures below this range are generally not a concern unless accompanied by performance issues.
To assess whether a fuel pump relay is operating within its normal temperature range, use a non-contact infrared thermometer. Measure the relay’s surface temperature after the vehicle has been running for at least 15 minutes. Ensure the engine is at operating temperature for accurate results. If the relay consistently measures above 85°C (185°F), inspect the wiring harness for signs of damage, corrosion, or loose connections. High resistance in the circuit can cause excessive heat, leading to premature relay failure or, in extreme cases, a fire hazard. Conversely, if the relay feels unusually cool but the fuel pump is functioning, verify the relay’s internal contacts for proper engagement.
Comparatively, fuel pump relays in modern vehicles with advanced thermal management systems may operate at slightly lower temperatures due to improved heat dissipation materials and designs. For example, relays with heat sinks or those integrated into a fused relay box often maintain temperatures closer to 70°C (158°F). However, older vehicles or those with high-performance fuel systems may see relays operating at the higher end of the range due to increased electrical load. Always refer to the vehicle’s service manual for manufacturer-specific temperature guidelines.
Practical tips for maintaining optimal relay temperature include regular inspection of the wiring harness, ensuring proper grounding, and avoiding aftermarket relays with insufficient current ratings. If replacing a relay, choose one with a temperature rating suitable for your vehicle’s operating conditions. For high-performance applications, consider relays with built-in thermal protection or external heat sinks. Monitoring the relay’s temperature during routine maintenance can prevent unexpected failures and extend the lifespan of the fuel delivery system.
In summary, a fuel pump relay’s normal operating temperature range is a critical indicator of its health and functionality. By understanding this range and employing practical diagnostic techniques, vehicle owners can proactively address potential issues before they escalate. Whether you’re troubleshooting a performance problem or performing routine maintenance, keeping the relay within its optimal temperature range ensures reliable fuel delivery and overall vehicle safety.
Can a Failing Fuel Pump Trigger Your Check Engine Light?
You may want to see also
Explore related products
Causes of Overheating in Relays
Fuel pump relays, like any electrical component, can experience overheating due to several factors. One primary cause is excessive current flow, which occurs when the relay is subjected to a load greater than its rated capacity. For instance, a fuel pump relay designed to handle 30 amps may overheat if the fuel pump draws 40 amps due to a malfunctioning pump or clogged fuel filter. This increased current generates heat through resistance in the relay’s contacts and coil, leading to potential failure if not addressed promptly.
Another significant contributor to relay overheating is poor electrical connections. Corroded, loose, or oxidized terminals increase resistance in the circuit, causing localized heating. For example, a fuel pump relay with corroded pins may operate at temperatures 20-30% higher than normal, accelerating wear and reducing lifespan. Regular inspection and cleaning of terminals with electrical contact cleaner can mitigate this issue, ensuring optimal conductivity and heat dissipation.
Environmental factors also play a critical role in relay overheating. High ambient temperatures in the engine bay, especially in vehicles without adequate heat shielding, can exacerbate heat buildup in the relay. Prolonged exposure to temperatures above 150°F (65°C) can degrade the relay’s internal components, such as the plastic housing or coil insulation, leading to malfunction. Installing heat-resistant relays or relocating them to cooler areas can help manage this risk.
Lastly, manufacturing defects or low-quality components can predispose relays to overheating. Substandard materials, such as thin copper contacts or inadequate coil windings, may not handle specified loads efficiently. For instance, a relay with a coil resistance 10% higher than specified will generate more heat during operation. Always opt for relays from reputable manufacturers and verify their specifications to ensure compatibility with your vehicle’s electrical system.
To prevent overheating, monitor relay temperature during operation using an infrared thermometer, aiming to keep it below 175°F (80°C). Address root causes such as excessive current, poor connections, or environmental stress to maintain reliability and avoid costly repairs.
Upgrade Your Mower: Adding a Fuel Pump for Vacuum Riding Efficiency
You may want to see also
Explore related products
Symptoms of a Hot Relay
Fuel pump relays, like any electrical component, can generate heat during operation, but excessive heat is a red flag. One of the first symptoms of a hot relay is a burning smell emanating from the engine bay. This odor often indicates that the relay’s internal components are overheating due to high resistance or a failing connection. If you notice this smell, immediately turn off the engine and inspect the relay for discoloration or melting, as prolonged overheating can lead to electrical fires.
Another telltale sign is intermittent fuel pump operation. A hot relay may struggle to maintain a consistent electrical connection, causing the fuel pump to shut off or sputter unexpectedly. This symptom is particularly dangerous while driving, as it can lead to engine stalling or loss of power. If your vehicle hesitates or stalls at high speeds or under load, a malfunctioning relay could be the culprit. Testing the relay’s temperature with an infrared thermometer after driving can confirm if it’s running hotter than normal (typically above 140°F or 60°C).
Physical damage to the relay is also a visible symptom of overheating. Inspect the relay for cracked housing, charred terminals, or melted plastic. These signs suggest the relay has been operating beyond its thermal limits, often due to excessive current draw or a poor electrical connection. Replacing the relay is critical in such cases, but also investigate the root cause—such as a faulty fuel pump drawing too much power—to prevent recurrence.
Lastly, unusual noises from the relay, like buzzing or clicking, can indicate overheating. These sounds occur when the relay’s internal contacts fail to engage properly due to heat-induced warping or corrosion. If you hear such noises, especially during startup or when the fuel pump is active, disconnect the relay and test its resistance with a multimeter. A reading outside the manufacturer’s specifications (typically 50–120 ohms) confirms the relay is compromised and needs replacement. Addressing these symptoms promptly can prevent costly repairs and ensure your vehicle’s fuel system operates safely.
Does GoCart Use a Fuel Pump? Essential Insights for Enthusiasts
You may want to see also
Explore related products
Preventing Relay Overheating
Fuel pump relays, like any electrical component, can generate heat during operation, especially under heavy loads or in high-temperature environments. While some warmth is normal, excessive heat can indicate an underlying issue that, if left unchecked, may lead to relay failure or even fire hazards. Understanding the causes of overheating and implementing preventive measures are crucial for maintaining the reliability and safety of your vehicle’s electrical system.
One of the primary causes of relay overheating is excessive current draw. This often occurs when the relay is undersized for the load it controls or when the circuit experiences a short circuit. To prevent this, always ensure the relay is rated for the maximum current and voltage requirements of the fuel pump. For example, if your fuel pump draws 20 amps, use a relay with a continuous load rating of at least 30 amps to provide a safety margin. Additionally, inspect the wiring for signs of damage or corrosion, as these can increase resistance and heat generation.
Another critical factor in preventing relay overheating is proper installation and mounting. Relays should be securely mounted to a heat-dissipating surface, such as a metal panel or heat sink, to allow for efficient heat transfer. Avoid placing relays in confined spaces with poor airflow, as this can trap heat and accelerate degradation. For high-performance applications, consider using relays with built-in heat sinks or external cooling solutions like small fans to maintain optimal operating temperatures.
Regular maintenance and monitoring are equally important. Periodically inspect the relay for signs of wear, such as discoloration, melting, or loose connections. Test the relay’s resistance and operation using a multimeter to ensure it functions within specifications. If you notice the relay becoming excessively hot during normal operation, investigate the cause immediately. Common culled issues include a failing fuel pump drawing excessive current, a malfunctioning ECU sending incorrect signals, or a clogged fuel filter increasing pump load.
Finally, consider upgrading to a higher-quality relay designed for harsh conditions. Automotive-grade relays with sealed housings and high-temperature ratings offer better durability and resistance to overheating. While these may come at a higher cost, the investment can save you from costly repairs and downtime in the long run. By combining proper selection, installation, and maintenance, you can effectively prevent relay overheating and ensure the longevity of your vehicle’s fuel system.
Understanding the Mechanics of Fuel Dispenser Pumps: A Comprehensive Guide
You may want to see also
Explore related products
Replacing a Faulty Fuel Pump Relay
Fuel pump relays can indeed get hot during operation, but excessive heat is often a sign of an underlying issue. Overheating relays may indicate a failing component, poor electrical connections, or an overloaded circuit. If you notice your fuel pump relay becoming unusually hot, it’s crucial to address the problem promptly to prevent potential damage to your vehicle’s fuel system or electrical wiring. Ignoring this symptom could lead to fuel delivery issues, engine stalling, or even a no-start condition.
When installing the new relay, ensure it clicks securely into place. Reattach the battery and test the system by starting the engine. If the relay still overheats, the issue may lie elsewhere, such as a short circuit or a malfunctioning fuel pump drawing excessive current. In such cases, further diagnosis is necessary, possibly involving a multimeter to check voltage and resistance in the circuit.
A practical tip: Always purchase a replacement relay from a reputable source to ensure compatibility and reliability. Generic or low-quality relays may fail prematurely or not fit properly. Additionally, if you’re unsure about diagnosing the issue, consider consulting a professional mechanic to avoid misidentifying the root cause. Addressing a faulty fuel pump relay promptly not only restores your vehicle’s performance but also prevents potential safety hazards associated with overheating electrical components.
Understanding Fuel Transfer Pumps: Functionality and Operation Explained
You may want to see also
Frequently asked questions
Fuel pump relays can get warm during normal operation due to the electrical current passing through them, but they should not become excessively hot. If the relay is too hot to touch, it may indicate an issue such as a faulty relay, high resistance, or an overloaded circuit.
Yes, it is normal for a fuel pump relay to feel slightly warm to the touch, especially after prolonged use. However, if it feels excessively hot or emits a burning smell, it could be a sign of a problem that requires immediate attention.
A fuel pump relay can overheat due to several reasons, including a faulty relay, corroded or loose connections, high electrical resistance, or an overloaded circuit. Prolonged operation under these conditions can lead to relay failure or damage to the wiring harness.
