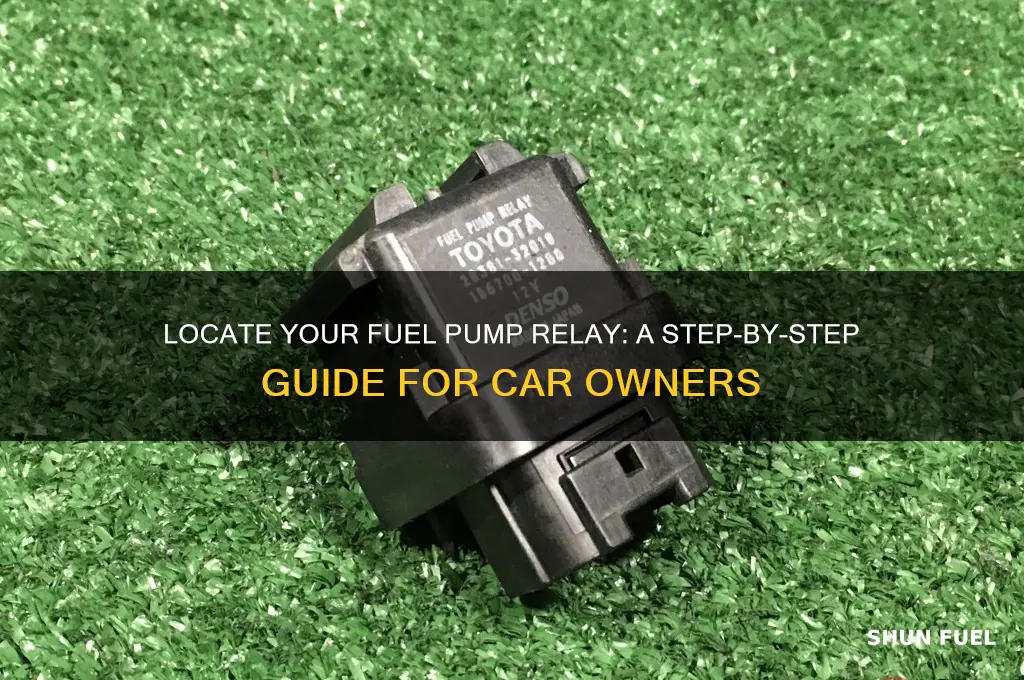

Finding the fuel pump relay can be a crucial step in diagnosing and resolving vehicle fuel system issues. The fuel pump relay is typically located in the fuse box, either under the hood or inside the cabin, depending on the make and model of the vehicle. To locate it, consult the vehicle’s owner’s manual or the fuse box diagram, which often labels the relay’s position. If the diagram is unclear, online resources or automotive forums specific to your vehicle can provide guidance. Once identified, the relay can be tested for functionality using a multimeter or swapped with a known working relay to determine if it’s the source of the problem. Properly locating and testing the fuel pump relay ensures efficient troubleshooting and helps maintain the vehicle’s performance.
| Characteristics | Values |
|---|---|
| Location | Typically found in the fuse box under the hood or near the battery. |
| Identification | Labeled as "Fuel Pump Relay" or "FP Relay" on the fuse box cover diagram. |
| Appearance | Small, rectangular or cube-shaped component with multiple pins. |
| Function | Controls power supply to the fuel pump, ensuring it operates only when needed. |
| Testing Method | Use a multimeter to check for continuity or swap with a similar relay. |
| Common Symptoms of Failure | Engine not starting, stalling, or difficulty starting. |
| Replacement Cost | Typically $10 to $50, depending on the vehicle make and model. |
| DIY Difficulty | Moderate; requires basic automotive knowledge and tools. |
| Safety Precautions | Disconnect the battery before handling to avoid electrical hazards. |
| Vehicle-Specific Variations | Location and design may vary; consult the vehicle manual or online resources. |
Explore related products
What You'll Learn
- Locate the Fuse Box: Check under the hood or dashboard for the main fuse/relay box
- Identify the Relay: Match the fuel pump relay using the diagram on the box cover
- Test the Relay: Swap with a similar relay or use a multimeter to check functionality
- Symptoms of Failure: Engine not starting, stalling, or difficulty starting may indicate a bad relay
- Replacement Steps: Disconnect battery, remove old relay, and install the new one securely
Locate the Fuse Box: Check under the hood or dashboard for the main fuse/relay box
The first step in finding the fuel pump relay is identifying the fuse box, a critical hub for your vehicle's electrical system. Modern cars often house the main fuse/relay box in two primary locations: under the hood or beneath the dashboard. These locations are strategic, offering protection from the elements while ensuring accessibility for maintenance. Under-hood fuse boxes are typically near the battery or along the firewall, shielded by a plastic cover that may be labeled "Fuse Box" or "Relay Center." Dashboard fuse boxes, on the other hand, are often found on the driver’s side, near the steering column or under a lower panel, requiring you to remove a small access door.
Once you’ve located the fuse box, the next challenge is identifying the fuel pump relay within it. Most fuse boxes come with a diagram on the underside of the cover or in the vehicle’s manual, which labels each relay and fuse. The fuel pump relay is usually marked with a symbol resembling a fuel pump or labeled "FUEL PUMP" or "FP." If the diagram is missing or unclear, consult your car’s manual or search online for your specific make and model. Some vehicles use a multi-function relay, so verify its purpose before proceeding.
While locating the fuse box is straightforward, accessing it can sometimes be tricky. Under-hood fuse boxes may require you to remove additional components or use a flashlight to navigate tight spaces. Dashboard fuse boxes often demand contorting into an awkward position or using a trim removal tool to avoid damaging panels. Patience and the right tools—such as a flathead screwdriver or a fuse puller—can make this process smoother. Always ensure the car is turned off before accessing the fuse box to avoid electrical hazards.
A practical tip for quick identification is to test the fuel pump relay while the engine is off. Have a helper turn the ignition to the "ON" position while you listen for a faint humming sound near the fuel tank, indicating the pump is priming. If the sound is absent, the relay may be faulty or disconnected. This method not only confirms the relay’s location but also helps diagnose potential issues. Remember, relays are often interchangeable within the same fuse box, so swapping with another relay of the same type can serve as a temporary test.
In summary, locating the fuse box is the cornerstone of finding the fuel pump relay. Whether under the hood or dashboard, the process requires a blend of observation, reference, and caution. Armed with the right tools and knowledge, you can efficiently identify and access the relay, paving the way for troubleshooting or replacement. Always prioritize safety and consult reliable resources when in doubt, ensuring your vehicle remains in optimal condition.
