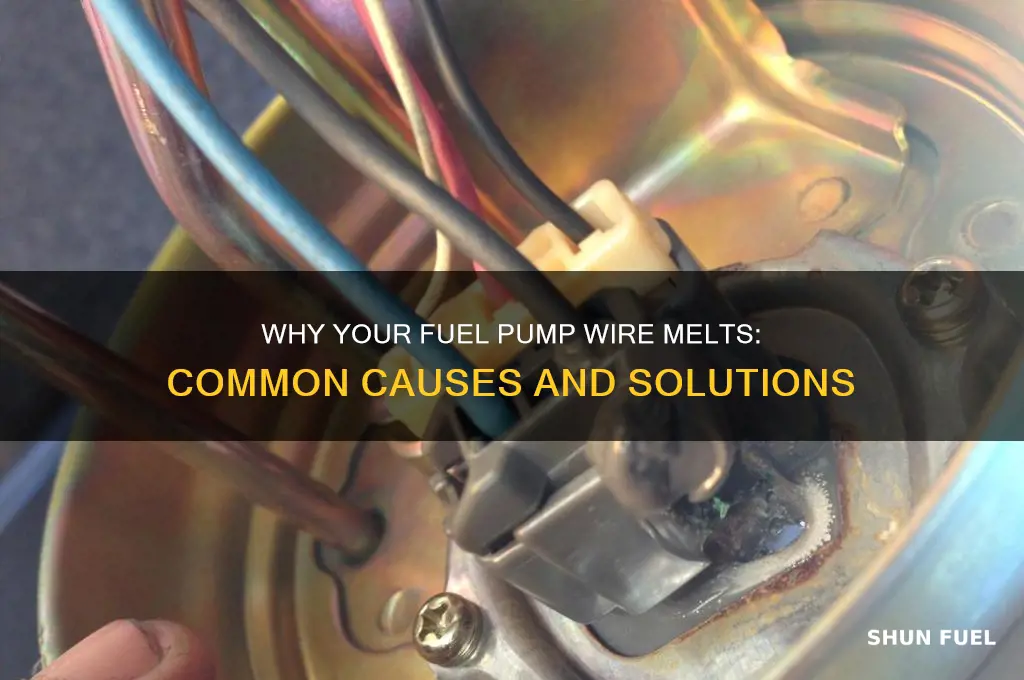

The issue of a fuel pump wire melting is a common yet concerning problem that can arise in vehicles, often leading to poor performance or even complete failure of the fuel system. This typically occurs due to excessive heat generated by high electrical resistance in the wiring, which can be caused by factors such as corrosion, loose connections, or the use of undersized wires. Additionally, prolonged exposure to high temperatures in the engine bay or electrical overloads can exacerbate the problem. Understanding the root causes and implementing preventive measures, such as using heat-resistant wiring, ensuring proper grounding, and regular inspections, can help mitigate this issue and maintain the reliability of the vehicle's fuel delivery system.
| Characteristics | Values |
|---|---|
| Overcurrent | Excessive current flow due to a faulty fuel pump, short circuit, or incorrect wiring gauge. |
| Resistance in Wiring | High resistance caused by corroded connections, damaged wires, or poor grounding. |
| Voltage Drop | Significant voltage drop due to long wire runs or undersized wiring. |
| Heat Generation | Prolonged exposure to high temperatures from the engine bay or exhaust system. |
| Poor Wire Quality | Use of low-quality or incompatible wiring materials that cannot handle the current load. |
| Improper Installation | Incorrect routing of wires, tight bends, or exposure to sharp edges causing insulation damage. |
| Aging Components | Wires and connectors degrading over time due to heat, vibration, and environmental factors. |
| Faulty Relay or Fuse | Malfunctioning relay or fuse causing intermittent high current flow. |
| Grounding Issues | Poor or loose ground connections leading to increased resistance and heat. |
| Overloaded Electrical System | Additional accessories drawing excessive power, overloading the fuel pump circuit. |
| Manufacturing Defects | Factory defects in wiring harnesses or connectors leading to premature failure. |
| Environmental Factors | Exposure to moisture, chemicals, or extreme temperatures accelerating wire degradation. |
| Lack of Maintenance | Neglecting regular inspections and maintenance of the fuel system wiring. |
Explore related products
What You'll Learn
- Overloading and Amperage Issues: Excess current flow due to short circuits or faulty wiring causes overheating and melting
- Poor Wire Gauge Selection: Using wires too thin for the pump's amperage leads to excessive heat generation
- Corrosion and Connections: Rusty or loose connections increase resistance, generating heat that melts wire insulation
- Heat Source Proximity: Wires near exhaust or engine components can overheat and melt from external heat
- Aging and Wear: Old wires become brittle, lose insulation, and are more prone to melting under stress
Overloading and Amperage Issues: Excess current flow due to short circuits or faulty wiring causes overheating and melting
Imagine your fuel pump wire as a garden hose. Normally, water flows through it at a manageable rate. But what happens if you attach a firehose to the same spigot? The pressure skyrockets, the hose bulges, and eventually, it bursts. This, in essence, is what happens when your fuel pump wire experiences overloading and amperage issues.
Excess current, often caused by short circuits or faulty wiring, acts like that firehose, forcing more electricity through the wire than it's designed to handle. This surge generates heat, and just like a hose under extreme pressure, the wire's insulation melts, leading to potential fuel leaks, engine failure, and even fire hazards.
Understanding the culprit behind this overheating is crucial. Short circuits, where electricity finds an unintended path of lower resistance, are a common cause. This could be due to frayed wires touching metal components, damaged insulation, or even rodent damage. Faulty wiring, such as using undersized wires for the fuel pump's amperage requirements, can also lead to overloading.
Let's say your fuel pump draws 15 amps. Using a wire rated for only 10 amps is a recipe for disaster. The wire will heat up excessively, potentially melting its insulation and causing a dangerous situation. Always consult your vehicle's manual or a qualified mechanic to determine the correct wire gauge for your fuel pump's amperage needs.
Preventing overloading and amperage issues requires a proactive approach. Regularly inspect your fuel pump wiring for signs of wear and tear, paying close attention to areas prone to chafing or damage. Look for exposed wires, cracked insulation, or any signs of burning. If you suspect a short circuit, carefully trace the wiring to identify the source of the problem. Remember, attempting electrical repairs without proper knowledge can be dangerous. When in doubt, consult a professional mechanic.
Accessing the Fuel Pump on a 1997 Ford Escort: A Step-by-Step Guide
You may want to see also
Explore related products
Poor Wire Gauge Selection: Using wires too thin for the pump's amperage leads to excessive heat generation
One of the most common yet overlooked culprits behind melting fuel pump wires is poor wire gauge selection. The gauge of a wire refers to its thickness, which directly correlates to its current-carrying capacity. A fuel pump drawing high amperage requires a wire thick enough to handle that load without overheating. For instance, a fuel pump drawing 20 amps should never be paired with a 16-gauge wire, which is rated for only 10 amps at 12 volts. This mismatch forces the wire to carry more current than it can safely manage, leading to excessive heat generation and eventual melting.
To illustrate, consider a high-performance fuel pump designed for a turbocharged engine. Such pumps often draw upwards of 15-20 amps under load. If the installer uses a 14-gauge wire, which is rated for 15 amps, the wire will operate at or near its maximum capacity. Any additional load, such as starting the engine or climbing a steep hill, can push the current beyond the wire’s limit. The result? The wire heats up, its insulation degrades, and eventually, it melts or sparks, posing a fire hazard. Always consult the pump’s specifications and use a wire gauge that exceeds the pump’s maximum amperage draw by at least 20% to ensure safety and reliability.
Selecting the correct wire gauge isn’t just about avoiding melting—it’s about optimizing performance and longevity. Thicker wires reduce voltage drop, ensuring the fuel pump receives consistent power. A 12-gauge wire, for example, can handle up to 20 amps and is a safer choice for high-demand pumps. Additionally, using a wire with a higher temperature rating (e.g., TXL or GPT wire) can provide extra protection against heat. Practical tip: Measure the distance from the pump to the power source and factor in voltage drop calculations. For every 10 feet of wire, a thinner gauge can lose up to 0.2 volts, starving the pump of power and increasing strain on the wire.
A comparative analysis reveals the stark difference between proper and improper wire gauge selection. A fuel pump system with a 10-gauge wire (rated for 30 amps) will operate cool and efficient, even under heavy load. In contrast, a system with a 16-gauge wire (rated for 10 amps) will heat up rapidly, melt, or even ignite. The takeaway? Don’t cut corners on wire gauge. Invest in the right size to prevent costly repairs and potential safety hazards. Remember, the wire is the lifeline of your fuel pump—skimping on its quality or thickness can have catastrophic consequences.
Troubleshooting Your Bombardier Jet Ski's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Corrosion and Connections: Rusty or loose connections increase resistance, generating heat that melts wire insulation
Corroded or loose electrical connections are silent saboteurs in your vehicle’s wiring system. When moisture, dirt, or age compromise the integrity of a fuel pump wire connection, the metal surfaces oxidize, forming a layer of rust or corrosion. This corrosion acts like a choke point, restricting the flow of electricity. Imagine water trying to pass through a narrow straw versus a wide pipe—the narrower the path, the greater the resistance. Similarly, corroded connections force electrons to navigate a more difficult path, increasing resistance and generating heat as a byproduct. Over time, this heat builds up, melting the wire insulation and exposing the conductor to further damage.
To understand the mechanics, consider Ohm’s Law: *Power (P) = Current (I)² × Resistance (R)*. In a corroded connection, resistance spikes, causing power dissipation in the form of heat. For instance, a fuel pump drawing 10 amps through a connection with 0.2 ohms of resistance generates 20 watts of heat (*P = 10² × 0.2*). While this might seem minor, localized heat in a confined space like a wiring harness can quickly exceed the melting point of PVC insulation (typically around 160°F). Loose connections exacerbate the issue by creating intermittent contact, leading to arcing—tiny electrical sparks that further heat the area.
Preventing corrosion-induced wire melting starts with regular inspection and maintenance. Use a multimeter to check for voltage drops across connections; a drop of more than 0.1 volts indicates excessive resistance. Clean corroded terminals with a wire brush and apply dielectric grease to repel moisture. For severe cases, replace the connector entirely. When installing new wires, ensure terminals are crimped securely and soldered for maximum conductivity. Avoid over-tightening, as this can deform the connector and create new points of resistance.
Comparing this to other causes of wire melting, such as amperage overload or chafing, corrosion stands out as a preventable yet often overlooked culprit. While upgrading to higher-gauge wire might address amperage issues, it does nothing for corrosion. Similarly, routing wires away from sharp edges prevents chafing but won’t stop moisture infiltration. Addressing corrosion requires a proactive approach—regular cleaning, sealing exposed connections, and using corrosion-resistant materials like zinc-plated terminals or heat-shrink tubing with adhesive lining.
In practice, consider a real-world scenario: a fuel pump wire melting in a 10-year-old vehicle. The owner might blame the pump’s high current draw (e.g., 15–20 amps) without realizing the corroded ground connection is the true culprit. By focusing on the pump, they risk replacing expensive parts while ignoring the root cause. Instead, a systematic inspection—starting with voltage drop tests and visual checks for corrosion—would reveal the issue. The takeaway? Corrosion and loose connections are not just nuisances; they’re critical failure points that demand attention before they ignite a larger problem.
Understanding the Role of a Fuel Pump Relay in Your Vehicle
You may want to see also
Explore related products
Heat Source Proximity: Wires near exhaust or engine components can overheat and melt from external heat
One of the most overlooked culprits behind melting fuel pump wires is their proximity to heat sources like the exhaust manifold or engine block. These components can reach temperatures exceeding 400°F (204°C) during operation, far surpassing the heat tolerance of standard automotive wiring insulation, which typically maxes out around 220°F (104°C). When wires are routed too close to these areas, the insulation softens, degrades, and eventually melts, exposing the conductive core to further damage or short circuits. This issue is particularly common in older vehicles or those with aftermarket modifications where wiring may not follow original equipment manufacturer (OEM) guidelines.
To mitigate this risk, inspect the wiring harness for any sections running parallel to or crossing over exhaust components. Use a non-contact infrared thermometer to measure temperatures around the suspected area during engine operation—if readings exceed 180°F (82°C), relocation is critical. For repairs, replace damaged wires with high-temperature-rated alternatives, such as TXL or GPT wiring, which can withstand up to 275°F (135°C). Additionally, install heat shielding sleeves or wraps around vulnerable sections to create a thermal barrier.
A comparative analysis reveals that vehicles with transverse engine layouts often face higher risks due to cramped engine bays, where fuel pump wires may inadvertently be routed near exhaust headers. In contrast, longitudinal layouts typically provide more space, reducing the likelihood of heat-related wire damage. However, improper installation or aging insulation can negate these advantages. Always refer to the vehicle’s wiring diagram to ensure correct routing and consider consulting a professional for complex cases.
Finally, prevention is key. During routine maintenance, visually inspect wires for discoloration, brittleness, or charring—early signs of heat exposure. Secure wires away from heat sources using zip ties or clamps, ensuring they maintain a minimum clearance of 2 inches (5 cm) from exhaust or engine components. For high-performance or modified vehicles, invest in ceramic coatings or heat-resistant barriers to further protect wiring. Addressing this issue proactively not only prevents wire failure but also reduces the risk of fuel system malfunctions or fires.
Signs Your Car Needs a New Fuel Pump: What to Look For
You may want to see also
Explore related products
Aging and Wear: Old wires become brittle, lose insulation, and are more prone to melting under stress
Over time, the wires in your vehicle’s fuel pump system age, much like any other component exposed to heat, vibration, and environmental stress. This aging process manifests in several ways: the wire’s insulation becomes brittle, cracks form, and the protective layer that once shielded it from heat and friction deteriorates. When this happens, the wire is no longer insulated from the high temperatures generated by the fuel pump’s operation or the engine bay’s environment. The result? Increased resistance in the circuit, higher heat generation, and eventually, melting. This is particularly common in older vehicles, where wires have endured years of thermal cycling and mechanical stress.
Consider the analogy of a rubber band left in the sun: it hardens, loses flexibility, and eventually snaps under tension. Similarly, aged wires lose their resilience. The insulation, often made of materials like PVC or rubber, breaks down due to prolonged exposure to heat, oil, and moisture. Once cracks appear, the wire’s core is exposed to direct heat and friction, accelerating the degradation process. For instance, a fuel pump wire running near the exhaust manifold or engine block is constantly subjected to temperatures exceeding 200°F (93°C), which can hasten this breakdown. Regular inspection of wires in high-heat areas is crucial, especially in vehicles over 10 years old.
To mitigate the risk of melting, start by visually inspecting the fuel pump wiring harness for signs of aging. Look for cracks, discoloration, or exposed copper strands. If the insulation feels hard or crumbly to the touch, it’s a clear indicator of deterioration. Replacing these wires with high-temperature-rated alternatives, such as those with silicone insulation (capable of withstanding up to 350°F or 177°C), can significantly extend their lifespan. Additionally, routing wires away from heat sources and using heat shields or sleeving can provide an extra layer of protection.
Aging wires aren’t just a nuisance—they’re a safety hazard. A melted fuel pump wire can lead to fuel delivery issues, engine misfires, or even a no-start condition. Worse, it poses a fire risk if the exposed wire comes into contact with flammable materials. For older vehicles, proactive maintenance is key. Schedule annual inspections of the wiring harness, particularly if you notice symptoms like intermittent fuel pump operation or unusual odors from the engine bay. Addressing these issues early can prevent costly repairs and ensure your vehicle remains reliable.
In summary, aging and wear are silent culprits behind melting fuel pump wires. By understanding how insulation degrades over time and taking preventive measures, you can avoid the headaches associated with wire failure. Whether it’s upgrading to heat-resistant materials or rerouting wires away from hot zones, small steps today can save you from major problems tomorrow. Treat your vehicle’s wiring with the same care you’d give its engine—after all, it’s the lifeline that keeps everything running smoothly.
Checking Fuel Pump Pressure on an IH 1086: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Fuel pump wires can melt due to excessive current flow, often caused by a failing fuel pump, a short circuit, or an undersized wire that cannot handle the electrical load.
Yes, a faulty fuel pump can draw excessive current, overheating the wire and causing it to melt. This is often due to the pump working harder than normal or internal resistance issues.
Ensure the wire is the correct gauge for the fuel pump's amperage, inspect for damage or corrosion, and address any fuel pump issues promptly. Using a relay to manage the electrical load can also help prevent overheating.
