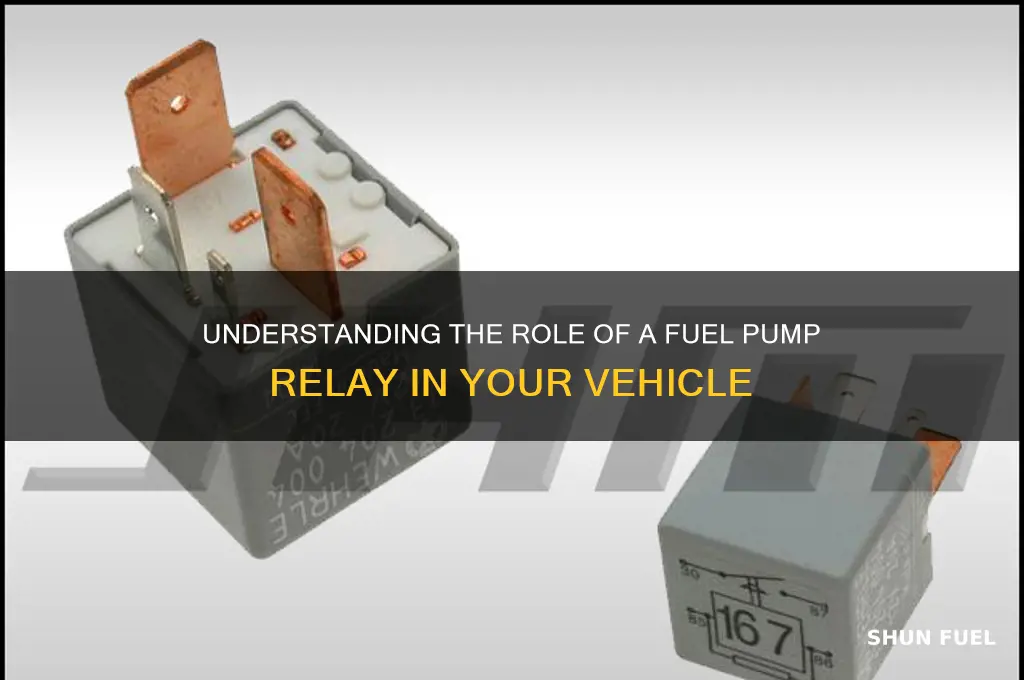

A fuel pump relay is a crucial component in a vehicle's fuel system, acting as an electrical switch that controls the power supply to the fuel pump. Its primary function is to ensure the fuel pump operates only when the engine is running or being started, conserving energy and preventing the pump from running continuously. When the ignition is turned on, the relay receives a signal from the engine control unit (ECU) or ignition switch, allowing current to flow to the fuel pump, which then delivers fuel from the tank to the engine. This mechanism not only enhances fuel efficiency but also adds a layer of safety by reducing the risk of fuel-related accidents in the event of a crash or electrical malfunction. Without a functioning fuel pump relay, the engine may fail to start or experience performance issues due to inadequate fuel delivery.
| Characteristics | Values |
|---|---|
| Function | Controls the power supply to the fuel pump, ensuring it operates only when needed. |
| Location | Typically found in the fuse box or relay panel under the hood or near the fuel pump. |
| Operation | Activated by the ignition switch or engine control module (ECM) to turn the fuel pump on/off. |
| Power Management | Conserves energy by shutting off the fuel pump when the engine is not running. |
| Safety Feature | Prevents fuel delivery in case of accidents or engine shutdown, reducing fire risk. |
| Voltage Regulation | Ensures the fuel pump receives the correct voltage for optimal performance. |
| Diagnostic Role | Can be tested to diagnose fuel pump or electrical system issues. |
| Durability | Designed to withstand high electrical loads and frequent switching. |
| Compatibility | Specific to vehicle make and model; not universally interchangeable. |
| Failure Symptoms | Engine stalling, difficulty starting, or no fuel delivery if the relay fails. |
Explore related products
What You'll Learn
- Relay Functionality: Controls power to the fuel pump, ensuring it operates only when the engine is running
- Safety Role: Prevents fuel pump operation during accidents or when the engine is off
- Power Management: Regulates high current flow to the fuel pump, protecting the electrical system
- Symptoms of Failure: Engine stalling, difficulty starting, or no fuel pressure due to relay malfunction
- Location and Testing: Typically found in the fuse box; tested using a multimeter for continuity
Relay Functionality: Controls power to the fuel pump, ensuring it operates only when the engine is running
The fuel pump relay acts as a critical gatekeeper, managing the electrical current that powers the fuel pump. Without this relay, the fuel pump would either run continuously, wasting energy and potentially overheating, or fail to activate when needed, leaving the engine starved for fuel. By controlling power delivery, the relay ensures the fuel pump operates only when the engine is running, optimizing efficiency and safety. This precise timing is essential for modern vehicles, where fuel delivery must align perfectly with engine demands.
Consider the relay as a switch with intelligence. When the ignition is turned on, the relay receives a signal from the engine control unit (ECU), allowing current to flow to the fuel pump. This primes the fuel system, preparing it for combustion. Once the engine starts, the relay maintains power to the pump, ensuring a steady fuel supply. If the engine stalls or is turned off, the relay cuts power, preventing the pump from running unnecessarily. This functionality not only conserves energy but also reduces wear on the fuel pump, extending its lifespan.
From a safety perspective, the relay’s role is indispensable. A continuously running fuel pump could lead to fuel leaks or pressure buildup in the system, increasing the risk of fire or explosion. By limiting operation to engine-running periods, the relay minimizes these hazards. For instance, in the event of a collision, the relay’s ability to cut power to the fuel pump can prevent fuel from being pumped into a compromised system, reducing the likelihood of post-crash fires.
Practical troubleshooting tips highlight the relay’s importance. If your vehicle struggles to start or stalls unexpectedly, a faulty fuel pump relay could be the culprit. Symptoms include a lack of fuel pressure or an inoperative fuel pump despite a functioning pump motor. To test the relay, locate it in the fuse box (consult your vehicle’s manual for exact placement), and use a multimeter to check for continuity. If the relay fails the test, replacing it is a straightforward fix, typically costing between $20 and $50, depending on the vehicle model.
In summary, the fuel pump relay’s functionality is a masterclass in precision engineering. By controlling power to the fuel pump based on engine status, it balances efficiency, safety, and longevity. Understanding its role not only deepens your appreciation for automotive systems but also equips you with the knowledge to diagnose and address common issues, ensuring your vehicle runs smoothly and reliably.
