When diagnosing fuel pump issues, it's crucial to identify the correct wire to test, as this ensures accurate troubleshooting and prevents potential damage. The fuel pump typically connects to a wiring harness with multiple wires, each serving a specific function, such as power supply, ground, or control signals. To test the fuel pump, focus on the wire that supplies power directly to the pump, usually identified by its thicker gauge and often colored red or orange. Using a multimeter, check for voltage at this wire while activating the fuel pump relay or turning the ignition to the on position. If voltage is present but the pump doesn't operate, the issue may lie with the pump itself or its ground connection. Always consult the vehicle’s wiring diagram for precise wire identification and testing procedures.
| Characteristics | Values |
|---|---|
| Wire to Test | Typically the power wire (usually a thick, often red or pink wire) |
| Purpose of Test | To verify if the fuel pump is receiving power |
| Tools Needed | Multimeter, test light, or 12V test bulb |
| Test Procedure | 1. Locate the fuel pump connector (often near the fuel tank or in the engine bay). 2. Disconnect the connector. 3. Turn the ignition to the "ON" position. 4. Use the multimeter or test light to check for voltage on the power wire. |
| Expected Result | Voltage should be present (typically 12V) when the ignition is on |
| Possible Issues if No Voltage | Faulty fuel pump relay, blown fuse, bad wiring, or a malfunctioning PCM/ECU |
| Additional Tests | Check for ground and continuity on other wires in the connector if power is present but the pump doesn't work |
| Safety Precautions | Ensure the vehicle is off and the battery is disconnected before working on the fuel system |
| Common Wire Colors | Red, pink, or orange (power); black (ground); other colors may vary by vehicle |
| Consult Vehicle Manual | Always refer to the vehicle's service manual for specific wire colors and diagrams |
Explore related products
What You'll Learn

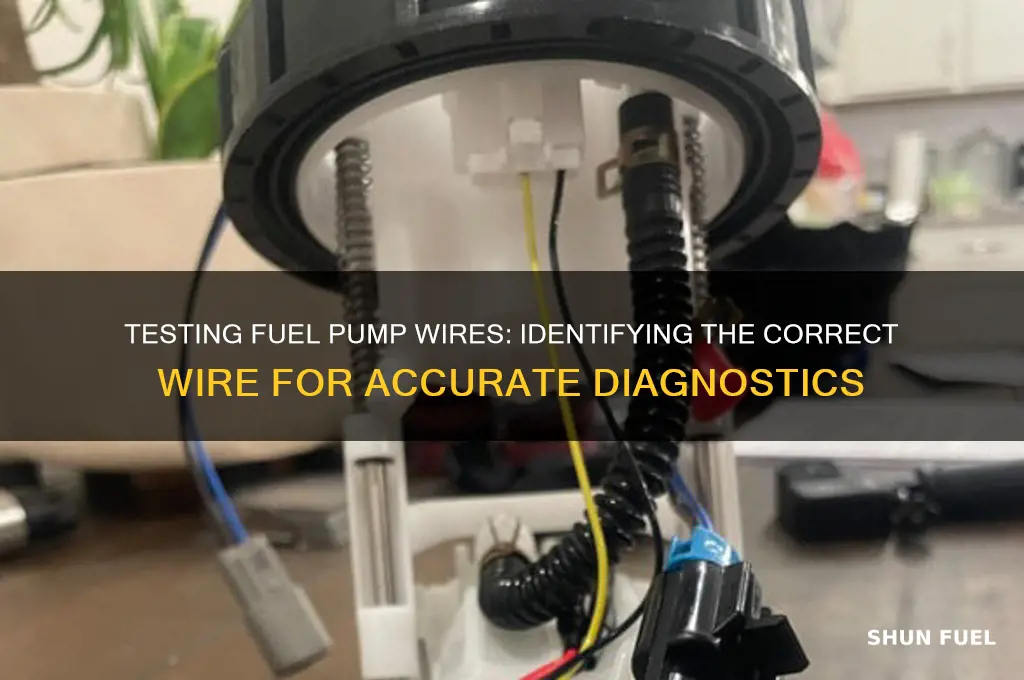

Testing Fuel Pump Wires: Identifying the Correct Wire
The fuel pump's wiring harness typically contains multiple wires, each serving a distinct purpose. Identifying the correct wire to test is crucial for accurate diagnostics. Generally, you'll find a power wire (usually 12V), a ground wire, and a signal wire from the fuel pump relay or module. The power wire is the primary focus when testing for voltage, as it supplies the necessary energy to operate the pump. Using a multimeter, set to the voltage setting, touch the positive probe to the power wire and the negative probe to a good ground. With the key in the "on" position, you should see a reading of approximately 12V. If no voltage is present, further investigation into the relay, fuse, or wiring is necessary.
Instructive Approach:
To test the fuel pump wires, start by locating the wiring harness connector near the fuel tank. This connector typically has a clip or latch that needs to be released before it can be disconnected. Once disconnected, inspect the wires for any signs of damage or corrosion. Identify the power wire, often colored red or orange, and the ground wire, usually black or brown. If you're unsure which wire is which, consult the vehicle's service manual or a wiring diagram specific to your make and model. With the key in the "on" position, use a test light or multimeter to check for voltage at the power wire. A functioning fuel pump should show 12V, indicating that power is reaching the pump.
Comparative Analysis:
Different vehicles may have varying wire color codes and configurations, making it essential to verify the correct wire before testing. For instance, some vehicles use a pink wire for the power supply, while others may employ a blue wire with a white stripe. Moreover, certain fuel pump systems incorporate a dedicated ground wire, whereas others rely on the vehicle's chassis as a ground. Understanding these differences is vital to avoid misdiagnosis. By comparing your vehicle's wiring diagram with the actual wires, you can confidently identify the correct wire to test, ensuring accurate results and preventing unnecessary part replacements.
Descriptive Scenario:
Imagine you're troubleshooting a no-start condition on a 2005 Honda Civic. After verifying that the engine is cranking but not starting, you suspect a fuel delivery issue. You locate the fuel pump wiring harness under the rear seat, where the carpet meets the floor. Upon disconnecting the harness, you notice three wires: a green wire, a black wire, and a yellow wire with a red stripe. Consulting the wiring diagram, you identify the yellow wire with a red stripe as the power supply. Using a multimeter, you test this wire for voltage, finding a consistent 12V reading with the key in the "on" position. This confirms that power is reaching the fuel pump, narrowing down the potential causes of the no-start condition.
Practical Tips and Cautions:
When testing fuel pump wires, always prioritize safety by working on a cool engine and disconnecting the battery to prevent accidental starts. Be cautious when handling wiring connectors, as they can be fragile and prone to damage. If you're unsure about wire identification, take a picture of the connector before disconnecting it, providing a reference for reassembly. Keep a record of your test results, including voltage readings and wire colors, to facilitate future diagnostics. Remember that fuel systems operate under high pressure, so exercise caution when working near the fuel tank or lines. By following these guidelines, you can effectively test fuel pump wires, identify potential issues, and make informed decisions about repairs.
Signs Your Mechanical Fuel Pump is Failing: Diagnosis and Solutions
You may want to see also
Explore related products
Using a Multimeter to Test Fuel Pump Wires
Testing fuel pump wires with a multimeter is a precise task that requires understanding the pump’s electrical circuit. The fuel pump typically has two primary wires: a power wire (usually red or pink) and a ground wire (black). The power wire delivers voltage from the relay or fuse box, while the ground wire completes the circuit. To identify which wire to test, consult your vehicle’s wiring diagram or service manual. The power wire is the critical one to test for voltage, as it confirms whether the pump is receiving the necessary electrical signal to operate.
Begin by setting your multimeter to the voltage setting (typically 20V DC for automotive systems). Disconnect the fuel pump connector and locate the power wire. With the ignition on, touch the multimeter’s positive lead to the power wire and the negative lead to a good ground (like the battery negative terminal). A reading of 12V indicates the pump is receiving power. If no voltage is detected, the issue may lie in the relay, fuse, or wiring harness. This step isolates whether the problem is electrical or mechanical.
While testing, be cautious of short circuits. Never allow the multimeter leads to touch each other while connected to the power wire, as this can damage the pump or wiring. Additionally, ensure the vehicle is off when connecting the multimeter to avoid accidental pump activation. If voltage is present but the pump isn’t functioning, proceed to test the ground wire for continuity. A broken ground connection is a common culprit for pump failure.
For a comprehensive diagnosis, test the fuel pump’s resistance. Switch the multimeter to the ohms setting and measure the resistance between the power and ground wires. Compare this value to the manufacturer’s specifications (typically 1–3 ohms). A reading outside this range suggests a faulty pump. This two-pronged approach—voltage and resistance testing—ensures a thorough evaluation of the fuel pump’s electrical integrity.
In summary, testing fuel pump wires with a multimeter involves verifying voltage on the power wire and checking resistance across the circuit. These steps pinpoint whether the issue is electrical (lack of power or poor grounding) or mechanical (faulty pump). By systematically isolating each component, you can diagnose the problem efficiently and avoid unnecessary part replacements. Always prioritize safety and accuracy when working with automotive electrical systems.
Are Most Aftermarket Fuel Pumps Reliable for Your Vehicle?
You may want to see also
Explore related products
Common Wire Colors for Fuel Pump Testing
Identifying the correct wire for fuel pump testing is crucial for accurate diagnostics, and wire color coding plays a significant role in this process. While color standards vary by vehicle make and model, certain patterns emerge that can guide technicians. For instance, in many domestic vehicles, the fuel pump wire is often black/white or black/yellow, with the black wire typically serving as the ground and the striped wire carrying the power signal. European vehicles, on the other hand, may use brown or red/blue wires for the fuel pump circuit. Familiarizing yourself with these common color combinations can save time and reduce the risk of misdiagnosis.
Analyzing wire colors requires a systematic approach, especially when dealing with older vehicles or those with aftermarket modifications. Start by consulting the vehicle’s wiring diagram, which is often found in the owner’s manual or online databases like ALLDATA or Mitchell1. If the diagram is unavailable, use a multimeter to test for continuity and voltage. For example, set the multimeter to the 20V DC range and probe the wires while activating the fuel pump relay. A wire showing 12V during cranking is likely the power wire, while the ground wire will show continuity to the chassis. Always verify polarity to avoid damaging the pump or wiring.
Persuasively, relying solely on wire color can be misleading, as manufacturers occasionally deviate from standard codes or use regional variations. For instance, some Asian vehicles may employ green/red or yellow/black wires for the fuel pump, which can confuse technicians accustomed to domestic or European standards. To mitigate this, cross-reference color observations with voltage and resistance tests. A wire with 0.5–2 ohms of resistance to ground is typically the ground wire, while the power wire will show battery voltage during pump activation. This dual-verification method ensures accuracy regardless of color discrepancies.
Comparatively, modern vehicles with CAN bus systems complicate fuel pump testing due to integrated control modules. In such cases, wire colors may still provide initial clues, but diagnostic tools like OBD-II scanners are essential for confirming pump operation. For example, a red/white wire might indicate the pump’s power feed, but the module may cut power if it detects a fault. Here, wire color serves as a starting point, while scanner data provides the definitive diagnosis. This blend of visual inspection and technology highlights the evolving nature of automotive diagnostics.
Descriptively, the fuel pump circuit often includes additional wires for sensors or secondary functions, such as a gray/blue wire for the pump’s prime circuit or a purple/white wire for the fuel pressure sensor. These wires are typically thinner and carry lower voltage signals, distinguishing them from the main power and ground wires. When testing, isolate these auxiliary wires to avoid interference with the primary circuit. For instance, disconnecting the pressure sensor wire during a voltage test ensures the reading reflects the pump’s power supply, not a sensor signal. This attention to detail enhances diagnostic precision.
Testing Your 2001 Galant Fuel Pump for Power: A Step-by-Step Guide
You may want to see also
Explore related products
Safety Precautions When Testing Fuel Pump Wires
Testing fuel pump wires requires a meticulous approach to safety, as mishandling can lead to electrical shocks, fuel leaks, or even fires. Always disconnect the battery before beginning any work to eliminate the risk of accidental ignition or short circuits. This simple step is often overlooked but is critical in preventing catastrophic outcomes. Additionally, ensure the vehicle is parked on a level surface, away from open flames or sparks, and allow the engine to cool down if it has been running recently. These precautions create a safer environment for diagnosing and repairing fuel pump issues.
Fuel systems operate under pressure, and releasing this pressure improperly can result in fuel spraying or spilling. Before testing wires, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and pressing it with the ignition off. Use a towel to catch any residual fuel and dispose of it safely. Failure to do this can expose you to flammable vapors and increase the risk of fire. Always work in a well-ventilated area to minimize the buildup of these vapors, and avoid using open flames or smoking nearby.
When identifying and testing the correct wire, refer to the vehicle’s wiring diagram to avoid confusion. The fuel pump wire is typically the one connected to the fuel pump relay or the pump itself, often colored red or pink. Use a multimeter to test for voltage, ensuring the probes are securely connected to avoid arcing. Never probe wires randomly or force connections, as this can damage the wiring harness or cause a short circuit. Precision in identifying and testing the correct wire not only ensures accurate diagnostics but also prevents unnecessary risks.
Protective gear is non-negotiable when working with fuel systems. Wear safety goggles to shield your eyes from fuel splashes and insulated gloves to protect against electrical shocks. Flame-resistant clothing is also advisable, given the flammable nature of gasoline. These precautions may seem excessive, but they are essential for minimizing injury in the event of an accident. Remember, fuel systems are inherently dangerous, and taking shortcuts with safety gear can have severe consequences.
Finally, always have a fire extinguisher within reach when working on fuel systems. Even with all precautions, accidents can happen, and being prepared to respond quickly can prevent a minor incident from escalating. After completing the test, double-check all connections and ensure the fuel system is reassembled correctly. A thorough post-work inspection ensures that no loose wires or leaks are left behind, safeguarding both the vehicle and the technician. Safety in fuel pump wire testing is not just about following steps—it’s about cultivating a mindset of caution and preparedness.
Easy Steps to Remove Fuel Pump Screen from Honda Civic
You may want to see also
Explore related products
Diagnosing Fuel Pump Issues via Wire Testing
The fuel pump is a critical component in any vehicle's fuel system, and when it fails, it can leave you stranded. One of the most effective ways to diagnose fuel pump issues is by testing the wires that connect to it. This method allows you to pinpoint whether the problem lies within the pump itself, the wiring harness, or the electrical system. By understanding which wire to test and what to look for, you can save time and avoid unnecessary replacements.
Identifying the Correct Wire for Testing
Most fuel pumps have a dedicated power wire, typically colored red or orange, which supplies voltage directly from the battery or relay. This wire is crucial for testing because it carries the primary current needed to operate the pump. Additionally, there’s often a ground wire, usually black, and a signal wire that connects to the vehicle’s computer. To diagnose issues, focus on the power wire first. Use a multimeter to check for 12 volts at the pump’s connector when the ignition is turned on. If voltage is absent, trace the wire back to the relay or fuse box to identify the break or fault.
Step-by-Step Testing Procedure
Begin by locating the fuel pump connector, often found near the fuel tank or under the rear seat. Disconnect the connector and set your multimeter to measure voltage. With the ignition on, probe the power wire and compare the reading to the battery voltage. If the voltage is significantly lower or nonexistent, suspect a faulty relay, blown fuse, or damaged wire. Next, test the ground wire by checking for continuity between the wire and the vehicle’s chassis. A lack of continuity indicates a poor ground connection, which can prevent the pump from operating. Finally, if both power and ground are present, the issue may lie within the pump itself, requiring further inspection or replacement.
Common Pitfalls to Avoid
One common mistake is assuming the fuel pump is faulty without thoroughly testing the wiring. Always verify voltage and ground before condemning the pump. Another pitfall is neglecting to check for intermittent issues, such as loose connections or corroded terminals, which can cause sporadic pump failure. Additionally, avoid testing the pump while it’s still connected to the fuel tank, as this can lead to inaccurate readings or damage. Always disconnect the pump and test it in a controlled environment.
Practical Tips for Accurate Diagnosis
For more precise testing, use a test light or multimeter with a load feature to simulate the pump’s actual current draw. This can reveal issues that static voltage tests might miss. If you’re unsure about wire colors or connector locations, consult your vehicle’s service manual for accurate diagrams. Keep safety in mind when working with fuel systems—relieve fuel pressure and disconnect the battery before testing. By following these steps and avoiding common errors, you can confidently diagnose fuel pump issues via wire testing and make informed repairs.
Understanding Motorcycle Fuel Pumps: Function, Operation, and Maintenance Tips
You may want to see also
Frequently asked questions
Typically, you test the wire that supplies power to the fuel pump, often the wire connected to the fuel pump relay or the fuel pump itself. This wire is usually a thick, colored wire (e.g., red, orange, or yellow) and should have battery voltage when the ignition is on.
Refer to your vehicle's wiring diagram to identify the wire responsible for supplying power to the fuel pump. It is usually labeled as the "fuel pump power" or "fuel pump supply" wire.
Yes, you can use a multimeter to test the fuel pump wire for voltage. Set the multimeter to the DC voltage setting, connect the probes to the wire and a good ground, and check for battery voltage when the ignition is on.
You should expect to see battery voltage (typically around 12-14 volts) when testing the fuel pump wire with the ignition on. If the voltage is significantly lower or non-existent, there may be an issue with the wiring or the fuel pump relay.
No, it is not necessary to disconnect the fuel pump before testing the wire. However, ensure the ignition is off before connecting your multimeter to avoid short circuits or damage to the fuel pump. Always follow proper safety precautions when working with electrical systems.
