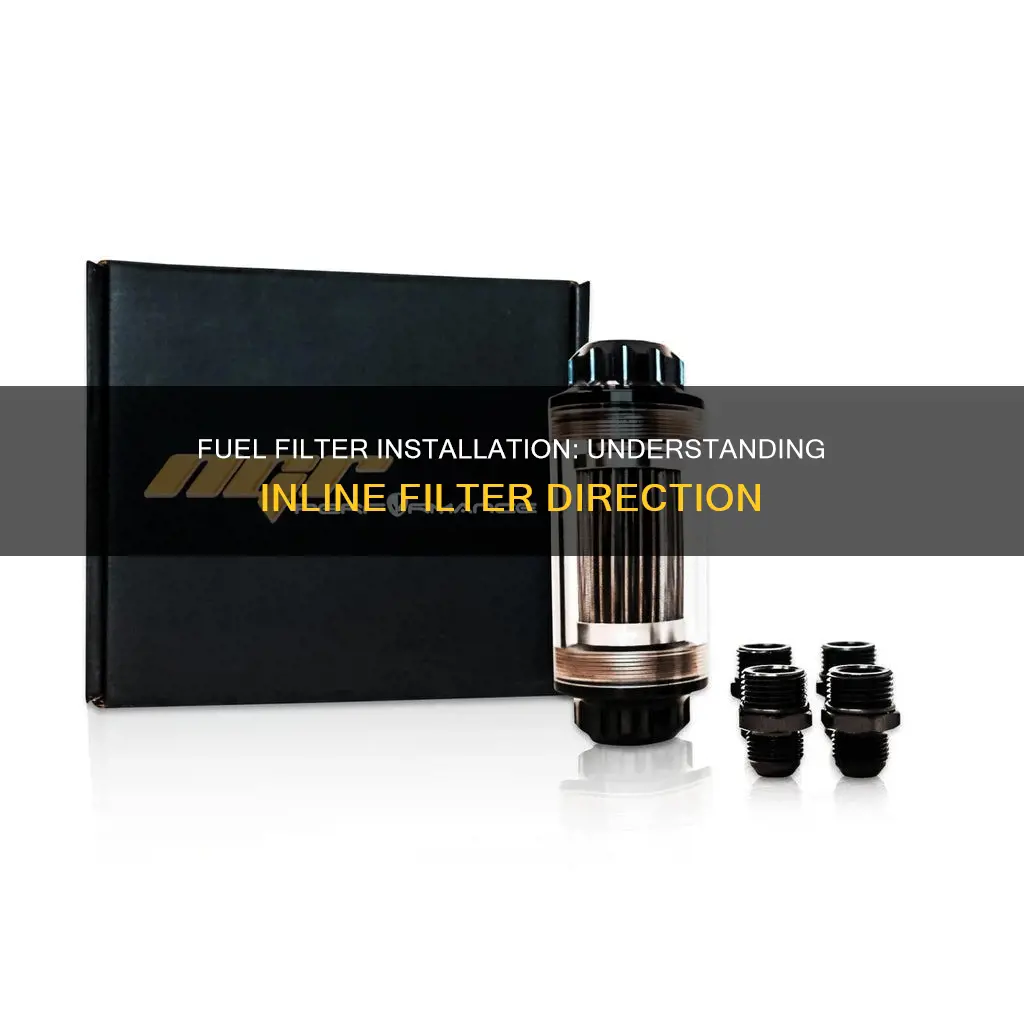

Inline Fuel Filter Direction: A Comprehensive Guide

When it comes to in-line fuel filters, determining the correct orientation can be crucial for optimal performance. The question of which way does a in-line fuel filter go is often asked by vehicle owners and mechanics alike. Understanding the proper installation direction of an in-line fuel filter is essential to ensure that it effectively traps contaminants and maintains the quality of the fuel supply to the engine. This simple yet important detail can impact the overall efficiency and longevity of the vehicle's fuel system.

Fuel Filter Location: Identify the specific engine compartment area where the filter is installed

The location of the in-line fuel filter can vary depending on the vehicle make and model, but it is typically positioned in the engine compartment, close to the fuel tank. This filter is an essential component of the fuel system, responsible for removing contaminants and ensuring clean fuel delivery to the engine. Identifying its exact location is crucial for successful maintenance and replacement.

In many vehicles, the in-line fuel filter is mounted on the driver's side of the engine compartment, often near the front of the engine. It is usually positioned along the fuel line, which runs from the fuel tank to the engine. This placement allows for easy access during routine checks and replacements. When inspecting the filter, look for a cylindrical or cartridge-style component with a mounting bracket or housing that secures it in place.

To locate the filter, start by opening the hood and examining the engine compartment. Locate the fuel lines that run from the fuel tank to the engine. The filter will be attached to one of these lines, often within a few inches of the tank. It might be mounted horizontally or vertically, depending on the vehicle's design. Some filters have a visible indicator or a small window that shows the filter's condition, allowing you to determine if it needs replacement.

In some cases, the in-line fuel filter may be integrated into a larger component, such as a fuel pump module or a fuel pressure regulator. If this is the case, you might need to remove other parts to access the filter. Always refer to your vehicle's service manual for specific instructions on disassembling the engine compartment to locate the filter accurately.

Regularly checking and replacing the in-line fuel filter is essential to maintain optimal engine performance and longevity. Over time, the filter can become clogged with contaminants, reducing fuel quality and potentially causing engine issues. By knowing the exact location of the filter, you can ensure prompt maintenance, keeping your vehicle's fuel system in top condition.

Filter Orientation: Determine the correct orientation for the filter to ensure proper flow

When installing an in-line fuel filter, it is crucial to pay attention to its orientation to ensure optimal performance and prevent potential issues. The correct placement of the filter is essential for maintaining the quality of the fuel and the overall health of the engine. Here's a guide to help you determine the right orientation:

The primary consideration is the direction of fuel flow. In-line filters are typically designed to be installed in a specific orientation to facilitate the smooth passage of fuel. The filter usually has an inlet and an outlet port, and these ports must be aligned correctly. The inlet port is where the fuel enters the filter, and it should be positioned to allow fuel to flow into the filter easily. This port is often larger in diameter to accommodate the fuel flow. The outlet port, on the other hand, is smaller and is responsible for releasing the filtered fuel back into the fuel line. It should be directed towards the engine to ensure a continuous supply of clean fuel.

To ensure proper orientation, you should consult the vehicle's manual or the filter's specifications. Each filter may have unique markings or indicators to guide you. For example, some filters have arrows or color-coded ports that clearly indicate the inlet and outlet directions. If there are no specific markings, a general rule of thumb is to install the filter so that the inlet port is facing towards the engine, and the outlet port is directed away from it. This orientation ensures that the filter can effectively trap contaminants and maintain a steady fuel supply.

Incorrect orientation can lead to reduced filter efficiency and potential engine problems. If the filter is installed with the inlet port facing away from the engine, it may restrict fuel flow, causing a decrease in engine performance. Conversely, if the outlet port is directed towards the engine, it can lead to fuel accumulation and potential pressure buildup, which might damage the fuel system.

In summary, when dealing with in-line fuel filters, proper orientation is key to their functionality. By following the manufacturer's guidelines or using general best practices, you can ensure that the filter is installed correctly, allowing for efficient fuel filtration and optimal engine performance. Remember, taking the time to get this right can save you from potential headaches and costly repairs in the long run.

Fuel Line Connections: Understand how the filter connects to the fuel lines and pump

When it comes to in-line fuel filters, understanding the connections is crucial for proper maintenance and ensuring optimal engine performance. The filter's placement and orientation are essential to guarantee a smooth and efficient fuel flow throughout the system.

The in-line fuel filter is typically connected to the fuel lines that supply fuel from the tank to the engine. It is positioned along the fuel line, often just before the fuel pump. This placement allows the filter to capture contaminants and debris from the fuel as it passes through, ensuring that only clean fuel reaches the engine. The filter's connection to the fuel lines is usually made through quick-connect fittings or threaded adapters, providing a secure and leak-proof attachment.

To ensure a proper connection, it is important to follow the manufacturer's guidelines. The filter should be installed in a way that allows for easy removal for cleaning or replacement. This often involves a specific orientation where the filter's inlet and outlet ports align with the fuel lines. By connecting the filter in this manner, you ensure that the fuel flows in the correct direction, preventing any potential issues caused by backflow.

In some cases, the in-line filter may also be connected to the fuel pump. This connection is vital as it allows the filter to protect the pump from contaminants. The filter's placement near the pump ensures that any impurities are caught before they can potentially damage the pump's internal components. This connection is often made using specialized fittings designed to withstand the pressure and temperature variations in the fuel system.

Understanding the fuel line connections is essential for any vehicle owner or mechanic. By correctly installing and maintaining the in-line fuel filter, you can ensure a reliable fuel supply, improve engine performance, and extend the life of your fuel system components. Regular inspection and replacement of the filter will contribute to the overall health and longevity of your vehicle's engine.

Replacement Process: Learn the steps to replace a clogged or damaged filter

To replace a clogged or damaged in-line fuel filter, follow these steps:

• Prepare the Vehicle: Park your vehicle on a level surface and engage the parking brake. Ensure the engine is cool to the touch to avoid any burns. Gather the necessary tools and replacement filter, which should be compatible with your vehicle's make and model.
• Locate the Filter: In-line fuel filters are typically located near the engine, often along the fuel line. They might be accessible from the bottom of the vehicle, or you may need to remove panels or access ports to reach them. Refer to your vehicle's manual if you're unsure of the exact location.
• Drain the Fuel System: Before replacing the filter, it's crucial to drain the fuel system to prevent any spills or mess. Locate the fuel drain valve, usually found near the fuel tank. Open the valve and allow the fuel to drain into an appropriate container. Ensure you have a suitable container to catch any residual fuel and debris.
• Remove the Old Filter: Carefully disconnect the fuel line from the old filter. You might need a fuel line disconnect tool for this step. Once the line is disconnected, gently pull the filter out of its housing. Be cautious as some filters may have a built-in strainer that can be easily dislodged. If so, remove it carefully to avoid losing it.
• Install the New Filter: Take the new filter and align it with the filter housing. Push it firmly into place until it clicks or fits snugly. Reconnect the fuel line to the new filter, ensuring a secure connection. Check for any leaks around the connections.
• Reassemble and Test: Replace any panels or access ports you removed earlier. Start the engine and check for any leaks. Let the engine run for a few minutes to ensure the fuel system is functioning properly. Check for any unusual noises or vibrations, which could indicate further issues.

Maintenance Tips: Discover best practices for maintaining the filter's performance and longevity

When it comes to maintaining the performance and longevity of your in-line fuel filter, there are several best practices to keep in mind. Firstly, it's crucial to understand the correct orientation of the filter. As the name suggests, an in-line fuel filter is positioned directly in the fuel line, and it's essential to install it in the correct direction. The filter should be mounted in a way that allows fuel to flow through it efficiently, ensuring that contaminants are effectively trapped. This might seem like a simple detail, but incorrect installation can lead to reduced filter efficiency and potential performance issues.

Regular maintenance checks are vital to ensure the filter's optimal performance. Over time, fuel filters can accumulate dirt, debris, and other contaminants, which can restrict fuel flow and impact engine performance. It is recommended to inspect the filter periodically, especially if you operate your vehicle in conditions that may introduce more contaminants, such as off-road driving or frequent short-distance travel. During these inspections, look for any signs of excessive dirt accumulation, leaks, or damage to the filter housing. If you notice any issues, it's best to replace the filter promptly to prevent potential engine problems.

Another critical aspect of maintenance is the use of the right fuel filter for your vehicle. Different vehicles may require specific types of filters, and using the correct one is essential for compatibility and performance. Consult your vehicle's manual or seek professional advice to identify the appropriate filter size and specifications. Using the right filter ensures that it can effectively trap contaminants without causing unnecessary restrictions in the fuel flow.

In addition to regular checks and the right filter choice, keeping your vehicle's fuel system clean is essential. Over time, fuel systems can accumulate varnish, corrosion, and other deposits, which can reduce filter efficiency and impact overall engine performance. Consider using a fuel system cleaner as part of your maintenance routine to remove these deposits and maintain a healthy fuel system. This proactive approach can help extend the life of your fuel filter and ensure optimal engine operation.

Lastly, it's worth mentioning that proper fuel storage and usage habits can also contribute to filter longevity. Storing fuel in a clean, dry environment and using it promptly can reduce the introduction of contaminants. Avoid leaving fuel in the tank for extended periods, as this can lead to the accumulation of water and sediment, which may eventually affect the filter. By following these maintenance tips, you can ensure that your in-line fuel filter performs optimally, providing reliable fuel filtration and contributing to the overall health of your vehicle's engine.
