Regan Brown

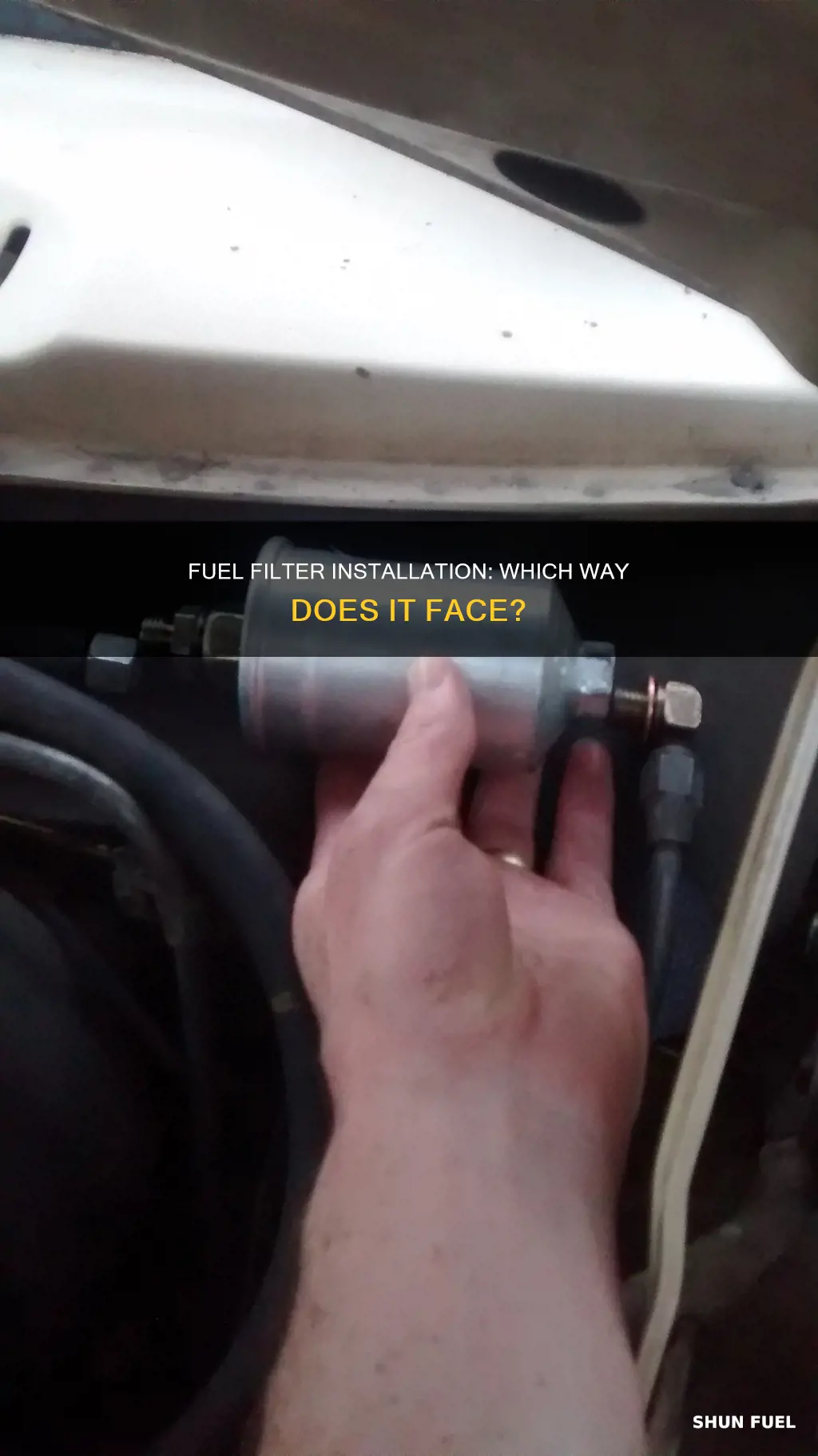

Fuel filters are crucial for optimal engine performance and longevity. Incorrect installation can reduce fuel flow, impair performance, and cause engine damage. Most fuel filters have an arrow or markings indicating the correct installation direction, with the arrow showing the fuel flow direction from the fuel tank to the engine. For cone-shaped fuel filters, the wider portion (base) of the cone should face the carb, while the top of the cone should point to the fuel tank. Log-style filters are installed with the closed end of the filter toward the fuel cell, with the spring being at the closed end.
Explore related products
$6.08 $8.99
$6.82
What You'll Learn
- Fuel filters have an arrow to indicate the correct installation direction
- The arrow should point from the fuel tank to the engine
- Cone-shaped fuel filters have their wider portion facing the carb
- Log-style fuel filters should have the closed end facing the fuel cell
- Incorrect installation can reduce fuel flow and impair engine performance
Fuel filters have an arrow to indicate the correct installation direction
Fuel filters are crucial for optimal engine performance and longevity. Incorrect installation can reduce fuel flow, impair engine performance, and even cause engine damage. Therefore, it is essential to understand the correct installation process.
Most fuel filters have an arrow or markings that indicate the correct installation direction. This arrow shows the direction of fuel flow from the fuel tank to the engine. The arrow must be oriented correctly to ensure proper fuel filtration. It is important to always double-check the arrow on the filter to ensure it points in the correct direction. Failure to do so can result in fuel spills and fire hazards.
Some fuel filters have a cone shape, and the installation direction matters. The wider portion (base) of the cone should face the carburettor, while the top of the cone should point towards the fuel tank. If installed incorrectly, sediment will collect inside the cone, interrupting fuel flow.
For log-style fuel filters, the closed end of the filter should be installed facing the fuel cell, with the spring at the closed end.
Fuel Filter Service: Jiffy Lube's Offerings Explored
You may want to see also
Explore related products
The arrow should point from the fuel tank to the engine
Fuel filters are crucial for optimal engine performance and longevity. Incorrect installation can reduce fuel flow, impair performance, and even cause engine damage. Most fuel filters have an arrow or markings indicating the correct installation direction. This arrow shows the fuel flow direction from the fuel tank to the engine. It is important to ensure that the arrow is oriented correctly to ensure proper fuel filtration.
The arrow on the fuel filter should always point from the fuel tank to the engine. This is to ensure that fuel flows in the correct direction and that the filter is working properly. Installing the filter backwards can shut down fuel flow as RPM increases and cause issues with engine performance and fuel economy. It can also lead to fuel spills and fire hazards if the system pressure is not released properly during installation.
The arrow on the fuel filter indicates the direction of fuel flow. This means that the arrow should point towards the engine, as this is the direction in which the fuel is flowing from the fuel tank to the engine. The fuel flows from the fuel tank, through the filter, and towards the engine. This ensures that the fuel is properly filtered before it reaches the engine.
It is important to always double-check the arrow on the filter to ensure it is pointing in the correct direction. The arrow should be visible on the filter and easy to locate. If the arrow is not visible, you may need to open the filter or refer to the vehicle's manual to determine the correct installation direction. Additionally, some filters have an o-ring that can indicate the correct direction.
By installing the fuel filter with the arrow pointing from the fuel tank to the engine, you can ensure proper fuel flow, engine performance, and the longevity of your vehicle. This simple step can help prevent issues and ensure the optimal functioning of your vehicle's fuel system.
Chrysler Sebring Fuel Filter: Location Guide
You may want to see also
Explore related products
Cone-shaped fuel filters have their wider portion facing the carb
The correct installation of a cone-shaped fuel filter is important to ensure optimal fuel flow and engine performance. When dealing with a cone-shaped fuel filter, it is crucial to install it with the wider portion (the base) facing the carb. This orientation ensures that the fuel is properly filtered by the outside surface of the cone, allowing for unrestricted flow into the carb from the fuel pump.
The direction of fuel flow within the filter is critical. By having the wider portion facing the carb, the fuel enters from the top of the cone (upstream) and is filtered as it passes through the outside surface, exiting through the narrower bottom part of the cone towards the fuel tank. This design ensures that any sediment or debris collected during the filtration process accumulates inside the cone, preventing it from interrupting fuel flow to the carb.
Some fuel filters may have an arrow embossed on the housing, indicating the direction of flow. This arrow should point towards the fuel pump, ensuring that the fuel filter is installed correctly. However, if there is no arrow present, the general rule is to have the wider portion of the cone-shaped fuel filter facing the carb.
It is worth noting that cone-shaped fuel filters are commonly found in various applications, including lawnmowers, snowmobiles, and boating engines. Each system may have unique design characteristics, but the fundamental principle of proper fuel flow and filtration remains consistent. It is always recommended to consult the equipment's manual or seek advice from a qualified technician for specific installation instructions.
Understanding the correct orientation of cone-shaped fuel filters is essential for maintaining the performance and longevity of the engine. By following the guideline of having the wider portion facing the carb, users can ensure efficient fuel filtration and help prevent potential issues caused by restricted fuel flow or sediment buildup.
Corolla Fuel Filter: Does the 2010 Model Have One?
You may want to see also
Explore related products
Log-style fuel filters should have the closed end facing the fuel cell
Fuel filters are essential for protecting your fuel system and ensuring consistent fuel delivery. One of the most common fuel filters is a log-style filter that utilises a spring-loaded cartridge-style filter. It is very common for this type of filter to be installed backward, which will shut down fuel flow as the RPM increases.
The direction of the arrow on the fuel filter is essential in ensuring proper fuel flow. The arrow should point toward the fuel pump, indicating the direction of the fuel flow. Installing the filter against the flow can restrict fuel flow and cause issues.
It is also important to consider the shape of the fuel filter. For cone-shaped fuel filters, the wider portion (base) of the cone should face the carb. This ensures that the fuel is filtered by the outside surface of the cone, and any sediment collects outside rather than interrupting the fuel flow.
Cleaning Your BMW Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Incorrect installation can reduce fuel flow and impair engine performance
Fuel filters play a critical role in keeping your engine running smoothly by capturing dirt and impurities from the fuel before they reach the engine. However, incorrect installation can reduce fuel flow and impair engine performance.
Fuel filters are designed to work in a specific direction, and installing them incorrectly can lead to reduced fuel flow and decreased engine performance. For example, if a cone-shaped fuel filter is installed with the inside or basket of the cone facing the fuel tank, sediment will collect inside the cone and interrupt fuel flow. Similarly, installing a fuel filter inside-out may not allow for proper airflow, leading to engine problems. On the other hand, installing it outside-in could enable contaminants to enter the system more easily.
To ensure optimal engine performance, it is crucial to install the fuel filter in the correct direction. By following the recommended installation practices, you can be confident that your engine receives clean fuel, resulting in a smoother and more efficient driving experience. Proper fuel filter orientation allows for a smooth and uninterrupted fuel flow to the engine, ensuring that the engine receives the fuel it needs to operate at optimal levels.
The correct installation of a fuel filter depends on the make and model of your vehicle. While there isn't a universal standard, most experts recommend installing the fuel filter with the open end facing away from the fuel tank. Additionally, you can look for an arrow embossed on the housing, indicating the direction of flow. It is also recommended to inspect your fuel filter regularly and replace it according to the manufacturer's guidelines to maintain optimal engine performance.
Finding the Right Fuel Filter for Your Ford 7710
You may want to see also
Frequently asked questions
Most fuel filters have an arrow or markings indicating the correct installation direction. This arrow shows the fuel flow direction from the fuel tank to the engine.
Incorrectly installed fuel filters can reduce fuel flow, impair engine performance, and even cause engine damage.
If you notice signs of incorrect fuel filter installation, such as poor engine performance, hard starting, or fuel leaks, revisit the installation. Ensure the filter is correctly oriented and all connections are tight and leak-free.
Some fuel filters, such as screen filters, may not have an arrow, and the direction of installation may not matter as much. However, for most filters, ensuring proper installation is crucial for optimal performance.
