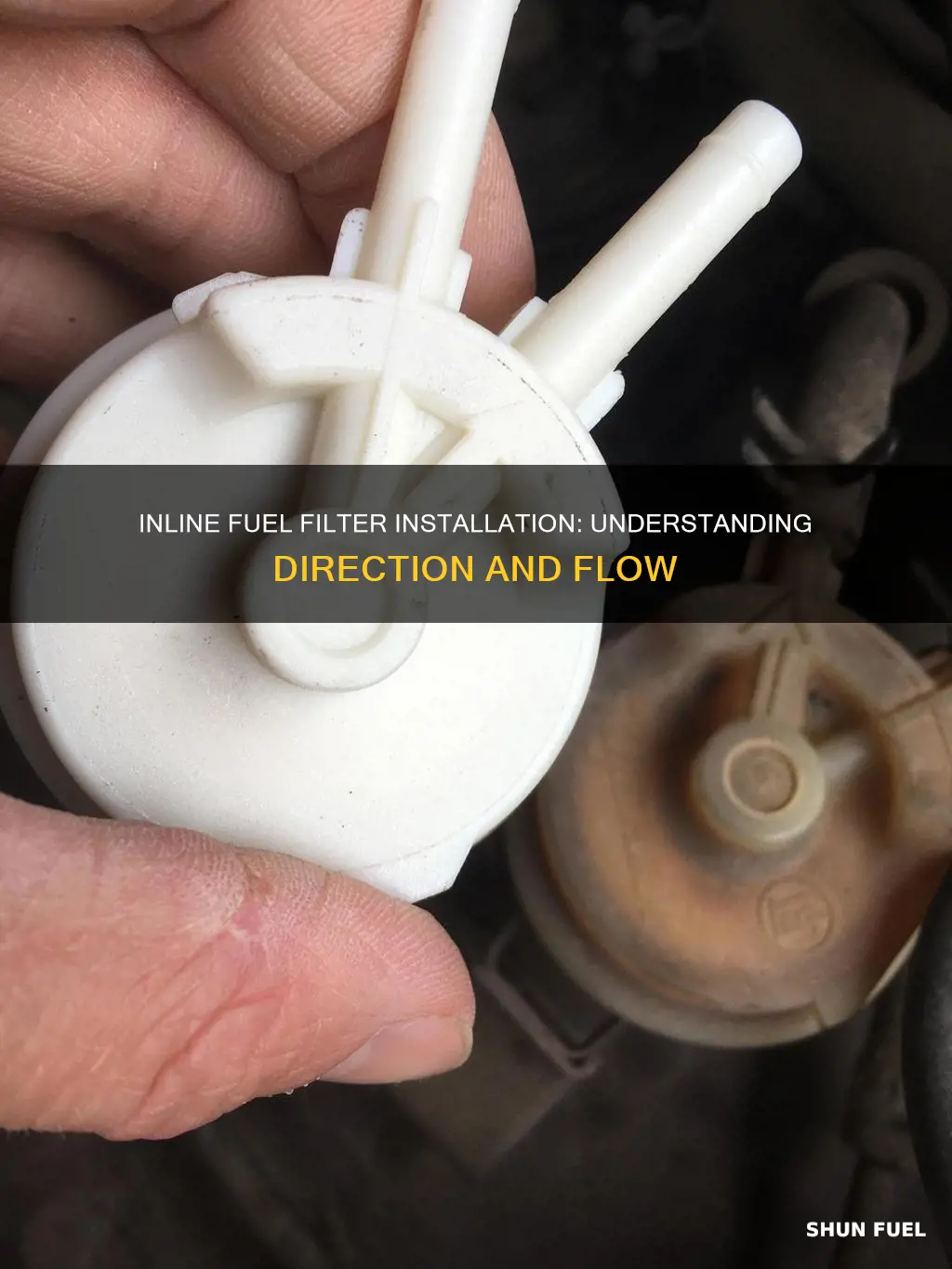

When installing an inline fuel filter, it is important to ensure that it is facing the correct direction to maintain optimal engine performance. While some fuel filters feature an arrow indicating the direction of fuel flow, others may not have this marking, leading to confusion about the proper installation method. In such cases, it is recommended to consult experts or refer to online forums for guidance. The absence of an arrow may be due to the manufacturer's decision or the filter's design, such as a simple screen sandwiched between plastic housings, which may not require a specific installation direction. However, incorrect installation can result in reduced filter efficiency and potential engine issues.
Characteristics and Values of Inline Fuel Filters with No Arrow
| Characteristics | Values |
|---|---|
| Direction of Fuel Flow | Towards the fuel pump |
| Filter Element | Should point into the flow |
| Filter Placement | Between the fuel tank and pump |
| Filter Type | Screen sandwiched between plastic housings |
| Installation | The bigger end is nearer the fuel tank |
| Flow Direction | From the tank to the pump |
| Arrow Placement | On the inlet side, facing the fuel tank |
| Arrow Direction | With the flow, away from the pump |
| Arrow Purpose | Indicates the direction of flow |
| Collapsed Filter | Prevents crud from getting into vital bits |
Explore related products
What You'll Learn
The arrow on the filter indicates the direction of fuel flow
In most cases, the arrow on the fuel filter should point towards the pump, indicating the direction of fuel flow. This is because the fuel filter is usually placed between the fuel source (tank) and the pump, so the arrow points towards the pump to show the direction of fuel flow. However, there may be some exceptions, depending on the specific setup of the fuel system and the location of the filter in relation to the pump.
In some cases, the arrow on the fuel filter may point away from the pump, especially if the filter is installed on the output line from the pump. It's important to note that the arrow should always follow the direction of fuel flow, regardless of whether it's towards or away from the pump. This is to ensure that the filter is working correctly and that fuel is flowing in the intended direction.
Some fuel filters may not have a visible arrow indicating the direction of flow. In such cases, it is recommended to refer to the manufacturer's instructions or seek guidance from experts to determine the correct direction of fuel flow. Additionally, examining the filter for any distinguishing features, such as dimples, or differences in appearance between the inlet and outlet sides, can be helpful in determining the proper direction of fuel flow.
It is important to install the fuel filter correctly, with the arrow pointing in the right direction, to ensure optimal fuel flow and engine performance. Improper installation of the fuel filter may lead to restricted fuel flow, affecting the engine's operation. Therefore, it is always advisable to double-check the correct orientation of the arrow and seek guidance when in doubt.
Plastic Fuel Filters: Vapor Lock Culprit?
You may want to see also
Explore related products
$34.59
The arrow should point towards the fuel pump
The arrow on a fuel filter indicates the direction of the fuel flow. If the arrow points towards the fuel pump, it means that the fuel is flowing from the pump to the carburettor. This setup is typically used when the filter is installed on the input line to the pump, ensuring that the fuel is filtered before it reaches the pump.
In this configuration, the arrow on the filter aligns with the direction of the fuel flow, which is crucial for the proper functioning of the fuel system. The arrow serves as a visual guide, ensuring that the filter is installed correctly and helping to prevent fuel flow issues or damage to the pump.
It is important to note that the placement of the fuel filter and the direction of the arrow can vary depending on the vehicle's make and model. Some vehicles may have the filter installed between the fuel source (tank) and the pump, while others may have it located after the pump.
In the case where the filter is positioned between the fuel source and the pump, the arrow should still point towards the pump to indicate the correct flow direction. This setup ensures that the fuel is filtered before it reaches the pump, preventing any contaminants from entering and potentially damaging the pump.
When replacing or inspecting a fuel filter, it is essential to consult the vehicle's manual or seek guidance from a qualified mechanic to ensure that the filter is installed correctly and that the arrow is pointing in the right direction relative to the fuel pump.
Ford Escape 2008: Fuel Filter Location and Access
You may want to see also
Explore related products
The filter should be placed between the fuel tank and the pump
When installing a fuel filter, it is important to ensure that it is placed in the correct direction. The fuel filter should be placed between the fuel tank and the pump, with the arrow pointing towards the pump, indicating the direction of fuel flow. This is because you want unrestricted fuel flow into the carburetor from the fuel pump.
Some fuel filters may not have a visible arrow indicating the direction of flow. In such cases, it is recommended to refer to the manufacturer's instructions or seek guidance from experts. One way to determine the correct direction is to examine the ends of the filter. Typically, one end will appear empty, while the other end will have a metal plate visible inside, which is the actual filter element. The end with the metal plate should be installed facing towards the pump, ensuring that any contaminants or water are trapped before the fuel enters the pump.
It is worth noting that some filters are designed with a specific flow direction to ensure optimal performance. Installing the filter in the wrong direction can lead to reduced efficiency and potential damage to the fuel system. Therefore, it is crucial to take the time to identify the correct orientation before installation.
Additionally, it is important to consider the type of fuel hose used with the fuel filter. Using the correct hose size ensures a proper fit and prevents leaks. For example, a 12mm ID fuel hose is recommended over a 1/2" hose as it fits the pump better and stretches easily onto the filter.
By following these guidelines and paying attention to the direction of flow, you can ensure that your fuel filter is installed correctly and effectively, maintaining the proper functioning of your engine.
Fuel Filter in Dodge Avengers: What You Need to Know
You may want to see also
Explore related products
The filter element should point into the flow
When installing an inline fuel filter, it is important to ensure that the filter element points in the correct direction relative to the fuel flow. In the absence of a visible arrow indicating the direction of flow, it is recommended that the filter element should point into the flow. This means that the end of the filter with the filter element should be positioned to face the incoming fuel flow.
The reasoning behind this recommendation is twofold. Firstly, by pointing the filter element into the flow, any debris or contaminants captured by the filter will be trapped at the front of the filter, preventing them from entering the fuel system. This helps to maintain the fuel system's cleanliness and protects sensitive components from damage.
Secondly, should the filter element become clogged with muck or water and collapse, it will collapse in on itself. This inward collapse helps to prevent the trapped contaminants from being released back into the fuel system, reducing the risk of clogging or damage to other vital components.
It is worth noting that some fuel filters, such as the WIX 33299, typically have a directional flow arrow printed on the filter. This arrow indicates the direction of fuel flow and can be used as a guide during installation. However, some manufacturers have stopped printing directional arrows on their filters, making it more challenging to determine the correct orientation.
In such cases, it is advisable to consult the vehicle's service manual or seek guidance from a qualified mechanic to ensure the filter is installed correctly. Additionally, it is recommended to inspect and replace fuel filters at regular intervals to maintain optimal fuel system performance and prevent unexpected failures.
BMW Fuel Filter: Removal and Replacement Guide
You may want to see also
Explore related products
If there is no arrow, mount the filter so the bigger end is nearer the fuel tank
If there is no arrow on your inline fuel filter, it is recommended that you mount the filter so that the bigger end is nearer the fuel tank. This is because the filter element should point into the flow, allowing it to collapse in on itself and prevent debris from entering the fuel system if it becomes clogged.
Some fuel filters have directional arrows, which indicate the direction of fuel flow. These arrows should be followed when installing the filter, ensuring that the arrow points in the direction of fuel flow. However, if there is no arrow present, it is generally advised to mount the filter with the larger end towards the fuel tank.
It is important to note that some sources suggest that the direction of the filter may not matter, especially for simple screen filters. These types of filters may not have a designated direction of flow and can function effectively regardless of their orientation.
Additionally, it is recommended to install the filter between the fuel source and the fuel pump, allowing for unrestricted fuel flow into the carburetor. This setup helps to ensure proper fuel delivery and engine performance.
In summary, if your inline fuel filter lacks a directional arrow, it is suggested to mount the filter with the larger end towards the fuel tank. This orientation ensures proper fuel flow and prevents debris buildup within the fuel system. However, for certain types of filters, the direction may not be critical, and they can function adequately regardless of their installation orientation.
Fuel Filter Sizing: Diesel Engine Considerations
You may want to see also
Frequently asked questions
The arrow on an inline fuel filter indicates the direction of the fuel flow. If there is no arrow, check which side of the filter has a metal plate and three dimples. The side with the metal plate and dimples should be installed facing away from the fuel tank and towards the pump.
The direction of the inline fuel filter matters because it determines the effectiveness of the filter. Installing the filter in the wrong direction will result in a smaller filter surface area, reducing its ability to collect dirt and debris.
Installing an inline fuel filter in the wrong direction can lead to reduced fuel flow and decreased engine performance. Additionally, it can cause the filter to become clogged more quickly, requiring more frequent replacements.
You can determine if your inline fuel filter is installed in the correct direction by checking the fuel flow. The arrow on the filter should point in the direction of the fuel flow, from the fuel tank towards the engine.
