Fuel line filters are an essential component in all diesel and petrol-engine vehicles. They help to purify fuel by screening out impurities, protecting the engine from damage. There are two main types of fuel line filters: inline filters and cartridge filters. Inline filters are usually made of metal or plastic and are connected to a fuel hose, with an inlet on the inside of the fuel pump and an outlet on the outer side. They are typically placed between the engine and the fuel tank, ensuring clean fuel reaches the carburetor. Cartridge filters, on the other hand, consist of a replaceable bowl containing filtering paper or synthetic material. When choosing a fuel line filter, it is important to consider fuel compatibility, reusability, and position in the fuel system.
Explore related products
What You'll Learn
- Inline filters are made of metal or plastic and connected to a fuel hose
- Cartridge filters have a replaceable bowl with filtering paper or synthetic material
- Micron ratings specify the filter's particle-capturing capabilities
- Paper filters are disposable but not compatible with methanol or fuels with >20% ethanol
- Stainless steel filters are reusable and compatible with all fuels

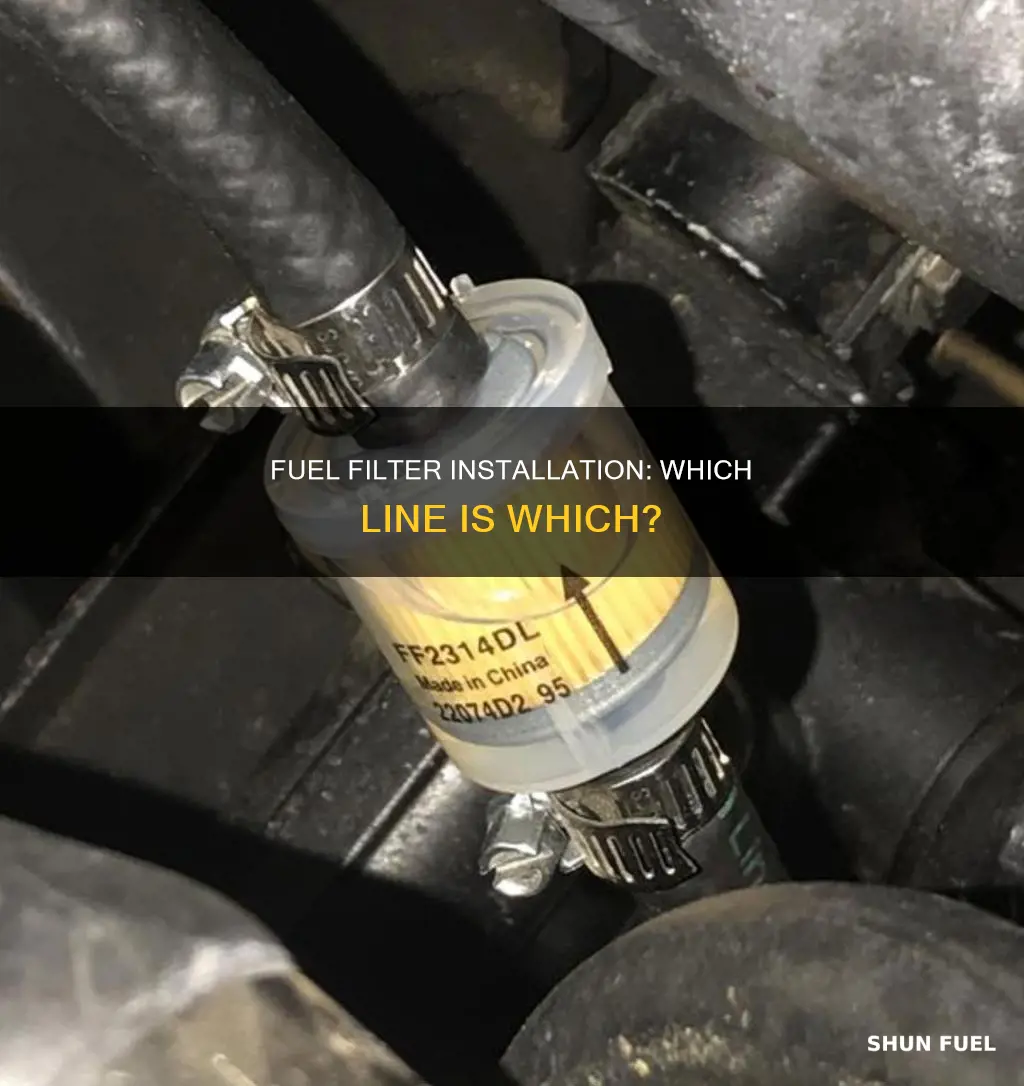

Inline filters are made of metal or plastic and connected to a fuel hose
Inline fuel filters are an essential component of any diesel or petrol-engine vehicle. They are responsible for purifying the fuel by screening out impurities, thereby protecting the engine from potential damage. These filters are typically made of metal or plastic and are connected to a fuel hose, with an inlet linked to the fuel pump's interior and an outlet on the exterior. This setup usually connects the engine and the fuel tank.
The design of inline fuel filters varies, with some featuring a permanently welded housing that encloses a high-flow rate filtering element. This type of filter uses hose barbed inserts to connect the filter ends to flexible plastic or rubber fuel lines, ensuring a secure and leak-resistant connection. The hose barbed connections are particularly effective at preventing leaks due to the smooth surfaces of the barb slope and shaft creating a tight seal with the inner surface of the hose.
Another important aspect of inline fuel filters is their micron rating. This rating specifies the filter's particle-capturing capabilities, with higher micron ratings indicating a greater ability to capture smaller particles. For example, a 30-micron filter can collect particles of 30 microns and above, enhancing fuel purification.
It is crucial to replace inline fuel filters regularly, with recommendations suggesting replacement every two years or after every 30,000 to 60,000 miles. However, consulting the vehicle's manual or brand instructions can provide a more precise guideline. Neglecting to replace clogged fuel filters can lead to issues such as difficulty starting the vehicle.
The choice between metal and plastic inline fuel filters depends on various factors, including durability, compatibility, and ease of replacement. Plastic inline fuel filters, for example, are known for their robust construction and leak-free performance, making them a popular choice for outdoor power equipment and small IC engines. On the other hand, metal filters made from materials like stainless steel offer their own set of advantages in terms of durability and corrosion resistance.
Where's the Fuel Filter? Corvette Owners' Guide
You may want to see also
Explore related products
Cartridge filters have a replaceable bowl with filtering paper or synthetic material
Fuel line filters are an essential component in diesel or petrol-engine vehicles. They purify the fuel, removing impurities that could damage the engine. There are two types of fuel line filters: inline filters and cartridge filters. This article will focus on cartridge filters, which have a replaceable bowl containing filtering paper or synthetic material.
Cartridge filters are designed to remove a wide range of contaminants from liquids or gases. They are constructed with a porous medium, typically made of materials like paper, cloth, or synthetic fibres. When contaminated liquid or gas flows into the cartridge filter, it passes through the filter element, trapping solid particles larger than the pore size on the surface or within the fibres. This process is known as "mechanical filtration". Over time, the filter element can become clogged, leading to decreased efficiency, so it is important to replace or clean the filter regularly.
The pore size and material of the filter element can vary depending on the specific application and desired level of filtration. For example, depth filters trap particles within the matrix of the filter media, while surface filters use a barrier to trap particles on the filter element's surface. Cartridge filters can also be designed to operate at different flow rates, pressures, and temperatures to suit specific application requirements.
One of the benefits of cartridge filters is that they can be inspected without draining the oil if they are mounted upright. In terms of performance, cartridge filters are comparable to spin-on filters, but offer a wider range of media options. Pleated paper is the most economical option, while synthetic elements can filter out smaller particles down to 10 microns.
In summary, cartridge filters with replaceable bowls and filtering paper or synthetic material offer an effective solution for removing contaminants from liquids or gases. They provide flexibility in terms of pore size, material, and flow rates, making them suitable for a variety of applications. Regular maintenance and replacement of the filter element are crucial to ensure optimal performance and prevent engine damage.
Suzuki GS500F: Locating the Fuel Filter
You may want to see also
Explore related products
Micron ratings specify the filter's particle-capturing capabilities
Micron ratings are a generalised way of indicating a fuel filter's ability to trap particles of a certain size. A micron, or micrometer, is a unit of measurement equal to one-millionth of a meter or 1/25,000th of an inch. To put this into perspective, a human hair is between 40 and 100 microns, a red blood cell is 8 microns, and bacteria are 2 microns in size.
The micron rating of a fuel filter indicates the size of the particles that the filter is designed to capture. For example, a 10-micron fuel filter can theoretically capture particles that are 10 microns or larger, which is about the consistency of talcum powder. The smaller the micron rating, the greater the filter's ability to trap contaminants.
There are two popular ways to communicate a micron rating: nominal and absolute. A nominal micron rating represents the percentage of particulates of a certain size that a filter can capture. For example, a 10-micron filter with a nominal rating of 50% will trap half of all particulates that are 10 microns or larger. An absolute micron rating, on the other hand, is determined through laboratory testing and communicates the exact percentage of particulates of a specific size that will be trapped by the filter. For instance, a 10-micron fuel filter with an absolute micron rating of 99% will trap all but 1% of the particulates 10 microns or larger.
It is important to note that neither efficiency nor particle size alone will convey useful information in most cases. The specific micron rating for individual filters should be expressed with both efficiency and particle size, such as 90% at 20 microns. As the particle size increases, so does the removal efficiency.
Fuel site operators should consider the type of fuel being dispensed and the specific contamination issues they are looking to address when selecting a filter with an appropriate micron rating. For example, the 2020 NIST Handbook 130 recommends that all biodiesel, biodiesel blends, diesel, and kerosene dispensers use a 30-micron or smaller nominal pore-sized filter, while gasoline, gasoline-alcohol blends, and ethanol flex fuel dispensers should use a 10-micron or smaller filter.
Fuel Filter Failure: Will It Trigger a Diagnostic Code?
You may want to see also
Explore related products
Paper filters are disposable but not compatible with methanol or fuels with >20% ethanol
Fuel line filters are an essential component in diesel or petrol-engine vehicles. They help purify the fuel by screening out impurities, protecting the engine from damage. There are two main types of fuel line filters: inline filters and cartridge filters. Inline filters are usually made of metal or plastic and are connected to the fuel hose, with an inlet connected to the fuel pump and an outlet on the outside. Cartridge filters, on the other hand, have a replaceable bowl that contains a filtering paper or synthetic material.
Paper filters are a type of cartridge filter that uses filter elements made of polymer resin-treated cellulose. This filter paper is considered a non-woven filter media. Pleated paper filter elements have higher working surface areas, which increase flow through the filter while reducing flow restriction and pressure drop. A larger surface area also captures small particles more efficiently, improving overall engine performance and longevity.
While paper filters offer superior compatibility with ethanol-gasoline blends, they have specific limitations. Paper filters are disposable, making them convenient for replacement and maintenance. However, they are not compatible with methanol or fuels containing more than 20% ethanol. This incompatibility is due to the chemical composition of the filter media, which may react with the fuel components.
It is crucial to consider the fuel type and its compatibility with the filter media when selecting a fuel line filter. For methanol or high-ethanol fuels, other filter options, such as synthetic or microglass filters, should be explored. These filters are designed to withstand exposure to methanol and higher concentrations of ethanol, ensuring the protection and optimal performance of the fuel system.
Additionally, it is important to choose a filter with the appropriate micron rating. Micron ratings indicate the particle-capturing capability of the filter, with lower ratings capturing smaller particles. Selecting a filter with the right micron rating ensures that impurities are effectively screened out while maintaining adequate fuel flow to the engine.
Fuel Filter Location: A Guide for Car Owners
You may want to see also
Explore related products
Stainless steel filters are reusable and compatible with all fuels
Fuel line filters are an essential component in all diesel or petrol-engine vehicles. They help purify the fuel and screen out impurities to prevent damage to the engine. While there are different types of fuel filters available, such as inline and cartridge filters, stainless steel filters stand out for their durability, compatibility, and reusability.
Stainless steel filters, such as the DW fuel filters, are designed with pleated, high-surface-area stainless steel filtering material. This design maximizes fuel compatibility, allowing them to work effectively with a wide range of fuels. These filters are compatible with pump gas, race gas, MTBE, ethanol, methanol, and diesel. The versatility of stainless steel filters makes them a convenient choice for vehicles that may use different types of fuel.
One of the key advantages of stainless steel filters is their reusability. Unlike disposable paper or synthetic filters, stainless steel filters can be cleaned and reused multiple times. This makes them a cost-effective and environmentally friendly option. Cleaning methods for stainless steel filters include using solvents, ultrasonic cleaning, or compressed air to remove any accumulated debris or dirt.
The durability of stainless steel filters is another notable feature. For example, the AeroPress reusable metal coffee filter is crafted from premium-grade 316 stainless steel, which is known for its superior durability and corrosion resistance compared to lower-grade stainless steel. This ensures that the filter can withstand repeated use without compromising its integrity.
Additionally, stainless steel filters offer superior performance and protection for your engine. They provide effective filtration, capturing microscopic particles and preventing them from entering the engine. This not only maintains the engine's performance but also prolongs its lifespan by reducing the risk of damage caused by contaminated fuel.
In conclusion, stainless steel filters offer a reusable, compatible, and durable solution for fuel filtration. Their compatibility with various fuel types, reusability, and superior performance make them a preferred choice for vehicle owners looking for a reliable and long-lasting option to maintain the health of their engines. By investing in high-quality stainless steel filters, car owners can ensure the optimal functioning of their vehicles while reducing maintenance costs associated with frequent filter replacements.
Changing Fuel Filter: Exmark Pioneer Guide
You may want to see also
Frequently asked questions
A fuel line filter is a small but essential component in every diesel or petrol-engine vehicle. It helps to purify petrol/diesel and screens out impurities to prevent damage to the engine.
The fuel line filter is fitted with a fuel line present between the fuel tank and the fuel system in the engine. The proper location of the filter is just before the carburetor to ensure clean fuel.
There are two types of fuel line filters: inline filters and cartridge filters. Inline filters are made of metal or plastic and are connected to a fuel hose, with an inlet connected to the inside of the fuel pump and an outlet on the outer side. Cartridge filters consist of a replaceable bowl that contains filtering paper or synthetic material.
It is recommended to replace fuel line filters every two years or after every 30,000 to 60,000 miles. However, for a more precise guideline, refer to the car manual or instructions provided by the brand.
