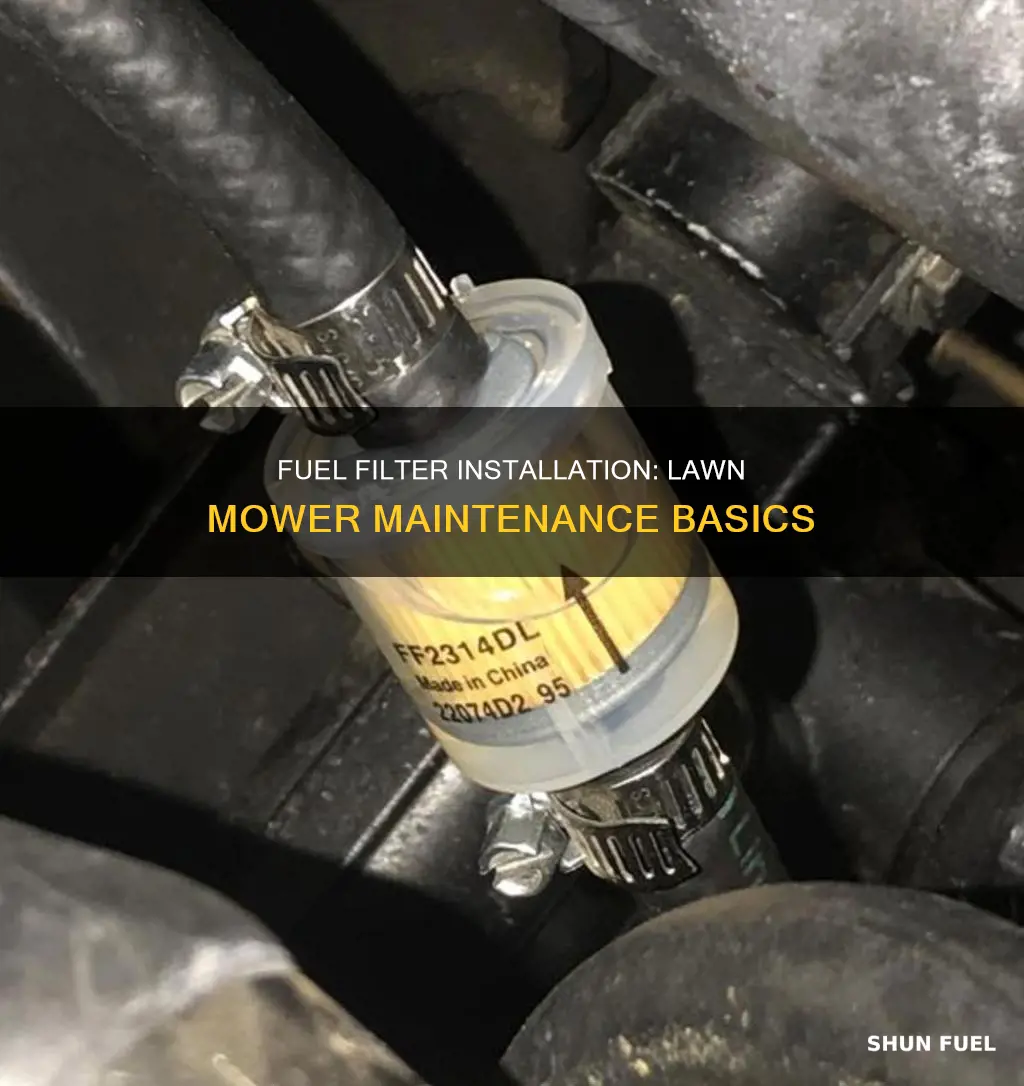

Knowing how to install a fuel filter in a lawnmower is essential for any owner. A fuel filter strains the gas before it reaches the carburetor, and dirty filters can cause the engine to run poorly. The fuel filter is usually located inside or attached to the fuel line or inside the gas tank. When replacing the fuel filter, it is important to install it in the correct direction for proper operation. Some filters have an arrow indicating the direction of flow, and the closed end of a cone-shaped filter should face the tank.
Explore related products
What You'll Learn
Fuel filter direction of flow
The fuel filter in a lawnmower is designed to strain the gas before it reaches the carburetor. It is generally located inside or attached to the fuel line or inside the gas tank. The direction of flow of the fuel filter is important for the proper operation of the filter. Some filters have an arrow indicating the direction of flow, and the filter must be installed correctly. If there is no arrow, the conical side of the filter usually goes towards the fuel tank, and the wider portion or base of the cone should face the carburetor.
For small screen filters, it does not matter which side faces the carburetor or tank. However, for paper pleated filters, the closed end of the cone should face the tank to prevent sediment from building up inside and interrupting the fuel supply.
To inspect or replace the fuel filter, first, drain the gas tank and disconnect the wire from the spark plug. Locate the fuel line and remove the filter by releasing the spring clips holding the line to the gas tank spigot. For canister-style filters, examine the pleated material inside for debris or discolouration, and replace if necessary. Tube-style filters can be rinsed carefully with water if dirt or debris is present; otherwise, they should be replaced.
Once a new or cleaned fuel filter is installed, reconnect the metal clips on both sides of the filter and check for leaks before operating the mower.
Craftsman DYT 4000: Fuel Filter Location and Access
You may want to see also
Explore related products
Fuel filter maintenance
Lawnmowers are expensive tools that should give you years of quality performance. Fuel filters are small devices that prevent dirt, dust, and debris from entering the carburetor, and they need to be maintained properly to keep the mower running smoothly. Without a fuel filter, debris can enter the gas tank and flow through the fuel line to the carburetor, disturbing the gas-air mixture and leading to poor engine performance.
The fuel filter should be replaced after about 200 hours of use or once a year. It is important to refer to the owner's manual before performing any maintenance on the mower. The first step is to drain all the gas from the tank with a siphon or run the mower dry outside. Disconnect the wire from the spark plug to prevent the engine from starting accidentally.
Locate the fuel line and use pliers to release the spring clips holding the line to the gas tank spigot and filter. Pull the fuel line off the spigot and remove the filter. For canister-style filters, examine the pleated material inside the transparent plastic casing. If you see debris or severe discolouration, you will need a new filter. Unfortunately, canister-style filters cannot be cleaned, but they are cheap and easy to replace. For tube-style filters, examine the meshed end for dirt or debris. If dirty, rinse carefully with water until it is clear, or buy and install a new filter.
When installing a new filter, ensure it is facing the correct direction, usually indicated by an arrow on the casing pointing in the direction of fuel flow. For tube-style filters, ensure they are oriented the same way as the old filter. Reconnect the fuel line and replace the spring clamps.
Fuel Filter on Nissan Murano: 2005 Edition
You may want to see also
Explore related products
Fuel filter replacement
Fuel filters in lawn mowers are essential to maintaining engine performance. They are designed to strain the gas before it reaches the carburetor, preventing debris from disturbing the gas-air mixture. Over time, fuel filters can become clogged and require replacement to ensure optimal engine operation. Here is a step-by-step guide on how to replace a fuel filter in a lawn mower:
Step 1: Prepare the Lawn Mower
Park your lawn mower on a flat surface, such as inside your garage, and ensure it is turned off. For safety, disconnect the wire from the spark plug to prevent accidental engine startup during the process.
Step 2: Drain the Fuel Tank
Before removing the fuel filter, you must drain the fuel tank. You can do this by using a siphon to drain the gas or simply running the mower dry outdoors. It is important to work in a well-ventilated area and take the necessary safety precautions, such as wearing safety eyewear and having a dry cloth to handle any dripping fuel.
Step 3: Locate and Remove the Fuel Filter
The fuel filter's location can vary between different lawn mower models. It is typically found inside or attached to the fuel line or inside the fuel tank. For canister-style filters, examine the transparent plastic casing for any debris or severe discolouration, which indicates the need for replacement. Tube-style filters should also be inspected for dirt or debris inside the meshed end. If the filter is installed inside the tank, you may need to shut the fuel valve or clamp the gas line before removal. To remove the filter, use pliers to release the spring clips or metal clips holding the fuel line to the filter, and then pull the fuel line off and take out the filter.
Step 4: Clean or Replace the Fuel Filter
For tube-style filters, you can try cleaning the filter by carefully rinsing it with water until it is clear of debris. However, for canister-style filters, replacement is generally recommended due to their intricate design. Install a new filter of the same type, ensuring that it is the correct replacement for your specific lawn mower model.
Step 5: Reinstall the New Fuel Filter
When installing the new fuel filter, pay attention to the direction of flow. Some filters have an arrow embossed on the housing, indicating the correct direction. Reattach the fuel line to the new filter and secure it with the metal clips.
Step 6: Final Checks
Before operating the lawn mower, check for any fuel leaks. If there are no leaks, reconnect the wire to the spark plug and start the engine. Your lawn mower is now ready for use with a fresh fuel filter.
By following these steps, you can ensure that your lawn mower's fuel filter is properly replaced, contributing to the overall health and performance of your machine.
Fuel Filter: Good or Bad?
You may want to see also
Explore related products
Fuel filter location
The fuel filter in a lawnmower is designed to strain the gas before it reaches the carburetor. It is usually located inside or attached to the fuel line, or inside the gas tank. The exact location varies from one machine to another.
If your fuel filter is installed inside the tank, you will need to drain the tank before removing the filter for inspection or replacement. Shut the fuel valve, if your mower has one, or clamp the gas line with a fuel line clamp if it doesn't.
If your filter is installed in the fuel line, remove the metal clips on each side of the filter with pliers and slide the filter out of the fuel line. Canister-style filters are identified by their transparent plastic casing and pleated material inside, while tube-style filters are thin and straw-like with a fine mesh at one end.
When replacing the fuel filter, ensure that it is installed correctly for proper operation. Some filters have a direction of flow arrow embossed on the housing, which indicates the direction of flow. If there is no arrow, the wider or larger end of the cone-shaped filter should face the carburetor.
Lawnmower Fuel Filter: What You Need to Know
You may want to see also
Explore related products
Fuel filter function
A fuel filter is an essential component of a lawnmower's engine. It strains the gas before it reaches the carburetor, ensuring that any debris in the gas tank does not flow through the fuel line and disturb the gas-air mixture, which would lead to poor engine performance.
Lawnmower fuel filters can be replaceable or non-replaceable. Replaceable filters are typically small plastic canisters with pleated material inside or thin, straw-like tube-style devices with a fine mesh at one end. The former connects to one end of the fuel line, while the latter slides inside the fuel line where it connects to the gas tank. Non-replaceable filters, on the other hand, are metal meshes at the bottom of the gas tank where it empties into the fuel line.
When replacing a fuel filter, it is important to ensure that the filter is installed correctly for proper operation. Some filters have a direction of flow arrow embossed on the housing, indicating the direction of fuel flow. For cone-shaped filters, the wider portion (base) of the cone should face the carburetor, while the closed end of the cone should face the tank, allowing sediment to build up around the outside of the base rather than inside and potentially choking off the fuel supply.
To replace a fuel filter, first, drain the gas from the tank or run the mower dry outdoors. Disconnect the wire from the spark plug to prevent accidental engine start during the process. Locate the fuel line and release the spring clips holding the line to the gas tank spigot and filter using pliers. Pull the fuel line off the spigot and remove the old filter. Inspect the filter for debris or discolouration, and if present, either replace the filter or rinse it carefully with water until it is clear. Once you have a clean or new filter, installation is a quick process, but be sure to reconnect the metal clips on both sides of the filter and check for leaks before operating the mower.
Fuel-Soaked Air Filter: Why Does It Happen?
You may want to see also
Frequently asked questions
The direction of a lawn mower fuel filter depends on its shape and type. The filter must be installed correctly for proper operation. Some filters have a direction of flow arrow on them, indicating the direction of flow. The closed end of a cone-shaped paper filter, for example, always faces the tank.
If your lawn mower abruptly stops working, the fuel filter may be clogged and need replacing. For canister-style filters, look through the transparent plastic casing and examine the pleated material inside. If you see debris or severe discolouration, you need a new filter. Tube-style filters can be rinsed and reused, but if they are dirty or clogged, they should be replaced.
First, drain all the gas from the tank and disconnect the wire from the spark plug. Locate the fuel line and release the spring clips holding the line to the gas tank spigot and filter using pliers. Pull the fuel line off the spigot and remove the filter. Install the new filter and reconnect the metal clips on both sides.
The fuel filter will be located either inside the fuel tank or fitted into the fuel line between the tank and the fuel pump. Some fuel tanks have internal, non-serviceable fuel filters. Refer to your engine operator's manual to determine the location of your fuel filter.
