Knowing how to install a fuel filter correctly is essential for the proper operation of your engine. Briggs & Stratton fuel filters can vary in design, and the correct installation direction depends on the engine and filter type. Some filters have a direction of flow arrow, while others do not. In some cases, the larger half of the filter leads into the direction of fuel flow into the motor, with the larger end nearer the fuel tank. In other cases, the flow should be from the outside of the media to the inside, especially for systems with a pump. For gravity-fed fuel systems, the red disk filter is recommended, while the white disk and paper style are suitable for fuel pump-equipped mowers.
Explore related products
What You'll Learn
Fuel filter location
The fuel filter location in a Briggs and Stratton engine depends on the engine's design. If you are unsure of where the fuel filter is located, refer to your Briggs and Stratton Engine Operator's manual.

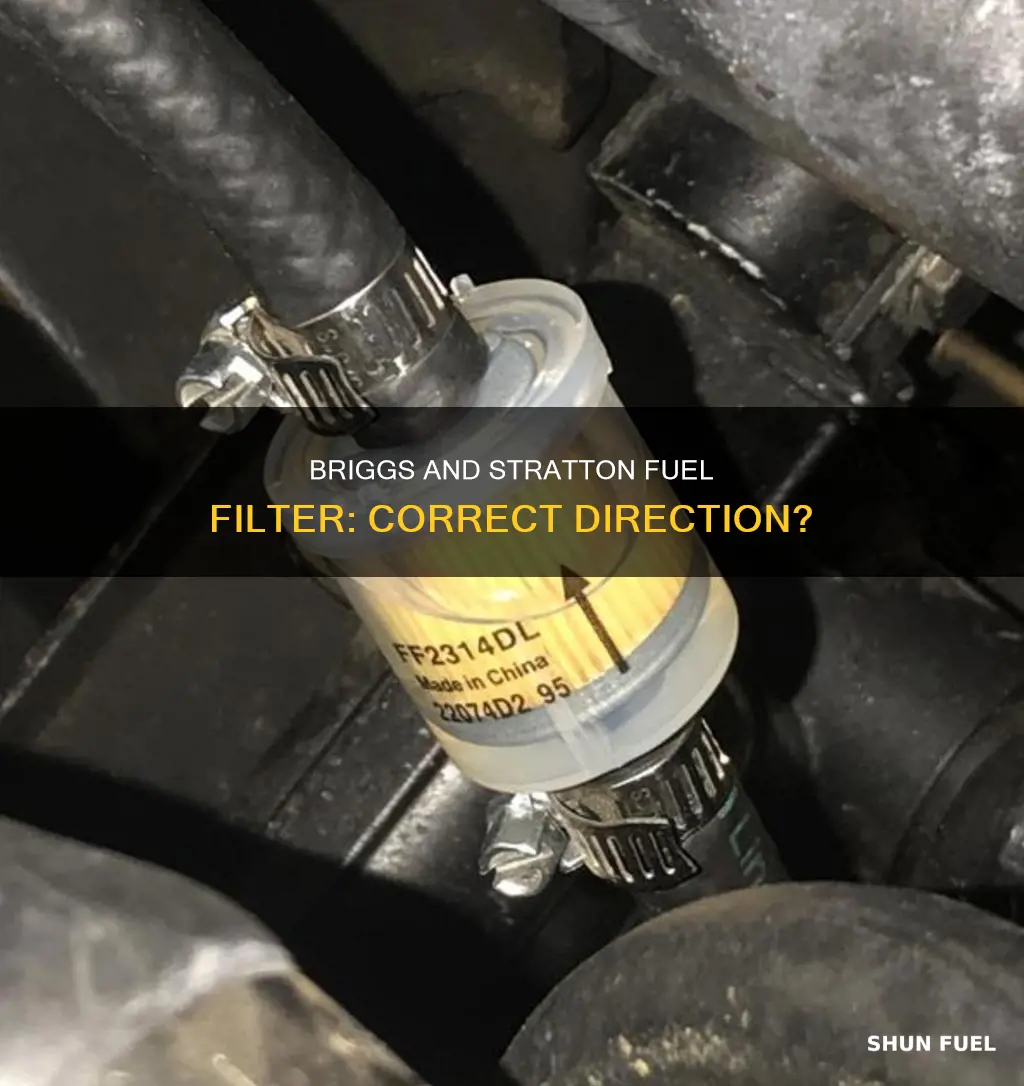

Some filters have a direction of flow arrow on them, and the filter must be installed correctly for proper operation. The direction of the arrow indicates the direction of fuel flow. The larger half of the filter leads into the direction of fuel flow into the motor. If there is no arrow, it is recommended to mount the filter so that the larger end is nearer the fuel tank. However, some sources suggest that the direction of the filter does not matter, as it is a simple screen sandwiched between the two plastic housings.
In some equipment, such as walk-behind mowers and snow blowers, the fuel filter may be built into the fuel tank and may not be serviceable. If the filter is installed inside the tank, you will need to drain the tank before removing the filter for inspection or replacement.
It is important to note that fuel filters should be replaced if debris is clogging the mesh screen, pleated paper, or the inside of the casing. When replacing the fuel filter, ensure that the metal clips on both sides of the filter are reconnected. Additionally, check for leaks and do not operate the unit if any are found.
Jeep Classic Fuel Filter: Location and Replacement Guide
You may want to see also
Explore related products
Fuel flow direction
The fuel flow direction of a Briggs and Stratton fuel filter is important to ensure the proper operation of the engine. The fuel filter should be installed correctly, with the fuel flow directed from the narrower half of the filter to the wider half, leading towards the motor. This is usually indicated by an arrow on the filter, but if there is no arrow, it is recommended to install the filter with the larger end closer to the fuel tank.
It is important to note that some Briggs and Stratton engines have different fuel filter requirements based on the engine's design. For example, the B&S red disk filter is for gravity-fed fuel systems, while the white disk and paper-style filters are for fuel pump-equipped mowers. It is recommended to refer to the Briggs and Stratton Engine Operator's manual to determine the correct fuel filter and its installation direction.
When replacing the fuel filter, it is important to reconnect the metal clips on both sides of the filter and check for leaks before starting the engine. Additionally, it is advised to wear safety eyewear and have a dry cloth handy to protect against fuel vapors and catch any dripping fuel.
Some people choose to install the filter in the reverse direction to better see any debris or water in the fuel. While this may not affect the function of the filter, it is important to consider the type of engine and fuel system when making this decision. For example, on a system with a pump, the flow should be from the outside of the media to the inside to prevent collapsing.
Annual maintenance, including fuel filter replacement, is important to prevent costly repairs and extend the life of the engine. Briggs and Stratton fuel filters can be purchased online or from authorized dealers.
Finding the Right Fuel Filter Replacement
You may want to see also
Explore related products
$5.46
Fuel filter replacement
To replace the fuel filter on a Briggs and Stratton engine, first refer to the Engine Operator's manual to determine the location of the fuel filter. If the filter is installed inside the tank, drain the tank before removing the filter for inspection or replacement.
When purchasing a new fuel filter, you will need to decide on the micron rating, which is the measurement of filtration capability. The smaller the micron number, the better the filter is at screening out particulates.
When installing the new fuel filter, ensure that it is installed correctly for proper operation. Some filters have a direction of flow arrow on them, with the larger half leading in the direction of fuel flow into the motor. If there is no arrow, some sources suggest mounting the filter so that the larger end is nearer the fuel tank, while others claim that it does not matter which way round the filter is installed.
Reconnect the metal clips on both sides of the filter and check for leaks. Do not operate the unit if any leaks are found.
Fuel Filter Brands: Are They All the Same?
You may want to see also
Explore related products
Fuel filter maintenance
Locating the Fuel Filter
Firstly, you need to locate the fuel filter. Refer to your Briggs & Stratton Engine Operator's manual to determine its location as it depends on the engine's design.
Safety Precautions
Before performing any maintenance on the fuel filter, ensure you are in a safe area with no open flames or fire sources. Wear safety eyewear to protect your eyes from liquid fuel or fuel vapors. Have a dry cloth handy to hold the filter and catch any dripping fuel.
Checking for Clogs
Shake the filter over a clean cloth to displace any remaining fuel, then use the cloth to wipe away any residue from the outside. Inspect the filter by holding it up to the light. If you can see light shining through clearly from the other side, the filter is not clogged. If you cannot see light shining through, or if you see debris clogging the mesh screen, pleated paper, or the inside of the casing, it's time to replace the filter.
Replacing the Fuel Filter
When replacing the fuel filter, ensure that you purchase the correct replacement filter for your specific engine design. You can purchase Briggs & Stratton fuel filters online or from a local dealer. Some filters have a direction of flow arrow on them, so be sure to install the new filter in the correct direction. Reconnect the metal clips on both sides of the filter, and then remove the clamp on the fuel line or reopen the fuel valve. Finally, check for leaks and do not operate the equipment if any leaks are found.
Annual Maintenance
It is recommended to change the fuel filter annually as part of your equipment's regular tune-up, even if it does not appear to be clogged. This will help prevent restrictions in the fuel flow and extend the life of your engine.
Nissan Cube: Fuel Filter Presence in 2009 Models
You may want to see also
Explore related products
Fuel filter types
Fuel filters are essential for keeping the fuel that reaches the engine and its components clean, protecting the entire engine system from foreign particles. The type of fuel filter required depends on the vehicle model and engine type.
There are several types of fuel filters available, each with its own unique features and advantages. Here are some of the most common types:
- Sealed Canister Filter: Also known as a cartridge filter, it is one of the most popular types of fuel filters due to its ease of maintenance and replacement.
- Paper Filter: This type of filter separates foreign substances such as solids, fluids, and dust from the fuel. They are often disposable and referred to as cellulose filters. However, they should not be used with methanol or fuels containing more than 20% ethanol.
- Atom Filter: Atom-type fuel filters are commonly found in older model vehicles, but they are also used in new-generation Japanese vehicles. They are easy to use with a plug-and-play mechanism and do not create air during the filtration process.
- Stainless-steel filters: These filters are compatible with all types of fuel and can typically be cleaned and reused, making them a cost-effective and environmentally friendly option.
- Micro Glass Filters: These filters are designed for post-pump use only and are disposable.
It is important to note that the direction of the fuel filter is crucial for proper operation. Some filters have a direction of flow arrow indicated on them, which should be followed during installation. Additionally, fuel filters should be replaced at the recommended intervals to ensure optimal engine performance and avoid technical problems.
Locating the Fuel Filter in Your 2005 Dodge Durango
You may want to see also
Frequently asked questions
The direction of the fuel filter depends on the engine's design. The filter must be installed correctly for proper operation. Some filters have a direction of flow arrow on them. If not, mount the filter so that the larger end is nearer the fuel tank.
If you are unsure where the fuel filter is located, refer to your Briggs and Stratton Engine Operator's manual. If you are unable to easily locate the fuel filter, it may be an in-tank design.
You should be able to see light shining through clearly from the other side. If debris is clogging the mesh screen, replace the old filter with a new one.
It is recommended to change the fuel filter annually when performing an annual tune-up.
You can purchase Briggs and Stratton fuel filters online or from your local Briggs and Stratton dealer.
