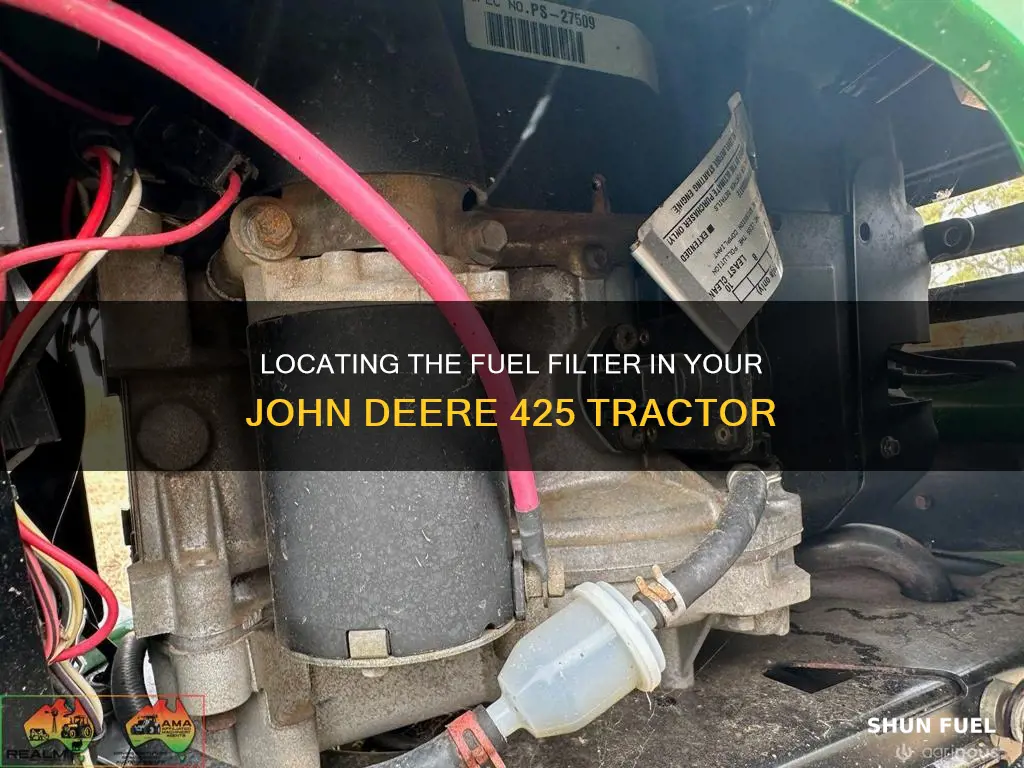

The John Deere 425 fuel filter is located under the floorboard, next to the frame. To access it, you will need to remove the right-side panel. Some people have also suggested removing the seat pan and fuel tank to access the filter. It is important to refer to the owner's manual for guidance on locating and replacing the fuel filter, as well as taking necessary safety precautions.
| Characteristics | Values |
|---|---|
| Fuel Filter Assembly | AM876411 |
| Fuel Filter | AM117584, AM118131 |
| Fuel Filter Replacement | AM879962 |
| Fuel Pickup Screen | M111816 |
| Fuel Tank Cap | AM115497, AM116169 |
| Fuel Tank Level Sender | AM118839 |
| Fuel-Protect Gasoline Stabilizer | TY27535, TY27534 |
| Location | Under the seat, behind the rear fender |
Explore related products
What You'll Learn
The fuel filter is located under the floorboard, next to the frame
Locating the fuel filter on your John Deere 425 tractor can be a straightforward process if you know where to look. In this case, the fuel filter is located under the floorboard, next to the frame. Here is a step-by-step guide to help you access and locate the fuel filter:
First, it is important to understand the tractor's components and their locations. The floorboard is the flat, footrest area of the tractor, and the frame is the structural support that surrounds it. The fuel filter is located beneath this floorboard area, typically on the right side.
To access the fuel filter, you will need to remove the right-side panel or engine cover. This will expose the area under the floorboard and next to the frame, where the fuel filter is located. It may be helpful to refer to the owner's manual for guidance on removing this panel, as it may involve loosening specific bolts or screws.
Once the right-side panel is removed, you should be able to see the fuel filter. It may be partially obscured, so you may need to feel around for it or use a flashlight for better visibility. The fuel filter is typically located close to the pressure-relief bolt, so you can use that as a reference point if needed.
If you are still having trouble locating the fuel filter, there are a few other steps you can try. Some owners have suggested removing the mower deck or rear wheel to gain better access and visibility. Additionally, checking the fuel flow and the hose in the tank, as well as the screen at the fuel pump intake, can help identify any potential issues that may affect the fuel filter's performance.
Remember to exercise caution and refer to the owner's manual or seek professional guidance if you are uncomfortable with any of the steps or procedures.
Easy Guide: Releasing Hose Clamp on Fuel Filter
You may want to see also
Explore related products
$36.95 $40.05
Remove the seat pan, unhook the fuel tank and locate the filter inside the frame rail
To remove the seat pan, unhook the fuel tank, and locate the filter inside the frame rail of your John Deere 425, follow these steps:
First, remove the seat pan. This will involve unscrewing bolts and removing nuts holding the seat pan in place. It is recommended to use nut clips and matching bolts to replace any loose nuts.
Next, to unhook the fuel tank, you will need to access the hoses coming out of the top of the tank. Locate the line at the carburetor and unhook it. Then, use a suction pump to remove the fuel from the tank before attempting to move the tank.
With the fuel tank drained, you can now locate the fuel filter inside the frame rail. The fuel filter for the John Deere 425 is identified as AM116156, which is the shorter of the two options, and is the original filter for this model.
It is worth noting that there may be some confusion over the correct filter, as there is a longer option (part number AM131054) that fits newer machines with the same transaxle. However, for the John Deere 425, the correct part number is AM116156.
By following these steps, you will be able to safely and effectively remove the seat pan, unhook the fuel tank, and locate the filter inside the frame rail of your John Deere 425.
Signs Your Boat Fuel Filter Needs Replacing
You may want to see also
Explore related products
Remove the mower deck to access the filter
To access the fuel filter on a John Deere 425 tractor, you must first remove the mower deck. This will allow you to get under the tractor and locate the fuel filter. Here is a step-by-step guide to removing the mower deck on a John Deere 425:
Start by starting the engine and raising the mower deck to its highest setting. Next, dial the deck knob to the lowest setting. Turn the gauge wheels to the side, and then turn the steering wheel a quarter turn to the left. If your tractor is an AWS model, turn the steering wheel fully to the left. Now, lower the deck all the way down.
At this point, you will need to secure the mower draft arms out of the way. To do this, set the height control to its highest setting and lift the arms up with the deck lift control lever. You should now be able to see the "'J'" pins in the frame that fit into the holes in the draft arms. Insert the pins into the holes to hold the arms up and out of the way.
Now, pull the pins on your gauge wheels to lower the deck as close to the ground as possible. Ensure your tires are fully inflated. If your tractor has low ground clearance, you may need to lift the back end slightly to make this step easier.
Finally, pull out the J pins and raise the arms, locking them in place with the deck knob. Slide the collar off the PTO shaft and lay it across the top of the deck. Pull and swivel the front coupler to remove it from the deck and tractor frame. You can now slide the deck out from the right side of the tractor.
With the mower deck removed, you should be able to access the fuel filter on your John Deere 425.
Fuel Filter and MPG: What's the Link?
You may want to see also
Explore related products
The fuel filter is located under the seat
Locating the fuel filter on your John Deere 425 tractor can be a straightforward process. In this model, the fuel filter is located under the seat. To access it, you'll need to remove the rear fenders or fender pan. This process is relatively simple and will provide you with better access to the fuel filter.
Once you have removed the rear fenders, you will have better visibility and access to the fuel filter. It is important to consult the owner's manual for specific instructions and safety precautions before beginning any maintenance work. However, some users have found the manual's explanation and diagrams to be unclear or inadequate. In such cases, online forums and communities can be a valuable resource for additional guidance and tips.
When performing fuel filter maintenance, it is important to be cautious of any fuel leaks that may occur during the process. Ensure you have the necessary tools and safety equipment, such as rags, to handle any spilled fuel. Additionally, pay close attention to the fuel lines and the screen at the fuel pump intake. Clogs or leaks in these areas can impact the fuel flow and affect the performance of your tractor.
By following these steps and guidelines, you should be able to successfully locate and access the fuel filter on your John Deere 425 tractor. Remember to take your time, refer to the manual, and seek additional advice if needed. With proper maintenance, you can ensure the optimal performance and longevity of your tractor.
Locating the Fuel Filter on Your Toyota Corolla
You may want to see also
Explore related products
Check the fuel flow and hose in the tank
To check the fuel flow and hose in the tank of your John Deere 425, you will need to inspect and potentially replace some parts. Firstly, check the fuses under the dash on the right side. The fuse panel should be near your right knee when sitting on the tractor. Replace any blown fuses, and clean the fuse holders with a leaf blower or compressed air to remove dirt and dust. Reinstall the fuses with some dielectric grease.
Next, check the fuel pump and its associated parts. The pump is located inside the fuel tank, and its part number is AM115629. When replacing the pump, carefully handle the electrical wires from the tank sending unit, and clean them before reconnecting the plug. Make sure the wires are fully inserted into the plug. Check the connection between the pump and the sending unit, and ensure the power wire from the harness at the fuel tank sending unit has 12 volts reaching the pump.
Additionally, inspect the short section of hose that connects the pump to the output tube inside the tank, as this can degrade over time and may need replacement. Use a special fuel line intended to be submersible in gas. Also, check the fuel filter, which attaches to the pump and screens the gas entering it. Replace the filter when changing the pump, as the old filters can become corroded and restrict fuel flow.
Other potential issues include a faulty fuel gauge, a leaking needle valve, or a pump with incorrect pressure specifications. If your tractor runs when you pour fuel into the carburettor, these components may need attention.
Micron Rating of Diesel Fuel Filters: Understanding the 33166
You may want to see also
Frequently asked questions
The fuel filter on the John Deere 425 is located under the seat pan, inside the frame rail. You can access it by removing the right-side panel.
No, you do not need to remove the mower deck. Removing the seat pan and right-side panel should give you access to the fuel filter.
It is recommended to change the fuel filter regularly, but the specific interval may depend on usage and other factors. Refer to your owner's manual or consult a John Deere dealer for more precise information.
