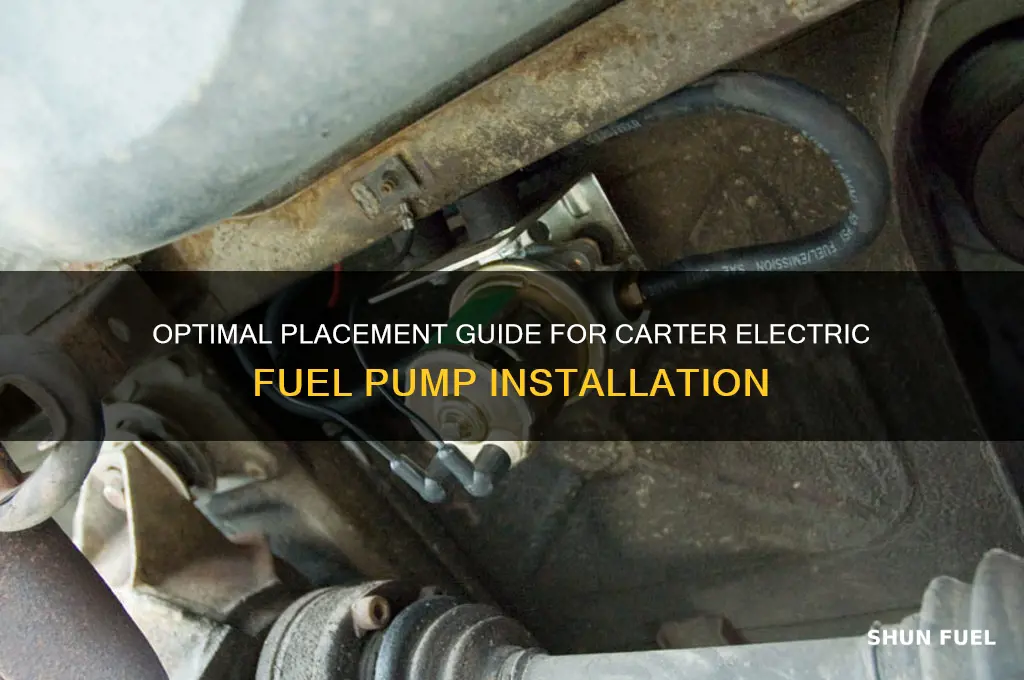

When installing a Carter electric fuel pump, proper placement is crucial for optimal performance and safety. The pump should be mounted as close to the fuel tank as possible to minimize the risk of vapor lock and ensure consistent fuel delivery. Ideally, it should be positioned on a flat, secure surface away from excessive heat sources, such as the exhaust system or engine block, to prevent damage or fuel vaporization. Additionally, the pump should be installed in-line with the fuel system, ensuring the fuel flows in the correct direction as indicated by the arrow on the pump body. For vehicles with fuel injection systems, placing the pump below the fuel tank level is recommended to maintain adequate pressure, while carbureted systems may allow for a higher mounting position. Always consult the manufacturer’s instructions for specific guidelines and ensure all connections are tight and leak-free to guarantee reliable operation.
| Characteristics | Values |
|---|---|
| Mounting Location | Away from extreme heat sources (e.g., exhaust, engine block) |
| Orientation | Pump inlet port facing the fuel tank, outlet port toward the engine |
| Clearance | At least 2-3 inches of clearance around the pump for airflow and access |
| Vibration Isolation | Use rubber mounts or isolators to minimize vibration |
| Fuel Line Routing | Short, straight runs with minimal bends; avoid kinks or sharp turns |
| Electrical Connection | Secure wiring away from moving parts and heat sources; use proper gauge |
| Grounding | Ensure a clean, solid ground connection to the vehicle chassis |
| Fuel Filter Placement | Install a pre-filter between the tank and pump, and a post-filter after |
| Noise Considerations | Avoid mounting near passenger compartments or sensitive components |
| Accessibility | Place in a location that allows for easy inspection and maintenance |
| Compatibility | Ensure pump is compatible with fuel type (gasoline, diesel, ethanol, etc.) |
| Pressure Regulation | Use a pressure regulator if required by the vehicle's fuel system |
| Safety | Avoid mounting near flammable materials or in areas prone to fuel spills |
| Temperature Range | Operate within the pump's specified temperature range (-40°C to 85°C) |
| Mounting Hardware | Use corrosion-resistant bolts and brackets for secure installation |
| Wiring Protection | Use heat-resistant loom or wrap to protect wires from heat and abrasion |
| Testing | Test pump operation and fuel flow before finalizing installation |
Explore related products
What You'll Learn
- Under the Rear Seat: Provides easy access, reduces noise, and keeps it away from heat sources
- In the Trunk Area: Ideal for rear-mounted tanks, ensures safety, and maintains fuel line integrity
- Near the Fuel Tank: Minimizes fuel line length, reduces pressure drop, and improves pump efficiency
- Inside the Frame Rail: Protects from damage, keeps it hidden, and maintains a clean engine bay
- Under the Vehicle: Allows for cooling airflow, easy maintenance, but risks exposure to debris
Under the Rear Seat: Provides easy access, reduces noise, and keeps it away from heat sources
Placing a Carter electric fuel pump under the rear seat offers a trifecta of benefits: accessibility, noise reduction, and thermal protection. This location is particularly advantageous in vehicles with limited engine bay space or those prone to excessive heat buildup. By positioning the pump beneath the rear seat, you create a centralized access point that simplifies maintenance and troubleshooting. Unlike engine bay installations, which often require contorting yourself around hot components, the rear seat area is typically more spacious and cooler, making pump inspections and replacements a breeze.
From a noise management perspective, the rear seat placement acts as a natural sound barrier. Electric fuel pumps, while quieter than mechanical counterparts, still generate a distinct hum that can be noticeable inside the cabin. By nesting the pump under the seat, you leverage the surrounding upholstery and carpeting to dampen vibrations and muffle operational noise. This setup is especially beneficial for vehicles used for long drives or those with minimalist interiors where sound insulation is limited.
Thermally, the rear seat area is a safer haven for electric fuel pumps compared to the engine bay. Prolonged exposure to high temperatures can degrade pump performance and shorten its lifespan. Under the seat, the pump is shielded from the radiant heat of the engine and exhaust system, reducing the risk of overheating. Additionally, this location minimizes the pump’s exposure to fuel vapors, which can accumulate in the engine bay and pose a fire hazard. For optimal results, ensure the pump is mounted on a non-conductive surface and secured with vibration-damping mounts to prevent fuel line leaks.
When installing a Carter electric fuel pump under the rear seat, follow these steps for a seamless setup: first, remove the seat to access the undercarriage. Next, clean the mounting area and attach a rubberized pad to insulate the pump from metal surfaces. Secure the pump using stainless steel brackets and ensure all electrical connections are weatherproofed. Route the fuel lines away from moving parts and sharp edges, using clamps to hold them in place. Finally, test the system for leaks and verify proper pump operation before reassembling the seat. This method not only enhances the pump’s longevity but also ensures a quieter, safer driving experience.
While under-seat placement is ideal for many vehicles, it’s not universally applicable. Compact cars with limited rear seat clearance or vehicles with complex undercarriage layouts may require alternative locations. Always consult your vehicle’s manual or a professional mechanic to confirm compatibility. For those with the space, however, positioning the Carter electric fuel pump under the rear seat is a strategic choice that balances accessibility, noise control, and thermal safety—a win-win-win for both performance and convenience.
Understanding Carburetor Fuel Pumps: Function, Operation, and Maintenance Tips
You may want to see also
Explore related products
In the Trunk Area: Ideal for rear-mounted tanks, ensures safety, and maintains fuel line integrity
Placing a Carter electric fuel pump in the trunk area is a strategic choice for vehicles with rear-mounted fuel tanks. This location minimizes the length of the fuel line, reducing the risk of leaks and maintaining consistent fuel pressure. By keeping the pump closer to the tank, it ensures efficient fuel delivery while lowering the chances of vapor lock, a common issue in longer fuel lines exposed to high temperatures.
Safety is a paramount consideration when installing a fuel pump in the trunk. The trunk area is inherently safer than the passenger compartment, as it isolates the pump from occupants in the event of a malfunction or leak. Additionally, modern vehicles often have reinforced trunk designs that comply with safety standards, further mitigating risks. Always ensure the pump is securely mounted and away from sharp edges or moving parts to prevent damage during operation.
Maintaining fuel line integrity is another advantage of trunk placement. Shorter fuel lines mean fewer connections and potential failure points. Use high-quality, ethanol-resistant fuel lines rated for your vehicle’s fuel system pressure. Inspect lines regularly for cracks, abrasions, or signs of wear, especially if the trunk is frequently accessed or used for storage. Proper routing and securing of lines along the vehicle’s chassis will prevent chafing and extend their lifespan.
For optimal performance, consider the pump’s orientation and ventilation in the trunk. Mount the pump horizontally to ensure internal components function correctly. Adequate airflow around the pump is crucial to prevent overheating, so avoid placing it in tight, enclosed spaces. If the trunk lacks natural ventilation, installing a small vent or fan can help dissipate heat. Follow the manufacturer’s guidelines for clearance and grounding to ensure reliability.
Finally, trunk placement simplifies maintenance and troubleshooting. Accessing the pump for inspections, replacements, or repairs is straightforward, often requiring only the removal of a trunk panel. Keep a spill kit in the trunk for emergency fuel leaks, and familiarize yourself with the pump’s electrical connections for quick diagnostics. While this location may reduce available storage space, the trade-off in safety, efficiency, and ease of maintenance makes it an ideal choice for rear-mounted fuel tank setups.
Step-by-Step Guide: Removing Fuel Pump from John Deere X475 Mower
You may want to see also
Explore related products
Near the Fuel Tank: Minimizes fuel line length, reduces pressure drop, and improves pump efficiency
Placing the Carter electric fuel pump near the fuel tank is a strategic decision rooted in fluid dynamics and system efficiency. The closer the pump is to the tank, the shorter the fuel line, which directly reduces the distance fuel must travel. This minimizes friction and resistance within the lines, ensuring a smoother flow. For instance, a fuel line that’s 3 feet shorter can reduce pressure drop by up to 10%, depending on the system’s flow rate and fuel viscosity. This principle is particularly critical in high-performance engines, where even minor inefficiencies can impact power delivery.
From an installation perspective, mounting the pump near the tank simplifies the routing of fuel lines, reducing the risk of kinks, leaks, or damage. Use stainless steel or high-pressure rubber hoses rated for fuel systems to ensure durability. Secure the lines with clamps every 12–18 inches to prevent vibration-induced wear. Avoid sharp bends; maintain a minimum bend radius of 5 inches to preserve flow efficiency. If the pump is mounted within 6 inches of the tank, consider adding a pre-filter to protect the pump from debris, especially in older vehicles with unlined tanks.
The efficiency gains from this placement are twofold. First, reduced pressure drop means the pump operates under less strain, extending its lifespan. Second, shorter fuel lines decrease the volume of fuel exposed to heat from the engine bay, minimizing vapor lock risks. In carbureted systems, this is especially beneficial, as vapor lock can cause stalling or hard starting. For fuel-injected systems, maintaining consistent fuel pressure improves injector performance, optimizing air-fuel ratios for better combustion.
Comparatively, mounting the pump farther from the tank or in the engine bay introduces unnecessary complexity. Longer lines increase the risk of leaks, and the pump must work harder to overcome resistance, consuming more power. In extreme cases, this can lead to overheating or premature pump failure. While some argue for in-tank mounting, external placement near the tank offers easier access for maintenance and avoids the need for tank modifications. For DIY installers, this balance of efficiency and practicality makes near-tank placement the optimal choice.
Finally, consider environmental factors. In cold climates, mounting the pump near the tank helps maintain fuel temperature, reducing the risk of gelling in diesel systems or poor cold starts in gasoline engines. In hot climates, the tank acts as a heat sink, keeping fuel cooler than the engine bay. Pair this placement with a thermal insulation wrap on the pump and lines for added protection. By prioritizing proximity to the tank, you create a fuel system that’s not only efficient but also resilient to real-world conditions.
Step-by-Step Guide to Removing an E83 Fuel Pump Safely
You may want to see also
Explore related products
Inside the Frame Rail: Protects from damage, keeps it hidden, and maintains a clean engine bay
Mounting your Carter electric fuel pump inside the frame rail offers a trifecta of benefits: protection, aesthetics, and engine bay organization. This location shields the pump from road debris, moisture, and accidental impacts, significantly extending its lifespan. Unlike external mounting, which leaves the pump vulnerable to the elements and potential damage from rocks or curbs, the frame rail acts as a natural barrier, ensuring your fuel system remains reliable.
Imagine a scenario where a loose stone kicked up by a passing vehicle strikes your fuel pump. If mounted externally, this could lead to a cracked housing or damaged wiring, leaving you stranded. Inside the frame rail, the pump is safely tucked away, minimizing such risks.
Beyond protection, this placement contributes to a cleaner, more streamlined engine bay. The pump's bulk is concealed, creating a neater appearance and freeing up valuable space for other components. This is especially advantageous in performance builds or restorations where every inch counts. A cluttered engine bay not only looks untidy but can also hinder maintenance and troubleshooting. By hiding the pump, you achieve a more professional and organized look.
Consider the visual impact of a meticulously built engine compartment. The absence of a bulky fuel pump protruding from the side allows other components, like a polished intake manifold or a custom air cleaner, to take center stage.
However, this ideal location isn't without its considerations. Access for installation and maintenance becomes slightly more involved. You'll need to carefully plan the routing of fuel lines and wiring, ensuring they are securely fastened and protected from chafing. Additionally, proper ventilation is crucial to prevent heat buildup around the pump.
To successfully mount your Carter pump inside the frame rail, follow these steps:
- Measure Twice, Cut Once: Carefully measure the available space within the frame rail, considering the pump's dimensions and clearance for fuel lines and wiring.
- Secure Mounting: Use sturdy brackets and hardware to securely fasten the pump to the frame rail. Ensure the mounting points are strong enough to withstand vibrations and engine movement.
- Fuel Line Routing: Plan the fuel line route carefully, avoiding sharp bends and areas prone to heat or abrasion. Use appropriate clamps to secure the lines and prevent leaks.
- Wiring and Grounding: Route the pump's wiring harness neatly, protecting it from heat sources and potential damage. Ensure a solid ground connection to the chassis for optimal performance.
- Ventilation: If necessary, create vents or openings in the frame rail to allow for adequate airflow around the pump, preventing overheating.
By carefully considering these factors and following these steps, you can reap the numerous benefits of mounting your Carter electric fuel pump inside the frame rail, achieving a protected, aesthetically pleasing, and well-organized fuel system.
How to Safely Cut a Fuel Pump Hole in Your Truck Bed
You may want to see also
Explore related products
Under the Vehicle: Allows for cooling airflow, easy maintenance, but risks exposure to debris
Mounting a Carter electric fuel pump under the vehicle leverages the natural airflow generated during driving to cool the unit, a critical factor in preventing overheating and ensuring consistent fuel delivery. This position takes advantage of the vehicle’s motion, which directs a steady stream of air over the pump, dissipating heat more efficiently than enclosed spaces like the engine bay. For optimal cooling, orient the pump parallel to the direction of travel, allowing air to flow evenly across its surface. This setup is particularly beneficial for high-performance engines or vehicles operating in hot climates, where fuel pump temperatures can rise significantly under load.
Maintenance accessibility is another advantage of under-vehicle placement. With the pump mounted beneath the chassis, inspections, wiring checks, and replacements can be performed without dismantling engine components or accessing hard-to-reach areas. This ease of access reduces labor time and costs during routine service or troubleshooting. However, ensure the pump is secured with vibration-dampening mounts to prevent damage from road-induced shocks. Use stainless steel or galvanized hardware to resist corrosion, especially in regions with salted roads or high humidity.
Despite these benefits, under-vehicle placement exposes the fuel pump to debris, moisture, and potential impact damage. Road grime, stones, and water can accumulate around the pump, increasing the risk of clogging or corrosion. To mitigate this, install a protective shield or guard around the pump, ensuring it doesn’t restrict airflow. Regularly inspect the area for debris buildup and clean as needed. Additionally, apply a waterproof coating to electrical connectors and use sealed wiring harnesses to prevent moisture intrusion, which can cause short circuits or pump failure.
Comparing under-vehicle placement to alternatives like in-tank or engine bay mounting highlights its trade-offs. While in-tank pumps benefit from immersion cooling and debris protection, they require tank modification and are less accessible. Engine bay mounts offer easier wiring but expose the pump to higher ambient temperatures. Under-vehicle placement strikes a balance, offering cooling and accessibility at the cost of increased exposure. For vehicles with limited engine space or aftermarket fuel systems, this location often proves the most practical, provided proper precautions are taken to safeguard the pump from environmental hazards.
Step-by-Step Guide to Replacing a Fuel Pump on a 1999 S10
You may want to see also
Frequently asked questions
The Carter electric fuel pump should be installed in-line between the fuel tank and the engine, ideally as close to the fuel tank as possible to reduce the risk of cavitation and ensure consistent fuel delivery.
No, Carter electric fuel pumps are external pumps and are not designed for in-tank installation. Mounting it externally ensures proper cooling and accessibility for maintenance.
The pump should be mounted horizontally or with a slight downward angle toward the fuel tank to prevent air pockets and ensure proper fuel flow.
Avoid mounting the pump near extreme heat sources like the engine or exhaust, as excessive heat can damage the pump. Choose a location with adequate ventilation and away from high-temperature areas.
