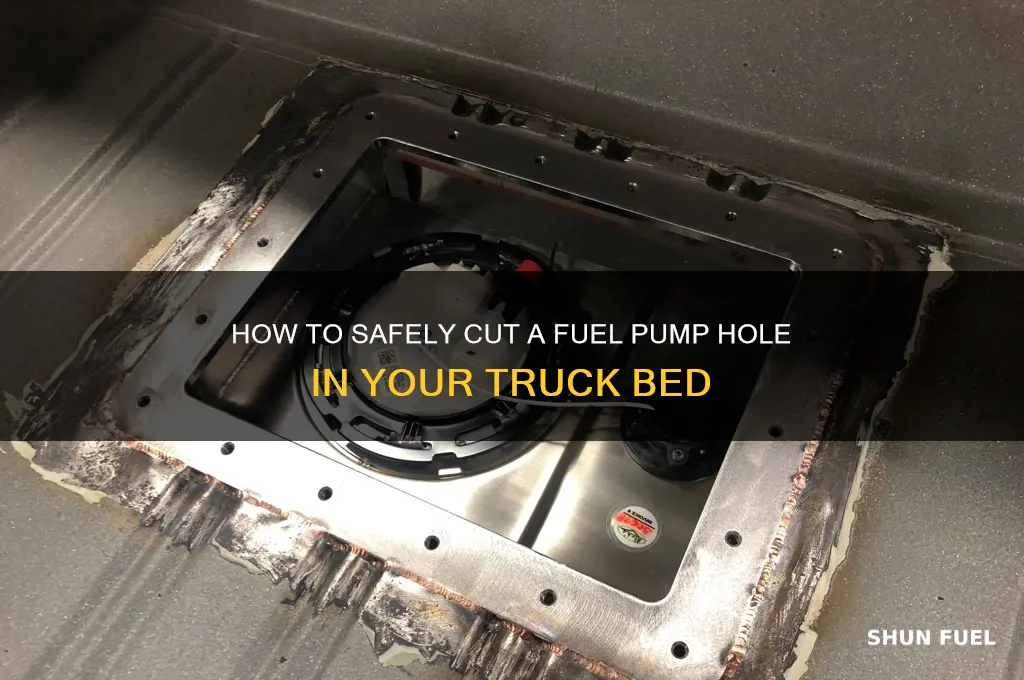

When installing a fuel pump in a truck bed, determining the optimal location to cut the hole is crucial for both functionality and safety. The ideal spot should provide easy access to the fuel tank while minimizing interference with the truck’s structural integrity and ensuring proper ventilation. Typically, the hole is cut near the fuel tank, often on the side or rear of the bed, allowing for a direct and secure connection to the pump. It’s essential to measure carefully, avoid critical areas like support beams or electrical wiring, and use appropriate tools to ensure a clean and precise cut. Additionally, consider local regulations and manufacturer guidelines to maintain compliance and warranty validity. Proper planning and execution will ensure a reliable and safe fuel pump installation.
| Characteristics | Values |
|---|---|
| Location | Center of the truck bed, directly above the fuel tank |
| Size of Hole | 3-4 inches in diameter (to accommodate fuel pump assembly and wiring) |
| Material to Cut | Truck bed material (typically steel or aluminum) |
| Tools Required | Hole saw (3-4 inches), drill, safety gear (gloves, eye protection) |
| Considerations | Avoid cutting near structural supports, fuel lines, or electrical wiring; ensure proper sealing to prevent water leaks |
| Sealing Method | Use a rubber grommet or sealant around the hole to prevent water and debris intrusion |
| Alignment | Ensure the hole aligns with the fuel tank's pump access point |
| Safety Precautions | Disconnect battery, relieve fuel system pressure, and work in a well-ventilated area |
| Post-Installation | Test for leaks, secure wiring, and ensure proper fuel pump operation |
| Alternative Method | Use an existing access panel or modify a pre-existing hole if available |
Explore related products
What You'll Learn
Measuring for Accurate Placement
Accurate placement of the fuel pump hole in a truck bed hinges on precise measurements. Begin by locating the fuel tank’s filler neck and tracing its position onto the bed’s underside. Use a straight edge to extend this mark vertically, ensuring alignment with the tank’s centerline. Measure twice to confirm symmetry, as even a minor offset can lead to installation complications or fuel flow issues. This initial step sets the foundation for a seamless fit and functional system.
Next, consider the fuel pump’s dimensions and clearance requirements. Most aftermarket pumps require a 3- to 4-inch diameter hole, but verify the manufacturer’s specifications. Mark the hole’s center point on the truck bed, ensuring it’s at least 2 inches away from structural supports or wiring harnesses. Use a template or compass to outline the hole, maintaining consistency in shape and size. Inadequate clearance can lead to vibration or damage, while oversizing the hole compromises structural integrity.
Depth measurement is equally critical, particularly for trucks with dual-layer beds or composite materials. Measure the thickness of the bed at the marked location, then subtract the pump’s mounting flange height to determine the necessary recess depth. If using a jigsaw or hole saw, set the blade depth to avoid cutting into the tank or underlying components. For metal beds, a step bit with a depth stop ensures precision; for plastic or fiberglass, a pilot hole and hole saw minimize cracking.
Finally, test fit the fuel pump assembly before securing it in place. Insert the pump through the hole and check for alignment with the tank’s filler neck. Ensure all mounting points are accessible and that hoses or wiring can be routed without strain. If adjustments are needed, refine the hole’s position incrementally rather than enlarging it excessively. This trial run prevents costly modifications and ensures the pump operates efficiently in its intended location.
Step-by-Step Guide: Installing a Fuel Pump on a Kohler Engine
You may want to see also
Explore related products
Choosing the Right Tool for Cutting
Cutting a hole in a truck bed for a fuel pump isn’t a task for guesswork—precision matters. The wrong tool can lead to jagged edges, structural damage, or even safety hazards. Before you make the first mark, consider the material of your truck bed. Aluminum beds require different tools than steel ones. For aluminum, a rotary tool with a carbide bit or a jigsaw with a fine-tooth blade works efficiently, minimizing heat buildup that could warp the metal. Steel beds, however, demand more robust tools like a reciprocating saw with a metal-cutting blade or a plasma cutter for cleaner, faster cuts. Always match the tool to the material to ensure a professional finish.
Selecting the right tool also depends on the size and shape of the hole. If you’re cutting a small, circular hole for a fuel pump fitting, a hole saw attachment on a drill is ideal. For larger, rectangular openings, a reciprocating saw or angle grinder with a cutoff wheel provides better control and versatility. Avoid using tools designed for wood, like standard circular saws, as they can dull quickly and produce rough edges. Remember, the goal is a clean, precise cut that fits the fuel pump assembly without compromising the truck bed’s integrity.
Safety should never be an afterthought when choosing your cutting tool. High-speed tools like angle grinders generate sparks, so wear flame-retardant clothing and ensure no flammable materials are nearby. For overhead work, such as cutting into a truck bed, use tools with ergonomic grips and consider a dust extraction system to minimize debris inhalation. If you’re unsure about handling powerful tools, opt for a rotary tool or jigsaw, which are more user-friendly but still effective for this task. Always prioritize safety gear—safety glasses, gloves, and a respirator are non-negotiable.
Cost and accessibility play a role in tool selection, but don’t let budget constraints compromise quality. Renting specialized tools like plasma cutters or reciprocating saws can be a cost-effective solution if you don’t plan to use them frequently. For DIY enthusiasts, investing in a versatile tool like a cordless oscillating multi-tool with metal-cutting blades offers long-term value. Whichever route you choose, ensure the tool is in good condition and compatible with the task. A dull blade or malfunctioning tool will only prolong the job and increase the risk of errors.
Finally, test your chosen tool on a scrap piece of metal before cutting into your truck bed. This allows you to gauge the tool’s effectiveness and adjust your technique if needed. For example, if using a jigsaw, start with a slower speed to prevent binding, and gradually increase as you gain control. Practice cuts also help you identify potential issues, such as excessive vibration or uneven cutting, which can be addressed before you make the final cut. With the right tool and preparation, cutting a hole for a fuel pump becomes a straightforward task rather than a daunting challenge.
Easy Guide: Hooking Up Mikuni Fuel Pump for Optimal Performance
You may want to see also
Explore related products
$399.99 $418.99
Ensuring Proper Seal After Installation
A poorly sealed fuel pump installation can lead to leaks, corrosion, and even fire hazards. Ensuring a watertight and fuel-resistant seal is critical, especially given the truck bed's exposure to harsh weather and road conditions. The choice of sealant and application technique directly impacts the longevity and safety of the modification.
Material Matters: Silicone-based sealants are often recommended for their flexibility and resistance to temperature extremes, but not all silicones are created equal. Opt for a high-temperature, fuel-resistant RTV (room-temperature vulcanizing) silicone specifically formulated for automotive applications. Avoid general-purpose silicones, which may degrade over time when exposed to gasoline or diesel. For added protection, consider using a butyl rubber rope as a secondary seal, particularly in areas prone to movement or vibration.
Surface Preparation is Key: Before applying any sealant, thoroughly clean and prepare the surface around the cut hole. Use a degreaser to remove oil, dirt, and debris, followed by a light sanding to create a rough surface for better adhesion. In humid environments, applying a thin layer of primer designed for plastics or metals can enhance the bond between the sealant and the truck bed material.
Application Technique: When applying the sealant, use a steady hand and a consistent bead thickness, typically 1/4 to 3/8 inch. Ensure the sealant fully bridges the gap between the fuel pump assembly and the truck bed, avoiding air pockets or thin spots. For larger gaps or irregular surfaces, consider using a combination of sealant and a backing material, such as a closed-cell foam strip, to provide a more uniform base.
Curing and Testing: Allow the sealant to cure fully according to the manufacturer’s instructions, which may range from 24 hours to several days depending on humidity and temperature. Once cured, test the seal by simulating real-world conditions: spray the area with water or a soapy solution to check for leaks. If any weaknesses are detected, reapply sealant and allow it to cure again before retesting.
Long-Term Maintenance: Periodically inspect the seal for cracks, gaps, or signs of wear, especially after extreme weather events or rough terrain driving. Reapply sealant as needed, and consider using a protective coating or bed liner material over the sealed area to shield it from UV rays and physical damage. Regular maintenance ensures the seal remains effective, safeguarding both the fuel system and the truck bed’s structural integrity.
Step-by-Step Guide: Removing Fuel Pump in 2002 Honda Accord SE
You may want to see also
Explore related products
Avoiding Structural Damage to Truck Bed
Cutting a hole in a truck bed for a fuel pump isn't just about marking a spot and drilling. The truck bed is a structural component, and improper cuts can compromise its integrity, leading to sagging, rust, or even failure under load. Understanding the bed's design is crucial. Most truck beds have a network of ribs and supports that distribute weight and maintain rigidity. Cutting through these without careful planning can create weak points, especially in areas prone to stress like near the wheel wells or along the sides.
To minimize structural damage, prioritize cutting in areas with minimal load-bearing responsibility. The rear of the bed, near the tailgate, often has less structural reinforcement compared to the front or sides. Look for natural gaps or thinner sections in the bed's framework, which can be identified by tapping the surface—softer, more hollow sounds indicate less structural material. Avoid cutting near welds or seams, as these are critical for maintaining the bed's shape and strength.
Reinforcement is key when altering a truck bed. After cutting, use steel plates or brackets to reinforce the area around the hole. Welding a plate over the cut edges can restore some of the lost structural integrity. For added protection, apply a rust-inhibiting primer and paint to prevent corrosion, which can further weaken the metal over time. If welding isn’t an option, consider using epoxy-based adhesives designed for metal bonding, though this is a less durable solution.
Consider the long-term impact of the modification. A poorly executed cut can void warranties or reduce the truck’s resale value. If unsure, consult a professional or use a pre-fabricated fuel pump mounting kit designed for your truck model. These kits often include templates and reinforcement materials, ensuring the modification is both safe and structurally sound. Always test the bed’s strength after installation by gradually applying weight to ensure it can handle typical loads without deformation.
Does Ingles Gas Damage Fuel Pumps? Facts and Myths Explained
You may want to see also
Explore related products
Aligning Fuel Pump with Tank Access
Precision is paramount when aligning a fuel pump with tank access in a truck bed modification. The goal is to ensure the pump’s inlet is directly over the tank’s filler neck or a designated access point, minimizing fuel line length and potential leak points. Measure the tank’s dimensions and locate its centerline using a tape measure and chalk line. Mark the truck bed’s surface directly above this point, ensuring alignment with the tank’s access port. Double-check measurements by measuring diagonally from corner to corner; if the distances match, the marks are square.
A common mistake is assuming the tank’s center aligns with the truck bed’s visual center. Tanks are often offset for structural or space reasons, so consult the vehicle’s service manual or inspect the tank directly. If the tank’s access port is offset 2–3 inches to the driver’s side (a typical configuration in many pickups), adjust the bed marking accordingly. Use a stud finder to avoid cutting through structural supports or wiring harnesses, and consider drilling a small pilot hole to confirm alignment before cutting the full opening.
For trucks with plastic or composite beds, use a jigsaw with a fine-tooth blade to prevent splintering. Metal beds require a step drill bit or hole saw for clean entry, followed by a cutoff wheel for the final shape. The hole should be no larger than necessary—typically 3–4 inches in diameter for standard fuel pump modules. Secure the pump with a gasketed mounting plate to seal the opening and distribute vibration stress evenly. Silicone sealant around the edges adds an extra leak-proof barrier.
Post-installation, test the system for leaks by filling the tank to 75% capacity and inspecting for drips beneath the truck. Run the engine briefly to pressurize the lines, then recheck. If using an aftermarket pump, ensure the wiring harness is routed away from exhaust components and secured with heat-resistant loom. Regularly inspect the bed’s underside for corrosion, especially in regions with salted roads, as exposed metal edges are prone to rust. Proper alignment not only ensures functionality but also extends the life of the modification.
Jump-Starting Your Volvo S80's Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The best location is typically near the fuel tank, ensuring easy access to the pump while avoiding structural supports, wheel wells, or electrical wiring. Measure carefully to align with the fuel tank's position.
The hole size depends on the fuel pump assembly, but a common diameter is 3 to 4 inches. Always refer to the manufacturer’s instructions for the specific pump you’re installing.
Use a rubber grommet or sealant around the edges of the hole to prevent water and debris from entering the truck bed. Ensure the fuel pump assembly fits snugly to maintain a tight seal.
If you’re confident in your DIY skills and have the right tools, you can cut the hole yourself. However, hiring a professional ensures precision and avoids damaging the truck bed or fuel system.
