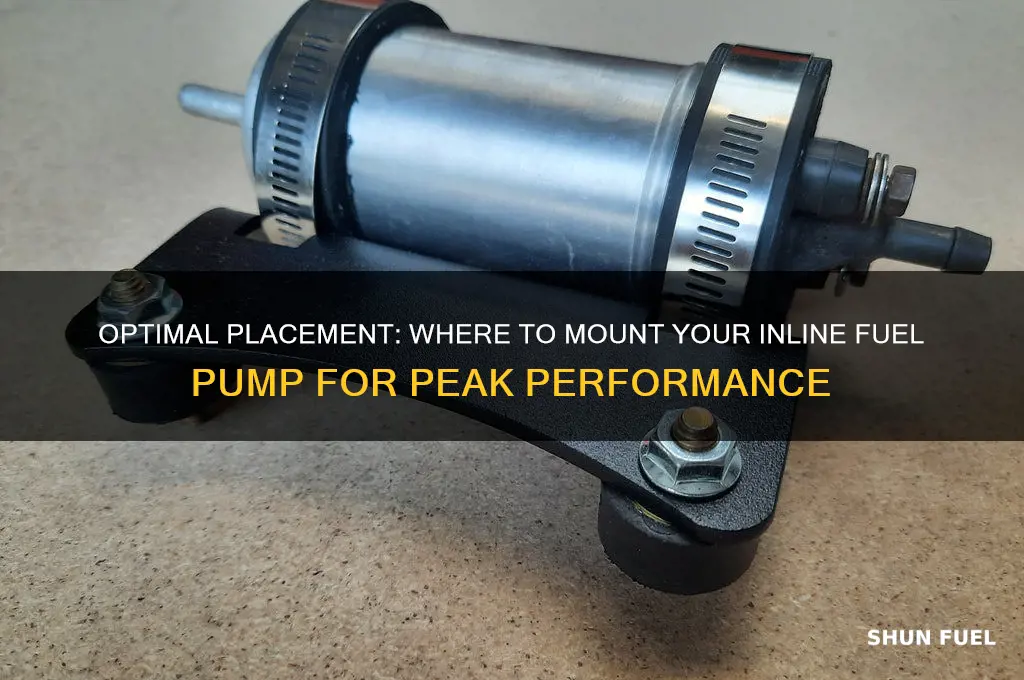

When considering where to mount an inline fuel pump, it's crucial to prioritize safety, efficiency, and accessibility. The ideal location should be away from excessive heat sources, such as the exhaust system or engine block, to prevent fuel vaporization or pump damage. Mounting the pump in a secure, vibration-free area, like the chassis or firewall, ensures longevity and reduces noise. Additionally, placing it close to the fuel tank minimizes the risk of air pockets in the fuel lines, while ensuring it remains above the tank level to maintain a consistent fuel supply. Accessibility for maintenance and inspection is also key, making the undercarriage or engine bay common choices. Always consult the manufacturer’s guidelines and local regulations to ensure compliance and optimal performance.
| Characteristics | Values |
|---|---|
| Location | Away from extreme heat sources (e.g., exhaust, engine block) |
| Orientation | Mounted horizontally or vertically, ensuring proper fuel flow |
| Proximity to Fuel Tank | As close to the fuel tank as possible to reduce fuel line pressure drop |
| Accessibility | Easily accessible for maintenance and inspection |
| Vibration Isolation | Mounted with rubber or vibration-damping mounts to reduce noise and wear |
| Clearance | Sufficient clearance from moving parts and sharp edges |
| Fuel Line Routing | Short, straight runs with minimal bends to reduce restriction |
| Electrical Safety | Away from electrical components to prevent interference or damage |
| Grounding | Properly grounded to prevent electrical issues |
| Compatibility | Compatible with fuel type (e.g., gasoline, diesel, ethanol blends) |
| Mounting Hardware | Securely fastened with appropriate brackets, clamps, or bolts |
| Environmental Protection | Protected from water, dirt, and debris |
| Pressure Regulation | Mounted before the fuel filter and regulator for optimal performance |
| Noise Considerations | Away from passenger compartment to minimize noise |
| Legal Compliance | Compliant with local regulations for fuel system modifications |
Explore related products
What You'll Learn
- Engine Bay Mounting: Secure pump near engine for easy access and short fuel lines
- Frame Rail Installation: Attach pump to frame for stability and protection from heat
- Trunk Placement: Mount pump in trunk for rear-fed fuel systems, ensuring safety
- Underbody Mounting: Position pump under vehicle for space-saving and away from heat sources
- Fuel Tank Integration: Install pump directly on or near the fuel tank for efficiency
Engine Bay Mounting: Secure pump near engine for easy access and short fuel lines
Mounting an inline fuel pump in the engine bay offers a strategic advantage: proximity to the engine ensures short fuel lines, reducing the risk of leaks and pressure drops. This setup simplifies maintenance, as the pump remains accessible without crawling under the vehicle. However, the engine bay’s high temperatures demand careful consideration. Heat shields or insulated mounts are essential to protect the pump from excessive heat, which can degrade performance or cause failure. Always verify the pump’s temperature rating and choose a location away from exhaust manifolds or turbochargers.
When selecting a mounting spot, prioritize areas with minimal vibration and ample clearance. Secure the pump using rubber isolators or anti-vibration mounts to dampen engine vibrations, which can shorten the pump’s lifespan. Ensure the pump is mounted at or below the fuel tank level to maintain proper fuel flow and prevent air pockets. Use stainless steel or nylon-coated mounting hardware to resist corrosion, especially in vehicles exposed to harsh weather or road salts. Double-check that the pump doesn’t obstruct other components or interfere with engine movement during operation.
For optimal performance, pair engine bay mounting with a pre-filter or sock to protect the pump from debris. This is particularly crucial if the fuel tank lacks an adequate filter. Route fuel lines away from moving parts and secure them with clamps or zip ties to prevent chafing. If using an electric pump, ensure the wiring is protected from heat and moisture with high-temperature loom or conduit. Ground the pump directly to the chassis to avoid electrical interference, and use a relay to handle the current draw from the pump’s motor.
A common mistake is underestimating the importance of orientation. Inline fuel pumps should be mounted horizontally or with the fuel inlet below the outlet to ensure proper priming and prevent airlock. If space is limited, consider custom brackets or adapters to achieve the correct angle. Test the setup by cycling the ignition without starting the engine to check for leaks or unusual noises. This methodical approach ensures a reliable, efficient fuel delivery system that maximizes the benefits of engine bay mounting.
Step-by-Step Guide to Removing the Fuel Pump in a GL450
You may want to see also
Explore related products
Frame Rail Installation: Attach pump to frame for stability and protection from heat
Mounting an inline fuel pump to the frame rail is a strategic choice that balances stability, heat management, and accessibility. The frame provides a rigid foundation, minimizing pump vibration and reducing the risk of fuel line fatigue. Unlike firewall or trunk mounts, frame rail installation keeps the pump away from engine heat, preserving performance and longevity. This method is particularly effective in high-performance or off-road vehicles where engine bay temperatures soar or underbody clearance is limited.
To execute this installation, begin by selecting a section of the frame rail that is both accessible and free from obstructions. Use a combination of rubber isolators and stainless steel clamps to secure the pump, ensuring it remains firmly in place without transferring excessive vibration. Position the pump at least 6–8 inches away from exhaust components to avoid heat soak, which can degrade fuel pump efficiency over time. For added protection, consider wrapping nearby exhaust parts with thermal insulation or using a heat shield between the pump and exhaust system.
One critical aspect often overlooked is the orientation of the pump. Mount it parallel to the frame rail to maintain proper fuel flow and prevent air pockets, which can lead to cavitation. If the frame rail slopes, angle the pump slightly downward toward the fuel tank to assist with gravity-fed fuel delivery. Always verify the pump’s inlet and outlet ports align with the fuel lines to avoid kinking or stress on the connections.
While frame rail installation offers significant advantages, it’s not without challenges. Road debris, moisture, and corrosion pose threats to the pump’s exposed position. Combat these risks by coating the mounting hardware with anti-seize compound and using a waterproof pump enclosure if available. Regularly inspect the mount for signs of wear or damage, especially after off-road use or exposure to harsh weather conditions.
In comparison to other mounting locations, frame rail installation strikes a balance between practicality and performance. It’s less invasive than in-tank mounting and more heat-resistant than firewall setups. For builders prioritizing durability and ease of maintenance, this method is a standout choice. By combining thoughtful placement, proper insulation, and routine checks, frame rail-mounted fuel pumps can deliver reliable service even in demanding applications.
BMW R1200RT Fuel Pump Removal Guide: 2005 Model DIY Steps
You may want to see also
Explore related products
Trunk Placement: Mount pump in trunk for rear-fed fuel systems, ensuring safety
Mounting an inline fuel pump in the trunk is a strategic choice for rear-fed fuel systems, offering both efficiency and safety advantages. This placement ensures the pump is closer to the fuel tank, reducing the risk of vapor lock and improving fuel delivery under high-demand conditions. For vehicles with rear-mounted engines or those designed for performance, trunk placement can optimize fuel flow dynamics, particularly during aggressive driving or racing scenarios. However, this setup requires careful consideration of safety measures to mitigate risks associated with fuel leaks or electrical malfunctions in a confined space.
To execute trunk placement effectively, follow these steps: first, identify a secure mounting location away from heat sources and sharp edges. Use a solid metal bracket or plate to anchor the pump, ensuring it remains stable during vehicle movement. Second, route fuel lines with precision, minimizing bends and using high-pressure hose rated for fuel systems. Secure lines with clamps or zip ties to prevent chafing against other components. Third, install an emergency shut-off switch near the driver’s seat, allowing immediate pump deactivation in case of a malfunction. Finally, incorporate a fuel cell or bladder tank if the stock tank is not rear-mounted, ensuring compatibility with the pump’s flow rate and pressure requirements.
Safety is paramount when mounting a fuel pump in the trunk. Always use a pump with an internal check valve to prevent fuel backflow, reducing the risk of leaks. Insulate electrical connections with heat-resistant sleeving and ensure all wiring is routed away from exhaust components or other heat sources. Regularly inspect the trunk area for fuel odors or dampness, addressing any issues immediately. For added protection, consider installing a fire extinguisher or fire suppression system in the trunk, especially for high-performance or racing applications.
Comparing trunk placement to other mounting locations, such as under the vehicle or near the engine bay, highlights its unique benefits and challenges. While under-vehicle mounting may offer better cooling, it exposes the pump to road debris and moisture. Engine bay placement simplifies wiring but increases the risk of heat-related failures. Trunk placement strikes a balance, particularly for rear-fed systems, by optimizing fuel delivery while maintaining accessibility for maintenance. However, it demands meticulous planning to ensure safety and compliance with local regulations.
In practice, trunk-mounted fuel pumps are commonly seen in drag racing and drift cars, where rear-fed systems are essential for consistent performance. For instance, a 255 LPH (liters per hour) pump paired with a 20-gallon fuel cell in the trunk can support engines producing up to 500 horsepower. When installing, ensure the pump is positioned at least 6 inches above the fuel tank’s lowest point to maintain adequate fuel pickup. Additionally, use a pre-filter and post-filter to protect the pump from contaminants, extending its lifespan and reliability. By combining these practical tips with safety-focused measures, trunk placement becomes a viable and effective solution for rear-fed fuel systems.
Signs Your Fuel Pump Needs Replacement: When to Take Action
You may want to see also
Explore related products
Underbody Mounting: Position pump under vehicle for space-saving and away from heat sources
Mounting an inline fuel pump under the vehicle is a strategic choice that maximizes space and minimizes exposure to heat, two critical factors in fuel system efficiency and longevity. By positioning the pump beneath the chassis, you free up valuable real estate in the engine bay, which is often crowded with components like the intake manifold, exhaust system, and cooling modules. This underbody approach not only declutters the engine compartment but also places the pump in an area where it can operate in cooler conditions, reducing the risk of vapor lock and thermal degradation.
When considering underbody mounting, the first step is to identify a location that is both accessible and shielded from direct road debris. The ideal spot is typically along the vehicle’s frame rails, where the pump can be securely bolted using brackets or mounts designed to absorb vibrations. Ensure the pump is positioned at least 6–8 inches above the ground to avoid damage from potholes, speed bumps, or uneven terrain. Additionally, orient the pump’s inlet and outlet ports to align with the fuel lines, minimizing bends and reducing flow restrictions.
One practical tip is to use a protective shield or guard to cover the pump, especially if your vehicle is frequently driven on rough roads or off-road conditions. This shield can be made from lightweight aluminum or plastic and should be securely fastened to the underbody. Another consideration is the fuel pump’s proximity to the fuel tank. Mounting the pump closer to the tank reduces the risk of cavitation, which occurs when the pump struggles to draw fuel due to low pressure. For most vehicles, a distance of 12–18 inches between the pump and tank is optimal.
While underbody mounting offers significant advantages, it’s essential to address potential drawbacks. Exposure to moisture, salt, and corrosive elements can accelerate wear on the pump and its connections. To mitigate this, apply a corrosion-resistant coating to all electrical terminals and use stainless steel hardware for mounting. Regular inspections, particularly after driving in harsh conditions, will help identify early signs of damage or wear.
In conclusion, underbody mounting of an inline fuel pump is a space-efficient and heat-conscious solution that requires careful planning and execution. By selecting the right location, using protective measures, and maintaining the setup, you can ensure optimal performance and durability of your fuel system. This approach not only enhances the vehicle’s functionality but also aligns with modern trends in automotive design, where efficiency and reliability are paramount.
Easy Steps to Connect Your Lawn Mower Fuel Pump Properly
You may want to see also
Explore related products
Fuel Tank Integration: Install pump directly on or near the fuel tank for efficiency
Mounting an inline fuel pump directly on or near the fuel tank is a strategic move that maximizes efficiency by minimizing the distance fuel must travel. This setup reduces the risk of vapor lock, a common issue in high-performance or hot-weather conditions where fuel vaporizes in the lines, disrupting flow. By placing the pump close to the tank, you ensure a consistent supply of cool, liquid fuel, which is critical for maintaining optimal engine performance. This method is particularly beneficial in racing or modified vehicles where fuel delivery reliability is paramount.
From an installation perspective, mounting the pump near the tank simplifies the fuel line routing, reducing the need for long, complex runs that can introduce air pockets or leaks. Use a pump with a mounting bracket designed for tank integration, ensuring it’s securely fastened to prevent vibration-related damage. For example, Walbro’s GSS series pumps come with tank-mountable flanges, making them ideal for this application. Always ensure the pump is submerged in fuel when the tank is at least ¼ full to prevent dry running, which can lead to overheating and premature failure.
Comparatively, remote-mounted pumps (those placed far from the tank) often require a return fuel line to maintain pressure and prevent fuel from heating up in the lines. While this setup works, it adds complexity and cost. Tank-mounted pumps eliminate the need for a return line, streamlining the system and reducing potential points of failure. This simplicity not only saves time during installation but also reduces long-term maintenance requirements, making it a cost-effective choice for both DIY enthusiasts and professional mechanics.
A practical tip for this setup is to use a pre-pump filter or sock inside the tank to protect the pump from debris. This is especially important in older vehicles or those with contaminated fuel systems. Additionally, ensure the pump’s electrical connections are weatherproofed, as moisture intrusion can cause corrosion or electrical shorts. For vehicles with plastic tanks, verify compatibility to avoid chemical reactions that could degrade the tank material over time.
In conclusion, integrating the inline fuel pump directly on or near the fuel tank offers a blend of efficiency, reliability, and simplicity. It addresses common fuel delivery issues while reducing system complexity, making it an ideal choice for performance-oriented applications. By following specific installation guidelines and incorporating protective measures, you can ensure a robust and long-lasting fuel system that meets the demands of high-performance driving.
Hotwiring a 1997 Volvo 960 Fuel Pump: Step-by-Step Guide
You may want to see also
Frequently asked questions
The best location to mount an inline fuel pump is as close to the fuel tank as possible to reduce the risk of cavitation and ensure consistent fuel flow. It should also be mounted in a secure, vibration-free area away from extreme heat sources.
No, inline fuel pumps are designed for external mounting and should not be installed inside the fuel tank. In-tank pumps are specifically designed for that purpose and are a better choice if internal mounting is required.
Yes, most inline fuel pumps should be mounted horizontally or with the fuel inlet below the outlet to ensure proper fuel flow and prevent air pockets. Always refer to the manufacturer’s instructions for specific orientation requirements.
Mounting an inline fuel pump in the engine bay is possible but not ideal due to the high temperatures. If necessary, ensure it is mounted away from direct heat sources and use heat shielding to protect the pump. A cooler location, like the chassis or trunk, is generally preferred.
