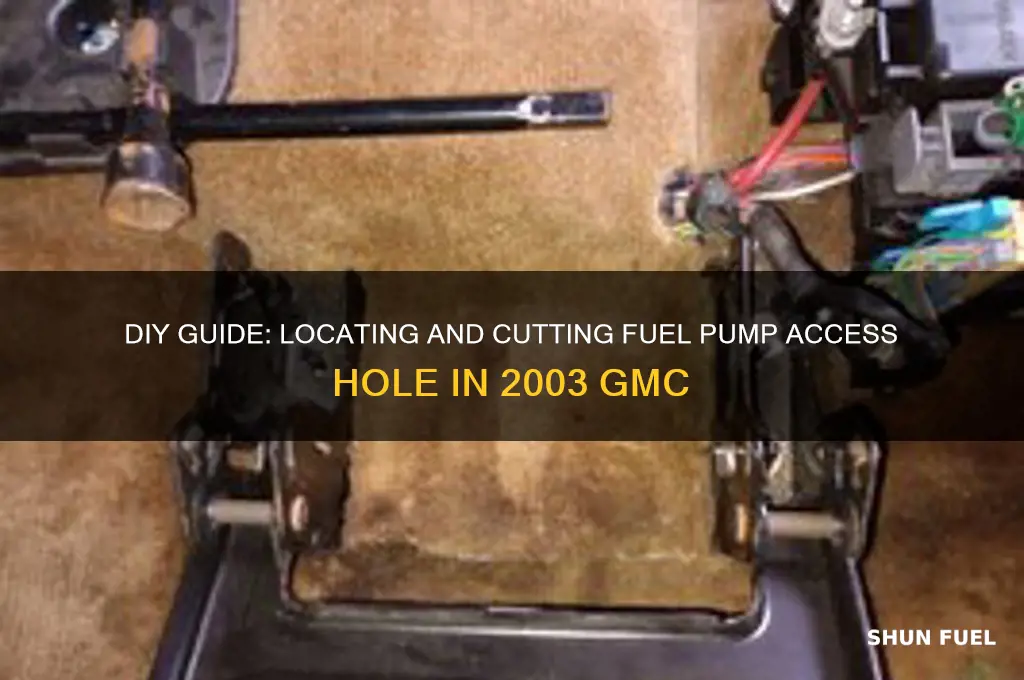

When replacing the fuel pump on a 2003 GMC vehicle, one of the critical steps is determining the correct location to cut the access hole in the fuel tank. This process requires precision to avoid damaging the tank or other components. Typically, the access hole should be cut near the fuel pump module, which is often located at the top of the tank. Referencing the vehicle’s service manual or consulting a repair guide specific to your GMC model is essential to identify the exact spot. Using a hole saw or appropriate cutting tool, ensure the hole is large enough to accommodate the fuel pump assembly while maintaining the tank’s structural integrity. Proper safety precautions, such as relieving fuel system pressure and working in a well-ventilated area, are crucial to prevent accidents during this procedure.
Explore related products
What You'll Learn
Fuel Tank Location Identification
Locating the fuel tank on a 2003 GMC is the first critical step before cutting an access hole for fuel pump replacement. The tank is typically positioned beneath the rear seat or cargo area, depending on the model. For most GMC trucks and SUVs of this era, the tank sits directly under the rear bench seat, making it accessible by removing the seat and the protective cover over the tank. Identifying this location accurately ensures that your access hole is cut in the right place, avoiding unnecessary damage to other components.
Analyzing the vehicle’s design reveals that the fuel tank’s position is often indicated by a slight bulge or contour in the floor panel. This bulge corresponds to the tank’s shape and can guide you in determining the optimal spot for cutting. Additionally, consulting the vehicle’s service manual or online forums specific to 2003 GMC models can provide visual diagrams or user experiences that pinpoint the exact location. This research minimizes the risk of cutting into fuel lines, wiring, or structural supports.
A persuasive argument for precision in fuel tank location identification is the potential for costly mistakes. Cutting in the wrong area can lead to fuel leaks, electrical damage, or structural compromise, turning a straightforward repair into a complex and expensive ordeal. By taking the time to confirm the tank’s position through visual inspection and research, you safeguard both the vehicle and your wallet. This step is not just precautionary—it’s essential for a successful repair.
Comparatively, newer vehicles often have more complex fuel system layouts, but the 2003 GMC’s design is relatively straightforward. The fuel tank’s central location under the rear seat simplifies access, provided you know exactly where to cut. Unlike some modern vehicles with tanks positioned under the chassis or integrated into the frame, the 2003 GMC’s tank is designed for easier maintenance. This makes accurate location identification even more critical, as the simplicity of the design rewards careful preparation.
Instructively, start by removing the rear seat to expose the floor panel covering the fuel tank. Use a flashlight to inspect the area for the tank’s outline, which is often visible through the panel. Mark the center of the tank’s bulge with a permanent marker, ensuring it aligns with the fuel pump’s location. Double-check your markings by referencing a diagram or forum post specific to your GMC model. Once confirmed, proceed with cutting, using a reciprocating saw or rotary tool with a metal-cutting blade. Always wear safety gear, including gloves and eye protection, and ensure the vehicle is on a level surface with the fuel tank as empty as possible to reduce hazards.
Testing Your C4 Corvette Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Access Hole Size Requirements
Cutting an access hole for a 2003 GMC fuel pump requires precision to avoid damaging surrounding components or compromising the fuel tank’s integrity. The ideal size of the access hole is not arbitrary—it must balance accessibility with structural safety. A hole too small restricts movement and tool access, while one too large weakens the tank’s frame. Most mechanics recommend a diameter of 4 to 6 inches, sufficient for inserting tools and the fuel pump assembly without unnecessary excess. This range ensures stability while allowing for efficient work, particularly when dealing with the tight confines of a GMC truck’s undercarriage.
Analyzing the fuel pump’s design reveals why size matters. The 2003 GMC model’s pump module includes a sending unit, electrical connectors, and locking rings, all of which require clearance during removal or installation. A 5-inch hole, for instance, provides ample space to maneuver these components without snagging or bending critical parts. Smaller holes, such as 3 inches, may force technicians to tilt or force the pump, increasing the risk of damage. Conversely, a 7-inch hole, while easier to work through, introduces unnecessary stress points around the tank’s edges, potentially leading to cracks or leaks over time.
Practical tips for achieving the correct size include using a hole saw with a 5-inch diameter, a common tool in automotive repair kits. Mark the cutting area by aligning it with the fuel pump’s center, ensuring symmetry to avoid uneven stress distribution. For those without a hole saw, a jigsaw with a metal-cutting blade can be used, but maintain steady pressure to prevent jagged edges. After cutting, deburr the hole’s perimeter with a file or sandpaper to eliminate sharp edges that could cut wires or hoses during installation.
Comparing this approach to alternative methods highlights its efficiency. Some technicians advocate for larger holes, claiming they simplify the process, but this overlooks long-term durability. Others suggest reusing existing access points, but the 2003 GMC’s design often requires a new hole due to the pump’s location. By adhering to the 4- to 6-inch guideline, you strike a balance between immediate convenience and structural preservation, ensuring the repair lasts without compromising safety.
In conclusion, the access hole size for a 2003 GMC fuel pump is a critical detail that impacts both the repair process and the vehicle’s longevity. A 5-inch hole, cut with precision and care, provides the optimal blend of accessibility and stability. Deviating from this size increases the risk of complications, from tool interference to tank damage. By following this guideline and employing the right tools, even novice mechanics can execute the repair confidently, ensuring the fuel system operates reliably for years to come.
Fixing a Faulty Relay Fuel Pump in a 2000 Toyota Corolla
You may want to see also
Explore related products
Safety Precautions for Cutting
Cutting an access hole for a fuel pump is not a task to be taken lightly, especially when dealing with a 2003 GMC vehicle. The fuel system is under pressure and contains flammable materials, making safety a top priority. Before you even pick up a tool, ensure the vehicle is on a level surface, the engine is off, and the ignition is disabled. This prevents accidental starts and reduces the risk of sparks. Additionally, work in a well-ventilated area to avoid inhaling fumes, and keep a fire extinguisher nearby as a precautionary measure.
Analyzing the risks involved, one of the most critical safety precautions is to relieve the fuel system pressure. For a 2003 GMC, locate the fuel pump fuse or relay in the underhood fuse box and remove it. Then, start the engine and let it run until it stalls, effectively depressurizing the system. This step is non-negotiable, as cutting into a pressurized fuel line can lead to fuel spray, which is highly flammable and dangerous. Always double-check that the system is depressurized before proceeding.
Instructively, the choice of tools and techniques matters significantly. Use a high-quality metal-cutting blade designed for automotive applications to ensure clean cuts without burrs or jagged edges. Avoid using excessive force, as it can cause the tool to slip, leading to injury or damage to the fuel tank. Mark the cutting area precisely, following the manufacturer’s guidelines or reputable online resources specific to the 2003 GMC model. A steady hand and patience are key to avoiding mistakes that could compromise safety.
Comparatively, while cutting an access hole, consider the long-term implications of your work. Unlike factory-made access points, a DIY cut requires careful planning to avoid weakening the fuel tank’s structural integrity. Reinforce the cut edges with a suitable sealant or gasket to prevent leaks and corrosion. This not only ensures safety but also maintains the vehicle’s functionality over time. Neglecting this step can lead to fuel leaks, which pose a fire hazard and environmental risk.
Descriptively, the environment in which you work plays a crucial role in safety. Clear the area of any flammable materials, such as rags, paper, or debris, that could ignite from a spark. Wear appropriate personal protective equipment, including safety goggles, gloves, and a long-sleeved shirt to protect against sharp metal edges and fuel exposure. Ground yourself by wearing non-conductive footwear and avoid using tools with exposed electrical components to minimize the risk of static electricity igniting fuel vapors.
Conclusively, cutting an access hole for a 2003 GMC fuel pump demands meticulous attention to safety. From depressurizing the fuel system to choosing the right tools and maintaining a safe workspace, each step is critical. By following these precautions, you not only protect yourself but also ensure the longevity and reliability of your vehicle’s fuel system. Safety is not an afterthought—it’s the foundation of any successful repair.
Mastering Fuel Pumping Techniques for Your Harley-Davidson 883 Motorcycle
You may want to see also
Explore related products
Tools Needed for Cutting
Cutting an access hole for a 2003 GMC fuel pump requires precision and the right tools to avoid damaging the fuel tank or surrounding components. The primary tool you’ll need is a high-speed rotary tool or a compact reciprocating saw with a metal-cutting blade. These tools offer the maneuverability and power necessary to cut through the tank’s metal without compromising its structural integrity. A rotary tool, such as a Dremel with a carbide cutting wheel, is ideal for tight spaces and detailed cuts, while a reciprocating saw provides more aggressive cutting for thicker materials. Always ensure the blade is sharp and designed for metal to prevent overheating or jagged edges.
Safety should be your top priority when selecting tools for this task. Safety goggles and gloves are non-negotiable, as metal shards and sparks can pose serious risks. Additionally, a dust mask is recommended to avoid inhaling metal particles. If you’re working in a confined space, consider using a portable work light to illuminate the area and ensure accuracy. For added safety, disconnect the battery and relieve fuel system pressure before beginning any cutting work to minimize the risk of fire or explosion.
While power tools are essential, hand tools play a crucial supporting role. A center punch and metal scribe are invaluable for marking the exact location of the access hole, ensuring your cut is aligned correctly. A step drill bit can be used to start the hole if you prefer a more controlled approach before using a saw. For smoothing rough edges after cutting, a metal file or sandpaper (200-grit or higher) will prevent sharp edges that could damage the fuel pump module or gasket.
If you’re working on a budget or prefer a more manual approach, a tin snips or aviation snips can be used for thinner metal tanks, though this method requires significant effort and precision. Pairing snips with a drill and hole saw to create starter holes can make the process easier. However, this method is less efficient than power tools and carries a higher risk of uneven cuts. Always measure twice and cut once to avoid mistakes that could compromise the tank’s integrity.
Finally, consider the portability and power source of your tools. Corded tools provide consistent power but limit mobility, while battery-powered options offer flexibility but may run out of charge mid-task. If using battery-powered tools, have a fully charged spare battery ready. For rotary tools, opt for variable speed settings to control the cutting process better. Investing in quality tools not only ensures a cleaner cut but also reduces the risk of damage to your vehicle, saving time and money in the long run.
Understanding External Fuel Pumps: Functionality, Benefits, and Maintenance Tips
You may want to see also
Explore related products
Post-Cut Installation Steps
After cutting the access hole for your 2003 GMC fuel pump, precision in the post-cut installation steps is crucial to ensure safety, efficiency, and longevity of the repair. Begin by thoroughly cleaning the exposed area around the cut to remove debris, rust, or paint that could interfere with the sealing process. Use a wire brush or sandpaper to create a smooth, clean surface for optimal adhesion of the new components.
Next, carefully lower the fuel pump assembly into the tank, ensuring the electrical connector and fuel lines align with their respective openings. Secure the pump module with the manufacturer-recommended torque specifications for the retaining bolts, typically ranging between 10-15 ft-lbs. Over-tightening can damage the tank or gasket, while under-tightening risks leaks. Double-check the alignment of the locking ring or mechanism to prevent future dislodgement.
Before reinstalling the bed or access panel, test the fuel pump for proper operation. Reconnect the battery, turn the ignition to the "on" position (without starting the engine), and listen for the pump’s priming cycle, which should last 2-3 seconds. If the pump fails to engage, inspect the electrical connections and ground points for continuity. A multimeter can verify voltage at the pump connector, ensuring the circuit is intact.
Sealing the access hole is a critical step often overlooked. Apply a bead of high-temperature, fuel-resistant sealant around the edges of the cut before reattaching the bed or panel. Use stainless steel or coated screws to prevent corrosion, and ensure all fasteners are tightened evenly. For added protection, consider installing a fuel pump access cover or plate, which not only enhances aesthetics but also shields the area from environmental damage.
Finally, conduct a comprehensive leak test after reassembly. Fill the tank to approximately half capacity, then inspect the access hole and fuel lines for any signs of seepage. Run the vehicle through a short drive cycle, monitoring the fuel gauge and engine performance for abnormalities. Address any leaks immediately, as fuel exposure poses fire hazards and compromises system integrity. Proper execution of these post-cut steps ensures a reliable repair, minimizing downtime and future maintenance needs.
Easy Steps to Reset Your Fuel Pump Relay: A Quick Guide
You may want to see also
Frequently asked questions
The best location to cut the access hole is in the center of the fuel tank's top surface, directly above the fuel pump module.
You will need a reciprocating saw, a hole saw (3-4 inches in diameter), safety gear (gloves, goggles), and a marker to outline the cut area.
Measure carefully, mark the center of the fuel pump module, and use a sharp blade or hole saw. Work slowly and avoid excessive force to prevent cracking the tank.
Yes, most fuel pump access hole covers are reusable. Ensure the gasket is in good condition and secure it properly to prevent leaks.
Relieve fuel system pressure, disconnect the battery, work in a well-ventilated area, and avoid sparks or open flames to prevent fire hazards.
