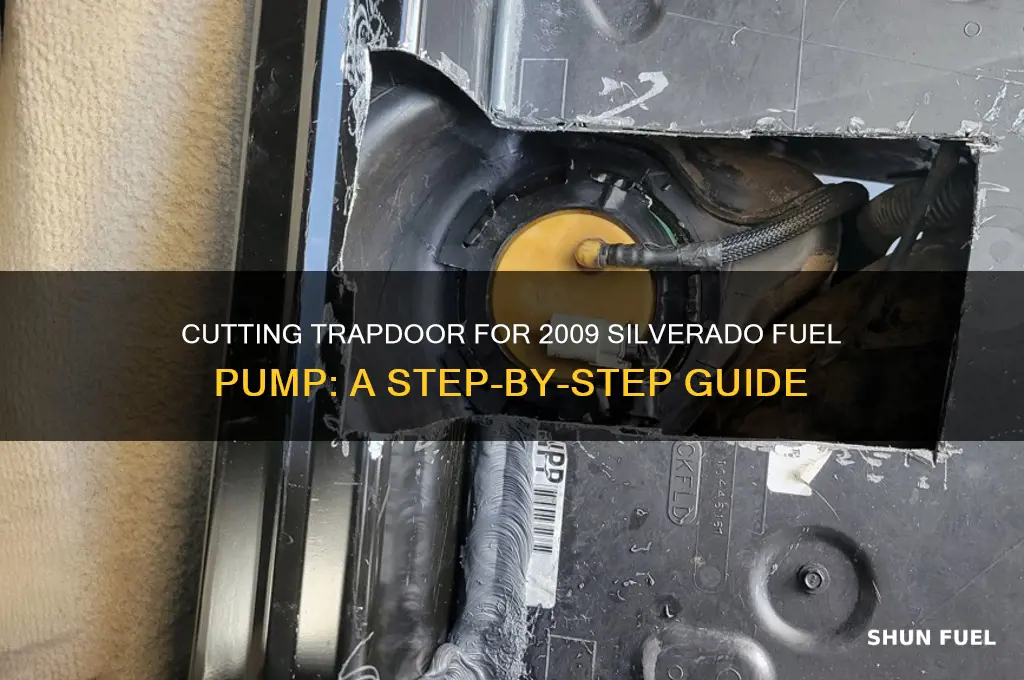

When replacing the fuel pump on a 2009 Chevrolet Silverado, one critical step is cutting the trapdoor in the truck bed to access the fuel pump module. The trapdoor is typically located directly above the fuel tank, near the driver’s side rear wheel well. To locate the exact spot, refer to the vehicle’s service manual or use a fuel tank access diagram specific to the 2009 Silverado. Measure carefully to ensure the cutout aligns with the fuel pump assembly, and use a marker to outline the area. Employ a jigsaw or reciprocating saw with a metal-cutting blade to carefully cut along the marked lines, taking precautions to avoid damaging nearby components or the fuel tank itself. Once the trapdoor is removed, you’ll have clear access to the fuel pump for replacement or maintenance.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2009 Chevrolet Silverado |
| Trapdoor Location | Behind the rear seat, on the driver's side of the truck bed floor. |
| Cutting Dimensions | Approximately 12" x 12" (30 cm x 30 cm) square or rectangle. |
| Tools Required | Jigsaw, reciprocating saw, or rotary tool with a metal-cutting blade. |
| Material to Cut | Truck bed floor (typically steel or aluminum). |
| Safety Precautions | Wear safety goggles, gloves, and ensure proper ventilation. |
| Access to Fuel Pump | Provides direct access to the fuel pump module for maintenance or replacement. |
| Alternative Method | Some prefer dropping the tank instead of cutting a trapdoor. |
| Aftermarket Kits | Available for purchase, including pre-cut panels and templates. |
| Difficulty Level | Moderate (requires precision cutting and basic mechanical skills). |
| Time Required | 1-2 hours, depending on experience and tools used. |
| Notes | Ensure the trapdoor is sealed properly after installation to prevent leaks. |
