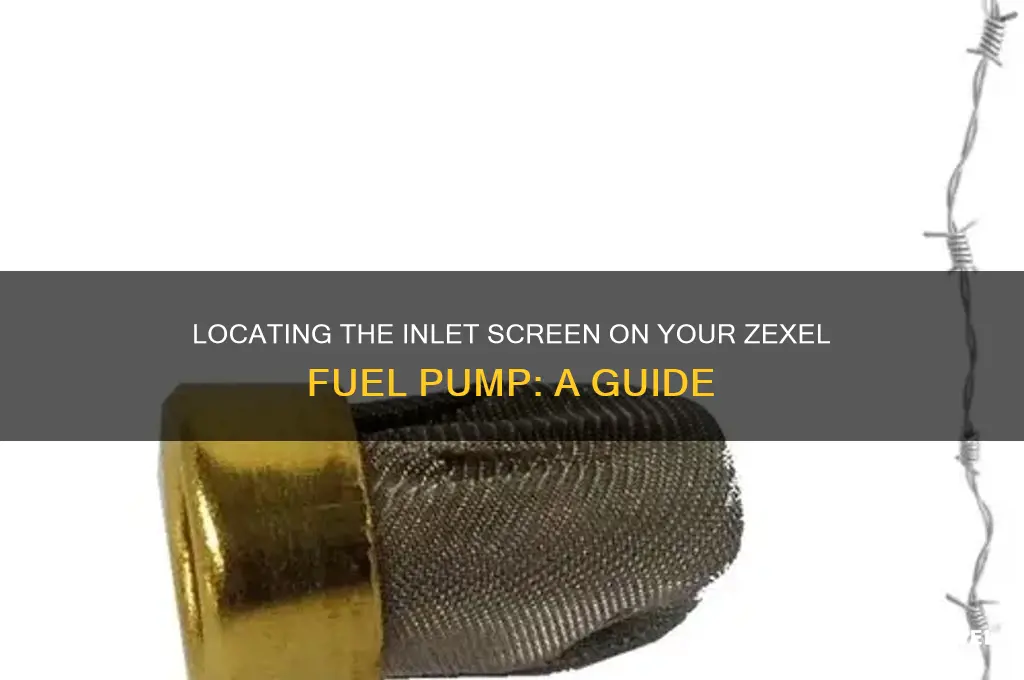

Location of Inlet Screen on Zexel Fuel Pump
The Zexel fuel pump, a critical component in many diesel engines, relies heavily on its inlet screen to filter contaminants from the fuel supply. This small but vital part is typically located at the pump’s fuel inlet port, where it acts as the first line of defense against debris that could damage internal components. Understanding its precise location is essential for maintenance, as a clogged or damaged screen can lead to reduced fuel flow, engine misfires, or even pump failure.
To locate the inlet screen on a Zexel fuel pump, start by identifying the fuel inlet port, usually marked with a threaded connection or hose fitting. The screen is often positioned immediately inside this port, secured by a retaining clip, screw, or snap ring. In some models, it may be integrated into a removable inlet fitting, allowing for easier access during cleaning or replacement. Refer to the pump’s service manual for model-specific details, as designs can vary.
Cleaning or replacing the inlet screen is a straightforward task but requires caution. Begin by disconnecting the fuel line and removing the retaining mechanism holding the screen in place. Use a soft brush or compressed air to clear debris, ensuring no particles remain that could re-enter the system. If the screen is damaged or excessively worn, replace it with a genuine Zexel part to maintain optimal performance. Reassemble the components carefully, ensuring all seals are intact to prevent leaks.
Comparing the Zexel fuel pump’s inlet screen to those in other systems highlights its unique design. Unlike some pumps where the screen is buried deep within the assembly, Zexel’s placement near the inlet port simplifies maintenance. However, this accessibility also means it’s more prone to clogging in dirty fuel environments, emphasizing the need for regular inspection, especially in agricultural or off-road applications where fuel quality may be inconsistent.
In conclusion, the inlet screen on a Zexel fuel pump is a critical yet often overlooked component. Its strategic location at the fuel inlet port ensures immediate filtration but demands proactive maintenance. By familiarizing yourself with its position and incorporating regular checks into your service routine, you can prevent costly downtime and extend the pump’s lifespan. Always prioritize precision and care during maintenance to safeguard the efficiency and reliability of your fuel system.
Delphi Fuel Pumps: Reliability, Performance, and Longevity Reviewed
You may want to see also
Explore related products
Identifying the Inlet Screen Component
The inlet screen on a Zexel fuel pump is a critical yet often overlooked component, serving as the first line of defense against contaminants entering the fuel system. Located at the fuel intake port, this fine mesh filter prevents debris, rust, and particulate matter from reaching the pump’s internal mechanisms, ensuring consistent fuel flow and prolonging the pump’s lifespan. Identifying it correctly is essential for maintenance or troubleshooting, as a clogged or damaged screen can lead to reduced performance or even pump failure.
To locate the inlet screen, begin by disconnecting the fuel line from the pump’s intake port. On most Zexel models, the screen is positioned directly inside this port, often secured by a retaining clip or screw. Use a flashlight to inspect the port; the screen will appear as a thin, metallic mesh covering the opening. If the screen is not immediately visible, consult the pump’s service manual for specific placement details, as designs may vary slightly across models.
Once identified, assess the screen’s condition. A clean screen should allow light to pass through without obstruction. If it appears darkened, clogged, or damaged, removal and cleaning or replacement are necessary. To remove the screen, carefully disengage the retaining mechanism—typically a small clip or screw—and extract the screen using needle-nose plongs or a similar tool. Avoid forcing it, as this can damage the port or surrounding components.
Cleaning the inlet screen requires precision. Submerge it in a solvent-based cleaner, such as carburetor cleaner, and gently brush away debris with a soft-bristled brush. Rinse thoroughly and allow it to dry completely before reinstallation. If the screen is torn or excessively worn, replace it with a manufacturer-approved part to maintain optimal filtration. Reinstall the screen securely, ensuring the retaining clip or screw is tightened to the specified torque to prevent fuel leaks.
Regular inspection of the inlet screen is a proactive measure that can save time and money. Incorporate this check into routine fuel system maintenance, especially after working on fuel tanks or lines, where debris is more likely to enter the system. By understanding the inlet screen’s role and location, vehicle owners and mechanics can ensure the Zexel fuel pump operates efficiently, safeguarding engine performance and reliability.
Ford F150 Fuel Pump Lock Mechanism Explained: 2004 Model Guide
You may want to see also
Explore related products
Steps to Access the Inlet Screen
The Zexel fuel pump's inlet screen is a critical component, often tucked away in a location that requires methodical disassembly to access. Typically, it’s positioned near the fuel inlet port, designed to filter debris before it enters the pump. To begin, ensure the fuel system is depressurized to avoid spills or accidents. This involves relieving pressure via the fuel rail valve or running the engine until it stalls, depending on the vehicle model. Safety first: work in a well-ventilated area and use gloves to handle fuel components.
Once depressurized, locate the fuel pump assembly, usually mounted on or near the fuel tank. Disconnect the negative battery terminal to prevent accidental ignition. Remove the fuel tank shield or access panel, which may require unbolting several fasteners. Carefully lower the fuel tank slightly or detach it entirely, depending on clearance. The inlet screen is often integrated into the pump’s inlet fitting or housed within a removable filter assembly. Identify the inlet fitting—a threaded or snap-on component—connected to the fuel line.
With the pump exposed, inspect the inlet area for the screen. On some Zexel models, the screen is part of a modular filter unit that unscrews or pulls out. Use a wrench or pliers, but apply gentle force to avoid damaging threads or seals. If the screen is embedded, it may require disassembling the pump housing, which involves removing retaining clips or screws. Always refer to the pump’s service manual for model-specific instructions, as designs vary.
Cleaning or replacing the inlet screen is straightforward once accessed. Rinse the screen with carburetor cleaner or replace it with a compatible part if clogged or damaged. Reassembly follows the reverse order of disassembly, ensuring all connections are secure and seals are intact. Test the system for leaks by pressurizing the fuel lines or starting the engine. Regular maintenance of the inlet screen prevents pump failure and ensures optimal fuel delivery, making this process a worthwhile investment in vehicle longevity.
Fuel Pump Lifespan: 2009 Malibu Maintenance and Longevity Guide
You may want to see also
Explore related products
Common Issues with Zexel Inlet Screens
The Zexel fuel pump's inlet screen is a critical yet often overlooked component, nestled within the fuel pickup assembly at the bottom of the fuel tank. Its primary function is to filter debris from the fuel before it enters the pump, preventing contamination that could lead to pump failure or engine damage. Despite its importance, several common issues can compromise its effectiveness.
One prevalent issue is clogging, which occurs when the screen becomes obstructed by dirt, rust, or sediment from the fuel tank. Over time, this buildup restricts fuel flow, leading to reduced engine performance, stalling, or difficulty starting. Regular inspection and cleaning are essential, especially in older vehicles or those exposed to contaminated fuel. To mitigate this, consider using a fuel tank cleaner and replacing the screen every 30,000 to 50,000 miles, depending on fuel quality and driving conditions.
Another issue is physical damage, such as bending or tearing of the screen. This often results from improper installation, using excessive force during maintenance, or debris impact. A damaged screen allows larger particles to pass through, increasing the risk of pump wear and internal damage. Always handle the screen with care and ensure it is securely seated during reassembly. If damage is detected, replace the screen immediately to avoid further complications.
Corrosion is a less obvious but equally problematic issue, particularly in vehicles exposed to moisture or ethanol-blended fuels. Over time, the screen’s metal components can degrade, leading to reduced filtration efficiency or even disintegration. To combat this, opt for screens made from corrosion-resistant materials, such as stainless steel, and inspect the fuel tank for signs of rust during routine maintenance.
Lastly, misalignment during installation can render the inlet screen ineffective. If the screen is not properly positioned within the pickup assembly, fuel may bypass it entirely, defeating its purpose. Always follow manufacturer guidelines when installing or replacing the screen, ensuring it is correctly seated and secured. A misaligned screen not only fails to filter fuel but can also cause fuel starvation, leading to engine misfires or complete shutdown.
By addressing these common issues—clogging, physical damage, corrosion, and misalignment—vehicle owners can prolong the life of their Zexel fuel pump and maintain optimal engine performance. Regular maintenance and attention to detail are key to preventing costly repairs and ensuring reliable operation.
Step-by-Step Guide to Removing a Volvo Fuel Pump Safely
You may want to see also
Explore related products
Cleaning and Maintenance of the Inlet Screen
The inlet screen on a Zexel fuel pump is a critical yet often overlooked component, serving as the first line of defense against contaminants entering the fuel system. Located at the fuel pump's intake, this fine mesh filter traps debris, rust, and particulate matter, ensuring clean fuel reaches the engine. Over time, however, this screen can become clogged, leading to reduced fuel flow, engine performance issues, and even pump failure. Regular cleaning and maintenance are essential to prevent these problems and extend the pump's lifespan.
Steps for Cleaning the Inlet Screen:
- Disassembly: Begin by disconnecting the fuel lines and removing the pump from the vehicle. Carefully disassemble the pump housing to access the inlet screen. This process varies by model, so consult the Zexel service manual for specific instructions.
- Inspection: Examine the screen for visible debris, discoloration, or damage. If the mesh is torn or severely corroded, replace it immediately.
- Cleaning: Submerge the screen in a solvent-based cleaner, such as carburetor cleaner or diesel fuel, for 15–20 minutes. Use a soft brush to gently remove stubborn particles, ensuring not to damage the mesh. Avoid harsh chemicals or abrasive tools that could compromise the screen's integrity.
- Rinsing and Drying: Rinse the screen with clean fuel or solvent to remove residual contaminants. Allow it to air dry completely before reassembly to prevent moisture from entering the system.
Cautions and Best Practices:
While cleaning the inlet screen is straightforward, certain precautions are vital. Never attempt to clean the screen while the pump is installed, as this risks contaminating the fuel system. Always work in a well-ventilated area, wear protective gloves, and avoid open flames or sparks when handling fuel or solvents. Additionally, inspect the fuel tank and lines for signs of corrosion or debris buildup, as recurring clogs may indicate a larger issue.
Comparative Analysis:
Unlike modern fuel pumps with integrated filters, the Zexel design relies heavily on the inlet screen for filtration. This makes regular maintenance even more critical, especially in older vehicles or those operating in dusty environments. Neglecting this component can lead to costly repairs, such as premature pump failure or injector damage. By contrast, proactive care ensures optimal fuel delivery, improved engine efficiency, and reduced risk of breakdowns.
Practical Tips for Longevity:
To minimize the frequency of cleaning, consider installing a pre-filter on the fuel tank outlet. This additional layer of protection reduces the load on the inlet screen, particularly in vehicles used in harsh conditions. Regularly inspect and replace fuel filters as recommended by the manufacturer, and use high-quality fuel to reduce the risk of contamination. Finally, keep a maintenance log to track cleaning intervals and identify patterns that may indicate systemic issues.
By prioritizing the cleaning and maintenance of the Zexel fuel pump's inlet screen, vehicle owners can safeguard their fuel system, enhance performance, and avoid unnecessary repairs. This simple yet crucial task is a cornerstone of preventive maintenance, ensuring reliability and longevity for years to come.
Checking Voltage on a 1989 Porsche 911 Fuel Pump: A Guide
You may want to see also
Frequently asked questions
The inlet screen on a Zexel fuel pump is typically located at the fuel inlet port, where fuel enters the pump. It is often found inside the inlet fitting or just beyond it.
To access the inlet screen, you’ll need to remove the fuel inlet fitting or cover. This usually involves loosening the fitting with a wrench or socket and carefully pulling it out to expose the screen.
The inlet screen filters out debris, dirt, and contaminants from the fuel before it enters the pump. This helps prevent damage to the pump’s internal components and ensures proper fuel flow.
The inlet screen should be inspected and cleaned during regular fuel system maintenance, typically every 10,000 to 15,000 miles or if fuel flow issues are suspected. Replace it if it’s damaged or excessively clogged.
Symptoms of a clogged inlet screen include reduced engine performance, difficulty starting, stalling, or a noticeable drop in fuel pressure. If these issues occur, inspect the screen for blockages.
