The Toyota Camry's fuel pump location varies depending on the model year and engine type. In most modern Camrys, particularly those with a 2.5L or 3.5L engine, the fuel pump is typically located inside the fuel tank, which is situated beneath the rear seat or trunk area. This design is common in vehicles with a front-wheel-drive layout, as it ensures efficient fuel delivery and protection from external elements. To access the fuel pump, one usually needs to remove the rear seat cushion or a dedicated access panel in the trunk, followed by lowering the fuel tank for maintenance or replacement. Always consult the vehicle’s service manual for specific instructions and safety precautions when working on the fuel system.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank (most models, e.g., 2007–2023 Toyota Camry) |
| Access Method | Requires fuel tank removal for access |
| Fuel Pump Type | Electric fuel pump |
| Function | Delivers fuel from the tank to the engine |
| Common Issues | Fuel pump failure, reduced fuel pressure, engine stalling |
| Replacement Cost | $200–$800 (parts + labor, depending on model and location) |
| DIY Difficulty | Moderate to difficult (requires specialized tools and fuel system knowledge) |
| Maintenance Interval | Typically lasts 100,000–150,000 miles, but varies by usage |
| Symptoms of Failure | Engine sputtering, difficulty starting, loss of power, unusual noises |
| Compatibility | Specific to Toyota Camry model year and engine type |
| OEM Part Number | Varies (e.g., 77020-06220 for some models) |
| Aftermarket Availability | Widely available from brands like Denso, Airtex, and Spectra Premium |
| Warranty Coverage | Typically 12–24 months for OEM parts, varies for aftermarket |
Explore related products
What You'll Learn
Fuel pump location in Toyota Camry
The fuel pump in a Toyota Camry is typically located inside the fuel tank, a design choice that has been standard across most modern vehicles for decades. This placement serves multiple purposes: it helps maintain fuel pressure more efficiently, reduces the risk of vapor lock, and keeps the pump cooler by submerging it in fuel. For Camry owners, understanding this location is crucial when diagnosing fuel system issues or planning maintenance. Accessing the pump requires removing the fuel tank, a task that demands caution due to the flammable nature of gasoline and the complexity of the fuel system.
Analyzing the fuel pump’s location in the Toyota Camry reveals a balance between engineering efficiency and practical maintenance challenges. While placing the pump inside the tank optimizes performance, it complicates repairs. For instance, replacing a faulty fuel pump involves draining the tank, lowering it from the vehicle, and disassembling it—a labor-intensive process that often requires professional tools and expertise. DIY enthusiasts should weigh the risks of attempting this repair themselves against the cost of professional service, especially considering the potential safety hazards involved.
For those considering a fuel pump replacement on their Toyota Camry, a step-by-step approach can streamline the process. First, ensure the vehicle is on a flat surface and the fuel tank is as empty as possible to minimize spillage. Disconnect the negative battery terminal to prevent accidental ignition. Next, relieve the fuel system pressure using the Schrader valve located near the fuel rail. After safely lowering the tank, detach the electrical connectors and fuel lines from the pump assembly. Install the new pump, reassemble the tank, and refill it with fuel. Always test for leaks and verify proper operation before driving.
Comparing the fuel pump location in the Toyota Camry to other vehicles highlights both similarities and differences. Like many sedans, the Camry’s in-tank design aligns with industry standards, but some older or specialty vehicles may have external pumps for easier access. This comparison underscores the trade-offs between accessibility and performance. While an external pump is simpler to replace, it may be more prone to overheating or failure. The Camry’s in-tank design, though less convenient for repairs, offers durability and efficiency that align with its reputation as a reliable vehicle.
A practical tip for Camry owners is to monitor fuel pump health through early warning signs. Symptoms of a failing pump include sputtering at high speeds, difficulty starting the engine, or a whining noise from the fuel tank. Regularly replacing the fuel filter and using high-quality gasoline can extend the pump’s lifespan. For those with higher mileage Camrys, proactive inspection during routine maintenance can prevent unexpected breakdowns. Understanding the fuel pump’s location and function empowers owners to make informed decisions about their vehicle’s care, ensuring longevity and performance.
Step-by-Step Guide to Assembling Your Fuel Pump Efficiently
You may want to see also
Explore related products
Identifying Toyota Camry fuel pump placement
The Toyota Camry's fuel pump is a critical component, yet its location isn’t immediately obvious to most drivers. Situated within the fuel tank, this design choice protects the pump from external damage and maintains fuel system efficiency. Unlike older models where fuel pumps were mounted externally, modern Camrys integrate the pump directly into the tank, requiring specific steps to access it for maintenance or replacement.

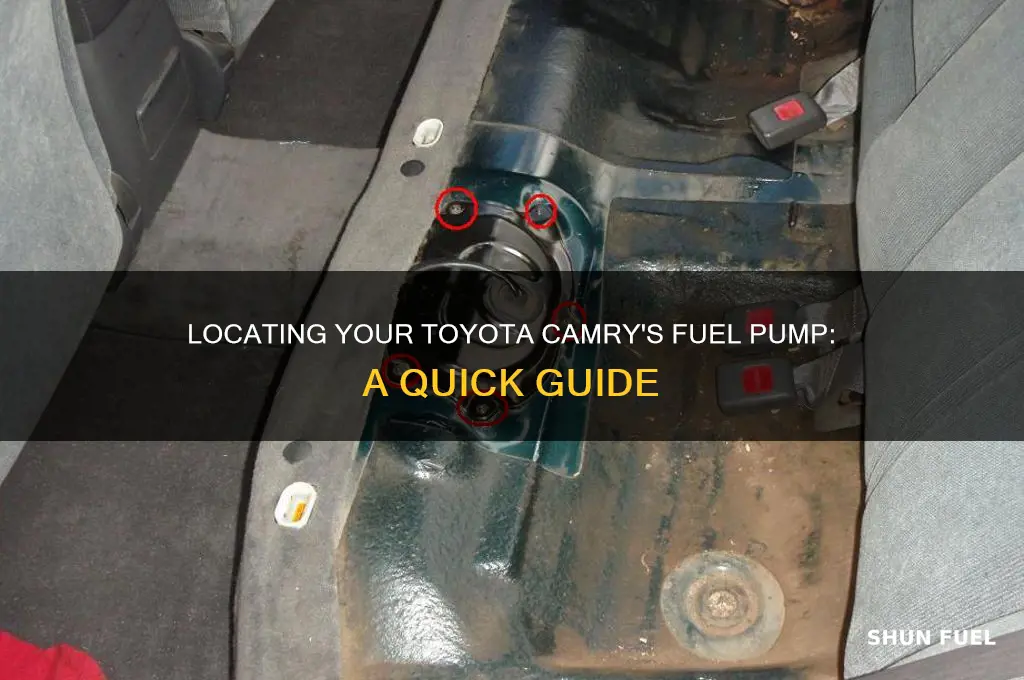

To identify the fuel pump’s placement, start by locating the fuel tank. In most Toyota Camry models, the tank sits beneath the rear passenger seats, directly above the rear axle. Accessing the pump involves removing the rear seat cushion and the fuel pump access panel, typically secured by a few bolts. This process requires basic tools like a socket wrench and a flathead screwdriver, but always disconnect the battery before beginning to prevent electrical hazards.
One common misconception is that the fuel pump is accessible from the underside of the vehicle. While the fuel tank itself is visible from below, the pump is sealed inside and requires interior access. This design minimizes exposure to road debris and corrosion, extending the pump’s lifespan. However, it also means that replacing the pump is more labor-intensive than in vehicles with external pumps.
For DIY enthusiasts, understanding the fuel pump’s placement is crucial for troubleshooting issues like engine sputtering or failure to start. Symptoms of a failing pump include inconsistent fuel pressure, which can be tested using a fuel pressure gauge. If replacement is necessary, consider that the pump is often sold as part of a complete fuel pump module, which includes the sending unit and float. This assembly typically costs between $200 and $500, depending on the model year and whether you opt for OEM or aftermarket parts.
In summary, the Toyota Camry’s fuel pump is located inside the fuel tank, accessible through the vehicle’s interior. While this placement enhances durability, it complicates maintenance. Armed with the right tools and knowledge, identifying and addressing fuel pump issues becomes a manageable task for both professionals and skilled amateurs. Always prioritize safety by working in a well-ventilated area and following proper procedures.
BMW X5 E70 Fuel Pump Inspection Guide: Step-by-Step Process
You may want to see also
Explore related products
Accessing the fuel pump in a Camry
The fuel pump in a Toyota Camry is located inside the fuel tank, a design choice that helps maintain fuel pressure and reduces the risk of vapor lock. This placement, while advantageous for performance, complicates access for maintenance or replacement. Understanding this layout is crucial before attempting any work on the fuel system.
Accessing the fuel pump requires removing the fuel tank, a task that demands precision and safety precautions. Begin by relieving the fuel system pressure using the Schrader valve located near the fuel rail. Disconnect the negative battery terminal to prevent accidental ignition. Next, raise the vehicle securely on jack stands and locate the fuel tank beneath the rear seat area. Carefully disconnect the fuel lines, electrical connectors, and tank straps before lowering the tank.
Once the tank is removed, the fuel pump module becomes accessible. It is typically secured by a locking ring or retaining plate, which can be released using a specialized tool or a flathead screwdriver. Inspect the pump for signs of wear or damage before proceeding with replacement. When installing a new pump, ensure the fuel filter and strainer are also replaced to maintain system integrity.
Working on the fuel system carries inherent risks, including fire hazards and exposure to flammable liquids. Always work in a well-ventilated area, avoid open flames, and use non-sparking tools. If unsure about any step, consult a professional mechanic to prevent costly mistakes or safety incidents. Proper preparation and caution can make this task manageable for experienced DIYers.
Finding the Fuel Pump Fuse in a 1998 Subaru: Location Guide
You may want to see also
Explore related products
Toyota Camry fuel pump tank position
The Toyota Camry's fuel pump is strategically located inside the fuel tank, a design choice that enhances safety and efficiency. This in-tank placement is standard across most modern vehicles, including the Camry, to minimize the risk of fuel ignition and maintain consistent fuel pressure. For Camry owners, understanding this position is crucial when diagnosing fuel system issues or planning maintenance. The fuel pump module, which includes the pump, sender unit, and sometimes a filter, is accessed by removing the fuel tank, a task that requires careful attention to safety protocols due to the flammable nature of gasoline.
Accessing the fuel pump in a Toyota Camry involves several steps that demand precision and caution. First, ensure the vehicle is on a level surface and the fuel tank is as empty as possible to reduce spillage risks. Disconnect the negative battery terminal to prevent accidental ignition. Locate the fuel tank, typically beneath the rear seat or trunk area, depending on the model year. Relieve the fuel system pressure using the Schrader valve, then disconnect the fuel lines and electrical connectors. Finally, lower the tank to access the pump assembly. Always work in a well-ventilated area and avoid open flames or sparks during this process.
Comparing the Toyota Camry's fuel pump placement to older external designs highlights significant advancements in automotive engineering. Early fuel pumps were often mounted outside the tank, exposing them to heat, vibration, and corrosion, which reduced their lifespan and reliability. By integrating the pump into the tank, Toyota not only improved durability but also optimized fuel delivery, especially in high-demand driving conditions. This design also reduces noise, as the fuel in the tank acts as a sound insulator. For Camry drivers, this means fewer maintenance concerns and a smoother driving experience.
For DIY enthusiasts tackling fuel pump replacement, knowing the Camry's tank position is just the beginning. The process requires specialized tools, such as a fuel line disconnect tool and a torque wrench, to ensure proper reassembly. Aftermarket fuel pump kits often include detailed instructions, but cross-referencing with a factory service manual is advisable for model-specific nuances. Post-installation, it’s critical to check for leaks and verify the pump’s operation before driving. While the task is manageable for experienced mechanics, novice owners may find professional assistance more cost-effective in the long run, given the potential risks and complexities involved.
Does Powertrain Warranty Cover Fuel Pump Repairs? Explained
You may want to see also
Explore related products
Common fuel pump locations by Camry model year
The Toyota Camry's fuel pump location has evolved significantly across model years, reflecting changes in engineering priorities and fuel system designs. Early Camry models, such as those from the 1980s and 1990s, typically housed the fuel pump inside the fuel tank, a common practice during that era to protect the pump from external damage and temperature fluctuations. For instance, the 1992–1996 Camry (4th generation) features the fuel pump module mounted at the bottom of the tank, accessible by removing the rear seat cushion and a protective cover. This design ensured reliability but required more labor-intensive replacement procedures.
Beginning with the 2002–2006 Camry (6th generation), Toyota introduced a more accessible fuel pump design. The pump remained inside the fuel tank but was paired with an external access panel located beneath the rear seat. This innovation allowed technicians to replace the pump without fully dropping the tank, reducing repair time and costs. However, accessing this panel still requires removing the rear seat and disconnecting electrical connectors, so a basic understanding of automotive tools and safety precautions is essential.
The 2012–2017 Camry (7th generation) continued the trend of in-tank fuel pumps but with further refinements. The fuel pump assembly is now part of a modular unit that includes the fuel level sender and pressure regulator. Access remains under the rear seat, but the assembly is more compact and integrated, requiring careful handling to avoid damaging surrounding components. DIY enthusiasts should note that working on fuel systems carries risks, including fire hazards, so ensuring the vehicle is on a level surface and the ignition is off is critical.
In the 2018–2023 Camry (8th generation), Toyota maintained the in-tank fuel pump design but incorporated advanced diagnostics and quieter operation. The pump is still located beneath the rear seat, but accessing it involves navigating around additional sound-deadening materials and updated electrical systems. For this model, using a factory service manual or a trusted repair guide is highly recommended, as the complexity of modern fuel systems can lead to costly mistakes if not handled correctly.
Across these generations, the consistent placement of the fuel pump inside the tank highlights Toyota’s commitment to durability and safety. However, the evolving accessibility features reflect a growing emphasis on ease of maintenance. Whether you’re working on an older Camry or a newer model, understanding these location trends can save time and frustration, ensuring you approach repairs with confidence and precision.
Step-by-Step Guide: Removing Fuel Pump on 2000 Mercury Mystique
You may want to see also
Frequently asked questions
The fuel pump in a Toyota Camry is typically located inside the fuel tank, which is situated beneath the rear seat or trunk area of the vehicle.
To access the fuel pump, you’ll need to remove the rear seat or trunk lining, disconnect the fuel lines and electrical connectors, and then lower the fuel tank to access the pump assembly.
No, the fuel pump is an integral part of the fuel tank assembly, so the tank must be removed to replace the pump.
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel efficiency, and unusual noises coming from the fuel tank area.
Replacing the fuel pump can be moderately challenging due to the need to remove the fuel tank and work with fuel lines. It’s recommended to have some mechanical experience or consult a professional.
