Checking the voltage of a 1989 Porsche 911's fuel pump is a critical diagnostic step to ensure proper fuel delivery and engine performance. This process involves using a multimeter to measure the electrical current supplied to the fuel pump, which is typically located in the fuel tank. By accessing the fuel pump relay or connector, you can test for the correct voltage, usually around 12 volts, to confirm the pump is receiving adequate power. This procedure helps identify issues such as a faulty pump, wiring problems, or relay malfunctions, ensuring the vehicle's fuel system operates efficiently. Proper tools and safety precautions, such as disconnecting the battery, are essential to perform this task accurately and safely.
| Characteristics | Values |
|---|---|
| Vehicle Model | Porsche 911 (1989) |
| Fuel Pump Location | Underneath the car, near the fuel tank (specific location varies by model) |
| Voltage Range (Operating) | 12V (nominal), but check for 11.5V to 14.5V during operation |
| Voltage at Fuel Pump Connector | Measure across the fuel pump connector pins (positive and negative) |
| Tools Required | Multimeter, screwdriver (for accessing connectors) |
| Testing Conditions | Ignition on (but engine off) for initial voltage check |
| **Expected Voltage (Key On, Engine Off) | 12V ± 0.5V |
| Expected Voltage (Engine Running) | 11.5V to 14.5V (due to electrical load variations) |
| Relay Involvement | Fuel pump relay controls power to the pump; check relay if voltage is low |
| Common Issues | Low voltage indicates faulty wiring, relay, or fuse |
| Safety Precautions | Disconnect battery before accessing fuel pump or connectors |
| Additional Checks | Test for ground continuity at the fuel pump connector |
| Reference Manual | Porsche 911 (930) workshop manual for specific diagrams and steps |
Explore related products
What You'll Learn
Locate fuel pump fuse and relay in the engine bay fuse box

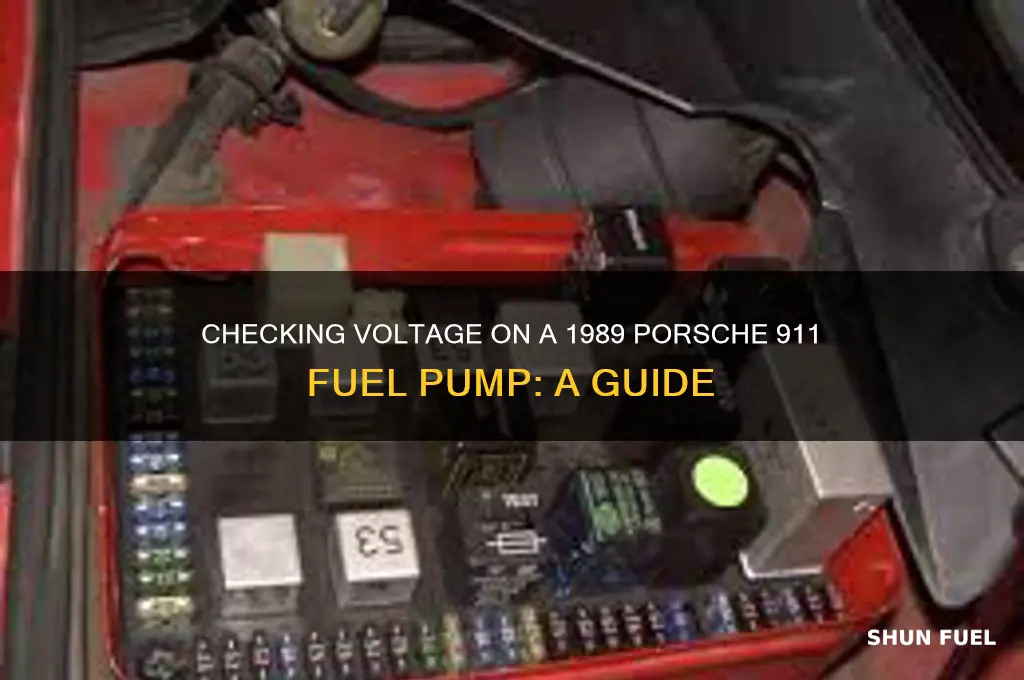

The 1989 Porsche 911’s fuel pump fuse and relay are housed in the engine bay fuse box, a critical component for diagnosing electrical issues related to fuel delivery. Located near the battery, this fuse box is a hub for high-current circuits, including those powering the fuel pump. Identifying the correct fuse and relay is the first step in verifying voltage supply to the fuel pump, ensuring it operates within the required 12-volt range.
To locate the fuse box, open the hood and look for a black rectangular enclosure on the driver’s side, adjacent to the battery. The lid of the fuse box typically has a diagram indicating which fuse corresponds to the fuel pump. In the 1989 911, the fuel pump fuse is often labeled as "Fuel Pump" or "FP" and is rated at 15–20 amps. If the diagram is faded or missing, consult the owner’s manual or a Porsche service manual for precise identification.
Once the fuse is identified, use a fuse puller or needle-nose pliers to extract it carefully. Inspect the fuse for signs of damage, such as a blown filament or discoloration. A blown fuse indicates a potential short circuit or overload, requiring replacement with a fuse of the same amperage. If the fuse appears intact, test it with a multimeter to confirm continuity, ensuring it’s not intermittently faulty.
The fuel pump relay, often located near the fuse, is a switch that activates the fuel pump when the ignition is turned on. To test the relay, swap it with a similar relay in the fuse box (e.g., the horn relay) and listen for the fuel pump priming when the ignition is engaged. If the pump operates with the swapped relay, the original relay is likely faulty and needs replacement.
In conclusion, locating and testing the fuel pump fuse and relay in the engine bay fuse box is a straightforward yet essential step in diagnosing fuel pump voltage issues in a 1989 Porsche 911. Proper identification, inspection, and testing of these components can save time and prevent misdiagnosis, ensuring the fuel system operates reliably. Always work with the ignition off when handling fuses and relays to avoid electrical hazards.
Step-by-Step Guide to Removing Fuel Pump in VT Commodore
You may want to see also
Explore related products
Use multimeter to test voltage at fuel pump connector
Testing the voltage at the fuel pump connector of a 1989 Porsche 911 is a critical diagnostic step to ensure the fuel system is functioning correctly. A multimeter is the essential tool for this task, allowing you to measure the electrical potential at the connector and identify potential issues. Before proceeding, ensure the vehicle is turned off and the ignition is in the "off" position to avoid electrical hazards. Locate the fuel pump connector, typically found near the fuel tank or along the fuel line, and consult the vehicle’s manual for its exact position.
To begin the test, set your multimeter to the DC voltage setting, usually denoted by a "V" with a straight line or a series of dashes. The expected voltage range for a Porsche 911’s fuel pump connector is typically between 12 and 14 volts when the ignition is on. Connect the multimeter’s red (positive) probe to the power wire at the connector and the black (negative) probe to a good ground, such as the chassis or battery negative terminal. Turn the ignition to the "on" position but do not start the engine. Observe the multimeter reading; if it falls within the specified range, the voltage supply to the fuel pump is likely functioning correctly.
A common mistake when testing voltage is failing to account for voltage drop under load. To verify the fuel pump’s performance, repeat the test while the pump is activated. Have an assistant turn the ignition to the "start" position briefly (do not crank the engine) to engage the fuel pump relay. The voltage reading should remain stable within the acceptable range. If the voltage drops significantly or falls below 10 volts, this could indicate a faulty relay, damaged wiring, or a failing fuel pump.
Caution must be exercised during this process, as working with electrical systems carries inherent risks. Avoid touching the probes or connector terminals while the ignition is on, and ensure the multimeter is properly insulated. If you’re unsure about any step, consult a professional mechanic to prevent damage to the vehicle or personal injury. By systematically testing the voltage at the fuel pump connector, you can pinpoint electrical issues and take appropriate corrective action, ensuring your Porsche 911’s fuel system operates reliably.
DIY Guide: Replacing the Fuel Pump on a 2000 Mazda 626
You may want to see also
Explore related products
Check fuel pump ground connection for corrosion or damage
A weak or intermittent fuel pump ground connection can mimic symptoms of a failing pump, leading to misdiagnosis and unnecessary repairs. The 1989 Porsche 911's fuel pump relies on a solid ground to function properly. Corrosion, loose connections, or damaged wiring at the ground point can restrict current flow, causing the pump to operate inefficiently or not at all. This issue often manifests as hard starting, stalling, or a complete loss of power, especially under load.
Before condemning the fuel pump itself, inspecting the ground connection should be a priority in your diagnostic process.
Locate the fuel pump ground connection, typically found near the fuel tank or on the chassis. It's usually a black wire connected to a metal surface via a bolt or screw. Visually inspect the connection for signs of corrosion, which appears as a greenish or whitish residue. Also, check for loose or frayed wires, cracked insulation, or signs of heat damage. Even a slight compromise in the ground connection can significantly impact the fuel pump's performance.
A multimeter can be used to test the continuity of the ground circuit. With the ignition off, disconnect the ground wire and measure the resistance between the wire and a known good ground point on the chassis. A reading of more than a few ohms indicates a problem with the ground connection.
If corrosion is present, clean the connection thoroughly using a wire brush or sandpaper to remove all traces of oxidation. Ensure the mating surfaces are clean and free of debris. Reattach the ground wire securely, using a torque wrench if a specified torque value is available in your Porsche's service manual. Consider applying a thin layer of dielectric grease to the connection to prevent future corrosion.
While addressing the ground connection, it's prudent to inspect the entire fuel pump wiring harness for any signs of damage or wear. Look for chafing, cracks, or exposed wires that could lead to shorts or further grounding issues. If the wiring harness is compromised, repair or replacement may be necessary. Remember, a reliable ground is essential for the fuel pump to deliver the necessary voltage and current for optimal performance. By meticulously checking and maintaining the ground connection, you can ensure your 1989 Porsche 911's fuel system operates smoothly and reliably.
Fixing Your Lawn Mower Fuel Pump: A Step-by-Step Repair Guide
You may want to see also
Explore related products
Verify power supply to fuel pump during ignition start
The fuel pump in a 1989 Porsche 911 relies on a consistent power supply during ignition start to ensure proper fuel delivery. Verifying this power supply is crucial for diagnosing no-start conditions or erratic engine behavior. Begin by locating the fuel pump relay, typically found in the fuse box under the dashboard or in the engine compartment. Consult the vehicle’s manual or wiring diagram to identify the correct relay, as misidentification can lead to incorrect diagnostics. Once located, use a multimeter set to the voltage range (typically 12V DC) to test the relay’s output terminals while attempting to start the engine.
During ignition start, the fuel pump relay should energize, supplying power to the pump. Place the multimeter’s positive lead on the relay’s output terminal and the negative lead on a good ground. Crank the engine and observe the voltage reading. A steady 11.5 to 12.5 volts indicates proper power delivery. If voltage drops below this range or fluctuates, suspect a faulty relay, corroded connections, or a weak battery. Ensure the battery is fully charged before testing, as low voltage can skew results and mimic pump power supply issues.
A comparative analysis of voltage readings during cranking versus idle can reveal underlying problems. At idle, the fuel pump may draw less current, but voltage should remain stable. If voltage drops significantly under load, the issue may lie in the wiring harness or ground connections rather than the pump itself. Use a wiring diagram to trace the circuit and inspect for frayed wires, loose connectors, or signs of overheating. A systematic approach ensures you isolate the problem area without unnecessary part replacements.
Practical tips include testing the relay in a known-good circuit to confirm its functionality. If the relay tests fine, proceed to check the fuel pump fuse and inertia switch (if equipped). In the 1989 Porsche 911, the inertia switch is often overlooked but can cut power to the pump in the event of an accident or severe jolt. Resetting this switch may restore power without further intervention. Always prioritize safety by disconnecting the battery before handling electrical components and avoid testing circuits with the engine running unless absolutely necessary.
In conclusion, verifying the power supply to the fuel pump during ignition start requires a methodical approach, combining voltage testing, circuit analysis, and component inspection. By focusing on the relay, wiring, and associated safety devices, you can accurately diagnose power delivery issues and ensure the fuel pump operates as intended. This process not only saves time but also prevents misdiagnosis, keeping your Porsche 911 running smoothly.
Step-by-Step Guide: Checking Your RX8 Fuel Pump for Optimal Performance
You may want to see also
Explore related products
$12.98
Inspect fuel pump wiring harness for breaks or shorts
The wiring harness is the lifeblood of your Porsche 911's fuel pump, delivering the electrical current necessary for operation. Over time, this intricate network of wires can degrade, leading to breaks or shorts that disrupt the flow of power. These issues often manifest as a non-starting engine, sputtering, or erratic fuel delivery.
Inspecting the harness is a crucial step in diagnosing fuel pump voltage problems, as it allows you to pinpoint the source of the electrical interruption.
Begin your inspection by locating the fuel pump wiring harness, typically found near the fuel tank. Carefully trace the harness from the pump connector to the fuse box, paying close attention to areas where it passes through tight spaces or comes into contact with sharp edges. Look for visible signs of damage, such as cracked insulation, exposed wires, or burn marks. Gently tug on the wires to check for looseness or disconnections at the connectors. A multimeter can be used to test for continuity along the harness, ensuring an unbroken electrical path.
Remember, even a small break or short can cause significant issues, so a thorough inspection is essential.
While inspecting, consider the environment your Porsche operates in. Exposure to moisture, heat, and road debris can accelerate harness deterioration. If you frequently drive in harsh conditions, more frequent inspections are recommended. Additionally, age plays a factor; the older the vehicle, the higher the likelihood of wiring issues. As a preventative measure, consider applying dielectric grease to connectors to protect against corrosion and ensure good electrical contact.
In some cases, the issue may not be a complete break but rather a short circuit. This occurs when wires come into contact with each other or ground, causing a diversion of current. Shorts can be more challenging to detect visually, often requiring the use of a multimeter to measure resistance across the circuit. If a short is suspected, carefully isolate the affected wires and repair or replace them as necessary.
By meticulously inspecting the fuel pump wiring harness, you can identify and address potential issues before they escalate into costly repairs. This proactive approach not only ensures the reliability of your Porsche 911's fuel system but also contributes to the overall longevity of your classic vehicle. Remember, a well-maintained wiring harness is key to keeping your fuel pump, and your Porsche, running smoothly.
Testing Your M4 22 Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump on a 1989 Porsche 911 is located in the fuel tank. To access it, you’ll need to remove the rear seat and the fuel pump access panel. Disconnect the negative battery terminal before starting for safety.
With the ignition switched on, you should measure approximately 12 volts at the fuel pump connector. Use a multimeter to test the positive wire (usually red or black/yellow) with the ignition in the "on" position.
Locate the fuel pump relay in the fuse box, typically under the dashboard. Swap it with a relay of the same type (e.g., the hazard light relay) and check if the fuel pump operates. If it does, the original relay may be faulty. Alternatively, use a multimeter to test for continuity in the relay’s terminals.
