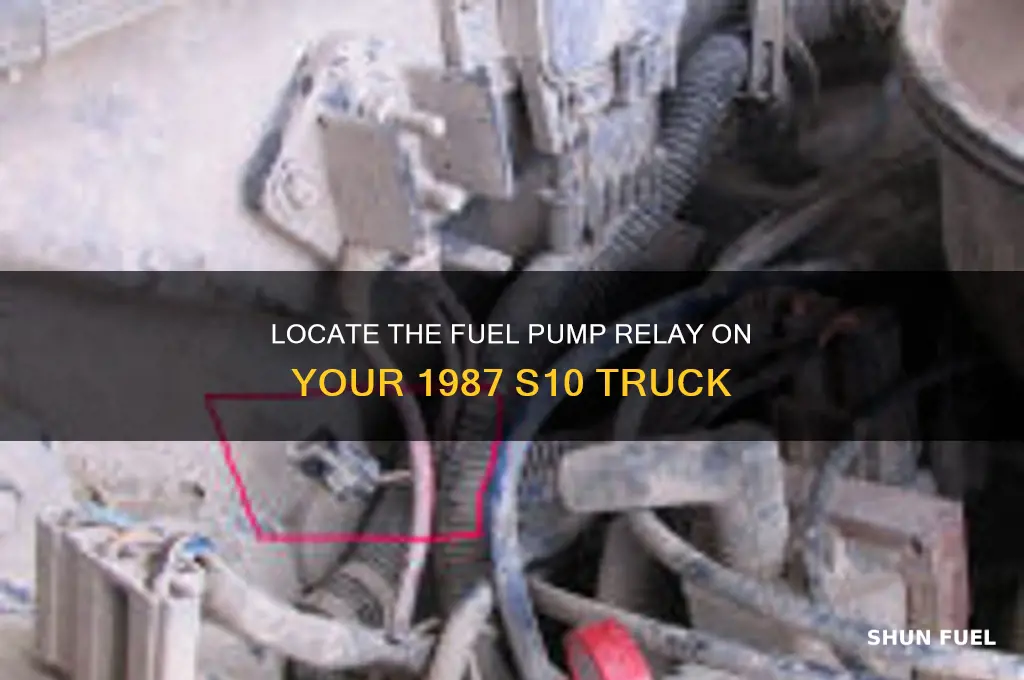

The fuel pump relay on a 1987 Chevrolet S10 is typically located in the underhood fuse/relay box, which is often found near the battery or on the driver's side fender. This relay is a crucial component of the vehicle's fuel system, as it controls the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. Identifying the correct relay can sometimes be challenging, as the fuse/relay box may contain multiple relays, but it is usually labeled or can be identified using the vehicle's service manual. If you're having trouble locating it, consulting the manual or seeking guidance from a professional mechanic can help ensure you find the right component.
| Characteristics | Values |
|---|---|
| Location | Under the hood, on the driver's side firewall |
| Nearby Components | Often located near the fuse box or relay center |
| Appearance | Typically a small, rectangular black or grey relay with several pins |
| Function | Controls power to the fuel pump, ensuring it operates only when the engine is running or being started |
| Identification | May have "FUEL PUMP" or a similar label on or near the relay |
| Access | Accessible by opening the hood and locating the relay panel on the firewall |
| Replacement | Relatively easy to replace; simply unplug the old relay and plug in the new one |
| Common Issues | Can fail, causing the fuel pump to not receive power, leading to no-start conditions |
| Testing | Can be tested using a multimeter to check for continuity or by swapping with a known good relay |
| Year Applicability | Specifically for 1987 Chevrolet S10 models |
| Alternative Names | Fuel pump relay, fuel pump control relay |
Explore related products
![ECCPP® Fuel Pump for: Chevy S10 Blazer & GMC S15 Jimmy 98-03, GMC Envoy 98-00, Oldsmobile Bravada 99-01 [4 DOOR MODELS] E3992M 323-01213](https://m.media-amazon.com/images/I/61phqMlJIIL._AC_UY218_.jpg)
What You'll Learn
- Location under hood: Near battery or fuse box, check for rectangular relay block
- Identifying the relay: Look for FP or Fuel Pump label on relay
- Testing the relay: Use multimeter to check for continuity and proper function
- Common issues: Relay may stick, cause fuel pump to run continuously or not start
- Replacement steps: Disconnect battery, swap relay with new one, ensure proper fit
Location under hood: Near battery or fuse box, check for rectangular relay block
The 1987 S10's fuel pump relay is a critical component for ensuring your truck starts and runs smoothly. When troubleshooting fuel delivery issues, locating this relay is often the first step. A common and logical place to start your search is under the hood, near the battery or fuse box. This area is a hub for electrical components, making it a prime location for the fuel pump relay.
Identifying the Relay Block
Look for a rectangular relay block, typically made of black plastic, in the vicinity of the battery or fuse box. This block houses multiple relays, each responsible for different electrical functions. The fuel pump relay is usually labeled, but if not, you can identify it by its position within the block. Consult your S10's manual or online resources for a diagram of the relay block layout specific to your model.
Why This Location Makes Sense
Placing the fuel pump relay near the battery and fuse box is a practical design choice. It minimizes the length of wiring needed to connect the relay to the battery, reducing voltage drop and ensuring efficient power delivery to the fuel pump. Additionally, this location provides easy access for maintenance and troubleshooting, allowing you to quickly check the relay's condition or swap it out if necessary.
Practical Tips for Locating the Relay
- Cleanliness is Key: Before searching, ensure the area around the battery and fuse box is clean and free of debris. This makes it easier to spot the relay block and prevents dirt from interfering with electrical connections.
- Use a Flashlight: The under-hood area can be dimly lit, especially in older vehicles. A flashlight will help you clearly see the relay block and its labels.
- Consult Online Forums: If you're still having trouble locating the fuel pump relay, online S10 forums and communities can be invaluable resources. Many members have likely encountered the same issue and can provide specific guidance or photos to aid your search.
By focusing on the area near the battery or fuse box and looking for the rectangular relay block, you'll significantly increase your chances of quickly locating the fuel pump relay on your 1987 S10. This knowledge not only aids in troubleshooting but also empowers you to perform basic maintenance tasks with confidence.
Does PCM Control Fuel Pump? Understanding the Role of PCM
You may want to see also
Explore related products
Identifying the relay: Look for FP or Fuel Pump label on relay
Locating the fuel pump relay on a 1987 S10 can be straightforward if you know what to look for. One of the most reliable methods is to identify the relay by its label. Most fuel pump relays are marked with "FP" or "Fuel Pump," making them easier to distinguish from other relays in the fuse box. This labeling convention is standard across many vehicle models, including the 87 S10, and serves as a quick visual cue for mechanics and DIY enthusiasts alike.
When inspecting the fuse box, start by removing the cover to expose the relays. The fuel pump relay is typically located near other engine management components, though its exact position can vary. Once you’ve identified the relay block, scan the labels carefully. The "FP" or "Fuel Pump" designation is usually embossed or printed directly on the relay’s casing. If the label is worn or unclear, consult the vehicle’s manual or a wiring diagram for confirmation. This step ensures you’re working on the correct component, preventing unnecessary troubleshooting or damage.
It’s worth noting that the fuel pump relay’s appearance may differ slightly depending on the manufacturer or aftermarket replacements. While the label remains consistent, the relay’s size, color, or shape might vary. For instance, some relays are rectangular, while others are square. Regardless of these differences, the "FP" or "Fuel Pump" label remains the most dependable identifier. If you’re unsure, compare the relay in question to others in the fuse box; the fuel pump relay is often larger than neighboring relays due to its higher current handling capacity.
A practical tip for verification is to test the relay’s functionality if visual identification isn’t sufficient. Swap the suspected fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay) and start the vehicle. If the fuel pump fails to engage but the horn works, you’ve correctly identified the fuel pump relay. While this method is effective, it should be used as a last resort, as incorrect relay swapping can cause temporary malfunctions in other systems.
In summary, identifying the fuel pump relay on a 1987 S10 hinges on recognizing the "FP" or "Fuel Pump" label. This simple yet critical detail saves time and reduces the risk of errors during diagnostics or repairs. Always cross-reference with the vehicle’s manual or a diagram if uncertainty arises, ensuring precision in your work.
Identifying Counterfeit Walbro GSS342 Fuel Pumps: A Comprehensive Guide
You may want to see also
Explore related products
Testing the relay: Use multimeter to check for continuity and proper function
The fuel pump relay in a 1987 S10 is a critical component, often located under the hood near the firewall or within the fuse box. Identifying its exact position is the first step, but ensuring it functions correctly is equally vital. Testing the relay with a multimeter can save time and prevent misdiagnosis of fuel system issues. This process verifies continuity and proper operation, ensuring the relay is not the culprit behind a no-start condition or erratic fuel delivery.
To begin testing, disconnect the relay from the socket and inspect its terminals. Most fuel pump relays have four or five pins, with specific functions assigned to each. Using a multimeter set to the continuity or resistance mode, check the connection between the power input terminal (usually pin 30) and the switched output terminal (pin 87). With the relay activated, these pins should show continuity, indicating a closed circuit. If there’s no continuity, the relay’s internal switch is faulty, and replacement is necessary.
Next, verify the control circuit by testing the ground terminal (pin 85) and the coil terminal (pin 86). Apply power to pin 86 and ground pin 85 to simulate the relay’s activation. The multimeter should now show continuity between pins 30 and 87, confirming the relay responds to the control signal. If not, the coil or internal contacts may be damaged. This step ensures the relay functions under the conditions it would experience in the vehicle.
A practical tip is to test the relay both at room temperature and after heating it slightly with a hairdryer. Thermal stress can reveal intermittent faults, as relays often fail when hot. Additionally, compare the relay’s behavior to a known-good unit if available. This comparative analysis can highlight subtle issues that might otherwise go unnoticed. By systematically checking continuity and function, you can confidently diagnose the relay’s condition and avoid unnecessary replacements or further troubleshooting.
Testing Your 2010 Chevy Traverse Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Common issues: Relay may stick, cause fuel pump to run continuously or not start
The fuel pump relay in a 1987 S10 is a critical component that controls the flow of power to the fuel pump, ensuring it operates only when the engine is running. However, one common issue that can arise is a sticking relay, which can lead to either the fuel pump running continuously or the engine failing to start. This problem often stems from wear and tear, corrosion, or debris accumulation within the relay, causing the internal contacts to remain closed or fail to close properly.
When the relay sticks in the closed position, the fuel pump continues to run even after the engine is turned off. This not only drains the battery but also poses a safety risk due to the constant flow of fuel. To diagnose this issue, listen for the fuel pump running after the ignition is off or monitor the battery voltage for unusual drain. If the relay is suspected, locate it near the fuse box under the hood or on the firewall, depending on the S10 model. Testing the relay with a multimeter can confirm if it’s stuck closed, in which case replacement is necessary.
Conversely, a relay that sticks in the open position prevents power from reaching the fuel pump, causing the engine to crank but not start. This issue can mimic a faulty fuel pump or empty tank, leading to misdiagnosis. To isolate the problem, use a test light or voltmeter to check for power at the fuel pump connector when the ignition is on. If power is absent, the relay is likely at fault. Tapping the relay lightly with a tool while attempting to start the engine may temporarily free a stuck relay, but this is only a temporary fix—replacement is the long-term solution.
Preventive maintenance can reduce the likelihood of relay issues. Regularly inspect the relay for signs of corrosion or damage, especially in older vehicles like the 87 S10. Cleaning the relay contacts with electrical cleaner and ensuring a secure connection can extend its lifespan. Additionally, using a relay with a higher amperage rating or installing a relay with a protective cover can mitigate future problems, particularly in harsh driving conditions.
In summary, a sticking fuel pump relay in a 1987 S10 can cause either continuous fuel pump operation or a no-start condition. Diagnosing the issue involves checking for power at the fuel pump and testing the relay for proper function. While temporary fixes like tapping the relay may work, replacement is the most effective solution. Regular inspection and maintenance of the relay can prevent these issues, ensuring reliable vehicle operation.
Step-by-Step Guide: Installing Kohler Fuel Pump 2555901S on Stump Grinder
You may want to see also
Explore related products
$8.99
$7.39
Replacement steps: Disconnect battery, swap relay with new one, ensure proper fit
The fuel pump relay in a 1987 S10 is typically located under the hood, near the firewall on the driver’s side. It’s often housed in a black relay box, which may contain other relays as well. Identifying the correct relay is crucial, as swapping the wrong one can lead to unnecessary troubleshooting. Once located, replacing the fuel pump relay is a straightforward process that can restore proper fuel delivery to your engine.
Before beginning the replacement, disconnect the battery to prevent any electrical mishaps. This step is non-negotiable, as working with live electrical components can be hazardous. Use a wrench or socket to loosen the battery terminal, starting with the negative side to minimize the risk of short circuits. With the battery disconnected, you’ve created a safe environment to proceed with the relay swap.
With the battery disconnected, locate the fuel pump relay within the relay box. It’s usually labeled or can be identified by its position in the diagram provided in your vehicle’s manual. Gently pull the relay straight out of its socket—no tools are required for this step. Insert the new relay, ensuring it clicks securely into place. A loose fit can cause intermittent issues, so verify it’s seated properly before moving on.
After swapping the relay, reattach the battery terminals, starting with the positive side and then the negative. Turn the ignition to the "on" position (without starting the engine) to allow the fuel pump to prime. Listen for the pump’s hum, which confirms the new relay is functioning. If the pump doesn’t engage, double-check the relay’s orientation and connections. A successful replacement should restore fuel flow, resolving issues like hard starts or stalling.
Where to Find the Inline Fuel Pump Fuse in a 98 Ram 1500
You may want to see also
Frequently asked questions
The fuel pump relay on a 1987 S10 is typically located under the hood, near the firewall, inside the main fuse/relay box.
The fuel pump relay is usually a small, rectangular or square-shaped module with a series of pins. It may be labeled "FUEL" or "FP" on the relay box cover or diagram.
Yes, the fuel pump relay is relatively easy to access. It’s located in the under-hood fuse/relay box, which can be opened by removing the lid.
If you’re having trouble locating it, refer to the vehicle’s owner’s manual or a repair guide for a diagram of the fuse/relay box. Alternatively, consult a mechanic or a vehicle-specific forum for assistance.
