The 2003 Pontiac Vibe, a compact car known for its reliability and practicality, shares many components with the Toyota Matrix due to their joint development. One common query among owners is the location of the fuel pump relay, a critical component that controls the fuel pump's operation. In the 2003 Pontiac Vibe, the fuel pump relay is typically located in the under-hood fuse and relay box, often found near the battery or along the driver's side strut tower. Identifying and accessing this relay is essential for troubleshooting fuel system issues, such as a non-starting engine or erratic fuel delivery, making it a valuable piece of knowledge for both DIY enthusiasts and professional mechanics.
| Characteristics | Values |
|---|---|
| Location | Under the hood, in the engine fuse box (relay box) |
| Fuse Box Position | Typically located near the battery or on the driver's side of the engine bay |
| Relay Name | Fuel Pump Relay (may be labeled as "F/P" or "FP") |
| Relay Function | Controls power to the fuel pump |
| Vehicle Model | 2003 Pontiac Vibe |
| Engine Type | 1.8L L4 or 1.8L L4 GT (depending on the trim) |
| Relay Appearance | Small, rectangular black or gray module with pins |
| Access Difficulty | Moderate; may require removing a cover or panel to access the fuse box |
| Replacement Part | Available at auto parts stores; ensure compatibility with the 2003 Vibe |
| Diagnostic Tip | If the fuel pump is not working, check the relay for clicking when the ignition is turned on |
Explore related products
What You'll Learn

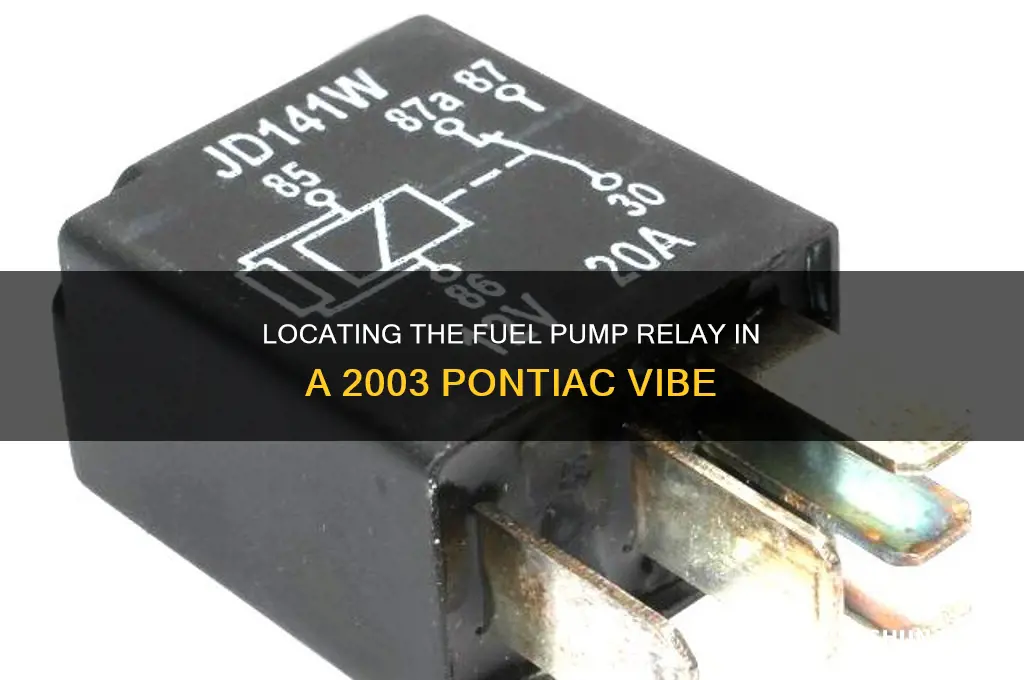

Location of fuel pump relay in 2003 Pontiac Vibe
The fuel pump relay in a 2003 Pontiac Vibe is a critical component for ensuring your vehicle’s engine receives the necessary fuel for operation. Located under the hood, this relay is part of the engine bay’s fuse and relay center, which houses multiple electrical components essential for the car’s functionality. To access it, open the hood and locate the black plastic box on the driver’s side, near the firewall. This box contains the fuel pump relay, typically labeled for easy identification. Understanding its location is the first step in diagnosing or replacing it if issues arise.
Identifying the fuel pump relay in the 2003 Pontiac Vibe requires a methodical approach. The relay center is secured with a lid that can be removed by pressing the tabs on the sides. Once opened, you’ll find a diagram on the underside of the lid, indicating which relay corresponds to the fuel pump. The fuel pump relay is usually a rectangular component with several pins, often labeled as "F/P" or "FUEL." If the label is unclear, consult the vehicle’s manual or a repair guide for confirmation. Proper identification ensures you don’t mistakenly tamper with other relays, which could lead to unrelated electrical issues.
Replacing the fuel pump relay in a 2003 Pontiac Vibe is a straightforward task once you’ve located it. Start by disconnecting the car battery to prevent electrical mishaps. Then, remove the relay by firmly pulling it straight out of its slot. Insert the new relay, ensuring it clicks into place securely. Reattach the battery and test the vehicle to confirm the issue is resolved. Keep in mind that a faulty fuel pump relay can cause symptoms like difficulty starting, stalling, or a complete loss of power. If replacing the relay doesn’t fix the problem, further diagnostics may be necessary.
Comparing the 2003 Pontiac Vibe’s fuel pump relay location to other vehicles highlights its accessibility. Unlike some models where the relay is buried deep within the engine bay or integrated into the ECU, the Vibe’s relay is conveniently placed in the fuse box. This design simplifies maintenance, especially for DIY enthusiasts. However, it’s worth noting that the relay’s exposure to heat and moisture in the engine bay can contribute to wear over time. Regular inspection and timely replacement can prevent unexpected breakdowns, ensuring your Vibe remains reliable on the road.
Testing Fuel Pump Power in a 2002 Astro Van: A Guide
You may want to see also
Explore related products
Identifying the fuel pump relay in a 2003 Vibe
The fuel pump relay in a 2003 Pontiac Vibe is a critical component for ensuring your vehicle’s engine receives fuel. Located in the underhood fuse/relay box, it’s often mislabeled or grouped with other relays, making identification tricky. To find it, start by opening the hood and locating the fuse/relay box near the battery. The box’s lid typically includes a diagram, but the fuel pump relay may be marked as "F/P" or "FP," or it might be listed under a different name like "ECU-B." Cross-referencing the diagram with your Vibe’s service manual is essential for accuracy.
Analyzing the relay’s function provides insight into why proper identification matters. The fuel pump relay acts as a switch, allowing power to flow to the fuel pump only when the engine is running or being started. If the relay fails, the pump won’t activate, leading to a no-start condition. Symptoms of a faulty relay include a silent fuel pump (check by listening near the fuel tank while turning the key to "ON") or a vehicle that cranks but doesn’t start. Testing the relay involves swapping it with another of the same type in the fuse box to see if the issue resolves, a quick diagnostic step before purchasing a replacement.
Persuasively, knowing how to identify and test the fuel pump relay can save you time and money. Misdiagnosing the issue often leads to unnecessary repairs, such as replacing the fuel pump itself, which is far more expensive. The 2003 Vibe’s relay is a common failure point due to its age, and being able to pinpoint it allows for a targeted fix. Additionally, understanding its location empowers you to perform preventative checks, such as cleaning corrosion from the relay terminals, which can extend its lifespan.
Comparatively, the Vibe’s fuel pump relay setup is similar to other Toyota-based vehicles (since the Vibe shares a platform with the Toyota Matrix), but there are differences. For instance, the Matrix’s relay is sometimes located in a slightly different position within the fuse box. This highlights the importance of vehicle-specific research. While online forums may offer general advice, the Vibe’s unique labeling and layout require precise guidance. Always verify information against your vehicle’s manual or a trusted repair guide to avoid errors.
Descriptively, the fuel pump relay itself is a small, cube-shaped component with four or five pins, depending on the variant. It’s typically black or gray and fits snugly into the relay box. When handling it, note its orientation—relays are polarized and must be inserted correctly. If you’re replacing it, ensure the new relay matches the pin configuration and amperage rating, usually 20A or 30A. A practical tip: label the relay’s position in the box with a piece of tape and a marker to simplify future inspections. This small step can make a big difference in maintaining your Vibe’s reliability.
Troubleshooting Silent 1992 GMC Fuel Pump: Key On, No Sound
You may want to see also
Explore related products
Common issues with 2003 Pontiac Vibe fuel pump relay
The 2003 Pontiac Vibe, a reliable compact car, often faces fuel pump relay issues that can leave drivers stranded. One common problem is the relay failing to engage, causing the fuel pump to stop working. This typically manifests as a no-start condition, where the engine cranks but doesn’t fire. The root cause often lies in the relay’s internal contacts wearing out over time, especially in high-mileage vehicles. Another issue is corrosion or loose connections in the relay socket, which disrupts the electrical circuit. Diagnosing this requires a multimeter to test for continuity and voltage at the relay terminals. If the relay is faulty, replacing it with a high-quality part and ensuring clean connections can resolve the problem.
A less obvious but equally frustrating issue is the fuel pump relay sticking in the "on" position, leading to the pump running continuously. This not only drains the battery but also overheats the pump, shortening its lifespan. The culprit is often a worn-out relay coil or debris in the relay mechanism. To address this, inspect the relay for physical damage and test its operation by swapping it with a similar relay in the fuse box (e.g., the horn relay). If the issue persists, replace the relay and consider cleaning the fuse box contacts with electrical cleaner to prevent future problems.
Intermittent starting issues are another headache for Vibe owners, often caused by a failing fuel pump relay. The relay may work sporadically due to temperature changes or vibration, making the problem difficult to replicate. A practical tip is to tap the relay lightly with a tool handle while someone attempts to start the car. If the engine starts, the relay is likely at fault. However, this is a temporary fix—replacement is necessary to avoid being stranded. Always carry a spare relay in your glove compartment as a precautionary measure.
Lastly, some owners report the fuel pump relay melting or emitting a burning smell, a dangerous issue caused by excessive current draw or a manufacturing defect. This requires immediate attention, as it poses a fire risk. Inspect the relay and surrounding wiring for signs of overheating, such as discoloration or melted plastic. If detected, replace the relay and check the wiring harness for damage. Upgrading to a relay with a higher amperage rating can provide added protection, but consult a mechanic to ensure compatibility with your vehicle’s electrical system. Regularly inspecting the relay during routine maintenance can prevent these issues from escalating.
Installing a Fuel Pump on Your 1969 Roadrunner: Step-by-Step Guide
You may want to see also
Explore related products
How to test the fuel pump relay in a 2003 Vibe
The fuel pump relay in a 2003 Pontiac Vibe is located under the hood, within the engine fuse box. This relay plays a critical role in controlling the fuel pump’s operation, ensuring your vehicle receives the necessary fuel for ignition. Testing it can help diagnose issues like a no-start condition or erratic engine behavior. Before diving into the test, ensure your vehicle is parked on a flat surface, the ignition is off, and the parking brake is engaged for safety.
To test the fuel pump relay, start by locating the relay itself. In the 2003 Vibe, it’s typically labeled as "FUEL PUMP" or "FP" in the fuse box cover diagram. Once identified, swap the fuel pump relay with a similar relay in the fuse box, such as the horn relay, to rule out a faulty relay. Turn the ignition to the "ON" position (without starting the engine) and listen for the fuel pump’s hum, which should last 2-3 seconds. If the pump activates with the swapped relay, the original fuel pump relay is likely defective and needs replacement.
Another method involves using a multimeter to test the relay’s continuity. Remove the relay and identify its terminals using the diagram on the relay or in the vehicle’s manual. Set the multimeter to the continuity setting and touch the probes to the appropriate pins. With the relay energized (by applying power to the control circuit), there should be continuity between the power and output pins. If not, the relay is faulty. This method requires precision but provides a definitive diagnosis.
When testing, be cautious of electrical hazards. Always disconnect the battery before handling relays or fuses to prevent short circuits. If you’re unsure about any step, consult a professional or refer to a detailed repair manual. Testing the fuel pump relay is a straightforward process that can save time and money by pinpointing the issue before replacing parts unnecessarily. By following these steps, you can confidently diagnose whether the relay is the culprit in your 2003 Pontiac Vibe’s fuel system troubles.
Step-by-Step Guide: Installing a Fuel Pump on a Small Block 350
You may want to see also
Explore related products
Replacing the fuel pump relay in a 2003 Pontiac Vibe
The fuel pump relay in a 2003 Pontiac Vibe is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the hood, it’s part of the underhood fuse/relay box, typically found near the battery on the driver’s side. Identifying it requires consulting the diagram on the box’s cover or the owner’s manual, as relays are often unmarked. This relay acts as a switch, controlling power to the fuel pump, and its failure can lead to symptoms like a no-start condition or erratic engine behavior.
While the process is simple, there are a few cautions to keep in mind. First, always disconnect the battery before working with electrical components to prevent accidental shorts. Second, ensure the replacement relay matches the original in terms of part number and specifications, as using an incorrect relay can cause further issues. Lastly, if the problem persists after replacement, consider testing the fuel pump itself or checking for other electrical faults, as the relay is just one part of the fuel system.
In conclusion, replacing the fuel pump relay in a 2003 Pontiac Vibe is an accessible DIY repair that can save you a trip to the mechanic. By understanding its location, following proper steps, and heeding cautions, you can restore your vehicle’s fuel system functionality efficiently. This small but vital component plays a significant role in keeping your Vibe running smoothly, making its maintenance a worthwhile skill for any owner.
