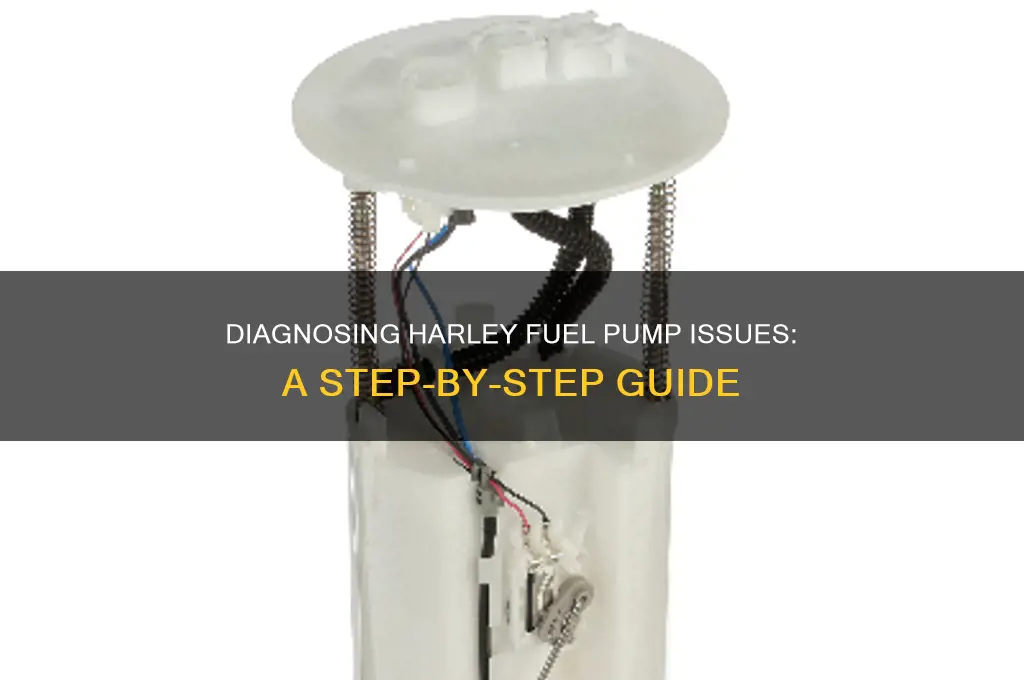

Checking the fuel pump on a Harley-Davidson is a crucial maintenance task to ensure your bike runs smoothly and reliably. The fuel pump is responsible for delivering fuel from the tank to the engine, and any issues can lead to poor performance, stalling, or even engine failure. To inspect the fuel pump, start by locating it, typically found near the fuel tank or within the fuel tank itself, depending on the model. Begin by turning off the motorcycle and disconnecting the battery to ensure safety. Then, use a multimeter to test the pump’s electrical connections for continuity and voltage, ensuring it’s receiving power. If the pump isn’t priming or making noise when the key is turned, it may be faulty. Additionally, check for fuel leaks or clogs in the fuel lines. If the pump fails these tests, it may need to be replaced or professionally serviced to restore proper fuel delivery and keep your Harley running at its best.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, Fuel pressure gauge, Screwdriver, Wrench set, Safety gloves, Safety goggles |
| Safety Precautions | Work in a well-ventilated area, Turn off the motorcycle, Disconnect the battery |
| Fuel Pump Location | Typically located near the fuel tank or beneath the motorcycle frame |
| Fuel Pump Relay Check | Locate the relay, swap with a similar relay, or use a multimeter to test for continuity |
| Fuel Pump Fuse Check | Check the fuse box for a blown fuse related to the fuel pump |
| Fuel Pressure Test | Connect a fuel pressure gauge to the fuel rail and check pressure against manufacturer specs |
| Electrical Connection Check | Inspect wiring for damage, use a multimeter to test for voltage at the pump connector |
| Fuel Pump Noise Test | Listen for a humming sound when the ignition is turned on (key on, engine off) |
| Fuel Flow Test | Disconnect the fuel line and crank the engine to check for fuel flow |
| Diagnostic Codes | Use a Harley-Davidson diagnostic tool to check for error codes related to the fuel pump |
| Replacement Procedure | Drain fuel, disconnect lines, remove mounting bolts, install new pump, reconnect lines |
| Common Symptoms of Failure | Engine cranks but won’t start, sputtering, loss of power, no fuel flow |
| Maintenance Tips | Regularly inspect fuel lines, replace fuel filter as recommended, keep fuel tank clean |
| Compatibility | Fuel pump specifications vary by Harley-Davidson model (e.g., Touring, Softail, Sportster) |
| Professional Assistance | Consult a certified Harley-Davidson mechanic for complex issues or replacements |
Explore related products
What You'll Learn
Symptoms of a Failing Fuel Pump
A failing fuel pump can manifest in subtle yet critical ways, often mimicking other engine issues. One of the earliest signs is a loss of power during acceleration, especially under heavy loads or at high speeds. This occurs because the pump struggles to deliver sufficient fuel to meet the engine’s demands, resulting in a noticeable hesitation or sputtering. Riders might also experience difficulty starting the bike, particularly after it has been sitting for a while. The fuel pump’s inability to maintain pressure in the fuel lines can cause air pockets, making ignition inconsistent.
Another symptom to watch for is unusual noises coming from the fuel tank area. A whining or buzzing sound, particularly during startup or when the key is turned to the "on" position, often indicates a worn or failing fuel pump motor. This noise is more pronounced in older Harley models but can occur in any bike with a deteriorating pump. Ignoring this warning sign can lead to complete pump failure, leaving you stranded.
Comparatively, a failing fuel pump can also cause erratic fuel gauge readings or sudden drops in fuel level. This happens because the pump’s inconsistent pressure affects the fuel sender unit, leading to inaccurate measurements. Riders may notice the gauge fluctuating wildly or dropping to empty despite recent refueling. While this symptom alone doesn’t confirm a failing pump, it’s a red flag when paired with other issues.
To diagnose a failing fuel pump, start by checking the fuel pressure using a gauge. Harley-Davidson fuel systems typically operate between 38 and 44 psi. If the pressure is outside this range, the pump may be failing. Additionally, inspect the fuel filter for excessive debris, as a clogged filter can strain the pump and accelerate wear. Regular maintenance, such as replacing the filter every 10,000 miles, can prevent premature pump failure.
Finally, consider the bike’s age and mileage. Fuel pumps on Harleys generally last 50,000 to 100,000 miles, but factors like ethanol-blended fuel and infrequent use can shorten their lifespan. If your bike is older or has high mileage, symptoms like hard starting, reduced power, or unusual noises warrant immediate attention. Addressing these issues promptly can save you from costly repairs and ensure your Harley runs smoothly for years to come.
