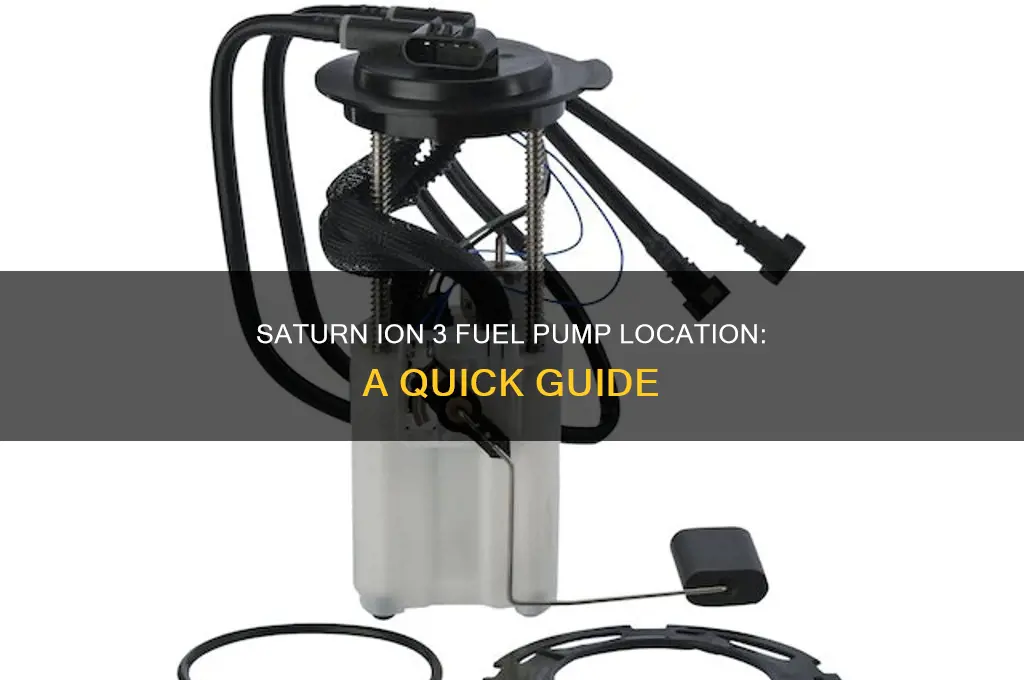

The fuel pump on a Saturn Ion 3 is typically located inside the fuel tank, which is situated in the rear of the vehicle, underneath the trunk area. Accessing the fuel pump requires removing the rear seat cushion or trunk lining to expose the fuel tank access panel. This design helps protect the pump from external damage and maintains fuel system efficiency. If you're experiencing fuel-related issues, such as difficulty starting or stalling, the fuel pump may be the culprit, and locating it is the first step in diagnosing or replacing it. Always ensure the vehicle is on a level surface and the fuel tank is as empty as possible before attempting any repairs.
Explore related products
What You'll Learn
Fuel pump location in Saturn Ion 3 engine bay
The Saturn Ion 3's fuel pump is not located in the engine bay, contrary to what one might expect. Instead, it is situated within the fuel tank, a design choice that offers both advantages and challenges for maintenance. This in-tank placement is common in many modern vehicles, including the Ion 3, as it helps maintain fuel pressure more efficiently and reduces the risk of fuel line leaks. However, this location means that accessing the fuel pump requires more involved steps compared to engine bay-mounted pumps.
To locate and access the fuel pump in a Saturn Ion 3, you’ll need to start by addressing the fuel tank itself. Begin by relieving the fuel system pressure, a critical safety step to prevent accidental fuel spray or ignition. This involves disconnecting the negative battery terminal and locating the fuel pressure relief valve, typically found near the engine bay’s firewall. After relieving pressure, the fuel tank must be lowered or removed to access the pump assembly. This process requires draining the fuel tank, disconnecting the fuel lines, and unbolting the tank from its mounting points, which can be labor-intensive without proper tools and precautions.
One practical tip for this task is to use a jack or support stand to safely lower the fuel tank once it’s disconnected. Additionally, having a drain pan ready is essential to catch any residual fuel. Once the tank is accessible, the fuel pump module can be removed by disconnecting the electrical connector and unscrewing the retaining ring or bolts that secure it to the tank. It’s important to note that replacing the fuel pump often requires a new pump assembly, as the pump itself is typically not sold separately.
Comparing the Saturn Ion 3’s fuel pump location to other vehicles highlights its design trade-offs. While in-tank pumps offer better fuel system efficiency, they demand more effort for replacement or repair. For instance, vehicles with engine bay-mounted pumps, like some older models, allow for quicker access but may suffer from reduced fuel pressure stability. Understanding these differences can help owners weigh the pros and cons of their vehicle’s design and prepare accordingly for maintenance tasks.
In conclusion, while the Saturn Ion 3’s fuel pump is not in the engine bay, its in-tank location is a deliberate engineering choice that prioritizes performance over ease of access. By following systematic steps and taking necessary precautions, owners can successfully locate and service the fuel pump, ensuring their vehicle remains reliable. This knowledge empowers DIY enthusiasts and mechanics alike to tackle fuel system issues with confidence.
Chevy Suburban 1993 Fuel Pump Shut-Off Switch: Functionality Explained
You may want to see also
Explore related products
Identifying the fuel pump assembly components
The fuel pump assembly in a Saturn Ion 3 is a critical component nestled within the fuel tank, requiring careful identification of its parts for effective maintenance or replacement. This assembly typically includes the electric fuel pump, a sending unit, a float, and a filter sock, each serving a distinct function in the fuel delivery system. Understanding these components is essential for diagnosing issues like fuel pressure irregularities or pump failure, which can manifest as engine sputtering or difficulty starting.
Analyzing the fuel pump assembly begins with recognizing the electric fuel pump itself, the heart of the system. This component draws fuel from the tank and delivers it to the engine under the correct pressure. Adjacent to the pump is the sending unit, which communicates fuel level data to the vehicle’s gauge. The float, attached to the sending unit, rises and falls with the fuel level, ensuring accurate readings. Lastly, the filter sock, often overlooked, prevents debris from entering the pump, safeguarding its longevity.
When identifying these components, start by locating the fuel tank access panel, typically beneath the rear seat in the Saturn Ion 3. Remove the panel to expose the fuel pump module, which houses all these parts. Inspect the filter sock for clogging, as this can restrict fuel flow and mimic pump failure symptoms. Next, examine the sending unit and float for corrosion or damage, which could lead to inaccurate fuel gauge readings. Finally, test the electric fuel pump for operation by listening for its hum during ignition or using a fuel pressure gauge to verify output.
Practical tips for this process include disconnecting the battery before accessing the fuel tank to prevent electrical hazards. Use a drain pan to catch residual fuel when removing the pump module, and wear safety goggles to protect against fuel splashes. If replacing the assembly, ensure the new unit matches the original specifications, including pressure ratings and connector types. For those unfamiliar with fuel systems, consulting a repair manual or seeking professional assistance can prevent costly mistakes.
In conclusion, identifying the fuel pump assembly components in a Saturn Ion 3 involves recognizing the electric fuel pump, sending unit, float, and filter sock, each playing a vital role in fuel delivery. By methodically inspecting these parts and following safety precautions, vehicle owners can diagnose and address issues effectively, ensuring optimal engine performance and reliability.
Fixing a Bad Fuel Pump Relay: Step-by-Step Repair Guide
You may want to see also
Explore related products
Accessing the fuel pump through the rear seat
The Saturn Ion 3's fuel pump is located in the fuel tank, which is positioned beneath the rear seat area. This design choice by Saturn engineers allows for relatively straightforward access compared to vehicles where the tank is buried deep under the chassis. However, accessing the fuel pump still requires careful disassembly and safety precautions.
Understanding the Layout:
Before attempting any work, familiarize yourself with the Ion 3's rear seat configuration. The seat bottom is typically secured by bolts or latches accessible from the trunk area. The seatback may fold down or be removable, depending on the model year. Understanding these mechanisms is crucial for efficient access.
Steps for Access:
- Safety First: Ensure the vehicle is on a level surface, engaged in park or neutral with the parking brake applied, and the ignition turned off. Relieve fuel system pressure by locating the Schrader valve on the fuel rail (consult your manual for its exact location) and depressing the valve with the engine off.
- Rear Seat Removal: Access the trunk and locate the fasteners securing the rear seat bottom. Remove these fasteners and carefully lift the seat bottom out of the vehicle. If the seatback folds down, do so now. If it's removable, locate and release the retaining clips or bolts.
- Fuel Pump Access Panel: With the rear seat removed, you'll likely find a carpeted or plastic access panel covering the fuel pump assembly. This panel is usually secured by screws or clips. Remove these fasteners and set the panel aside, exposing the fuel pump module.
Cautions and Considerations:
- Fuel Spill Risk: Always work with caution to avoid fuel spills. Have absorbent materials readily available in case of accidental leaks.
- Electrical Hazards: Disconnect the negative battery terminal before beginning any work on the fuel pump to prevent accidental ignition.
- Fuel Pump Module: The fuel pump is typically integrated into a module that includes the sending unit and float. Replacing the entire module is often recommended for a complete and reliable repair.
Does Your Fuel Pump Run Constantly? Understanding Its Operation and Issues
You may want to see also
Explore related products
Tools needed for fuel pump replacement in Ion 3
The fuel pump on a Saturn Ion 3 is located inside the fuel tank, which means replacing it requires a specific set of tools to access and remove the tank safely. Before diving into the replacement process, it’s crucial to gather the right equipment to ensure efficiency and prevent damage. Here’s a breakdown of the essential tools you’ll need for this task.
Step-by-Step Tool Requirements:
- Jack and Jack Stands: Elevating the vehicle is the first step to access the fuel tank. A hydraulic jack and sturdy jack stands are essential for safety and stability.
- Wrench Set and Socket Set: You’ll need a combination of metric wrenches and sockets to remove bolts securing the fuel tank and disconnect fuel lines. Common sizes include 10mm, 12mm, and 14mm.
- Fuel Line Disconnect Tools: Specialized tools are required to safely disconnect the fuel lines without causing leaks or damage. These tools vary by design but are critical for a clean removal.
- Flathead and Phillips Screwdrivers: These are needed for removing screws or prying components, such as the fuel tank strap or protective covers.
- Safety Equipment: Safety goggles and nitrile gloves are non-negotiable due to the risk of fuel exposure. A fire extinguisher should also be nearby as a precaution.
Cautions and Practical Tips:
Always relieve fuel system pressure before starting the replacement. This involves locating the Schrader valve on the fuel rail and using a pressure gauge to release pressure safely. Additionally, work in a well-ventilated area and avoid open flames or sparks. If you’re unsure about any step, consult a repair manual specific to the Saturn Ion 3 for detailed instructions.
Comparative Tool Analysis:
While some DIYers might attempt this job with basic hand tools, investing in specialized equipment like fuel line disconnect tools can save time and reduce the risk of errors. Renting or borrowing these tools from an auto parts store is a cost-effective alternative if you don’t plan to perform this task frequently.
Replacing the fuel pump on a Saturn Ion 3 is a task that demands precision and the right tools. By equipping yourself with the essentials—from jacks to safety gear—you’ll ensure a smoother process and minimize the risk of complications. Always prioritize safety and follow manufacturer guidelines for the best results.
Fixing a Stuck Fuel Pump in Your Porsche 911: A Guide
You may want to see also
Explore related products
Common signs of a failing Saturn Ion 3 fuel pump
The Saturn Ion 3's fuel pump is located in the fuel tank, a design choice that offers protection but complicates access for repairs. This placement means that diagnosing and replacing a failing fuel pump can be more involved than in vehicles with external pumps. Recognizing the signs of a failing fuel pump early can save you from being stranded and potentially costly repairs.
One of the most common indicators of a failing fuel pump is a sputtering engine at high speeds. This occurs because the pump struggles to deliver sufficient fuel to the engine under increased demand. If you notice your Saturn Ion 3 hesitating or sputtering when accelerating, especially on highways, it’s a strong signal that the fuel pump may be on its last legs. Ignoring this symptom can lead to complete engine stall, leaving you in a dangerous situation.
Another telltale sign is difficulty starting the vehicle, particularly after it has been sitting for a while. A failing fuel pump may not build up the necessary pressure to deliver fuel to the engine, resulting in extended cranking or a no-start condition. If you find yourself turning the key multiple times before the engine catches, or if the vehicle starts but immediately stalls, the fuel pump could be the culprit. This issue often worsens in colder temperatures, as fuel becomes thicker and harder to pump.
Unusual noises coming from the fuel tank area are also a red flag. A whining or humming sound that increases with acceleration can indicate that the fuel pump is working harder than normal or that internal components are wearing out. While some noise is normal during startup, persistent or unusually loud sounds warrant immediate attention. Ignoring these noises can lead to a sudden failure, leaving you with a non-functional vehicle.
Finally, a failing fuel pump can cause a drop in fuel efficiency. If you notice your Saturn Ion 3 consuming more fuel than usual without any changes in driving habits, the pump may not be delivering fuel efficiently. This inefficiency can also trigger the check engine light, often accompanied by error codes related to fuel system pressure. Monitoring your fuel economy and addressing sudden changes promptly can help prevent further damage and ensure your vehicle runs smoothly.
In summary, recognizing the signs of a failing fuel pump in your Saturn Ion 3—sputtering at high speeds, difficulty starting, unusual noises, and decreased fuel efficiency—can help you address the issue before it escalates. Given the pump’s location in the fuel tank, early diagnosis and professional repair are crucial to avoid more extensive and expensive problems down the road.
Testing Your Outboard Motor's Fuel Pump: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump on a Saturn Ion 3 is located inside the fuel tank, which is situated in the rear of the vehicle, underneath the rear seat area.
To access the fuel pump, you need to remove the rear seat cushion, locate the fuel pump access panel, and then disconnect the fuel lines and electrical connectors before lowering the pump assembly from the tank.
Yes, the fuel pump module on a Saturn Ion 3 is designed to be replaced without removing the entire fuel tank. However, the tank must be lowered slightly to access and replace the pump assembly.
