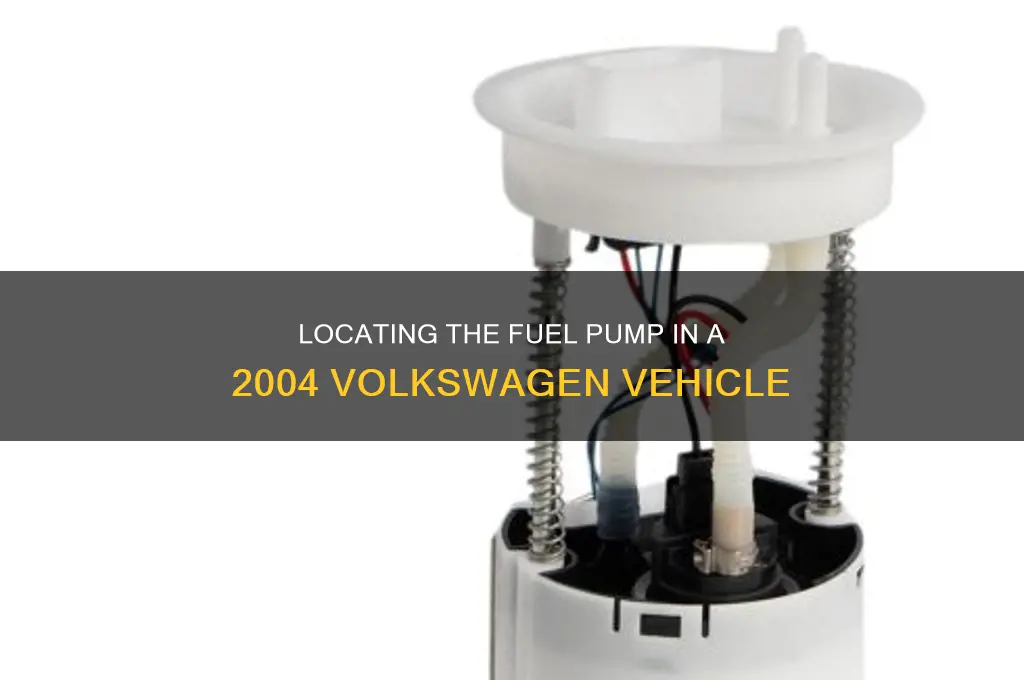

The fuel pump on a 2004 Volkswagen (VW) vehicle is typically located inside the fuel tank, a common design in modern cars to reduce the risk of fire and maintain fuel pressure. For most VW models from that year, such as the Jetta, Golf, or Passat, accessing the fuel pump requires removing the rear seat or a dedicated access panel in the trunk to expose the fuel tank. Once the tank is lowered or partially removed, the fuel pump module, which includes the pump and sender unit, can be replaced or serviced. It’s important to relieve fuel system pressure and disconnect the battery before attempting any work on the fuel pump to ensure safety. Consulting the vehicle’s service manual or a trusted mechanic is recommended for model-specific instructions.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank (in-tank fuel pump) |
| Vehicle Models | Volkswagen (VW) models from 2004, including Golf, Jetta, Passat, and Beetle |
| Access Method | Requires removing the rear seat or accessing the fuel tank from underneath |
| Pump Type | Electric fuel pump |
| Function | Delivers fuel from the tank to the engine |
| Common Issues | Fuel pump failure, whining noise, or reduced fuel pressure |
| Replacement Difficulty | Moderate to difficult (requires fuel tank removal or access) |
| Tools Needed | Socket set, wrenches, fuel line disconnect tools, and safety equipment |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, and work in a ventilated area |
| Cost of Replacement | $200 to $600 (parts and labor, depending on model and location) |
| DIY Feasibility | Possible but recommended for experienced mechanics due to complexity |
Explore related products
What You'll Learn
Location of Fuel Pump in 04 VW Jetta
The fuel pump in a 2004 Volkswagen Jetta is located within the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure stability. This in-tank design requires accessing the fuel tank, typically situated beneath the rear seat or cargo area, depending on the Jetta’s trim and model variant. Before attempting any work, ensure the vehicle is on a level surface, the engine is off, and the fuel system pressure is relieved to prevent accidents.
Accessing the fuel pump involves removing the rear seat or trunk lining to expose the fuel tank access panel. For the 04 Jetta, this process often requires a few basic tools, such as a screwdriver and socket set. Once the panel is removed, disconnect the electrical connector and fuel lines, then use a specialized tool to lower the pump assembly from the tank. It’s crucial to work in a well-ventilated area and avoid sparks or open flames due to the presence of fuel vapors.
Comparing the 04 Jetta’s fuel pump location to earlier VW models highlights a shift toward safer, more efficient designs. Older models often placed the pump externally, making it more susceptible to damage and less secure. The in-tank design not only enhances safety but also improves fuel delivery consistency, benefiting engine performance. This evolution underscores VW’s focus on integrating safety and functionality in their engineering.
For DIY enthusiasts, replacing the fuel pump on an 04 Jetta is manageable with patience and the right tools. However, caution is advised when handling fuel system components. Always wear safety goggles and gloves, and consider using a drip pan to catch any residual fuel. If unsure, consulting a professional mechanic ensures the job is done correctly, avoiding potential risks associated with fuel system repairs.
In summary, the fuel pump’s location in the 04 VW Jetta’s fuel tank reflects a balance of safety and efficiency. Accessing it requires careful steps, from removing interior panels to disconnecting electrical and fuel lines. While the task is feasible for experienced DIYers, prioritizing safety and precision is essential to avoid complications. Understanding this design not only aids in maintenance but also highlights VW’s commitment to modern automotive standards.
Why Briggs Fuel Pumps Fail: Common Causes and Prevention Tips
You may want to see also
Explore related products
Finding Fuel Pump in 04 VW Golf
The fuel pump in a 2004 VW Golf is located within the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure. This design requires accessing the fuel tank, typically situated beneath the rear seats or cargo area, depending on the model. Before attempting any work, ensure the vehicle is on a level surface, the engine is cool, and the fuel system is depressurized to avoid accidents.
To locate the fuel pump, start by removing the rear seat bottom or cargo floor panel, depending on your Golf’s configuration. This exposes the fuel tank access plate. Disconnect the negative battery terminal to prevent electrical mishaps. Next, relieve the fuel system pressure using the Schrader valve on the fuel rail. Once depressurized, remove the access plate to reveal the fuel pump assembly. Be prepared for residual fuel—have a drain pan and absorbent materials ready.
Replacing the fuel pump involves disconnecting the electrical connector and fuel lines, then unscrewing the retaining ring or bolts securing the pump to the tank. When installing a new pump, ensure the fuel filter and strainer are intact and properly aligned. Reassembly follows the reverse order, but always test for leaks and verify proper operation before driving.
While DIY replacement is feasible, consider the complexity of working with fuel systems. If unsure, consult a professional to avoid risks like fuel spills or electrical faults. Aftermarket fuel pumps for the 04 Golf vary in quality; opt for OEM or reputable brands to ensure reliability. Regularly inspecting fuel lines and connections during maintenance can preempt pump-related issues, saving time and expense in the long run.
DIY Guide: Repairing Your RV Generator's Electronic Fuel Pump
You may want to see also
Explore related products
Accessing Fuel Pump in 04 VW Passat
The fuel pump in a 2004 Volkswagen Passat is located within the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure. This design, while safer, complicates access for maintenance or replacement. Unlike older models with external pumps, the 04 Passat requires removing the fuel tank to service the pump, a task demanding precision and safety precautions.
To access the fuel pump, start by relieving the fuel system pressure using the service valve located near the fuel rail. Disconnect the negative battery terminal to prevent electrical accidents. Raise the vehicle securely on jack stands to access the underside. Locate the fuel tank, typically beneath the rear seat, and disconnect the fuel lines and electrical connectors. Use a wrench to loosen the tank straps, ensuring they’re fully detached before lowering the tank. Be cautious of residual fuel—have a drain pan ready or siphon the tank beforehand.
Once the tank is removed, the fuel pump module becomes visible. It’s secured by a locking ring or screws, depending on the model. Use the appropriate tool to remove the retaining mechanism, then lift the module out carefully. Inspect the pump and filter for damage or wear. Replacement kits often include a new pump, sender unit, and filter, ensuring a comprehensive repair. Reinstallation follows the reverse process, with careful reconnection of fuel lines and electrical components.
A critical caution: working on the fuel system carries risks of fire or explosion. Always work in a well-ventilated area, avoid open flames, and use non-sparking tools. If unsure, consult a professional. While DIY replacement can save costs, the complexity of accessing the pump in an 04 Passat may outweigh the benefits for inexperienced mechanics. Proper preparation and adherence to safety protocols are non-negotiable for this task.
Do Fuel Pumps Always Operate at Maximum PSI? Explained
You may want to see also
Explore related products
Fuel Pump Placement in 04 VW Beetle
The fuel pump in a 2004 Volkswagen Beetle is located inside the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure stability. This design choice ensures the pump remains submerged in fuel, preventing overheating and extending its lifespan. Accessing the fuel pump requires removing the fuel tank, a task that demands caution due to the flammable nature of gasoline. Always work in a well-ventilated area and disconnect the battery before starting any repairs.
Analyzing the placement, the in-tank fuel pump in the 04 VW Beetle is part of a modular sender unit, which includes the fuel level sensor and often a fuel filter. This integrated design simplifies maintenance but complicates repairs, as the entire assembly must be replaced if one component fails. Replacement kits typically cost between $200 and $400, depending on the brand and whether you opt for OEM or aftermarket parts. Labor costs can add another $150 to $300 if you’re not performing the work yourself.
For DIY enthusiasts, replacing the fuel pump involves draining the fuel tank, lowering it from the vehicle, and disconnecting the electrical and fuel lines. Use a jack or support to safely lower the tank, and have a drain pan ready to catch residual fuel. Once the tank is removed, the sender unit can be accessed by removing a locking ring or screws, depending on the model. Always refer to a repair manual specific to your Beetle’s engine type (e.g., 2.0L or 1.8T) for precise instructions.
Comparatively, earlier VW Beetle models (pre-1998) often featured external fuel pumps, which were more accessible but less efficient. The in-tank design in the 2004 model aligns with industry trends toward improved safety and performance. However, this placement makes diagnosing pump issues trickier, as symptoms like engine sputtering or stalling could also indicate a clogged fuel filter or faulty pressure regulator. Using a fuel pressure gauge to test the pump’s output (typically 45–60 PSI for this model) can help pinpoint the problem.
In conclusion, understanding the fuel pump’s placement in the 04 VW Beetle is key to diagnosing and addressing fuel system issues. While the in-tank design offers safety and efficiency benefits, it requires careful planning and execution for repairs. Whether you’re a seasoned mechanic or a first-time DIYer, prioritizing safety and using the right tools will ensure a successful outcome. Always double-check your work before reinstalling the fuel tank to avoid leaks or electrical faults.
Carburetor and Electric Fuel Pump: A Comprehensive Installation Guide
You may want to see also
Explore related products
Identifying Fuel Pump in 04 VW Touareg
The fuel pump in a 2004 VW Touareg is located within the fuel tank, a common placement in modern vehicles to reduce fire risks and maintain fuel pressure. This design requires accessing the fuel tank, typically situated beneath the rear seats or cargo area, depending on the model. To identify the fuel pump, start by locating the fuel tank access panel, often hidden under a removable floor panel or carpet. This panel provides direct access to the fuel pump assembly, which includes the pump, sender unit, and associated wiring.
Analyzing the fuel pump’s role in the Touareg’s fuel system highlights its importance. The pump delivers fuel from the tank to the engine under consistent pressure, ensuring optimal combustion. In the 2004 model, the fuel pump is electric and operates whenever the ignition is on. If the pump fails, symptoms like engine stalling, difficulty starting, or a whining noise from the tank may occur. Identifying these signs early can prevent costly repairs or roadside breakdowns, making familiarity with the pump’s location and function crucial for owners.
To locate the fuel pump, follow these steps: first, ensure the vehicle is on a level surface and the ignition is off. Remove the rear seats or cargo floor panel to access the fuel tank. Identify the access panel secured by screws or clips, and remove it to expose the fuel pump assembly. Note that the pump is part of a modular unit, often requiring the entire assembly to be replaced if faulty. Always relieve fuel system pressure before proceeding, using the vehicle’s pressure relief valve or following a repair manual for safety.
Comparing the 2004 Touareg’s fuel pump to earlier models reveals advancements in design and accessibility. Unlike some older vehicles where the pump was external, the Touareg’s in-tank placement reduces noise and improves efficiency. However, this design complicates replacement, often requiring specialized tools and knowledge of fuel system safety. For DIY enthusiasts, investing in a repair manual specific to the 2004 Touareg is advisable, as it provides detailed diagrams and step-by-step instructions tailored to the model.
A practical tip for identifying and maintaining the fuel pump is to monitor fuel system health regularly. Keep an eye on fuel pressure using a gauge, especially if the vehicle has high mileage. Replace the fuel filter at recommended intervals (typically every 30,000 to 50,000 miles) to prevent pump strain. If replacement is necessary, consider opting for an OEM (Original Equipment Manufacturer) part to ensure compatibility and longevity. Proper maintenance not only extends the pump’s life but also ensures the Touareg’s performance remains reliable.
Fuel Pump Luxor Baronne Location Guide: Where to Find It
You may want to see also
Frequently asked questions
The fuel pump on a 2004 VW is typically located inside the fuel tank. This design helps maintain fuel pressure and reduces the risk of vapor lock.
To access the fuel pump, you’ll need to remove the fuel tank. Start by relieving the fuel system pressure, disconnecting the battery, and then lowering the tank. The pump is usually attached to the top of the tank and can be accessed once the tank is removed.
Common issues include fuel pump failure, which can cause the engine to stall or not start. Symptoms may include a whining noise from the fuel tank, difficulty starting, or a complete loss of power. Regular maintenance and using high-quality fuel can help prevent premature failure.
