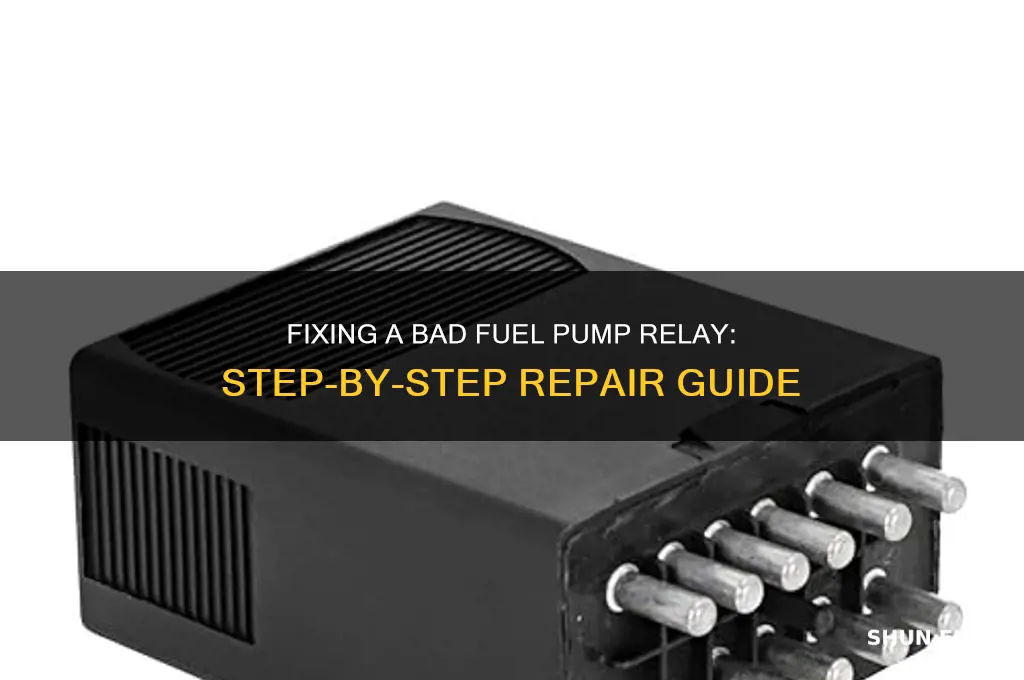

A bad fuel pump relay can cause your vehicle to stall, struggle to start, or not start at all, as it’s responsible for delivering power to the fuel pump. Diagnosing and fixing this issue involves checking for symptoms like sputtering, loss of power, or a dead engine, followed by testing the relay with a multimeter to verify if it’s faulty. If the relay is indeed bad, it’s a relatively straightforward repair: locate the relay (often in the fuse box), disconnect the battery, remove the old relay, and replace it with a new one. Ensuring the correct part is installed and testing the vehicle afterward will confirm the fix, restoring proper fuel delivery and engine performance.
| Characteristics | Values |
|---|---|
| Symptoms of a Bad Fuel Pump Relay | Engine not starting, stalling, poor acceleration, no fuel pressure, or erratic engine behavior. |
| Tools Required | Multimeter, screwdriver, replacement relay, safety gloves, and safety goggles. |
| Steps to Diagnose | 1. Check for symptoms. 2. Locate the relay (consult vehicle manual). 3. Test the relay with a multimeter. |
| Testing the Relay | Measure resistance across relay pins. Compare with manufacturer specs. Check for continuity. |
| Replacement Process | 1. Disconnect battery. 2. Remove old relay. 3. Install new relay. 4. Reconnect battery. |
| Common Relay Locations | Under the hood in the fuse/relay box, near the battery, or inside the cabin fuse box. |
| Precautions | Ensure vehicle is off and battery disconnected before working on electrical components. |
| Cost of Replacement | Typically $10-$50 for the relay, depending on the vehicle make and model. |
| Professional Help | Recommended if unsure about diagnosis or replacement process. |
| Preventive Measures | Regularly inspect relays and electrical connections. Avoid exposure to moisture or dirt. |
Explore related products
What You'll Learn
- Identify Relay Location: Check vehicle manual or online resources to locate the fuel pump relay
- Test for Power: Use a multimeter to verify if the relay is receiving and sending power
- Inspect for Damage: Look for corrosion, burnt marks, or physical damage on the relay
- Replace the Relay: Swap the faulty relay with a compatible replacement part
- Verify Proper Function: Start the vehicle to ensure the fuel pump operates correctly after repair
Identify Relay Location: Check vehicle manual or online resources to locate the fuel pump relay
Locating the fuel pump relay is the first critical step in diagnosing and fixing a bad relay. Without knowing its exact position, you risk misdiagnosing the issue or causing unnecessary damage. Start by consulting your vehicle’s manual, which typically includes a detailed diagram of the fuse and relay box locations. If the manual is unavailable, online resources such as manufacturer forums, YouTube tutorials, or automotive databases like Haynes or Chilton can provide vehicle-specific guidance. For instance, in many Ford models, the fuel pump relay is found in the under-hood fuse box, while some Toyota vehicles house it in the cabin fuse panel. Always cross-reference multiple sources to ensure accuracy, as relay locations can vary even within the same make and model based on the year or trim level.
Once you’ve identified the general area, inspect the fuse box cover for a diagram labeling the relays. This diagram is often molded into the cover or printed on a sticker underneath. If the diagram is missing or unclear, use a multimeter to test each relay slot for continuity while the ignition is on. The fuel pump relay typically clicks when activated, so listen carefully or use a mechanic’s stethoscope to pinpoint its position. For example, in a Honda Civic, the fuel pump relay is usually labeled as “PGM-FI Main Relay” and is located in the under-dash fuse box. Understanding these nuances can save time and prevent frustration during the troubleshooting process.
While online resources are invaluable, they’re not always foolproof. Some vehicles, especially older or less common models, may have limited or conflicting information available. In such cases, consider reaching out to a dealership or mechanic for clarification. Additionally, be cautious of generic advice that doesn’t account for your specific vehicle’s configuration. For instance, a relay labeled “Fuel Pump” in one model might control a different function in another. Always verify the information by comparing it with your vehicle’s manual or a trusted automotive database.
Practical tips can streamline the process further. If the relay is located in a hard-to-reach area, such as under the dashboard, use a flashlight and a mirror to improve visibility. Keep a notepad handy to jot down relay positions and test results for future reference. For vehicles with multiple fuse boxes, systematically check each one to avoid overlooking the correct location. Remember, the goal is not just to find the relay but to do so efficiently and accurately, ensuring you can proceed with confidence to the next step in the repair process.
In conclusion, identifying the fuel pump relay’s location requires a combination of research, observation, and verification. By leveraging your vehicle’s manual, online resources, and practical inspection techniques, you can pinpoint the relay with precision. This foundational step not only simplifies the repair process but also minimizes the risk of errors, setting the stage for a successful fix. Whether you’re a seasoned DIYer or a first-time troubleshooter, mastering this skill is essential for addressing fuel pump relay issues effectively.
Diagnosing Fuel Pump Issues: How to Verify Power Supply
You may want to see also
Explore related products
Test for Power: Use a multimeter to verify if the relay is receiving and sending power
A faulty fuel pump relay can leave you stranded, but before replacing it, confirm it's the culprit. Testing for power flow through the relay is a critical diagnostic step. This process involves using a multimeter, a versatile tool that measures voltage, current, and resistance. By checking for power at the relay's input and output terminals, you can determine if the relay is functioning correctly or if the issue lies elsewhere in the circuit.
Steps to Test for Power:
- Locate the Relay: Consult your vehicle’s manual to identify the fuel pump relay’s location, typically found in the fuse box under the hood or near the driver’s side dashboard.
- Set Up the Multimeter: Switch the multimeter to the DC voltage setting (usually 20V range for automotive systems). Ensure the vehicle is off but the key is in the "on" position to activate the circuit.
- Test Input Power: Connect the multimeter’s positive lead to the relay’s power input terminal (usually pin 85 or 86) and the negative lead to ground. A reading of 12V indicates power is reaching the relay.
- Test Output Power: Move the positive lead to the relay’s output terminal (usually pin 87) while keeping the negative lead grounded. If the relay is functioning, you should see 12V here when the fuel pump is activated (e.g., turning the key to the "start" position).
Cautions: Always ensure the multimeter leads are correctly connected to avoid short circuits. Double-check terminal numbers, as they vary by vehicle. If the relay is hot to the touch, allow it to cool before testing.
Testing Your 2-Stroke Outboard Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Inspect for Damage: Look for corrosion, burnt marks, or physical damage on the relay
Corrosion, burnt marks, and physical damage are silent saboteurs of a fuel pump relay’s functionality. These issues often stem from environmental factors like moisture, electrical overloads, or mechanical stress. A visual inspection is your first line of defense, as it can reveal problems before they escalate into complete failure. Start by locating the relay, typically found in the fuse box under the hood or near the fuel pump itself. Use a flashlight to illuminate the area, ensuring no detail is overlooked.
Begin by examining the relay’s exterior for corrosion, which appears as a greenish or whitish residue on metal contacts or terminals. Corrosion disrupts electrical conductivity, leading to intermittent or complete power loss to the fuel pump. If detected, gently clean the affected areas with a wire brush or fine-grit sandpaper, followed by a spray of electrical contact cleaner to prevent recurrence. For stubborn cases, consider replacing the relay, as extensive corrosion may indicate deeper issues.
Next, inspect for burnt marks, which manifest as blackened areas or melted plastic around the relay. These are telltale signs of overheating, often caused by a short circuit or excessive current draw. Burnt relays are typically irreparable and must be replaced immediately to avoid further damage to the fuel system. While inspecting, also check for a distinct burnt odor, which can confirm electrical arcing or component failure.
Physical damage, such as cracked housings or bent pins, is equally critical to address. Even minor deformities can compromise the relay’s ability to function reliably. Bent pins, for instance, may prevent proper contact with the socket, leading to intermittent fuel pump operation. Use needle-nose pliers to carefully straighten bent pins, but exercise caution to avoid breaking them. If the housing is cracked, replace the relay, as it may expose internal components to moisture or debris.
Incorporating this inspection into routine maintenance can save time and money by catching issues early. Pair it with a multimeter test to confirm electrical continuity and ensure the relay is not just damaged but also non-functional. By systematically checking for corrosion, burnt marks, and physical damage, you’ll maintain a reliable fuel system and avoid unexpected breakdowns.
What Does a Fuel Pump Sound Like When It's Running?
You may want to see also
Explore related products
Replace the Relay: Swap the faulty relay with a compatible replacement part
A faulty fuel pump relay can leave you stranded, but replacing it is often a straightforward fix. The key lies in identifying the correct replacement part and executing the swap meticulously. Begin by consulting your vehicle’s service manual or an online parts database to ensure compatibility. Relays are not universal, and using the wrong one can exacerbate issues or damage other components. Look for a relay with the same pin configuration, voltage rating, and amperage capacity as the original. Automotive stores often stock these parts, and some even offer cross-reference tools to match your vehicle’s make, model, and year.
Once you’ve sourced the correct relay, locate the existing one in your vehicle’s fuse box or under the hood. Relays are typically housed in a module with other fuses and are labeled for easy identification. Before removal, disconnect the battery to prevent electrical mishaps. Use a fuse puller or a pair of needle-nose pliers to extract the faulty relay carefully, ensuring you don’t damage the surrounding components. Inspect the socket for corrosion or debris; clean it with a contact cleaner and a small brush if necessary. This step ensures a secure connection and optimal performance from the new relay.
Installing the replacement relay is a reverse process of removal. Align the new relay with the socket, ensuring the pins match the slots precisely. Apply gentle pressure until it clicks into place. Reattach any securing mechanisms, such as clips or screws, to hold the relay firmly. Reconnect the battery and test the vehicle’s operation. Start the engine and listen for the fuel pump’s hum, which should now be consistent and reliable. If the issue persists, double-check the relay’s orientation and connections, as misalignment can cause intermittent functionality.
While replacing a fuel pump relay is generally simple, it’s crucial to approach the task with caution. Avoid forcing the relay into the socket, as this can bend pins or damage the housing. If you’re unsure about compatibility or the process, consult a professional mechanic. Additionally, keep a record of the replacement part’s specifications for future reference. This small but critical component plays a significant role in your vehicle’s fuel system, and ensuring its proper function can save you from costly repairs down the line. With the right part and careful installation, you’ll restore your vehicle’s performance and peace of mind.
Step-by-Step Guide to Safely Pumping Out a Fuel Dispenser
You may want to see also
Explore related products
![True MODS 1 Pack 5-Pin 12V Bosch Style Waterproof Relay Kit [Harness Socket] [12 AWG Hot Wires] [SPDT] [30/40 Amp] 12 Volt Automotive Marine Relays for Boats Auto Fan Cars](https://m.media-amazon.com/images/I/81m2P8Wl3RL._AC_UY218_.jpg)
Verify Proper Function: Start the vehicle to ensure the fuel pump operates correctly after repair
After repairing or replacing a fuel pump relay, the ultimate test of success lies in verifying its functionality. Start the vehicle and listen for the fuel pump’s characteristic hum, which should last 2–3 seconds as the system primes. This initial sound confirms the relay is engaging the pump. If the engine starts smoothly and idles without hesitation, the repair likely addressed the issue. However, if the pump fails to activate or the engine stalls, recheck connections, voltage supply, and relay compatibility, as even a minor oversight can render the repair ineffective.
Analyzing the post-repair performance requires attention to subtle cues. A weak or intermittent fuel pump operation, such as sputtering during acceleration or difficulty starting when the engine is warm, may indicate a faulty relay or underlying electrical issue. Use a multimeter to test the relay’s terminals for consistent voltage (typically 12V) when the ignition is on. If voltage fluctuates or is absent, trace the wiring back to the fuse box or battery for faults. This diagnostic step ensures the relay isn’t just partially functional but fully operational under all driving conditions.
Persuasive as it may seem to skip this step, verifying proper function is non-negotiable for safety and reliability. A malfunctioning fuel pump relay can lead to sudden stalls, especially at high speeds, posing a hazard. For instance, a relay that fails to maintain power during highway driving could cut fuel supply, causing the engine to shut down unexpectedly. By confirming operation post-repair, you not only ensure the vehicle’s immediate functionality but also prevent potential accidents or costly roadside repairs down the line.
Comparatively, testing the fuel pump relay’s function is akin to a doctor’s post-surgery checkup—it ensures the “patient” (your vehicle) is stable and ready for regular use. Unlike other repairs where symptoms may resolve temporarily, fuel pump relay issues often recur if not fully addressed. For example, a relay that works intermittently might pass an initial test but fail under load or in specific conditions. Driving the vehicle for 10–15 minutes post-repair, including idling, acceleration, and deceleration, mimics real-world stress and exposes any lingering problems.
Descriptively, the process of verification should feel methodical and deliberate. Start with the ignition in the “on” position (without cranking) to listen for the pump’s priming cycle. Then, attempt to start the engine, noting any unusual sounds or delays. Once running, observe the tachometer for stability and the exhaust for consistent flow. If equipped, use an OBD-II scanner to check for error codes related to fuel system pressure or pump performance. This multi-sensory approach ensures no detail is overlooked, transforming a simple test drive into a comprehensive assessment of the repair’s effectiveness.
Testing Honda 16700-Z0J-003 Fuel Pump Assembly: Step-by-Step Guide
You may want to see also
Frequently asked questions
Common signs of a bad fuel pump relay include the engine not starting, stalling, or struggling to start, a lack of fuel pressure, or a fuel pump that doesn’t prime when the ignition is turned on. You can also test the relay using a multimeter or by swapping it with a similar relay in the fuse box to confirm if it’s faulty.
Fixing a bad fuel pump relay is often a DIY-friendly task. You can replace the relay by locating it in the fuse box, disconnecting the battery, removing the old relay, and installing a new one. However, if you’re unsure or uncomfortable working with electrical components, it’s best to consult a professional mechanic.
To replace a bad fuel pump relay, you’ll need a replacement relay (ensure it’s the correct part for your vehicle), a multimeter (optional, for testing), and basic hand tools like pliers or a screwdriver. Always refer to your vehicle’s manual for specific instructions and relay location.
