The fuel pump on a 1994 Ford Ranger is typically located inside the fuel tank, which is a common design for many vehicles of that era. This placement helps maintain fuel pressure and reduces the risk of vapor lock. To access the fuel pump, you’ll need to remove the fuel tank, which involves draining the fuel, disconnecting the fuel lines, and lowering the tank from the vehicle. Once the tank is removed, the fuel pump module can be accessed and replaced if necessary. It’s important to follow safety precautions, such as relieving fuel system pressure and working in a well-ventilated area, to avoid accidents during the process.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires dropping the fuel tank for access |
| Tank Removal | Tank must be lowered or removed for pump replacement |
| Tools Needed | Basic hand tools (wrenches, screwdrivers), possibly a jack and jack stands |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Fuel Pump Type | In-tank electric fuel pump |
| Compatibility | Specific to 1994 Ford Ranger models (check part numbers for exact fit) |
| Replacement Difficulty | Moderate to difficult due to tank removal |
| Estimated Time | 2-4 hours depending on experience and tools |
| Common Issues | Fuel pump failure can cause hard starting, stalling, or no-start conditions |
Explore related products
What You'll Learn

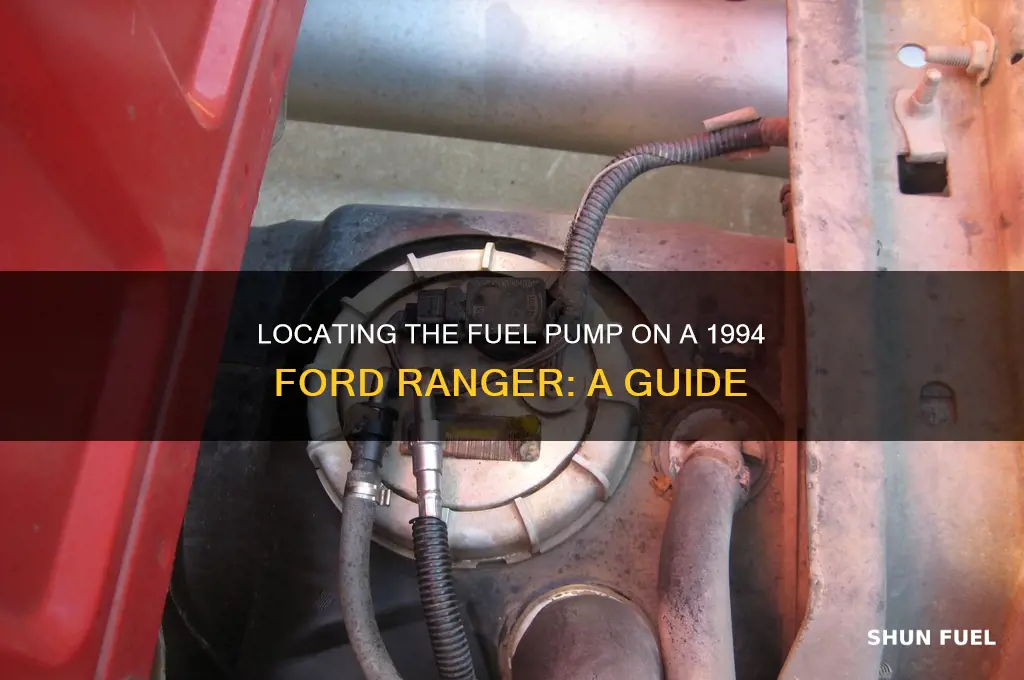

Fuel Pump Location in 94 Ford Ranger
The fuel pump in a 1994 Ford Ranger is located inside the fuel tank, a common placement for many vehicles of that era. This design choice was made to help keep the fuel cool and reduce the risk of vapor lock, a condition where liquid fuel changes to a vapor state, causing the fuel pump to lose its ability to move fuel effectively. Accessing the fuel pump requires removing the fuel tank, which is a task that demands careful preparation and adherence to safety protocols. Before starting, ensure the vehicle is on a level surface, the ignition is off, and the battery is disconnected to prevent accidental sparks.
Removing the fuel tank involves several steps. First, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and pressing the valve stem with a rag to capture any escaping fuel. Next, raise the vehicle using a jack and secure it on stands to access the tank from underneath. The tank is held in place by straps, which can be unbolted using a socket wrench. Once the straps are removed, carefully lower the tank to the ground, taking care not to damage the fuel lines or wiring connected to it. The fuel pump module is typically secured to the top of the tank with a locking ring, which can be removed with a specialized tool or a large flathead screwdriver and a hammer.
When replacing the fuel pump, it’s crucial to choose a compatible unit. The 1994 Ford Ranger uses an in-tank electric fuel pump, and aftermarket options are widely available. Ensure the new pump matches the specifications of the original, including flow rate and pressure. Installation is the reverse of removal, but take the opportunity to inspect the tank for rust or damage. If the tank is compromised, consider replacing it to avoid future issues. Reattach the fuel lines and wiring, ensuring all connections are secure, and reinstall the tank using new straps if the old ones are worn.
One practical tip for this repair is to replace the fuel filter at the same time, as it’s part of the same system and often due for maintenance. The filter is typically located along the fuel line, either near the tank or in the engine bay, depending on the model. Replacing both components simultaneously ensures optimal fuel system performance and reduces the likelihood of contamination. After installation, refill the tank with a small amount of fuel and check for leaks before starting the vehicle. This step-by-step approach ensures a thorough and safe repair, extending the life of your 1994 Ford Ranger.
Fuel Pump Relay Pin Guide: Jump Start Your Vehicle Safely
You may want to see also
Explore related products
Accessing the Fuel Pump on a 94 Ranger
The fuel pump on a 1994 Ford Ranger is located inside the fuel tank, a common placement for many vehicles of that era. This design choice was made to keep the fuel pump cool and reduce the risk of vapor lock, but it also means accessing the pump requires more effort than if it were mounted externally. If you’re experiencing fuel delivery issues, such as sputtering or stalling, the fuel pump is often the first suspect, making its location and accessibility critical knowledge for DIY repairs.
To access the fuel pump, start by relieving the fuel system pressure. Locate the Schrader valve on the fuel rail near the engine and attach a pressure gauge. Depress the valve to release the pressure, ensuring safety before proceeding. Next, disconnect the negative battery terminal to prevent accidental sparks. These preliminary steps are essential to avoid fuel-related hazards, as gasoline under pressure can ignite easily.
With safety measures in place, raise the vehicle using a jack and secure it on stands to access the fuel tank. The tank is located beneath the vehicle, between the rear wheels. Remove the protective skid plate if equipped, as it shields the tank from road debris. Once exposed, disconnect the fuel lines and electrical connector from the tank. Be prepared for residual fuel to drain, so have a catch pan ready. Loosen the tank straps and lower the tank to access the fuel pump assembly from the top.
Removing the fuel pump involves detaching the locking ring that secures the pump module to the tank. This ring can be stubborn, so use a specialized tool or a flat-head screwdriver with caution to avoid damaging the tank. Once removed, lift the pump assembly out of the tank. Inspect the pump, filter, and sending unit for wear or damage. Replacement kits are available, often including a new pump, filter sock, and seal. Reinstallation follows the reverse process, ensuring all connections are secure and the locking ring is tightened properly.
Locating the 2500 HD Fuel Pump: A Comprehensive Guide
You may want to see also
Explore related products
Identifying Fuel Pump Components in 94 Ranger
The fuel pump in a 1994 Ford Ranger is located inside the fuel tank, a common placement for in-tank electric fuel pumps in vehicles of that era. This design helps maintain fuel pressure and reduces the risk of vapor lock, especially in warmer climates. To identify the fuel pump components, start by locating the fuel tank, typically found beneath the rear seat or cargo area. The fuel pump module, which includes the pump, sender unit, and filter, is accessed by removing the tank or through a dedicated access panel, depending on the model.
Analyzing the fuel pump module reveals several key components. The electric fuel pump itself is responsible for drawing fuel from the tank and delivering it to the engine. Attached to the pump is the sender unit, which measures the fuel level and sends the data to the fuel gauge. A fuel filter is often integrated into the module to trap contaminants before they reach the engine. Understanding these components is crucial for diagnosing issues such as a failing pump, inaccurate fuel gauge readings, or poor engine performance due to clogged filters.
When identifying these components, it’s essential to follow safety precautions. Always relieve fuel system pressure before working on the tank to prevent accidental fuel spray or fires. Disconnect the battery to avoid electrical hazards, and use a fuel line disconnect tool if necessary. For the 94 Ranger, the fuel pump module is typically secured with a locking ring or bolts, which require specific tools for removal. Refer to a repair manual for torque specifications to avoid damaging the tank during reassembly.
Comparing the 94 Ranger’s fuel pump to other systems highlights its simplicity. Unlike external pumps, which are mounted outside the tank, the in-tank design reduces noise and improves fuel cooling. However, this design requires more labor to access for repairs. For example, replacing the pump involves dropping the tank, whereas external pumps can often be swapped without removing the tank. This trade-off underscores the importance of familiarity with the Ranger’s specific setup.
Instructively, to inspect or replace the fuel pump components, begin by safely raising the vehicle and securing it on stands. Drain the fuel tank to minimize spillage, then disconnect the fuel lines and electrical connectors. Remove the retaining ring or bolts to extract the pump module. When installing a new pump, ensure the filter is properly seated and the sender unit is aligned correctly. Reassemble the tank, reconnect the lines and wiring, and test the system for leaks before lowering the vehicle. Regular maintenance, such as replacing the fuel filter every 30,000 miles, can extend the life of the pump and ensure reliable performance.
Rebuilding Your Johnson Outboard Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Tools Needed for 94 Ranger Fuel Pump Replacement
The fuel pump on a 1994 Ford Ranger is located inside the fuel tank, which means replacing it requires a specific set of tools to access and remove the tank safely. Before diving into the replacement process, it’s crucial to gather the right equipment to ensure efficiency and prevent damage. Here’s a detailed breakdown of the tools you’ll need for this task.
Essential Tools for the Job:
- Floor Jack and Jack Stands: These are necessary to safely raise the vehicle and provide stable support while you work underneath. Ensure the jack stands are rated for the Ranger’s weight.
- Wrench Set (Metric): A standard metric wrench set is required to loosen and tighten bolts, including those securing the fuel tank straps and fuel lines.
- Screwdriver Set: Both flathead and Phillips screwdrivers may be needed for miscellaneous screws or clamps during the process.
- Fuel Line Disconnect Tools: These specialized tools help safely release the fuel lines without damaging them or causing leaks.
- Pry Bar or Trim Removal Tool: Useful for gently prying off the fuel tank access panel or any trim pieces obstructing access to the tank.
Safety and Convenience Tools:
Safety should always be a priority when working on fuel systems. A safety goggles and gloves are essential to protect against fuel spills or debris. Additionally, a drain pan is crucial for catching any residual fuel when disconnecting lines. For convenience, a flashlight or work light will illuminate the undercarriage, making it easier to identify components and avoid mistakes.
Specialized Tools for Fuel Pump Replacement:
Replacing the fuel pump itself requires a fuel pump module removal tool or a lock ring tool, depending on the design of the Ranger’s fuel tank. This tool allows you to safely remove the locking ring securing the fuel pump module. Without it, accessing the pump can be nearly impossible. If the fuel tank needs to be fully removed, a syringe or hand pump can be used to extract as much fuel as possible beforehand, reducing spill risks.
Optional but Helpful Tools:
A ratchet and socket set can speed up bolt removal compared to wrenches, especially in tight spaces. A multimeter is also useful for testing the fuel pump’s electrical connections before and after replacement, ensuring the issue is resolved. Lastly, a parts cleaner or solvent can help degrease components for a cleaner installation.
By assembling these tools beforehand, you’ll streamline the fuel pump replacement process on your 94 Ford Ranger, minimizing frustration and maximizing safety. Always refer to a repair manual or trusted guide for specific steps tailored to your vehicle’s configuration.
Are Carter Fuel Pumps Reliable? A Comprehensive Performance Review
You may want to see also
Explore related products
Common Issues with 94 Ranger Fuel Pump Location
The 1994 Ford Ranger's fuel pump is located inside the fuel tank, a common placement for many vehicles of that era. This design choice, while efficient for fuel delivery, presents unique challenges for owners. One of the most frequent issues arises from the pump's inaccessibility. Replacing a faulty fuel pump requires dropping the tank, a task that demands careful planning and execution to avoid fuel spills and potential hazards.
Another common problem stems from the fuel pump's exposure to contaminants. Over time, debris from the fuel tank can clog the pump's intake, leading to reduced performance or complete failure. Regular fuel filter changes and the use of high-quality fuel can mitigate this risk, but the pump's location makes it difficult to inspect or clean without removing the tank.
Diagnosing fuel pump issues in the '94 Ranger can also be tricky. Symptoms like engine sputtering, difficulty starting, or stalling may point to a failing pump, but they can also indicate other problems, such as a clogged fuel filter or faulty relay. A fuel pressure test is often necessary to confirm the pump's condition, adding an extra step to troubleshooting.
For DIY enthusiasts, the fuel pump's location complicates repairs. Working on the fuel system requires specialized tools and safety precautions, including relieving fuel pressure and ensuring proper ventilation. Mistakes during the process can lead to costly repairs or safety risks, making it a task best approached with caution or professional assistance.
In summary, while the in-tank fuel pump design of the 1994 Ford Ranger is functional, its location introduces challenges related to accessibility, contamination, diagnosis, and repair. Proactive maintenance and careful troubleshooting are essential to addressing these issues effectively.
Effective Tips to Maintain Optimal Fuel Pump Temperature and Performance
You may want to see also
Frequently asked questions
The fuel pump on a 1994 Ford Ranger is located inside the fuel tank, which is situated underneath the vehicle, typically near the rear passenger side.
To access the fuel pump, you’ll need to remove the fuel tank. Start by relieving the fuel system pressure, disconnecting the battery, and then lowering the tank after disconnecting the fuel lines and electrical connectors.
Yes, always work in a well-ventilated area, avoid open flames or sparks, and relieve fuel system pressure before starting. Disconnect the battery to prevent accidental ignition.
No, the fuel pump is an in-tank unit, so the fuel tank must be removed to access and replace the pump.
You’ll need basic hand tools like wrenches, sockets, a jack and jack stands, a fuel line disconnect tool, and possibly a new fuel tank strap if it’s damaged.
