The fuel pump on a 454 Chevy engine, a popular big-block V8, is typically located on the front of the engine, near the timing cover. In most mechanical fuel pump setups, it is mounted directly to the engine block, driven by an eccentric lobe on the camshaft. This design ensures consistent fuel delivery to the carburetor. However, if the engine is equipped with an electric fuel pump, it may be located elsewhere in the fuel system, such as near the fuel tank or along the fuel line, depending on the specific setup or aftermarket modifications. Identifying the type of fuel pump (mechanical or electric) is crucial for locating it accurately on a 454 Chevy engine.
| Characteristics | Values |
|---|---|
| Location | Typically mounted on the driver's side of the engine block, near the front or middle |
| Type | Mechanical fuel pump (most common for carbureted 454 engines) |
| Mounting | Bolted directly to the engine block with a mounting bracket |
| Inlet/Outlet | Inlet connects to the fuel tank via a fuel line, outlet connects to the carburetor |
| Drive Mechanism | Driven by an eccentric lobe on the camshaft (mechanical pump) |
| Compatibility | Specific to carbureted Chevrolet 454 engines (7.4L V8) |
| Replacement Considerations | Ensure correct pump type (mechanical vs. electric) and mounting style for your specific engine configuration |
Explore related products
What You'll Learn

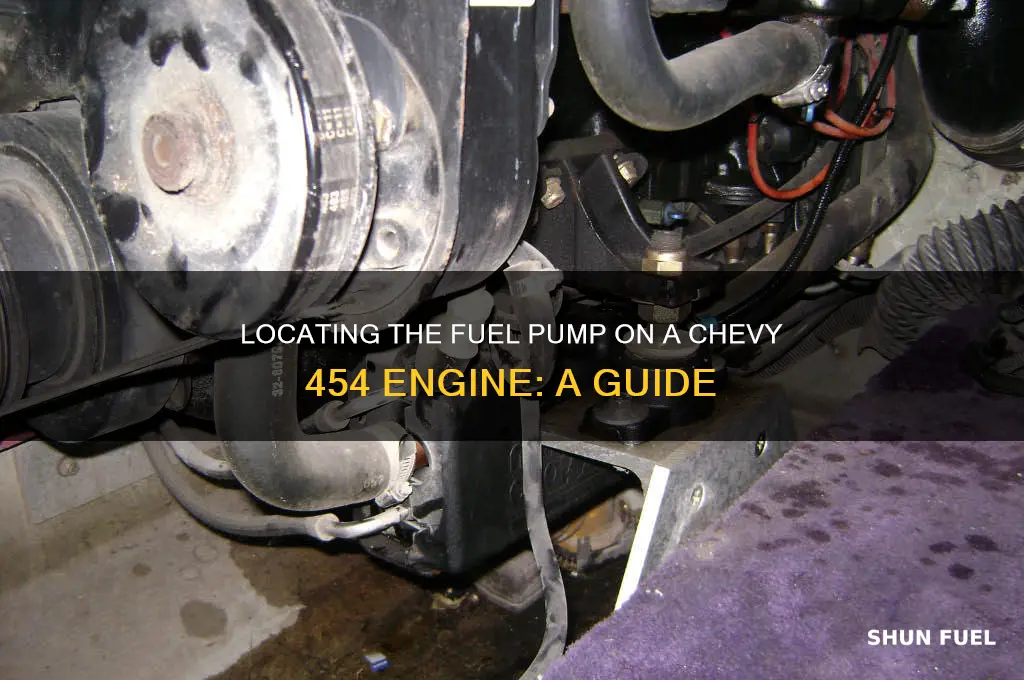

Fuel pump location on a 454 Chevy engine
The 454 Chevy engine, a powerhouse in the automotive world, relies on a mechanical fuel pump for its operation. This pump is typically located on the driver's side of the engine block, near the front. It is driven by the camshaft, ensuring a consistent fuel supply to the carburetor. Understanding its exact position is crucial for maintenance, troubleshooting, or upgrades, as accessing the fuel pump often requires removing the air cleaner assembly and following the fuel line from the carburetor.
From an analytical perspective, the placement of the fuel pump on the 454 Chevy engine is a testament to its design efficiency. Positioned on the engine block, it minimizes fuel line length, reducing the risk of leaks and ensuring a steady flow. This design also simplifies installation and maintenance, as the pump is directly accessible without extensive disassembly. However, its proximity to the engine can expose it to higher temperatures, which may affect longevity. Regular inspection and timely replacement are essential to prevent fuel delivery issues.
For those looking to locate or replace the fuel pump, follow these steps: Start by disconnecting the battery to ensure safety. Remove the air cleaner assembly to expose the carburetor and fuel lines. Trace the fuel line from the carburetor to the engine block, where the pump is mounted. Loosen the retaining bolts and carefully detach the pump, noting the orientation of the pushrod for reinstallation. When installing a new pump, ensure the gasket is properly seated to prevent leaks. Reassemble the components in reverse order, and test the system for proper operation.
Comparing the 454 Chevy’s mechanical fuel pump to modern electric pumps highlights the evolution of fuel delivery systems. Mechanical pumps, while reliable, are dependent on engine operation and can struggle under high-performance demands. Electric pumps, often used in upgrades, offer greater flexibility and efficiency but require additional wiring and a power source. For enthusiasts aiming to enhance their 454’s performance, converting to an electric pump may be beneficial, though it involves more complex installation and potential modifications to the fuel system.
Finally, a descriptive approach reveals the fuel pump’s integration into the 454 Chevy’s rugged design. Mounted on the engine block with a sturdy bracket, the pump’s body is often cast aluminum or steel, designed to withstand vibration and heat. The pushrod, connected to the camshaft, drives the diaphragm inside the pump, creating suction to draw fuel from the tank. Its unassuming appearance belies its critical role, making it a cornerstone of the engine’s functionality. Regularly checking for wear or leaks ensures this component continues to perform reliably, keeping the 454 Chevy running smoothly for years to come.
