Mercedes Mullins
The fuel pump on a 1999 Toyota RAV4 is typically located inside the fuel tank, a common placement for many vehicles to ensure the pump remains cooled by the fuel and to minimize the risk of ignition. Accessing the fuel pump requires removing the fuel tank, which involves disconnecting the fuel lines, electrical connectors, and tank straps. This process should be approached with caution, as working with fuel systems can be hazardous. It’s recommended to consult the vehicle’s service manual or seek professional assistance to ensure safe and accurate replacement or maintenance of the fuel pump.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the rear seat and fuel tank cover for access |
| Fuel Tank Removal | May require partial or full fuel tank removal depending on model |
| Tools Needed | Socket set, wrenches, screwdriver, and possibly a fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure and disconnect battery before starting |
| Difficulty Level | Moderate to difficult (requires mechanical skill) |
| Estimated Time | 2-4 hours depending on experience and tools |
| Common Issues | Fuel pump failure, clogged fuel filter, or electrical issues |
| Replacement Part | Specific to 1999 Toyota RAV4 (check OEM part number) |
| Cost of Replacement | $200-$500 (parts and labor, if done professionally) |
Explore related products
What You'll Learn
Fuel pump location in 99 RAV4 engine bay

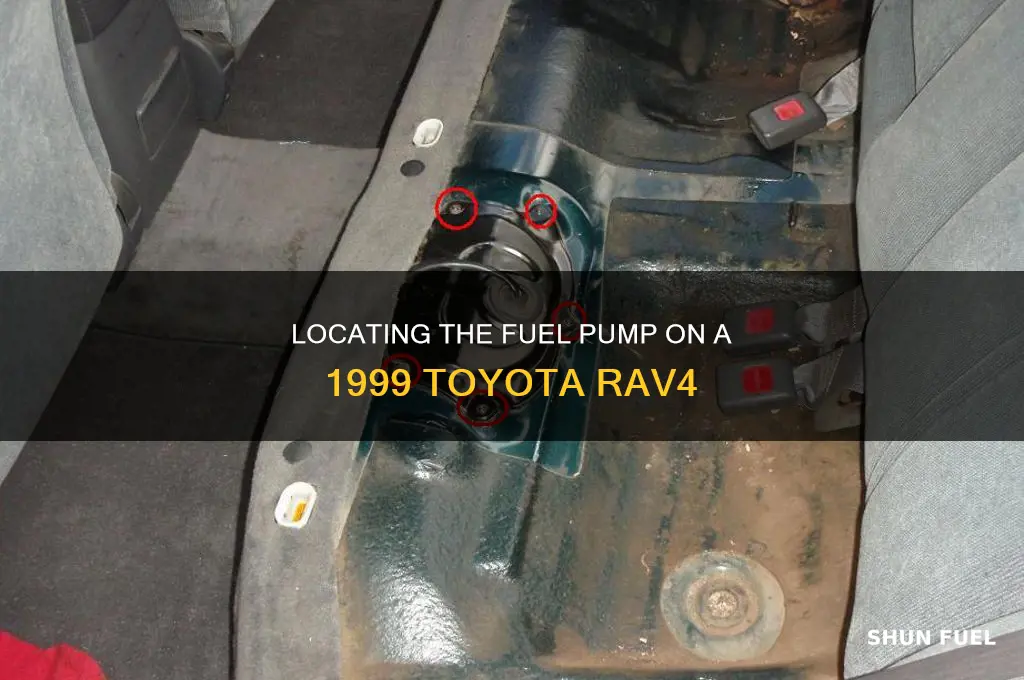

The fuel pump in a 1999 Toyota RAV4 is located within the fuel tank, which is situated beneath the rear seats. This placement is a common design choice for many vehicles, as it helps maintain fuel pressure and reduces the risk of vapor lock. To access the fuel pump, you’ll need to remove the rear seats and the fuel pump access panel, a process that requires basic hand tools and caution to avoid fuel spills or electrical hazards.
Analyzing the design, the in-tank fuel pump setup in the 99 RAV4 serves multiple purposes. By submerging the pump in fuel, it stays cooled, reducing the likelihood of overheating. Additionally, this location minimizes noise and vibration in the cabin, as the pump operates within the insulated fuel tank. However, this placement also means that replacing the fuel pump is more labor-intensive compared to external fuel pumps, as it involves dropping the tank.
If you’re planning to replace the fuel pump, follow these steps: First, relieve the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the battery to prevent accidental ignition. Remove the rear seats and locate the fuel pump access panel, typically secured by a few bolts. Disconnect the electrical connector and fuel lines, then remove the retaining ring to extract the pump assembly. Installation is the reverse process, ensuring all connections are secure and the tank is properly sealed.
A practical tip for diagnosing fuel pump issues in a 99 RAV4 is to listen for the pump’s hum when the ignition is turned on. If the sound is absent, the pump may be faulty. However, before assuming the pump is the problem, check the fuel pump relay and fuse, as these are common culprits for pump failure. If the relay and fuse are intact, use a multimeter to test for power at the pump’s electrical connector, ensuring the issue isn’t wiring-related.
Comparing the 99 RAV4’s fuel pump location to other vehicles, its in-tank design is standard for modern fuel-injected systems. Older carbureted vehicles often featured external fuel pumps mounted on the engine or frame, which were easier to access but less efficient. The RAV4’s setup, while more complex to service, offers better performance and reliability, making it a trade-off between convenience and functionality. Always consult the vehicle’s manual or a trusted repair guide for model-specific details before starting any work.
Accessing Your Crosstour's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Accessing the fuel pump on a 1999 Toyota RAV4
The fuel pump on a 1999 Toyota RAV4 is located inside the fuel tank, a common placement for in-tank fuel pumps in many vehicles of that era. This design helps maintain fuel pressure and reduces the risk of vapor lock, but it also means accessing the pump requires removing the fuel tank. Before starting, ensure you have the necessary tools: a jack, jack stands, wrenches, screwdrivers, and a fuel line disconnect tool. Safety is paramount—work in a well-ventilated area, relieve fuel system pressure, and disconnect the battery to prevent accidental sparks.
To access the fuel pump, begin by safely raising the rear of the vehicle and securing it on jack stands. Locate the fuel tank, which is positioned beneath the rear seats and extends toward the rear axle. Disconnect the negative battery terminal to eliminate any electrical hazards. Next, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it using a suitable tool. This step is critical to avoid fuel spray or injury during the removal process.
With the pressure relieved, disconnect the fuel lines and electrical connectors attached to the fuel tank. Use a fuel line disconnect tool to avoid damaging the lines. Remove the straps securing the fuel tank to the vehicle, taking care to support the tank as you lower it. Once the tank is accessible, clean the top surface to prevent debris from entering during the pump replacement. The fuel pump is typically secured by a locking ring or retaining plate, which can be removed with the appropriate tool. Carefully lift the pump assembly out of the tank, noting its orientation for reassembly.
When installing a new fuel pump, ensure the replacement is compatible with the 1999 RAV4’s fuel system. Reinstall the pump assembly, secure the locking ring, and reattach the fuel tank to the vehicle. Reconnect the fuel lines and electrical connectors, ensuring all components are tightly secured. After reassembly, reconnect the battery and check for leaks by turning the ignition to the "on" position without starting the engine. If no leaks are detected, lower the vehicle, start the engine, and monitor for proper fuel pump operation. This systematic approach ensures a safe and effective fuel pump replacement.
Step-by-Step Guide to Safely Disconnecting Your Vehicle's Fuel Pump
You may want to see also
Explore related products
Identifying the fuel pump in a 99 RAV4
The fuel pump in a 1999 Toyota RAV4 is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage and helps maintain a consistent fuel temperature. To identify and access the fuel pump, you’ll need to locate the fuel tank, which is situated beneath the rear passenger seats. This placement is typical for compact SUVs like the RAV4, optimizing space and weight distribution.
Identifying the fuel pump begins with understanding its role: it delivers fuel from the tank to the engine under pressure. If your RAV4 exhibits symptoms like difficulty starting, sputtering, or stalling, the fuel pump may be failing. To confirm, listen for the pump’s hum by turning the ignition to the "on" position (without starting the engine). A healthy pump will activate for 2–3 seconds, priming the system. If no sound is heard, the pump may be faulty, but further diagnosis is required.
Accessing the fuel pump requires removing the fuel tank, a task that demands caution due to the flammable nature of gasoline. Start by relieving fuel system pressure using the Schrader valve on the fuel rail. Disconnect the negative battery terminal to prevent electrical hazards. Then, raise the vehicle and support it securely on jack stands. Locate the fuel tank straps and remove them to lower the tank. The fuel pump module is attached to the top of the tank, secured by a locking ring. Use a specialized tool to release the ring and extract the module.
When replacing the fuel pump, ensure the new unit matches the original specifications. Toyota recommends using OEM parts for reliability. After installation, reattach the fuel tank, reconnect the electrical connectors, and refill the tank. Test the system by starting the engine and checking for leaks. Proper identification and replacement of the fuel pump can restore your 99 RAV4’s performance, ensuring it runs smoothly for years to come.
For DIY enthusiasts, this process is manageable with basic tools and safety precautions. However, if you’re unsure, consult a professional to avoid risks associated with fuel system work. Identifying and addressing fuel pump issues promptly not only saves money but also prevents potential breakdowns, keeping your RAV4 reliable on the road.
Removing the Fuel Pump Fuse on a 1997 Oldsmobile 88
You may want to see also
Explore related products
Steps to replace the fuel pump on a 99 RAV4
The fuel pump on a 1999 Toyota RAV4 is located inside the fuel tank, a common placement for many vehicles of this era. This design protects the pump from external damage and helps maintain fuel pressure, but it also means replacing the pump requires more involved steps compared to external systems. Before diving into the replacement process, ensure you have the necessary tools, including a jack, jack stands, wrenches, and a new fuel pump assembly. Safety is paramount, so work in a well-ventilated area, disconnect the battery, and relieve fuel system pressure before starting.
Begin by safely raising the vehicle and removing the fuel tank. Position the jack under the tank’s designated lift point and secure the vehicle on jack stands. Next, disconnect the fuel lines and electrical connectors attached to the tank. Use a wrench to loosen the fuel tank straps, then carefully lower the tank to access the pump. Be cautious not to spill fuel during this step; draining the tank beforehand is highly recommended. Once the tank is removed, the fuel pump module will be visible. Remove the locking ring securing the module and carefully lift it out, taking note of its orientation for reassembly.
Installing the new fuel pump involves reversing the removal process with precision. Insert the new pump module into the tank, ensuring the fuel sender and float arm align correctly. Reattach the locking ring and tighten it securely, but avoid over-tightening to prevent damage. Reinstall the fuel tank, reconnecting the fuel lines and electrical connectors. Double-check all connections for tightness and proper seating. After reassembly, lower the vehicle, reconnect the battery, and turn the ignition to the "on" position (without starting the engine) to pressurize the fuel system. Check for leaks around the tank and lines before starting the engine.
Replacing the fuel pump on a 99 RAV4 is a task that demands patience and attention to detail. While it’s more complex than some DIY repairs, it’s achievable with the right tools and preparation. Always prioritize safety, especially when working with fuel systems. If you’re unsure at any step, consult a professional to avoid costly mistakes or safety hazards. Completing this repair not only saves on labor costs but also ensures your RAV4’s fuel system operates reliably for miles to come.
Are Carter Fuel Pumps Made in the USA? Unveiling the Truth
You may want to see also
Explore related products
Common issues with the 99 RAV4 fuel pump location
The fuel pump on a 1999 Toyota RAV4 is located inside the fuel tank, a common placement for many vehicles of that era. This design choice, while efficient for fuel delivery, introduces several challenges for owners and mechanics alike. One of the most common issues is the difficulty of accessing the fuel pump for maintenance or replacement. Unlike external fuel pumps, which can often be reached without extensive disassembly, the in-tank location requires dropping the fuel tank—a labor-intensive process that increases repair costs and downtime.
Another issue stems from the fuel pump’s proximity to the fuel tank’s internal environment. Over time, sediment and debris can accumulate in the tank, clogging the pump’s intake or causing premature wear. This is particularly problematic for older RAV4s that have not had regular fuel system maintenance. Owners often report symptoms like sputtering, stalling, or difficulty starting, only to discover the fuel pump has failed due to contamination. Using a fuel additive designed to clean the tank and lines can mitigate this, but it’s a preventive measure rarely taken until issues arise.
The electrical connections to the fuel pump are another weak point in this design. The wiring harness that runs to the top of the fuel tank can degrade over time due to exposure to fuel vapors, moisture, and temperature fluctuations. Corroded or damaged connectors can cause intermittent power loss to the pump, leading to unreliable performance. Regular inspection of these connections during routine maintenance is crucial, but many owners overlook this until the vehicle fails to start.
Finally, the fuel pump’s in-tank location complicates diagnosis of fuel system issues. Mechanics often rely on pressure tests or visual inspections to identify problems, but accessing the pump for such tests requires partial or full tank removal. This inaccessibility can lead to misdiagnosis, with other components like the fuel filter or injectors being replaced unnecessarily. Investing in a quality fuel pressure gauge and understanding the diagnostic procedure can save time and money, but it’s a step often skipped due to the perceived complexity.
In summary, while the in-tank fuel pump design on the 1999 RAV4 is functional, it introduces challenges related to accessibility, contamination, electrical reliability, and diagnostics. Proactive maintenance, such as regular fuel system cleaning and electrical inspections, can extend the pump’s lifespan. However, when issues arise, owners should be prepared for a more involved and costly repair process compared to vehicles with externally mounted pumps.
Understanding Fuel Pump Auto-Shutoff: The Mechanism Behind the Magic
You may want to see also
Frequently asked questions
The fuel pump on a 1999 Toyota RAV4 is located inside the fuel tank, which is situated beneath the rear seats.
To access the fuel pump, you’ll need to remove the rear seats, disconnect the battery, relieve fuel system pressure, and then lower the fuel tank to access the pump assembly.
Yes, always disconnect the battery, relieve fuel pressure, and work in a well-ventilated area to avoid fire hazards. Use proper tools and follow a repair manual for detailed steps.
No, the fuel pump is an in-tank unit, so the fuel tank must be removed to access and replace the pump.
Symptoms include difficulty starting, sputtering or stalling, loss of power, and unusual noises from the fuel tank area. A diagnostic scan may also reveal fuel system issues.
