The fuel pump on a 2007 Subaru Forester is located inside the fuel tank, which is situated beneath the rear passenger seats. Accessing the fuel pump requires removing the rear seat cushion and the fuel pump access panel, followed by lowering the fuel tank slightly or removing it entirely, depending on the specific repair or maintenance task. This design ensures the fuel pump operates in a submerged environment, helping to maintain a consistent fuel temperature and reduce the risk of pump failure due to overheating. Proper safety precautions, such as relieving fuel system pressure and disconnecting the battery, are essential before attempting any work on the fuel pump.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank, beneath the rear seat on the driver's side. |
| Access Method | Requires removing the rear seat and fuel tank cover for access. |
| Fuel Pump Type | Electric in-tank fuel pump. |
| Tank Removal Required | Yes, for direct access to the fuel pump. |
| Tools Needed | Socket set, wrenches, screwdriver, and possibly a fuel line disconnect tool. |
| Difficulty Level | Moderate to difficult due to fuel tank removal. |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, and work in a well-ventilated area. |
| Common Issues | Fuel pump failure, clogged fuel filter, or electrical connection problems. |
| Replacement Cost | $200-$500 (parts and labor, depending on location and mechanic rates). |
| DIY Feasibility | Possible but recommended for experienced DIYers due to complexity. |
| Subaru Forester Model | 2007 Subaru Forester (all trims). |
Explore related products
What You'll Learn
Fuel pump location in engine bay
The fuel pump on a 2007 Subaru Forester is not located in the engine bay, contrary to what one might expect. Instead, it is situated within the fuel tank, a design choice that offers several advantages. This in-tank placement helps maintain a consistent fuel temperature, reduces the risk of vapor lock, and provides a quieter operation by dampening the pump’s noise with the surrounding fuel. Understanding this location is crucial for diagnostics and maintenance, as accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety measures.
For those unfamiliar with this setup, the absence of a fuel pump in the engine bay can initially cause confusion. However, this design is common in modern vehicles, including the 2007 Subaru Forester, to improve efficiency and reliability. If you’re troubleshooting fuel delivery issues, start by checking the fuel pump relay and fuse, both of which are typically located in the engine bay’s fuse box. These components are easier to access and can often pinpoint problems before resorting to more invasive procedures like dropping the fuel tank.
Accessing the fuel pump in a 2007 Subaru Forester requires a systematic approach. Begin by relieving the fuel system pressure using the Schrader valve on the fuel rail, located near the engine bay’s firewall. Next, disconnect the battery to prevent accidental ignition. After safely lowering the fuel tank, you’ll find the fuel pump assembly secured by a locking ring. Use a specialized tool to release the ring and carefully remove the pump, taking note of the fuel level sensor and float arm to avoid damage. Reinstallation follows the reverse process, ensuring all seals are intact to prevent leaks.
While the fuel pump’s in-tank location enhances performance, it also complicates repairs. DIY enthusiasts should weigh their skill level before attempting this task, as improper handling can lead to fuel spills or damage to the tank. Professional mechanics often use a lift to simplify the process, but with patience and the right tools, it’s achievable in a home garage. Always work in a well-ventilated area and avoid open flames or sparks when dealing with fuel systems.
In summary, the fuel pump’s placement in the fuel tank of a 2007 Subaru Forester is a deliberate engineering decision that prioritizes efficiency and safety. While this design simplifies some aspects of fuel delivery, it shifts the complexity to maintenance and repairs. Familiarizing yourself with the fuel system’s layout and following proper procedures can make addressing fuel pump issues less daunting, whether you’re a seasoned mechanic or a determined DIYer.
Are Fuel Pumps Failing? Causes, Symptoms, and Solutions Explained
You may want to see also
Explore related products

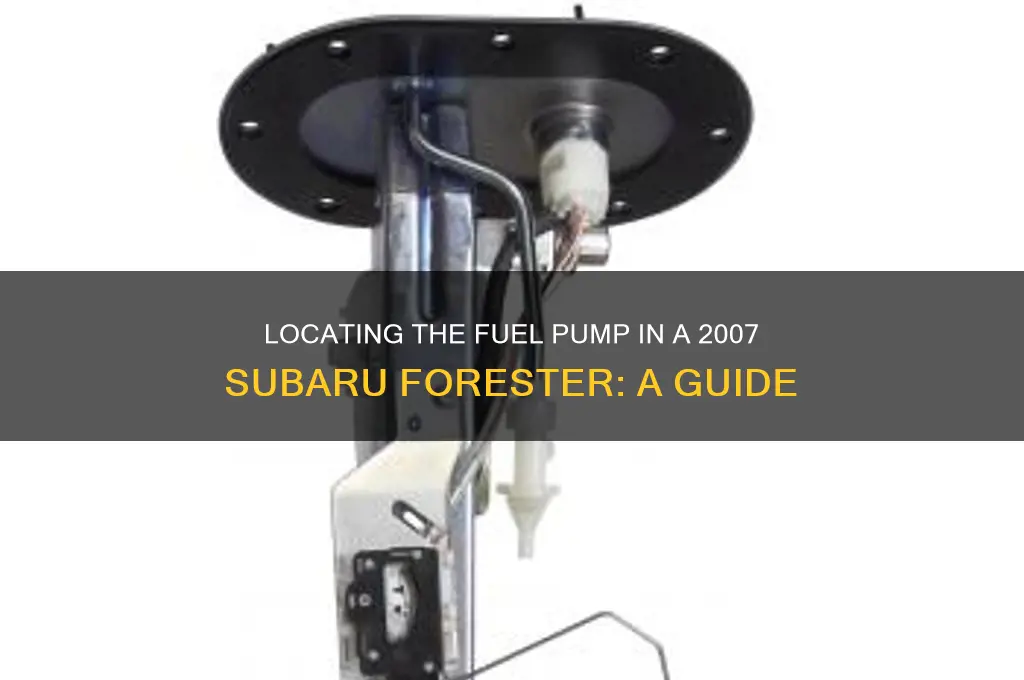

Identifying the fuel pump assembly
The fuel pump assembly in a 2007 Subaru Forester is located inside the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure stability. This design requires accessing the fuel tank, typically situated beneath the rear seat or cargo area, depending on the model. To identify the assembly, start by locating the fuel tank’s access panel, often marked by a circular or rectangular indentation on the tank’s upper surface. This panel houses the electrical connector and fuel lines leading to the pump.
Analyzing the components, the fuel pump assembly consists of the pump itself, a sending unit for the fuel gauge, and a filter to prevent debris from entering the fuel system. The pump is usually cylindrical and connected to a bracket or mounting plate inside the tank. The sending unit, a float mechanism, moves with fuel levels to provide accurate gauge readings. Identifying these parts visually can be challenging without removing the tank, but understanding their functions aids in troubleshooting issues like fuel pressure loss or inaccurate gauge readings.
When attempting to identify the fuel pump assembly, follow these steps: first, disconnect the battery to prevent electrical hazards. Then, relieve fuel system pressure by loosening the fuel cap or using a pressure relief tool. Locate the fuel tank and remove the access panel to expose the assembly. Inspect the electrical connector and fuel lines for signs of damage or corrosion. If the pump is inaccessible without tank removal, consult a repair manual for specific instructions on lowering the tank safely.
A comparative approach highlights the 2007 Forester’s fuel pump design versus older models, which often placed pumps externally. The in-tank design reduces noise and improves efficiency but complicates replacement. For instance, replacing an external pump might take 30 minutes, while an in-tank assembly could require 2–3 hours due to tank removal. This comparison underscores the importance of proper identification and preparation, as missteps can lead to fuel spills or electrical damage.
Practically, identifying the fuel pump assembly is crucial for diagnosing issues like a failing pump or clogged filter. Symptoms such as sputtering, stalling, or difficulty starting often point to fuel delivery problems. By recognizing the assembly’s location and components, you can determine whether the issue lies with the pump, filter, or electrical connections. For DIY repairs, ensure you have a fuel line disconnect tool, safety goggles, and a drain pan to handle residual fuel. Always work in a well-ventilated area and avoid open flames or sparks.
Quick Guide: Resetting Your Fuel Pump Clip Safely and Easily
You may want to see also
Explore related products
Accessing the fuel tank area
The fuel pump on a 2007 Subaru Forester is located inside the fuel tank, a common placement in modern vehicles for safety and efficiency. Accessing this area requires careful steps to ensure safety and avoid damage. The fuel tank is situated beneath the rear seat area, protected by the vehicle’s underbody shielding. Before attempting any work, relieve the fuel system pressure and disconnect the battery to prevent accidents. This section focuses on the process of accessing the fuel tank area, a critical step for fuel pump replacement or inspection.
Steps to Access the Fuel Tank Area:
- Prepare the Vehicle: Park on a flat surface, engage the parking brake, and allow the engine to cool. Use jack stands to lift the rear of the vehicle for better access.
- Remove Interior Components: Lift the rear seats by pulling the release levers, then unhook the fuel pump access panel located beneath the seat area. This panel provides direct access to the fuel tank.
- Disconnect Electrical Connections: Locate the fuel pump wiring harness and fuel lines beneath the vehicle. Use appropriate tools to disconnect these safely, avoiding damage to the quick-connect fittings.
- Lower the Fuel Tank: If necessary, support the tank with a jack and remove the retaining straps to lower it slightly for better access to the pump assembly.
Cautions and Practical Tips:
Working with fuel systems carries inherent risks. Always wear safety goggles and gloves, and ensure proper ventilation. Avoid open flames or sparks near the fuel tank. If you’re unsure about any step, consult a professional or a detailed repair manual. For the 2007 Subaru Forester, the fuel tank’s location near the exhaust system requires extra caution to prevent heat-related accidents.
Comparative Insight:
Unlike older models where fuel pumps were often external, the 2007 Forester’s in-tank design enhances safety and reduces noise. However, this placement complicates access compared to external systems. For instance, accessing the fuel pump on a 1990s Subaru Legacy involves fewer steps due to its external mounting. This evolution highlights the trade-offs between safety and maintenance convenience.
Troubleshooting 1992 Isuzu Pickup: No Power to Fuel Pump Solutions
You may want to see also
Explore related products
Tools needed for fuel pump removal
The fuel pump on a 2007 Subaru Forester is located inside the fuel tank, which means removing it requires a specific set of tools to access and extract the component safely. Before diving into the removal process, it’s crucial to gather the right tools to ensure efficiency and prevent damage to the vehicle or injury to yourself. Here’s a detailed breakdown of what you’ll need.
Essential Tools for Fuel Pump Removal
To start, you’ll need a floor jack and jack stands to safely lift the vehicle and provide access to the fuel tank. A wrench set or socket set (metric, typically 10mm to 14mm) is essential for loosening and removing bolts securing the fuel tank and its components. A screwdriver set (both flathead and Phillips) will come in handy for prying or removing smaller parts. Additionally, a fuel line disconnect tool is critical for safely detaching the fuel lines without causing leaks or damage.
Specialized Tools and Safety Equipment
Beyond the basics, a fuel pump module removal tool or a strap wrench can help extract the pump assembly from the tank without slipping or causing harm. A drain pan is necessary to catch any residual fuel when disconnecting lines, and safety goggles and nitrile gloves are non-negotiable to protect against fuel exposure. For electrical connections, a multimeter can verify power to the pump before removal, ensuring the issue isn’t electrical.
Optional but Recommended Tools
While not strictly necessary, a ramps or creeper can make working under the vehicle more comfortable. A flashlight or work light is invaluable for illuminating the work area, especially when dealing with tight spaces. Finally, a parts cleaner or solvent can help degrease components for inspection or reinstallation.
Cautions and Practical Tips
Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. Relieve fuel system pressure before starting by locating the pressure relief valve or following the vehicle’s manual. Double-check all connections and ensure the fuel tank is securely supported during removal to prevent accidents. With the right tools and precautions, fuel pump removal on a 2007 Subaru Forester becomes a manageable task.
Step-by-Step Guide to Installing a Carter Mechanical Fuel Pump
You may want to see also
Explore related products
Safety precautions for fuel pump work
Working on a fuel pump, especially in a 2007 Subaru Forester, demands strict adherence to safety protocols to mitigate risks associated with flammable materials and electrical systems. Before starting, ensure the vehicle is parked on a flat, stable surface and the engine is completely cooled to prevent accidental ignition. Disconnect the battery to eliminate the risk of electrical sparks, which can ignite fuel vapors. Always work in a well-ventilated area to avoid inhaling toxic fumes, and avoid using open flames or smoking nearby. These initial steps are non-negotiable and form the foundation of a safe repair process.
Personal protective equipment (PPE) is another critical aspect of fuel pump work. Wear nitrile gloves to protect your skin from fuel exposure, as gasoline can cause irritation or chemical burns. Safety goggles are essential to shield your eyes from accidental splashes. Additionally, consider wearing a respirator mask rated for organic vapors if you’re working in an enclosed space. While it may seem excessive, this level of protection is justified given the potential hazards of fuel system repairs. Skipping PPE increases the risk of injury, which can turn a routine repair into a medical emergency.
When accessing the fuel pump on a 2007 Subaru Forester, located inside the fuel tank, relieve the fuel system pressure first. This involves locating the pressure relief valve or using a specialized tool to depressurize the system safely. Failure to do so can result in fuel spraying out under high pressure, creating a fire hazard and making the work area unsafe. After depressurization, carefully disconnect the fuel lines, ensuring no residual fuel leaks. Use a catch pan to collect any spilled fuel, and clean up immediately to prevent slips or ignition sources.
Electrical safety is equally important during fuel pump work. Before disconnecting any electrical connectors, ensure the battery remains disconnected to prevent short circuits. Inspect wiring harnesses for damage, as frayed or exposed wires can spark and ignite fuel vapors. If you’re replacing the fuel pump, verify compatibility with the vehicle’s electrical system to avoid overloading circuits. Always handle electrical components with care, avoiding forceful tugging or bending that could damage connections.
Finally, proper disposal of old fuel and components is a safety and environmental concern. Store removed fuel in an approved container, away from heat sources, and dispose of it at a designated hazardous waste facility. Do not pour fuel down drains or onto the ground, as this can contaminate water sources and violate regulations. Similarly, recycle the old fuel pump and related parts according to local guidelines. By prioritizing safety at every step, from preparation to disposal, you minimize risks to yourself, others, and the environment while working on the fuel pump of a 2007 Subaru Forester.
Installing a Fuel Pump on Your 1984 Ford Bronco: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump on a 2007 Subaru Forester is located inside the fuel tank, which is situated beneath the rear passenger seat area.
To access the fuel pump, you’ll need to remove the rear passenger seat, lift the carpet, and locate the fuel pump access panel. Disconnect the battery and relieve fuel pressure before proceeding.
Yes, the fuel pump module can be replaced without removing the entire fuel tank. Access it through the panel under the rear seat, but ensure the tank is as empty as possible for safety.
Common signs include difficulty starting the engine, sputtering at high speeds, loss of power, or a whining noise from the fuel tank area. If these symptoms occur, inspect the fuel pump for issues.
