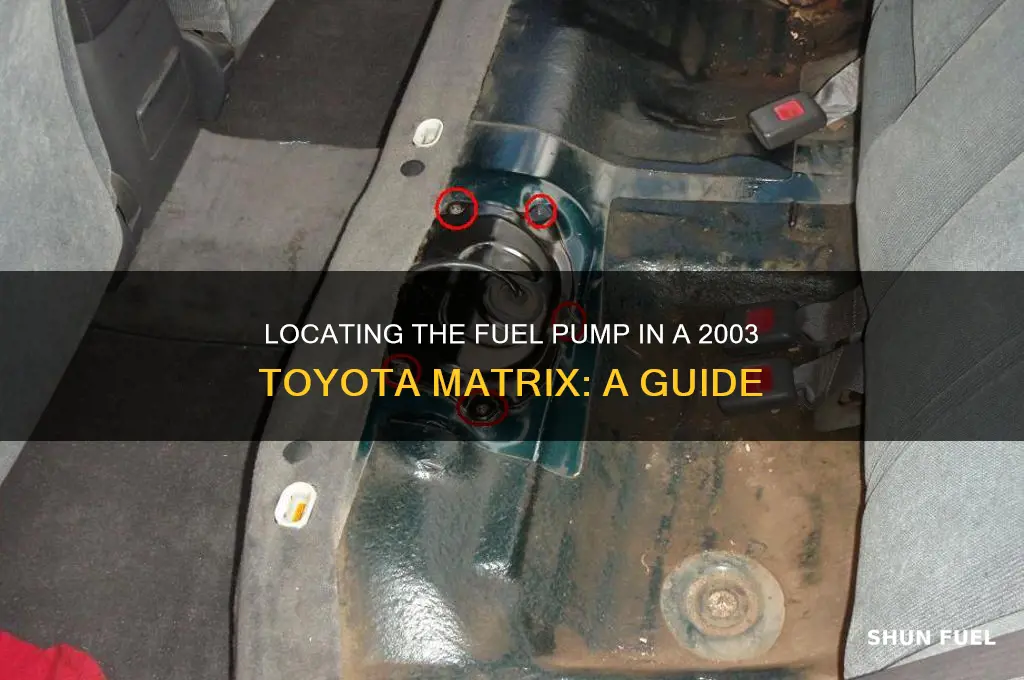

The fuel pump on a 2003 Toyota Matrix is located inside the fuel tank, which is situated beneath the rear seat area of the vehicle. To access it, you’ll need to remove the rear seat cushion by lifting it upward and unhooking any retaining clips. Once the seat is removed, you’ll find an access panel covering the fuel pump assembly. This panel is typically secured with screws or bolts, which must be removed to expose the pump. It’s important to relieve fuel system pressure and disconnect the battery before attempting any work on the fuel pump to ensure safety. If you’re not experienced with automotive repairs, consulting a professional mechanic is recommended due to the complexity and potential hazards involved.
Explore related products
What You'll Learn
Fuel pump location in 2003 Toyota Matrix
The fuel pump in a 2003 Toyota Matrix is located inside the fuel tank, a common placement in many modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This design choice also protects the pump from external damage and temperature fluctuations, ensuring consistent performance. To access the fuel pump, you’ll need to remove the fuel tank, which requires draining the fuel, disconnecting the tank lines, and lowering the tank from the vehicle. This process demands caution due to the flammable nature of gasoline and the potential for spills or leaks.
Analyzing the fuel pump’s location reveals its integration with the fuel tank as a strategic engineering decision. By submerging the pump in fuel, it stays lubricated and cooled, extending its lifespan. However, this placement complicates replacement or repair, as it necessitates removing the entire tank. For DIY enthusiasts, this means allocating sufficient time and preparing the right tools, including a jack, wrenches, and a fuel line disconnect tool. Understanding this design helps weigh the pros and cons of tackling the job yourself versus seeking professional assistance.
If you’re planning to replace the fuel pump, follow these steps: First, relieve the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the battery to prevent accidental ignition. Raise the vehicle securely and remove the fuel tank shield to access the tank. Disconnect the fuel lines and electrical connector, then lower the tank to expose the pump assembly. Replace the pump and reassemble in reverse order, ensuring all connections are tight and secure. Always work in a well-ventilated area and avoid open flames or sparks during the process.
Comparing the 2003 Toyota Matrix to earlier models highlights a shift in fuel pump design. Older vehicles often mounted the pump externally, making it easier to access but more susceptible to damage and heat. The in-tank design in the Matrix reflects advancements in fuel system efficiency and safety. While this change benefits long-term reliability, it underscores the importance of proper maintenance to avoid costly repairs. Regularly checking for fuel leaks and monitoring pump performance can help identify issues before they escalate.
Descriptively, the fuel pump assembly in the 2003 Matrix consists of the pump itself, a sending unit for the fuel gauge, and a filter to keep contaminants out of the system. The pump is typically a turbine-style unit, designed to push fuel from the tank to the engine under pressure. Its compact size allows it to fit within the tank’s confines while delivering sufficient flow for the vehicle’s 1.8L engine. Recognizing these components can aid in diagnosing problems, such as a failing pump or clogged filter, which may manifest as poor acceleration or stalling.
L5P Duramax Fuel Pump: Specifications, Functionality, and Maintenance Tips
You may want to see also
Explore related products
Accessing the fuel pump in a 2003 Matrix
The fuel pump in a 2003 Toyota Matrix is located inside the fuel tank, a common placement in many modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design, while efficient, means accessing the pump requires removing the fuel tank, a task that demands careful preparation and execution. Before starting, ensure the vehicle is on a level surface, the fuel tank is as empty as possible, and the battery is disconnected to prevent accidental ignition.
To begin the process, relieve the fuel system pressure by locating the pressure relief valve, typically found near the fuel rail. After relieving pressure, disconnect the negative battery terminal to eliminate any risk of electrical mishaps. Next, raise the vehicle securely on jack stands to access the underside. The fuel tank is situated beneath the rear seat area, protected by a metal shield. Remove this shield by taking out the retaining bolts, which are usually 10mm or 12mm in size, depending on the model.
With the shield removed, you’ll see the fuel tank straps, which secure the tank to the chassis. Loosen and remove these straps carefully, ensuring the tank doesn’t drop unexpectedly. Once the straps are off, gently lower the tank to access the fuel pump assembly. The pump is attached to the top of the tank via a locking ring, which requires a specialized tool to remove. This tool engages the tabs on the ring, allowing you to twist it counterclockwise to release the pump assembly.
After removing the locking ring, carefully pull the pump assembly out of the tank, taking note of the fuel lines and electrical connectors. Disconnect these components methodically, using quick-disconnect tools for the fuel lines to avoid spills. Inspect the pump and filter for wear or damage, as this is an opportune time to replace either component if necessary. Reinstallation follows the reverse process, ensuring all connections are secure and the tank is properly supported.
Step-by-Step Guide to Replacing a Fuel Pump on a 1999 S10
You may want to see also
Explore related products
Tools needed to replace 2003 Matrix fuel pump
The 2003 Toyota Matrix fuel pump is located inside the fuel tank, a common placement for modern vehicles to maintain fuel pressure and system integrity. Replacing it requires not just skill but also the right tools to ensure safety and efficiency. Here’s a breakdown of what you’ll need to tackle this task.
Essential Tools for the Job
To access the fuel pump, you’ll first need a floor jack and jack stands to safely lift the vehicle and remove the fuel tank. A 10mm and 12mm wrench or socket set is essential for disconnecting fuel lines and electrical connectors. A flathead screwdriver will help pry off the fuel tank’s protective shield, while a torque wrench ensures bolts are tightened to factory specifications during reassembly. Don’t forget a drain pan to catch residual fuel when disconnecting the tank.
Specialized Equipment for Precision
A fuel line disconnect tool is highly recommended to avoid damaging the quick-connect fittings. If the tank is particularly stubborn, a rubber mallet can gently persuade it loose. For electrical diagnostics, a multimeter is invaluable to test the pump’s functionality before and after replacement. Additionally, a new fuel pump module often comes with a lock ring tool, but having one on hand ensures you’re prepared if it’s missing.
Safety Gear: Non-Negotiable
Working with fuel systems demands caution. Safety goggles protect your eyes from spills, while nitrile gloves prevent skin contact with gasoline. A fire extinguisher should be nearby as a precaution, and ensure the work area is well-ventilated to minimize fumes. Avoid open flames or sparks by using non-sparking tools if available.
Optional but Helpful Tools
A siphon pump can quickly remove fuel from the tank, reducing the mess and risk of spills. A trim removal tool makes accessing the fuel pump access panel inside the vehicle easier without damaging interior components. For those with limited experience, a repair manual specific to the 2003 Matrix provides step-by-step guidance and torque specifications.
Replacing the fuel pump on a 2003 Toyota Matrix is a task that combines mechanical skill with the right tools. By equipping yourself with these essentials, you’ll streamline the process, minimize risks, and ensure a successful repair.
Who Supplies Toyota's Fuel Pumps? Uncovering the Key Manufacturers
You may want to see also
Explore related products
Symptoms of a failing 2003 Matrix fuel pump
The 2003 Toyota Matrix, like many vehicles of its era, relies on a fuel pump to deliver gasoline from the tank to the engine. Located inside the fuel tank, this component is crucial for consistent engine performance. However, when the fuel pump begins to fail, it can manifest in several distinct symptoms that drivers should recognize to avoid potential breakdowns or costly repairs.
One of the earliest signs of a failing fuel pump is engine sputtering or misfiring, particularly at high speeds or under acceleration. This occurs because the pump struggles to maintain adequate fuel pressure, causing an inconsistent fuel supply to the engine. Drivers may notice the vehicle hesitates or jerks when trying to overtake or climb hills. If left unaddressed, this symptom can escalate to stalling, where the engine abruptly shuts off, posing a safety risk, especially in heavy traffic or on highways.
Another telltale symptom is difficulty starting the engine, often accompanied by extended cranking before ignition. A weak fuel pump may not deliver enough fuel to the injectors during startup, making it harder for the engine to turn over. In severe cases, the vehicle may fail to start altogether, leaving drivers stranded. This issue is more pronounced in colder weather or after the car has been sitting for extended periods.
Unusual noises, such as a whining or buzzing sound coming from the fuel tank area, can also indicate a failing fuel pump. This noise is often more noticeable during startup or when the fuel tank is nearly empty. While some noise is normal, a sudden increase in volume or frequency warrants immediate attention. Ignoring this warning sign can lead to complete pump failure, resulting in a no-start condition.
Lastly, a failing fuel pump can trigger the check engine light on the dashboard. While this light can indicate various issues, it often illuminates when the fuel system is not operating correctly. Modern diagnostic tools can pinpoint the exact cause, but drivers should not rely solely on the light to identify the problem. Regular maintenance and awareness of the aforementioned symptoms are key to preventing unexpected failures.
In summary, recognizing the symptoms of a failing fuel pump in a 2003 Toyota Matrix—engine sputtering, difficulty starting, unusual noises, and the check engine light—can save drivers from inconvenience and potential danger. Addressing these issues promptly ensures the vehicle remains reliable and safe on the road.
Step-by-Step Guide to Removing a 1997 Chevy Silverado Fuel Pump
You may want to see also
Explore related products
Cost to replace 2003 Toyota Matrix fuel pump
The fuel pump on a 2003 Toyota Matrix is located inside the fuel tank, a common placement for many modern vehicles to ensure fuel stays cool and reduce the risk of vapor lock. This design, while efficient, complicates replacement, as it requires dropping the tank—a task that demands both time and precision. Understanding this location is crucial for diagnosing issues and estimating repair costs, as labor often constitutes a significant portion of the expense.
Replacing the fuel pump on a 2003 Toyota Matrix typically costs between $400 and $700, depending on whether you opt for OEM or aftermarket parts and whether you tackle the job yourself or hire a professional. The fuel pump assembly itself ranges from $200 to $400, with OEM parts generally costing more than aftermarket alternatives. Labor, if performed by a mechanic, adds another $200 to $300, reflecting the complexity of removing and reinstalling the fuel tank. DIYers can save on labor but should factor in the cost of specialized tools, such as a jack, wrenches, and a fuel line disconnect tool, which can add up to $50 to $100 if not already owned.
For those considering a DIY approach, the process involves several critical steps. First, relieve fuel system pressure by locating the Schrader valve on the fuel rail and attaching a pressure gauge. Next, raise the vehicle securely and remove the fuel tank shield to access the tank. Disconnect the electrical connector and fuel lines, then lower the tank to access the pump assembly. Replace the pump, reinstall the tank, and test for leaks. Caution is essential: work in a well-ventilated area, avoid open flames, and ensure the fuel tank is as empty as possible to minimize spillage.
Comparatively, newer vehicles often feature fuel pumps that are easier to access, reducing replacement costs. For instance, some models place the pump in a module outside the tank, cutting labor time by half. However, the 2003 Matrix’s in-tank design, while less convenient, contributes to the pump’s longevity by keeping it submerged in fuel, which helps dissipate heat. This trade-off highlights why, despite the higher replacement cost, the design remains prevalent in older vehicles.
Finally, preventive maintenance can delay the need for a fuel pump replacement. Regularly replacing the fuel filter, using high-quality gasoline, and keeping the tank at least a quarter full can reduce strain on the pump. For the 2003 Matrix, monitoring symptoms like sputtering, loss of power, or difficulty starting can signal pump failure early, potentially saving hundreds in towing or emergency repairs. While the cost of replacement is significant, understanding the process and taking proactive measures can mitigate both financial and mechanical setbacks.
Oldsmobile Fuel Pump Access: Is It Under the Seat?
You may want to see also
Frequently asked questions
The fuel pump on a 2003 Toyota Matrix is located inside the fuel tank, which is situated beneath the rear seat area of the vehicle.
To access the fuel pump, you need to remove the rear seat cushion, locate the fuel pump access panel, and then disconnect the electrical connectors and fuel lines before removing the pump from the tank.
Yes, ensure the vehicle is on a level surface, relieve fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fuel fumes and fire hazards.
Replacing the fuel pump requires intermediate mechanical skills and specialized tools. If you’re unsure, it’s best to hire a professional to ensure the job is done safely and correctly.
