Mercedes Mullins
The fuel pump on a 2006 Chevy Avalanche is located inside the fuel tank, which is situated beneath the rear of the vehicle. Accessing the fuel pump requires removing the fuel tank, a task that involves disconnecting the fuel lines, electrical connectors, and tank straps. This process is best performed with the vehicle on a lift or securely supported on jack stands to ensure safety and proper access. It’s also recommended to relieve fuel system pressure before starting any work to avoid potential hazards. If you’re not experienced with automotive repairs, consulting a professional mechanic is advisable to ensure the job is done correctly and safely.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the fuel tank or accessing through a service panel |
| Fuel Tank Location | Beneath the vehicle, near the rear axle |
| Tank Removal Necessity | Often required for fuel pump replacement |
| Tools Needed | Jack, jack stands, wrenches, screwdriver, and possibly a fuel line tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Pump Type | Electric in-tank fuel pump |
| Common Issues | Fuel pump failure, clogged fuel filter, or faulty wiring |
| Replacement Difficulty | Moderate to difficult, depending on mechanical skill |
| Estimated Replacement Time | 2-4 hours |
| Cost of Replacement | $200-$500 (parts and labor, depending on location and mechanic) |
Explore related products
What You'll Learn
Fuel pump location in 2006 Chevy Avalanche
The fuel pump in a 2006 Chevy Avalanche is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design choice also ensures that the pump is submerged in fuel, which helps lubricate and cool the motor, extending its lifespan. If you’re attempting to locate or replace the fuel pump, you’ll need to access the fuel tank, which is situated beneath the rear seat area of the vehicle. This placement requires removing the rear seat and insulating material to expose the tank’s top, where the pump assembly is attached.
Accessing the fuel pump involves several steps, starting with relieving the fuel system pressure to prevent accidents. Disconnect the negative battery terminal to ensure safety, then locate the pressure relief valve on the fuel rail and depress it to release pressure. Once the system is safe, remove the rear seat by pulling the release tabs and lifting it out. Peel back the insulating material to reveal the fuel tank’s access panel. The fuel pump module is secured to the tank with a locking ring, which can be removed using a specialized tool or a flathead screwdriver and hammer.
While the process seems straightforward, there are critical cautions to consider. Working with fuel systems carries a risk of fire or explosion, so avoid open flames or sparks. Always wear safety goggles and gloves, and ensure the vehicle is on a level surface with the engine off. If you’re unsure about any step, consult a professional mechanic, as improper installation can lead to fuel leaks or pump failure. Additionally, replacing the fuel pump often requires a new locking ring and fuel filter, so have these components ready before starting the job.
Comparing the 2006 Chevy Avalanche’s fuel pump location to other vehicles highlights its practicality. Unlike older models where pumps were mounted externally, this in-tank design reduces noise and improves efficiency. However, it also means more labor-intensive replacement, as the tank must be partially or fully removed in some cases. For DIY enthusiasts, this setup demands patience and the right tools, but it’s manageable with careful planning. Professional mechanics often complete the job in 2–3 hours, while inexperienced individuals may take longer, depending on their familiarity with the process.
In conclusion, understanding the fuel pump’s location in a 2006 Chevy Avalanche is key to diagnosing issues or performing replacements. Its in-tank placement offers advantages but requires methodical steps to access. By following safety precautions and using the right tools, you can tackle this task effectively, ensuring your vehicle’s fuel system operates reliably. Whether you choose to DIY or seek professional help, knowing the specifics of this component’s location empowers you to make informed decisions about your Avalanche’s maintenance.
Can PCM Detect and Adjust for a Failing Fuel Pump?
You may want to see also
Explore related products
Identifying fuel pump components in Avalanche

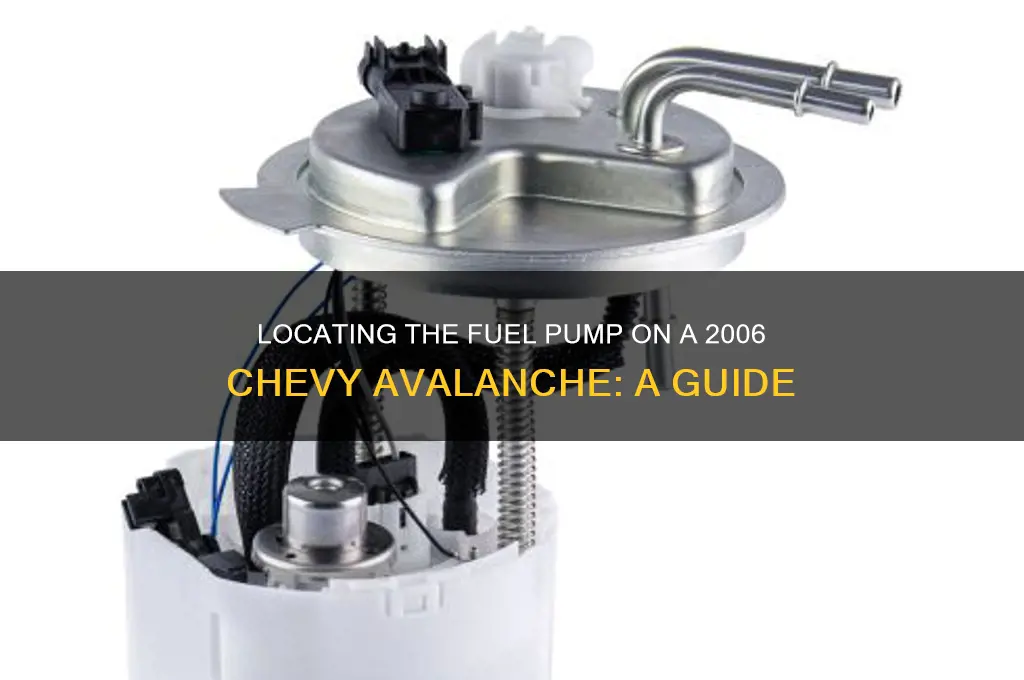

The fuel pump in a 2006 Chevy Avalanche is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. Identifying its components requires understanding both the pump itself and the surrounding system. The fuel pump assembly typically includes the electric pump, a sending unit that monitors fuel levels, and a filter to prevent contaminants from reaching the engine. These components work in tandem to ensure consistent fuel delivery, making their identification crucial for maintenance or troubleshooting.
Analyzing the fuel pump assembly begins with recognizing its modular design. The pump is often integrated into a single unit with the sending unit and filter, which simplifies installation but complicates disassembly. For instance, the sending unit’s float arm moves with fuel levels, providing data to the fuel gauge. If the gauge reads inaccurately, the sending unit may be faulty. The filter, usually a sock-like component over the pump inlet, traps debris but can clog over time, reducing fuel flow. Understanding these interdependencies helps diagnose issues more effectively.
To identify these components, start by locating the fuel tank, typically beneath the rear seat or cargo area. Accessing the pump requires removing the tank or using a specialized access panel, depending on the Avalanche’s configuration. Once exposed, the pump assembly is usually held in place by a locking ring or bolts. Practical tips include relieving fuel system pressure before removal and using a strainer tool to lower the assembly without spilling fuel. Always disconnect the battery to prevent accidental activation of the pump during inspection.
Comparing the 2006 Avalanche’s fuel pump to earlier models highlights advancements in design. Older systems often had external pumps, which were more susceptible to heat and mechanical failure. The in-tank design not only improves reliability but also integrates diagnostics, such as a pump-mounted pressure regulator. This regulator maintains optimal fuel pressure, critical for the Avalanche’s V8 engine performance. Recognizing these upgrades underscores the importance of using OEM parts during replacement to maintain system integrity.
Instructively, identifying fuel pump components involves a systematic approach. First, consult the vehicle’s service manual for specific diagrams and torque specifications. Second, inspect the pump’s electrical connector for corrosion or damage, as poor connections can mimic pump failure. Third, test the pump’s operation by listening for its hum during ignition (key on, engine off). If silent, check the pump relay and fuse. Finally, compare the old and new assemblies to ensure compatibility, especially when upgrading to a higher-performance pump. This methodical process ensures accurate identification and efficient repairs.
Cummins ISX Fuel System: Dual Pumps Explained and Functionality
You may want to see also
Explore related products
Accessing fuel pump in 2006 Avalanche
The fuel pump in a 2006 Chevy Avalanche is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design, while efficient, means accessing the pump requires removing the tank, a task that demands careful planning and execution. Before starting, ensure the vehicle is on a level surface, the fuel tank is as empty as possible, and the battery is disconnected to prevent accidental ignition.
To begin the process, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and pressing the valve stem with the ignition off. This step is crucial to avoid fuel spray and potential hazards. Next, raise the vehicle securely on jack stands to access the underside. The fuel tank is positioned beneath the rear seat area, and you’ll need to remove the skid plate or underbody panels to expose it. Disconnect the fuel lines and electrical connectors, taking note of their positions for reassembly. Use a line disconnect tool to avoid damaging the quick-connect fittings.
Removing the fuel tank involves unbolting the straps that secure it to the chassis. Have an assistant support the tank as you remove the final strap to prevent it from dropping. Once the tank is lowered, the fuel pump module is accessible by removing the locking ring with a specialized tool. Be cautious not to damage the tank or surrounding components during this step. After accessing the pump, inspect it for signs of wear or failure, such as a cracked housing or damaged wiring.
Reinstallation follows the reverse order of removal, with a few critical notes. Ensure the new pump’s seal is properly seated to prevent leaks. Torque the tank straps to specifications to avoid vibration or misalignment. After reassembly, turn the ignition on for a few seconds to pressurize the system, then check for leaks before starting the engine. This methodical approach ensures a safe and effective repair, minimizing the risk of fuel-related accidents.
Efficiently Removing a Fuel Pump Lock Ring: Step-by-Step Guide
You may want to see also
Explore related products
Fuel pump replacement steps for Avalanche
The fuel pump on a 2006 Chevy Avalanche is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design, while efficient, complicates replacement, as it requires removing the tank. Before diving into the process, ensure you have the necessary tools: a jack, jack stands, wrenches, screwdrivers, a new fuel pump module, and safety gear, including gloves and safety goggles. Always work in a well-ventilated area and relieve fuel system pressure before starting.
Begin by disconnecting the battery to prevent electrical accidents. Next, relieve the fuel system pressure using the Schrader valve located near the fuel rail. Once pressure is released, raise the vehicle securely on jack stands to access the fuel tank. Carefully remove the fuel tank shield, if equipped, and disconnect the electrical connector and fuel lines from the pump. These connections are often tight, so use caution to avoid damaging them. Labeling the lines can prevent confusion during reassembly.
With the tank accessible, remove the retaining strap and carefully lower the tank to the ground. Place a drain pan underneath to catch any residual fuel. Once the tank is removed, detach the fuel pump module by turning the locking ring counterclockwise with a strap wrench. Be patient, as these rings can be stubborn. After removing the old pump, inspect the tank for debris or contamination, cleaning it if necessary. Install the new fuel pump module, ensuring the locking ring is tightened securely but not overtightened to avoid damage.
Reassembly is the reverse of removal. Reinstall the tank, reconnect the fuel lines and electrical connector, and reattach the retaining strap. Lower the vehicle, reconnect the battery, and check for leaks by turning the ignition to the "On" position without starting the engine. If no leaks are detected, start the engine and monitor for proper operation. This process, while labor-intensive, is manageable with patience and attention to detail, saving you the cost of professional labor.
Understanding Rocket Fuel Pumps: Mechanics and Functionality Explained
You may want to see also
Explore related products
Common fuel pump issues in 2006 Avalanche
The 2006 Chevy Avalanche, a versatile SUV-pickup hybrid, relies heavily on its fuel pump to deliver gasoline from the tank to the engine. Located inside the fuel tank, this component is crucial for vehicle performance. However, owners often encounter issues that disrupt its functionality. Understanding these common problems can save time and money, ensuring your Avalanche remains reliable.
One prevalent issue is fuel pump failure due to overheating. The 2006 Avalanche’s fuel pump operates in a high-temperature environment, especially during prolonged drives or in hot climates. Over time, the pump’s internal components can degrade, leading to reduced fuel pressure or complete failure. Symptoms include sputtering, stalling, or difficulty starting the engine. To mitigate this, regularly inspect the fuel filter and ensure the tank is never allowed to run dry, as this forces the pump to work harder.
Another common problem is electrical malfunctions. The fuel pump’s wiring harness or relay can corrode or become damaged, interrupting the electrical signal needed to activate the pump. This often manifests as an engine that cranks but doesn’t start. A simple diagnostic step is to listen for the pump’s hum when turning the ignition to the "on" position. If absent, check the fuse and relay in the under-hood fuse box. Replacing these components is relatively inexpensive and can resolve the issue without replacing the entire pump.
Contaminated fuel is a less obvious but equally damaging issue. Debris or water in the fuel tank can clog the pump’s intake or damage its internal mechanisms. This is particularly common in older vehicles like the 2006 Avalanche, where fuel lines and tanks may have accumulated rust or sediment. Using high-quality fuel and adding a fuel system cleaner every 10,000 miles can prevent this. If contamination is suspected, draining and cleaning the tank is essential before replacing the pump.
Lastly, worn-out fuel pump strainers can lead to premature pump failure. The strainer, located at the pump’s inlet, filters debris from the fuel. Over time, it can become clogged, restricting fuel flow and causing the pump to work inefficiently. During fuel pump replacement, always replace the strainer to ensure optimal performance. This small step can extend the life of the new pump and prevent recurring issues.
In summary, addressing fuel pump issues in a 2006 Avalanche requires a proactive approach. Regular maintenance, such as checking for electrical faults, using clean fuel, and replacing auxiliary components like strainers, can prevent costly repairs. By recognizing the signs of failure early, owners can keep their Avalanche running smoothly for years to come.
Priming Your John Deere LT150 Fuel Pump: Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump on a 2006 Chevy Avalanche is located inside the fuel tank, which is situated beneath the rear of the vehicle.
To access the fuel pump, you’ll need to remove the fuel tank. First, relieve the fuel system pressure, then disconnect the negative battery terminal. After that, raise the vehicle, remove the fuel tank straps, and carefully lower the tank to access the pump.
Common issues include fuel pump failure, which can cause the engine to stall or not start. Symptoms may include a whining noise from the fuel tank, difficulty starting, or a check engine light. Regular maintenance and timely replacement can prevent these problems.
