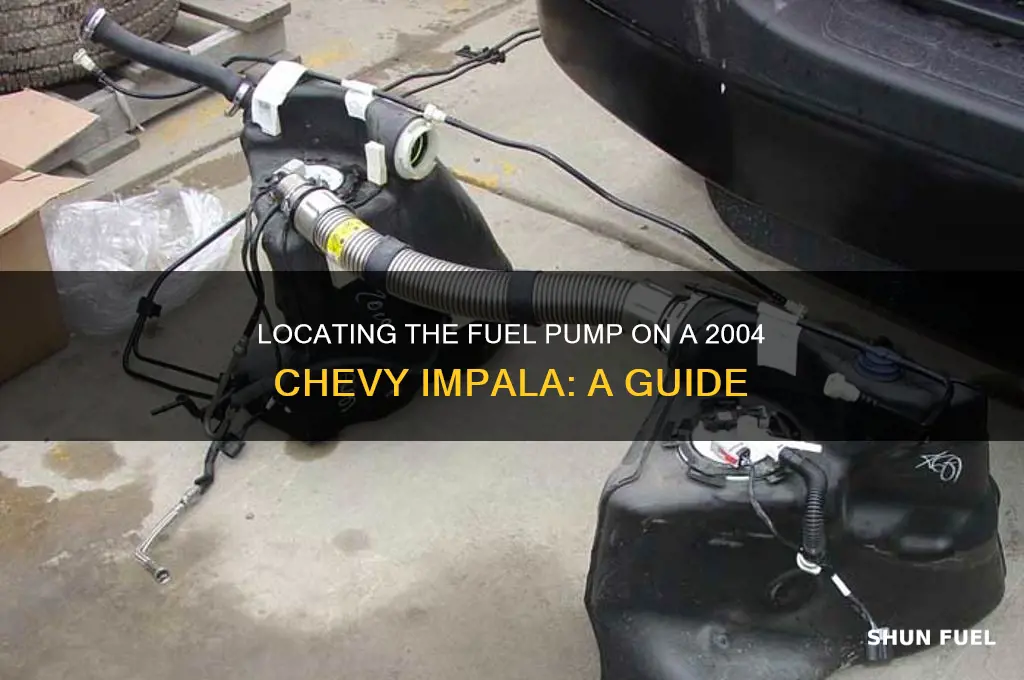

The fuel pump on a 2004 Chevy Impala is located inside the fuel tank, a common placement for most modern vehicles to ensure safety and efficiency. Accessing the fuel pump requires removing the fuel tank, which involves disconnecting the fuel lines, electrical connectors, and tank straps. This task is typically performed when diagnosing fuel delivery issues, such as a failing pump, and should be done with caution to avoid fuel spills or electrical hazards. It’s recommended to consult the vehicle’s service manual or seek professional assistance for accurate and safe removal and replacement.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Point | Beneath the rear seat |
| Tank Removal | Required for pump replacement |
| Tools Needed | Basic hand tools, fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure, disconnect battery |
| Pump Type | Electric, in-tank |
| Compatibility | Specific to 2004 Chevy Impala models |
| Additional Components | Fuel sender unit, fuel filter (if integrated) |
| Replacement Difficulty | Moderate (due to tank removal) |
| Estimated Time | 2-4 hours (depending on experience) |
Explore related products
$16.99 $18.99
What You'll Learn
Fuel pump location in 2004 Impala
The fuel pump in a 2004 Chevy Impala is located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This in-tank design also protects the pump from external damage and keeps it submerged in fuel, which helps to cool the electric motor and extend its lifespan. If you’re experiencing symptoms like a sputtering engine, difficulty starting, or a complete loss of power, the fuel pump could be the culprit, and knowing its location is the first step in diagnosing or replacing it.
To access the fuel pump, you’ll need to remove the fuel tank, a task that requires careful preparation to avoid safety hazards. Start by relieving the fuel system pressure using the Schrader valve located on the fuel rail. Next, disconnect the negative battery terminal to prevent accidental sparks. Once the tank is safely lowered, you’ll find the fuel pump module secured to the top of the tank. This module typically includes the pump, sending unit, and filter, all of which may need inspection or replacement depending on the issue.
Comparing the 2004 Impala’s fuel pump setup to earlier models reveals a shift toward more integrated designs. Older vehicles often had external pumps mounted along the frame or near the engine, which were more accessible but prone to overheating and corrosion. The in-tank design in the 2004 Impala, while more complex to access, offers improved reliability and performance, making it a standard in contemporary automotive engineering.
For DIY enthusiasts, replacing the fuel pump on a 2004 Impala can be a manageable task with the right tools and precautions. You’ll need a jack, jack stands, and a fuel line disconnect tool, along with a new pump module. Always work in a well-ventilated area and avoid open flames or sparks. If you’re unsure about any step, consulting a repair manual or seeking professional assistance is a wise decision to avoid costly mistakes or safety risks.
Finally, understanding the fuel pump’s location and function can save you time and money in diagnostics. Symptoms like a whining noise from the tank area or inconsistent fuel gauge readings may indicate a failing pump or sending unit. Regular maintenance, such as replacing the fuel filter and keeping the tank at least a quarter full to prevent pump overheating, can prolong the life of this critical component. Knowing where to start when issues arise empowers you to tackle repairs with confidence.
Fuel Pump Cleaner at Gas Stations: Availability and Benefits Explained
You may want to see also
Explore related products
Accessing the fuel pump in a 2004 Impala
The fuel pump in a 2004 Chevy Impala is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design, while efficient, means accessing the pump requires removing the tank—a task that demands careful preparation and execution. Before starting, ensure the vehicle is on a level surface, the fuel tank is as empty as possible, and the battery is disconnected to prevent accidental ignition.
To begin, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and pressing the valve stem with the ignition off. This step is critical to avoid fuel spray or pressure-related hazards. Next, raise the vehicle securely on jack stands to access the underside. The fuel tank is positioned beneath the rear seat area, protected by a metal shield. Remove the shield by taking out the retaining bolts, then disconnect the fuel lines, electrical connector, and vapor lines from the tank. Use a line disconnect tool to avoid damaging the quick-connect fittings.
With the tank free from its connections, lower it carefully to access the fuel pump module. The module is held in place by a locking ring, which can be removed using a specialized fuel tank locking ring tool. Once the ring is off, lift the module out of the tank, being mindful of any residual fuel. Inspect the pump and sending unit for wear or damage before replacing or reinstalling the module.
Reassembly follows the reverse order of disassembly, but with added precautions. Ensure all connections are secure and sealed to prevent leaks. After reinstalling the tank, reconnect the battery and turn the ignition to the "on" position (without starting the engine) to pressurize the system. Check for leaks at all connection points before lowering the vehicle and testing the repair. This process, while labor-intensive, is manageable with the right tools and attention to detail.
Understanding Fuel Pump Amperage: How Many Amps Does It Draw?
You may want to see also
Explore related products
Fuel pump replacement steps for 2004 Impala
The fuel pump on a 2004 Chevy Impala is located inside the fuel tank, a common placement for modern vehicles to protect the pump from external damage and maintain fuel pressure. Replacing it requires careful planning and execution to avoid hazards like fuel spills or electrical shorts. Before starting, ensure the vehicle’s fuel tank is as empty as possible to minimize spill risks and reduce the pump’s weight during removal.
Step 1: Preparation and Safety
Begin by disconnecting the negative battery terminal to prevent accidental ignition or electrical issues. Raise the vehicle securely on jack stands to access the fuel tank, which is located beneath the rear seat area. Remove the rear seat by pulling up on the front edge and unhooking the retaining clips. This exposes the fuel pump access panel, a protective cover bolted to the floor.
Step 2: Accessing the Fuel Pump
With the access panel removed, locate the fuel pump module, which includes the pump, sender unit, and locking ring. Use a fuel line quick disconnect tool to detach the fuel lines, taking care to relieve system pressure first by loosening the fuel filler cap. Unplug the electrical connector by pressing the release tab and pulling it apart.
Step 3: Removing the Pump
Insert a locking ring tool into the fuel tank and turn it counterclockwise to release the pump assembly. Slowly lift the module out of the tank, being cautious of residual fuel. Clean the tank opening and inspect the O-ring for damage, replacing it if necessary to ensure a proper seal.
Step 4: Installing the New Pump
Install the new fuel pump module by aligning it with the tank opening and securing it with the locking ring tool. Reattach the fuel lines and electrical connector, ensuring all connections are tight. Reinstall the access panel, lower the vehicle, and reconnect the battery. Test the system by turning the ignition to "On" (without starting) to check for leaks and proper operation.
Cautions and Tips
Always work in a well-ventilated area and avoid open flames or sparks. If the fuel tank is difficult to empty, siphoning or using a transfer pump can reduce spill risks. For stubborn locking rings, applying gentle heat with a hairdryer can ease removal. Finally, prime the new pump by cycling the ignition a few times before starting the engine to prevent dry running.
This process, while detailed, ensures a safe and effective fuel pump replacement for a 2004 Impala, restoring reliable fuel delivery and vehicle performance.
DIY Guide: Replacing the Fuel Pump in a 1992 Cherokee
You may want to see also
Explore related products
Identifying fuel pump issues in 2004 Impala
The fuel pump in a 2004 Chevy Impala is located inside the fuel tank, a common placement for modern vehicles to maintain fuel pressure and ensure consistent delivery to the engine. This design, while efficient, complicates diagnosis and replacement, as accessing the pump requires removing the tank. Understanding this location is the first step in identifying potential fuel pump issues, as symptoms often stem from its in-tank position and the strain of delivering fuel over time.
One telltale sign of a failing fuel pump is a sputtering or surging engine, particularly during acceleration or under load. This occurs when the pump struggles to maintain consistent fuel pressure, leading to an uneven fuel-air mixture. To test this, monitor the engine’s behavior when climbing hills or overtaking; if performance falters, the fuel pump may be weakening. Another symptom is difficulty starting the vehicle, especially in colder temperatures, as a failing pump may not deliver sufficient fuel to initiate combustion.
A more definitive diagnostic method involves checking fuel pressure with a gauge. For a 2004 Impala, the fuel system should maintain pressure between 55 and 61 PSI (pounds per square inch) at idle. If pressure drops below this range or fluctuates, the pump is likely failing. This test requires a fuel pressure tester and access to the fuel rail, typically located near the engine’s intake manifold. Always relieve fuel system pressure before disconnecting lines to avoid hazards.
Comparatively, electrical issues can mimic fuel pump problems, so it’s crucial to inspect the pump’s relay and fuse before assuming mechanical failure. The fuel pump relay in a 2004 Impala is often found in the underhood fuse box, while the fuse is typically located in the interior fuse panel. A blown fuse or faulty relay will prevent the pump from operating, causing symptoms identical to a failed pump. Replacing these components is inexpensive and straightforward, making it a logical first step in troubleshooting.
Preventive maintenance can extend the life of the fuel pump, particularly in older vehicles like the 2004 Impala. Regularly replacing the fuel filter (every 30,000 miles) reduces strain on the pump by ensuring clean fuel flow. Additionally, keeping the fuel tank at least a quarter full minimizes exposure of the pump to air, which can overheat and damage it. While these measures don’t guarantee longevity, they reduce the likelihood of premature failure, saving time and expense in the long run.
Step-by-Step Guide: Installing Kohler Fuel Pump 2555901S on Stump Grinder
You may want to see also
Explore related products
Tools needed to replace 2004 Impala fuel pump
The fuel pump on a 2004 Chevy Impala is located inside the fuel tank, which means replacing it requires a systematic approach and the right tools. Before diving into the process, it’s essential to gather the necessary equipment to ensure a smooth and efficient repair. Here’s a detailed breakdown of the tools you’ll need, along with practical tips to make the job easier.
Essential Tools for the Job:
- Socket and Wrench Set: You’ll need a variety of sockets and wrenches to remove bolts and fasteners, including those securing the fuel tank and pump assembly. Common sizes include 10mm, 12mm, and 15mm.
- Screwdrivers: Both flathead and Phillips screwdrivers may be required for removing panels or accessing electrical connectors.
- Fuel Line Disconnect Tools: These specialized tools are crucial for safely disconnecting the fuel lines without damaging them or causing leaks.
- Jack and Jack Stands: Since the fuel tank is located underneath the vehicle, a jack and stands are necessary to lift the car safely and provide access to the tank.
- Safety Equipment: Wear safety goggles and nitrile gloves to protect yourself from fuel spills and debris. A fire extinguisher should also be nearby as a precaution.
Additional Tools for Precision:
A trim panel removal tool can help you carefully pry off interior panels to access the fuel pump’s electrical connector without causing damage. Additionally, a multimeter is useful for testing the fuel pump’s electrical circuit before and after replacement, ensuring the issue is resolved.
Practical Tips for Success:
Always relieve the fuel system pressure before starting the repair. This can be done by locating the Schrader valve on the fuel rail and using a pressure relief tool to release the pressure safely. Work in a well-ventilated area and avoid open flames or sparks, as fuel vapors are highly flammable.
By equipping yourself with these tools and following safety precautions, you’ll be well-prepared to tackle the fuel pump replacement on your 2004 Chevy Impala efficiently and confidently.
Locating the Fuel Pump on a 1986 Ford F150: A Guide
You may want to see also
Frequently asked questions
The fuel pump on a 2004 Chevy Impala is located inside the fuel tank, which is situated in the rear of the vehicle, beneath the trunk area.
To access the fuel pump, you’ll need to remove the rear seat cushion, locate the fuel pump access panel, and then lower the fuel tank or remove it entirely to reach the pump assembly.
Yes, common issues include fuel pump failure, which can cause the engine to stall or not start, and a faulty fuel pump relay, which may result in intermittent starting problems. Regular maintenance and timely replacement can prevent these issues.
