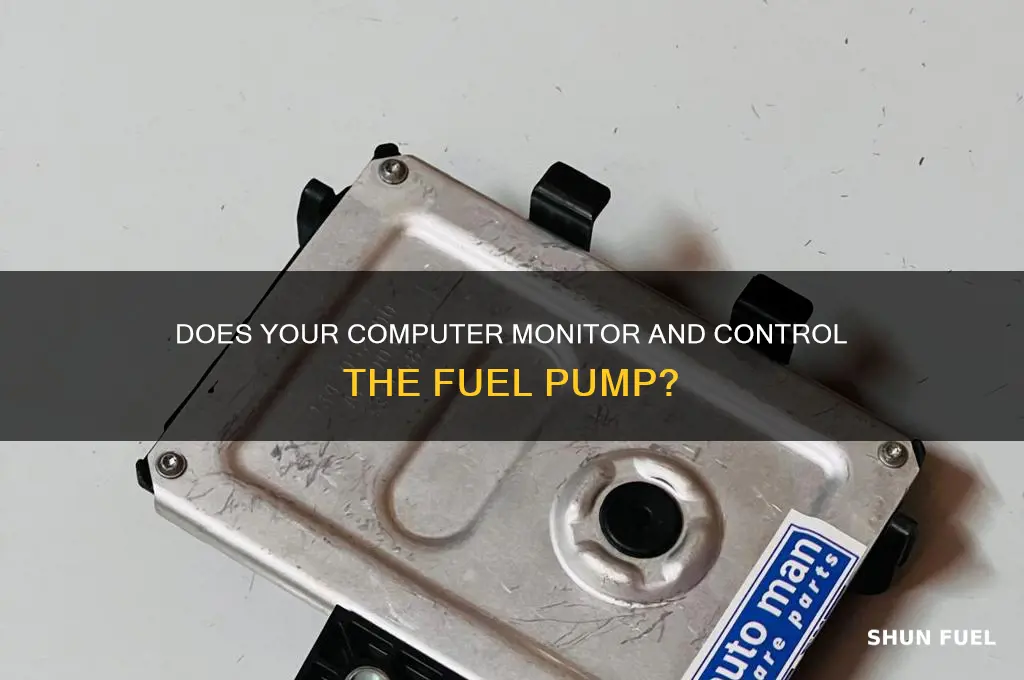

Modern vehicles are equipped with sophisticated onboard diagnostic systems that monitor various components to ensure optimal performance and efficiency. One critical component is the fuel pump, which delivers fuel from the tank to the engine. While a computer, specifically the Engine Control Module (ECM), does not physically check the fuel pump, it plays a crucial role in monitoring its operation. The ECM uses sensors and data inputs to assess the fuel pump's performance, such as fuel pressure and flow rates, and can detect issues like malfunctions or inefficiencies. If a problem is identified, the ECM may trigger a warning light on the dashboard or store a diagnostic trouble code, alerting the driver or mechanic to potential issues with the fuel pump. This integration of computer systems and vehicle components ensures reliable operation and helps prevent costly breakdowns.
| Characteristics | Values |
|---|---|
| Functionality | Monitors and controls fuel pump operation |
| Component Involved | Engine Control Module (ECM) or Powertrain Control Module (PCM) |
| Primary Purpose | Ensures proper fuel delivery to the engine |
| Monitoring Parameters | Fuel pressure, pump performance, and electrical signals |
| Diagnostic Capability | Detects fuel pump malfunctions or failures |
| Feedback Mechanism | Uses sensors (e.g., fuel pressure sensor) to gather data |
| Control Actions | Adjusts fuel pump operation or triggers error codes (e.g., P0230-P0233) |
| Real-Time Monitoring | Continuously checks fuel pump status during engine operation |
| Impact on Performance | Ensures optimal engine performance and fuel efficiency |
| Maintenance Indicator | Alerts driver via check engine light if issues are detected |
| Compatibility | Present in modern vehicles with electronic fuel injection systems |
| Technological Basis | Relies on software algorithms and sensor inputs |
| Failure Consequences | Poor engine performance, stalling, or inability to start |
| Diagnostic Tools | OBD-II scanners can read related error codes |
| Preventive Measures | Regular maintenance and fuel system checks |
Explore related products
What You'll Learn
- Fuel Pump Diagnostics Tools: Software and hardware used to test fuel pump functionality and performance
- Error Code Interpretation: Reading and understanding OBD-II codes related to fuel pump issues
- Pressure Testing Methods: Techniques to measure fuel pump pressure and identify inefficiencies
- Electrical System Checks: Inspecting wiring, relays, and fuses connected to the fuel pump
- Pump Operation Monitoring: Real-time analysis of fuel pump operation during engine runtime
Fuel Pump Diagnostics Tools: Software and hardware used to test fuel pump functionality and performance
Modern vehicles rely on sophisticated systems to monitor and manage fuel delivery, and at the heart of this process is the fuel pump. But how do we ensure this critical component is functioning optimally? Enter fuel pump diagnostic tools—a blend of software and hardware designed to test, analyze, and troubleshoot fuel pump performance. These tools are essential for mechanics and DIY enthusiasts alike, offering precise insights into pressure, flow rate, and electrical integrity. Without them, diagnosing issues like weak fuel delivery or pump failure would be a guessing game.
Hardware Tools: The Physical Inspectors
Handheld fuel pressure testers are the cornerstone of hardware diagnostics. These devices connect directly to the fuel system, measuring pressure under various conditions—idle, acceleration, and load. For instance, a typical fuel-injected engine requires 30–60 PSI, and deviations from this range indicate potential issues. Another critical tool is the multimeter, used to check the fuel pump’s electrical circuit for continuity, voltage, and resistance. For example, a reading of 0.5–2 ohms on a fuel pump’s coil is normal, while higher resistance suggests a failing pump. These tools provide immediate, tangible data, making them indispensable for on-the-spot assessments.
Software Tools: The Digital Analysts
On the software side, scan tools and diagnostic software like OBD-II readers interface with a vehicle’s ECU to retrieve error codes related to the fuel pump. Codes such as P0087 (low fuel pressure) or P0230 (fuel pump circuit malfunction) pinpoint specific issues. Advanced software, such as manufacturer-specific programs (e.g., Ford IDS or Toyota Techstream), offer deeper insights, including live data streams of fuel pressure, pump duty cycle, and voltage. These tools are particularly useful for diagnosing intermittent problems that hardware alone might miss. For instance, a fluctuating duty cycle (normally 20–85%) could indicate a failing pump or clogged filter.
Integrated Systems: Combining Hardware and Software
Modern diagnostic platforms often merge hardware and software into integrated systems. Tools like the Snap-On Verus Edge or Autel MaxiSYS combine physical sensors with cloud-based analytics, providing comprehensive reports. These systems can simulate real-world driving conditions, testing the fuel pump’s performance across RPM ranges and load levels. For example, a technician might use such a tool to verify if a fuel pump delivers 50 liters per hour at 3,000 RPM, as specified by the manufacturer. This integration ensures accuracy and efficiency, reducing diagnostic time from hours to minutes.
Practical Tips for Effective Diagnostics
When using these tools, start with a visual inspection of the fuel pump and its connections. Ensure the fuel filter is clean and the relay is functioning. For software diagnostics, always update the tool’s firmware to ensure compatibility with newer vehicles. If hardware readings show low pressure, cross-reference with software data to confirm if the issue is mechanical or electrical. For DIY users, invest in a mid-range scan tool like the BlueDriver, which balances affordability with functionality. Professionals, however, should opt for high-end systems that offer manufacturer-level diagnostics.
In conclusion, fuel pump diagnostic tools are a blend of precision hardware and intelligent software, designed to tackle the complexities of modern fuel systems. Whether you’re a professional mechanic or a car enthusiast, understanding and utilizing these tools ensures your vehicle’s fuel pump operates at peak efficiency, preventing costly repairs and ensuring reliable performance.
Understanding Roller Cell Fuel Pump Operation: A Comprehensive Guide
You may want to see also
Explore related products
Error Code Interpretation: Reading and understanding OBD-II codes related to fuel pump issues
Modern vehicles rely on sophisticated onboard diagnostics to monitor performance and flag issues, including those related to the fuel pump. When a problem arises, the vehicle’s computer generates OBD-II (On-Board Diagnostics II) error codes, which serve as a roadmap for troubleshooting. Understanding these codes is crucial for pinpointing fuel pump malfunctions, as they can range from electrical faults to mechanical failures. For instance, a common code like P0087 indicates low fuel pressure, often linked to a failing fuel pump or clogged fuel filter. Interpreting these codes correctly is the first step in diagnosing and resolving fuel system issues efficiently.
To read OBD-II codes, you’ll need a scan tool or code reader, which connects to the vehicle’s OBD-II port, typically located under the dashboard. Once connected, the tool retrieves stored codes from the vehicle’s computer. For fuel pump-related issues, codes such as P0230 (fuel pump primary circuit malfunction) or P0232 (fuel pump secondary circuit malfunction) are red flags. However, simply identifying the code isn’t enough; context matters. For example, a P0087 code might also stem from a faulty fuel pressure sensor or a clogged fuel line, so cross-referencing with symptoms like engine sputtering or difficulty starting is essential.
Analyzing OBD-II codes requires a systematic approach. Start by researching the specific code’s definition and potential causes. Online databases like OBD-Codes.com or manufacturer-specific resources provide detailed explanations. Next, inspect the fuel system components associated with the code. For a P0230, check the fuel pump relay, fuse, and wiring harness for damage or corrosion. If the code persists after repairs, consider testing the fuel pump’s output pressure using a gauge, ensuring it meets the manufacturer’s specifications (typically 30–60 psi for most vehicles). This methodical process ensures accurate diagnosis and prevents unnecessary part replacements.
One common misconception is that all fuel pump-related codes necessitate pump replacement. In reality, many issues are electrical or sensor-related. For instance, a P0231 code (fuel pump primary circuit resistance out of range) often indicates a faulty fuel pump driver module or wiring issue rather than a failing pump. To avoid misdiagnosis, always test the circuit’s continuity and voltage before condemning the pump. Additionally, consider the vehicle’s age and mileage; older vehicles may require more frequent fuel pump inspections due to wear and tear.
In conclusion, interpreting OBD-II codes related to fuel pump issues demands a blend of technical knowledge and practical troubleshooting. By leveraging scan tools, cross-referencing symptoms, and conducting targeted tests, you can accurately diagnose problems and avoid costly mistakes. Remember, the goal isn’t just to clear the code but to address the root cause, ensuring the fuel system operates reliably. Whether you’re a DIY enthusiast or a professional mechanic, mastering OBD-II code interpretation is an invaluable skill for maintaining vehicle performance.
Does Your Fuel Pump Run When the Engine is Off?
You may want to see also
Explore related products
Pressure Testing Methods: Techniques to measure fuel pump pressure and identify inefficiencies
Modern vehicles rely on precise fuel delivery systems, and the fuel pump is a critical component in this process. To ensure optimal performance, pressure testing methods are employed to measure fuel pump pressure and identify potential inefficiencies. One common technique is the use of a fuel pressure gauge, which is connected to the fuel rail to provide a direct reading of the pump's output. This method is straightforward and allows for immediate assessment, making it a go-to for many mechanics. However, it’s essential to ensure the gauge is compatible with the vehicle’s fuel system to avoid inaccurate readings or damage.
Another advanced approach involves using a scan tool to monitor fuel pressure data from the vehicle’s onboard computer. This method leverages the existing sensors and diagnostics built into modern cars, providing real-time insights without additional hardware. For instance, a technician can observe fuel pressure fluctuations during different driving conditions, such as idle, acceleration, or deceleration. If the pressure drops below the manufacturer’s specified range—typically between 30 and 60 psi for most vehicles—it indicates a potential issue with the fuel pump or related components. This technique is particularly useful for diagnosing intermittent problems that may not be apparent during a static test.
For a more comprehensive evaluation, a fuel system flow test can be performed. This involves measuring the volume of fuel delivered by the pump over a specific time period, often at different pressure levels. A flow rate below the recommended threshold, usually around 50-70 liters per hour for standard engines, suggests inefficiency or wear in the pump. This method is especially valuable for high-performance or modified vehicles, where fuel demands are greater. It’s crucial to follow the manufacturer’s guidelines for the test procedure, as improper execution can lead to misleading results or system damage.
Lastly, a comparative analysis between the fuel pump’s performance and the vehicle’s symptoms can provide valuable insights. For example, if a driver reports hesitation during acceleration, a pressure test might reveal inconsistent fuel delivery under load. By correlating test data with observed issues, technicians can pinpoint whether the fuel pump is the root cause or if other factors, such as clogged injectors or a faulty pressure regulator, are contributing. This diagnostic approach requires a systematic mindset but is highly effective in resolving complex fuel system problems. Each of these methods serves a unique purpose, and selecting the right one depends on the specific diagnostic needs and the vehicle’s characteristics.
Troubleshooting the 2005 Volvo S60 Fuel Pump: Silent Symptoms Explained
You may want to see also
Explore related products
Electrical System Checks: Inspecting wiring, relays, and fuses connected to the fuel pump
Modern vehicles rely heavily on their electrical systems to ensure optimal performance, and the fuel pump is no exception. A malfunctioning fuel pump can lead to poor engine performance, reduced fuel efficiency, or even a complete breakdown. While the vehicle's computer (ECU) monitors the fuel pump's operation, it's crucial to perform regular electrical system checks to identify potential issues before they escalate.
Analytical Perspective: The fuel pump's electrical circuit is a complex network comprising wiring, relays, and fuses. Each component plays a vital role in delivering the necessary voltage and current to the pump. A single faulty connection or blown fuse can disrupt the entire system, causing the pump to malfunction. For instance, a corroded wire can increase resistance, leading to voltage drops and insufficient power delivery. Similarly, a stuck relay can prevent the pump from receiving the required signal to activate. Understanding these relationships is essential for effective troubleshooting.
Instructive Approach: To inspect the electrical system, start by locating the fuel pump's wiring harness, typically found near the fuel tank or under the rear seat. Use a multimeter to check for continuity in the wires, ensuring there are no breaks or shorts. Next, examine the relay by swapping it with a known good one or using a relay tester to verify its functionality. Fuses should be checked for blown elements, and their ratings should match the manufacturer's specifications. If any issues are found, replace the faulty components and retest the system.
Comparative Analysis: Unlike older vehicles with mechanical fuel pumps, modern electronic pumps require precise electrical signals for operation. This shift has increased the importance of electrical system checks, as even minor discrepancies can affect performance. For example, a fuel pump in a 2005 Toyota Camry may require a specific voltage range (e.g., 12-14V) for optimal operation, whereas a 1990 Honda Civic's mechanical pump relies solely on engine vacuum. This comparison highlights the need for specialized knowledge and tools when working with contemporary fuel systems.
Practical Tips: When performing electrical system checks, always disconnect the battery to prevent accidental shorts. Use a wiring diagram specific to your vehicle's make and model to identify the correct components and their locations. Keep a record of your findings, noting any replaced parts or adjustments made. Regularly inspecting the electrical system, especially in vehicles over 5 years old or with high mileage, can help prevent costly repairs and ensure reliable fuel pump operation. By combining analytical understanding, instructive techniques, and practical precautions, you can effectively maintain your vehicle's fuel pump and overall electrical system.
Fuel Pump Lifespan: How Long Does a 2000 Forester's Last?
You may want to see also
Explore related products
Pump Operation Monitoring: Real-time analysis of fuel pump operation during engine runtime
Modern vehicles rely on sophisticated Engine Control Units (ECUs) to manage critical systems, including the fuel pump. During engine runtime, the ECU continuously monitors fuel pump operation to ensure optimal performance and efficiency. This real-time analysis involves measuring parameters such as fuel pressure, flow rate, and pump speed, which are compared against predefined thresholds. Deviations from these benchmarks trigger diagnostic trouble codes (DTCs), alerting the driver to potential issues before they escalate. For instance, a fuel pressure reading consistently below 45 PSI may indicate a failing pump, prompting immediate attention.
One practical example of real-time monitoring is the use of fuel pressure sensors integrated into the fuel rail. These sensors provide instantaneous data to the ECU, which adjusts fuel delivery to match engine demands. In high-performance vehicles, this process occurs hundreds of times per second, ensuring seamless power delivery. For DIY enthusiasts, investing in an OBD-II scanner can provide access to live fuel pump data, allowing for proactive maintenance. Regularly checking for anomalies, such as erratic pressure fluctuations, can prevent costly repairs and improve fuel economy by up to 10%.
From a comparative standpoint, older carbureted engines lacked the real-time monitoring capabilities of modern fuel-injected systems. Mechanics relied on manual pressure gauges and visual inspections, which were time-consuming and less accurate. Today’s ECUs not only monitor the pump but also optimize its operation based on driving conditions. For example, during cold starts, the ECU may increase fuel pressure to 60 PSI to aid ignition, then reduce it to 50 PSI under cruising conditions. This adaptive approach highlights the importance of real-time analysis in maximizing engine longevity and performance.
Implementing real-time pump operation monitoring requires adherence to specific steps. First, ensure the fuel system is free of contaminants, as debris can damage the pump and skew sensor readings. Second, periodically update the ECU’s firmware to incorporate the latest diagnostic algorithms. Third, use high-quality fuel filters to maintain consistent flow rates. Caution should be exercised when interpreting diagnostic data; false positives can occur due to sensor malfunctions or electrical interference. Always cross-reference live data with symptom-based diagnostics to confirm issues.
In conclusion, real-time analysis of fuel pump operation is a cornerstone of modern vehicle management. By leveraging advanced sensors and ECUs, drivers and mechanics can detect and address issues before they cause significant damage. For those aged 18–35, who often own newer vehicles, understanding this technology can lead to better maintenance habits and savings. Practical tips include monitoring fuel pressure during seasonal changes, as temperature fluctuations can affect pump performance, and keeping a log of diagnostic data for trend analysis. This proactive approach ensures the fuel pump operates efficiently, contributing to a smoother and more reliable driving experience.
Do Lawn Mowers Have Fuel Pumps? A Comprehensive Guide
You may want to see also
Frequently asked questions
Yes, in modern vehicles, the Engine Control Module (ECM) or Powertrain Control Module (PCM) monitors the fuel pump's operation to ensure it delivers the correct fuel pressure and volume.
The computer checks the fuel pump by receiving signals from sensors like the fuel pressure sensor and monitoring the pump's electrical circuit for proper voltage and current.
Yes, the computer can detect issues like low fuel pressure, erratic pump operation, or electrical faults and trigger a diagnostic trouble code (DTC) to alert the driver or mechanic.
If the computer detects a fuel pump issue, it may illuminate the check engine light, store a trouble code, and potentially adjust engine operation to compensate for the problem.
In many vehicles, the computer controls the fuel pump relay, which switches the pump on and off, and may also adjust its speed or duty cycle in systems with variable-speed pumps.
