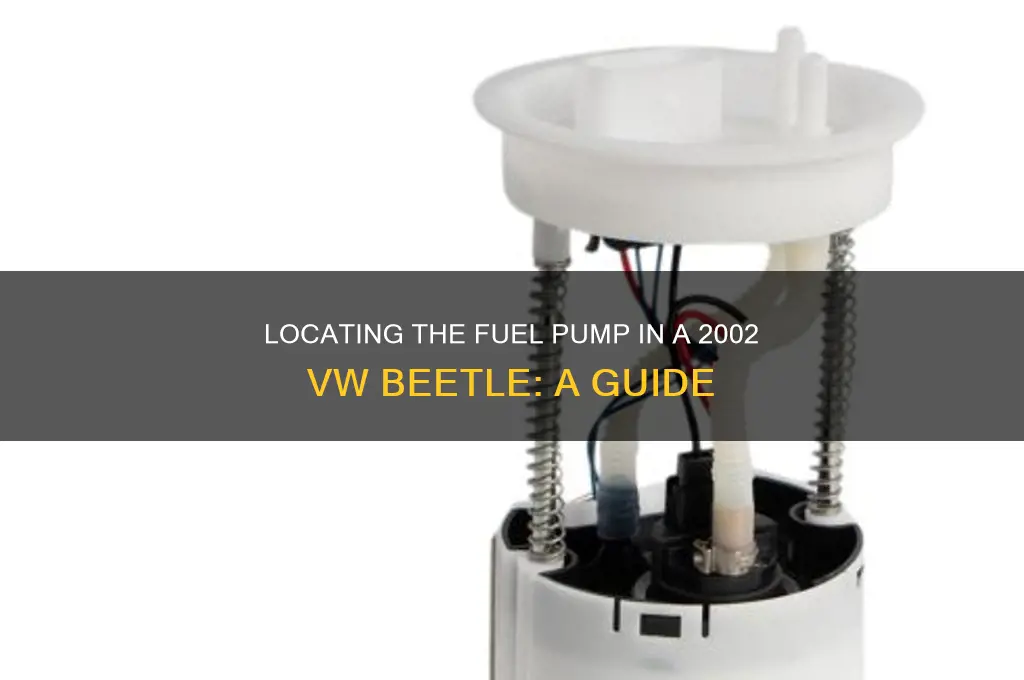

The fuel pump on a 2002 Volkswagen Beetle is located inside the fuel tank, which is situated in the rear of the vehicle, beneath the rear seat area. Accessing the fuel pump requires removing the rear seat cushion and the fuel pump access panel, followed by lowering the fuel tank slightly to reach the pump assembly. This design ensures the fuel pump remains cooled by the fuel and protected from external elements, but it also means that replacing or servicing the pump involves a more involved process, typically requiring specialized tools and precautions to safely work with the fuel system.
Explore related products
What You'll Learn
Fuel pump location in engine bay
The fuel pump in a 2002 VW Beetle is not located in the engine bay, contrary to what one might expect. Instead, it is situated within the fuel tank, a design choice that offers several advantages. This in-tank placement reduces the risk of fuel pump failure due to heat exposure from the engine and ensures a more consistent fuel supply by keeping the pump submerged in fuel, which helps with cooling and lubrication. Understanding this location is crucial for diagnostics and maintenance, as it dictates the steps required to access and replace the pump.
For those unfamiliar with this setup, accessing the fuel pump involves removing the fuel tank, a task that requires careful preparation. Begin by relieving the fuel system pressure and disconnecting the battery to prevent accidents. Next, raise the vehicle and support it securely to access the tank from underneath. Disconnect the fuel lines and electrical connectors, then carefully lower the tank to expose the pump assembly. This process, while straightforward, demands attention to safety and detail, especially when handling fuel components.
Comparing this design to older models or other vehicles where the fuel pump is mounted externally, the in-tank location in the 2002 VW Beetle showcases advancements in fuel system engineering. External pumps are more susceptible to heat damage and noise, whereas in-tank pumps operate quieter and cooler. However, the trade-off is accessibility; replacing an in-tank pump is more labor-intensive than swapping out an external one. This comparison highlights why knowing the exact location is essential for efficient troubleshooting and repair.
A practical tip for DIY enthusiasts: before attempting to replace the fuel pump, verify the issue by checking for common symptoms like engine sputtering, difficulty starting, or a whining noise from the tank. If the pump is indeed faulty, consider replacing the fuel filter simultaneously to ensure optimal performance. While the task may seem daunting, armed with the right knowledge and tools, it becomes manageable. Always refer to a repair manual or seek professional guidance if uncertainty arises during the process.
Step-by-Step Guide to Ordering the Right Fuel Pump for Your Vehicle
You may want to see also
Explore related products
Accessing the fuel pump assembly
The fuel pump assembly in a 2002 VW Beetle is located within the fuel tank, a design choice that enhances safety and efficiency by reducing the risk of fuel line leaks. Accessing this component requires a systematic approach, as it involves working with the vehicle’s fuel system, which demands caution and precision. Before beginning, ensure the vehicle is on a level surface, the engine is cool, and the fuel tank is as empty as possible to minimize spillage and fire hazards.
To access the fuel pump assembly, start by relieving the fuel system pressure. Locate the fuel pump relay in the relay panel, typically found in the engine bay or under the dashboard, and remove it to disable the pump. Next, disconnect the negative battery terminal to prevent accidental activation of electrical components. These preliminary steps are critical to ensure safety and prevent damage to the vehicle’s systems.
With safety measures in place, proceed to remove the fuel tank. This involves raising the vehicle securely on jack stands and locating the fuel tank straps, usually positioned beneath the vehicle near the rear axle. Loosen and remove the straps, then carefully lower the tank to a stable surface. The fuel pump assembly is mounted on the top of the tank, secured by a locking ring or retaining plate. Use the appropriate tool, such as a fuel pump locking ring tool, to release the assembly without damaging the tank.
Once the assembly is exposed, inspect it for signs of wear, corrosion, or damage. Common issues include faulty electrical connectors, a failing pump motor, or a clogged filter. If replacement is necessary, ensure the new assembly is compatible with the 2002 VW Beetle’s fuel system specifications. Reinstallation follows the reverse order of removal, with careful attention to sealing gaskets and securing all connections to prevent leaks.
In summary, accessing the fuel pump assembly on a 2002 VW Beetle is a task that combines mechanical skill with safety awareness. By following a structured process—relieving fuel pressure, disconnecting power, removing the tank, and carefully handling the assembly—even a novice can tackle this repair with confidence. Always prioritize safety and consult a repair manual or professional if uncertainty arises.
