The fuel pump on a 1995 Chevrolet S10 is typically located inside the fuel tank, a common design for many vehicles of that era to protect the pump from external damage and maintain fuel pressure. To access it, you’ll need to remove the fuel tank, which involves safely lowering it from the vehicle after disconnecting the fuel lines and electrical connections. This process requires basic automotive tools and safety precautions, such as relieving fuel system pressure and working in a well-ventilated area. If you’re unsure about the procedure, consulting a repair manual or seeking professional assistance is recommended to ensure the task is completed safely and correctly.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires dropping the fuel tank for access |
| Tank Removal | Necessary to replace or service the fuel pump |
| Fuel Tank Straps | Must be unbolted to lower the tank |
| Fuel Lines | Disconnect fuel lines before removing the tank |
| Electrical Connector | Located on top of the fuel tank near the pump assembly |
| Pump Assembly | Includes the fuel pump, sender unit, and sometimes a filter |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, and possibly a line disconnect tool |
| Safety Precautions | Relieve fuel system pressure and work in a well-ventilated area |
| Model Specifics | Applies to 1995 Chevrolet S10 with in-tank fuel pump |
| Replacement Difficulty | Moderate to difficult due to tank removal requirement |
Explore related products
What You'll Learn
Fuel pump location under the truck bed near the gas tank
The fuel pump on a 1995 S10 is strategically located under the truck bed, in close proximity to the gas tank. This placement is both practical and efficient, as it minimizes the distance fuel needs to travel from the tank to the engine. Understanding this location is crucial for maintenance, troubleshooting, or replacement tasks, as it directly impacts accessibility and the tools required for the job.
When accessing the fuel pump, start by locating the gas tank beneath the truck bed. The fuel pump module is typically mounted directly on top of or near the tank, often secured with a locking ring or bolts. To reach it, you’ll need to remove a section of the bed liner or the bed itself, depending on the model. This process requires basic hand tools like wrenches, screwdrivers, and possibly a trim panel removal tool. Always ensure the vehicle is on a level surface and the fuel system is depressurized before beginning work.
One practical tip is to use a fuel pump module removal tool if available, as it simplifies the process of disconnecting the pump from the tank. Additionally, consider replacing the fuel pump strainer or filter while the module is exposed, as this can prevent future issues. For safety, work in a well-ventilated area and avoid open flames or sparks, as fuel vapors are highly flammable.
Comparing this setup to other vehicles, the 1995 S10’s fuel pump location is relatively straightforward, unlike some models where the pump is submerged inside the tank. This external mounting allows for easier replacement without draining the tank, though it does expose the pump to potential damage from road debris. Regularly inspecting the area around the pump for corrosion or leaks can help extend its lifespan.
In conclusion, knowing the fuel pump’s location under the truck bed near the gas tank empowers S10 owners to tackle maintenance tasks with confidence. By following proper procedures and using the right tools, you can efficiently address fuel system issues and ensure your vehicle runs smoothly. This knowledge not only saves time and money but also enhances your understanding of your truck’s mechanics.
Efficiently Powering Your Fuel Pump: A Comprehensive Step-by-Step Guide
You may want to see also
Explore related products

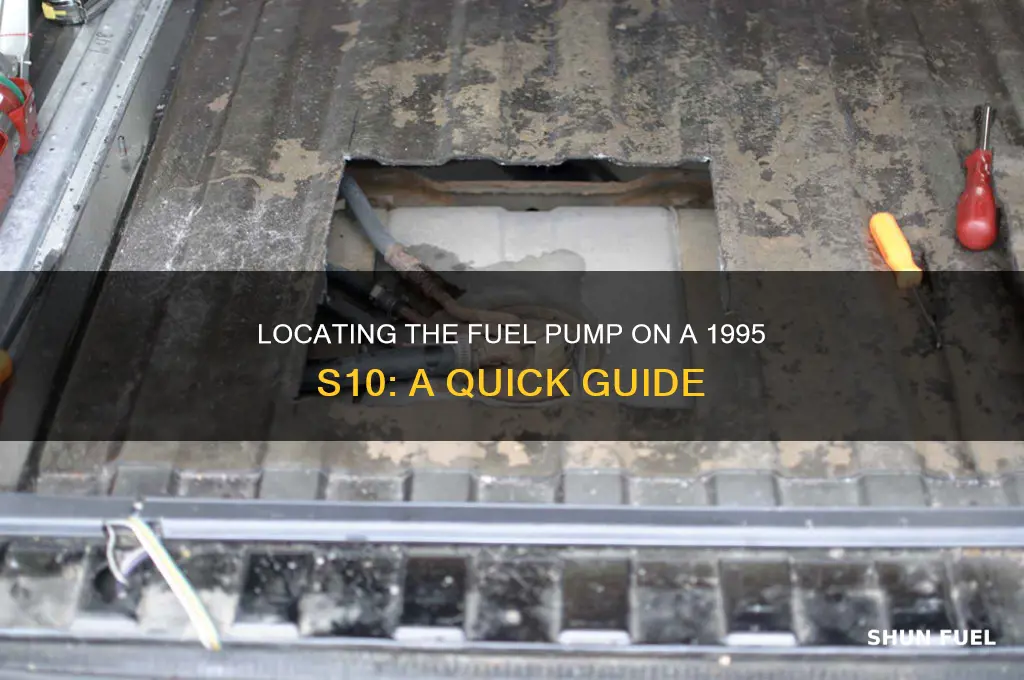

Accessing the fuel pump through the bed access panel
The 1995 Chevrolet S10 pickup truck, like many vehicles of its era, houses its fuel pump within the fuel tank, a design choice that offers both protection and accessibility challenges. For owners and mechanics alike, understanding how to access this component is crucial for maintenance and repairs. One method that stands out for its relative ease and efficiency is accessing the fuel pump through the bed access panel. This approach bypasses the need for extensive disassembly of the vehicle, making it a preferred technique for those looking to save time and effort.
To begin the process, locate the access panel on the bed of the truck, typically situated above the fuel tank. This panel is designed to provide direct access to the fuel pump without requiring the removal of the entire fuel tank, which can be a labor-intensive task. Before proceeding, ensure that the vehicle is on a level surface and that the ignition is turned off to prevent any accidental starts. Safety should always be a priority when working on any vehicle component, especially those related to the fuel system.
Once the access panel is identified, the next step involves removing it to expose the fuel pump. This usually requires unscrewing a few bolts or screws that secure the panel in place. It’s advisable to use the appropriate tools to avoid stripping the fasteners, which can complicate the reassembly process. After removing the panel, you’ll likely encounter a protective cover or insulation that shields the fuel pump assembly. Carefully remove this cover to access the pump itself. This step may require additional tools, such as a trim removal tool, to avoid damaging the surrounding components.
With the fuel pump now accessible, the specific task at hand—whether it’s replacement, inspection, or repair—can be undertaken. For instance, if the fuel pump needs to be replaced, disconnect the electrical connector and fuel lines, taking note of their positions for proper reassembly. When installing a new pump, ensure that all connections are secure and that the pump is properly seated within the tank. After completing the necessary work, reassemble the components in the reverse order, starting with the protective cover and ending with the bed access panel.
Why Your Nissan Sentra Fuel Pump May Be Failing: Causes & Fixes
You may want to see also
Explore related products
![ECCPP® Fuel Pump for: Chevy S10 Blazer & GMC S15 Jimmy 98-03, GMC Envoy 98-00, Oldsmobile Bravada 99-01 [4 DOOR MODELS] E3992M 323-01213](https://m.media-amazon.com/images/I/61phqMlJIIL._AC_UY218_.jpg)
Tools needed for fuel pump removal and replacement
The fuel pump on a 1995 S10 is located inside the fuel tank, which means removing and replacing it requires a specific set of tools to ensure the job is done safely and efficiently. Before diving into the process, it’s crucial to gather the right equipment to avoid complications or damage. Here’s a detailed breakdown of the tools you’ll need, organized to guide you through the task step by step.
Essential Tools for the Job:
- Floor Jack and Jack Stands: These are necessary to safely lift the vehicle and access the fuel tank. Ensure the stands are rated for your S10’s weight.
- Wrench Set or Socket Set: You’ll need these to remove bolts securing the fuel tank straps and other components. Common sizes include 10mm, 12mm, and 15mm.
- Screwdrivers (Flathead and Phillips): Useful for prying or removing smaller components around the fuel tank.
- Fuel Line Disconnect Tools: These specialized tools help safely release the fuel lines without causing leaks or damage.
- Safety Equipment: Safety goggles, gloves, and a fire extinguisher are non-negotiable due to the risk of fuel exposure.
Specialized Tools for Fuel Pump Access:
To access the fuel pump, you’ll need a fuel tank locking ring tool. This tool is designed to remove the retaining ring that holds the fuel pump module in place. Without it, removing the pump can be nearly impossible. Additionally, a drain pan is essential to catch any residual fuel when lowering the tank. If you’re replacing the pump, a torque wrench ensures the new module is secured to factory specifications, typically around 20-25 ft-lbs.
Optional but Helpful Tools:
A ramps can be a safer alternative to jack stands for accessing the underside of the vehicle. A trim panel removal tool can help detach interior panels if you’re accessing the fuel pump through the cabin (though this is less common on the 1995 S10). Finally, a multimeter can be used to test the fuel pump’s electrical connections before and after replacement, ensuring the issue is resolved.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks. Relieve fuel system pressure before starting by loosening the fuel cap or using a pressure relief tool. If you’re unsure about any step, consult a repair manual or seek professional assistance. Proper tool usage not only simplifies the process but also minimizes the risk of injury or vehicle damage.
By equipping yourself with these tools and following safety precautions, you’ll be well-prepared to tackle the fuel pump removal and replacement on your 1995 S10 with confidence.
Diagnosing Fuel Pump Issues: A Step-by-Step Guide to Testing Relay Switches
You may want to see also
Explore related products
Symptoms of a failing fuel pump in a 1995 S10
The fuel pump in a 1995 S10 is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage but complicates access for inspection or replacement. Understanding its location is crucial when diagnosing issues, as symptoms of a failing fuel pump often mimic other problems. For instance, a sputtering engine or difficulty starting could be mistaken for ignition system faults, but the root cause might lie within the fuel delivery system.
One of the earliest signs of a failing fuel pump is a loss of power during acceleration. As the pump weakens, it struggles to deliver sufficient fuel to the engine under load, resulting in hesitation or a noticeable drop in performance. This symptom is particularly evident when driving uphill or towing, where the engine demands more fuel than the pump can supply. If you notice your 1995 S10 struggling to maintain speed or power in these conditions, it’s worth checking the fuel pump’s health.
Another telltale symptom is a high-pitched whine or humming noise coming from the fuel tank area, especially during startup or when the key is turned to the "on" position. A healthy fuel pump operates quietly, but as internal components wear out, it may produce unusual sounds. This noise often indicates that the pump is working harder than normal or that the motor bearings are failing. Ignoring this warning can lead to a complete pump failure, leaving you stranded.
Intermittent stalling or difficulty starting the engine are also common indicators of a failing fuel pump. If the pump cannot maintain consistent fuel pressure, the engine may stall at idle or refuse to start altogether. In some cases, the vehicle might start after multiple attempts, only to stall again shortly after. This inconsistency can be frustrating and is often misdiagnosed as a carburetor or ignition issue. Testing fuel pressure with a gauge can confirm whether the pump is the culprit.
Finally, a failing fuel pump can cause the "check engine" light to illuminate, though this symptom alone is not definitive. Modern diagnostic tools can read error codes related to fuel system issues, such as low fuel pressure or a malfunctioning pump. If your 1995 S10 exhibits any of these symptoms, it’s essential to address the problem promptly. Replacing a fuel pump requires dropping the tank, a task best handled by someone with mechanical experience or a professional technician. Early intervention can prevent further damage and ensure your vehicle remains reliable.
Locate the Fuel Pump Relay in a 2008 Ford Taurus
You may want to see also
Explore related products
Safety precautions when working on the fuel pump system
Working on a fuel pump system, especially on a 1995 S10, demands strict adherence to safety protocols to prevent accidents. Fuel is highly flammable, and even a small spark can lead to a fire or explosion. Before starting, ensure the vehicle is parked on a flat, stable surface, and the engine has cooled down for at least 30 minutes. Always disconnect the battery to eliminate the risk of electrical sparks. This simple step significantly reduces the likelihood of ignition during your work.
Personal protective equipment (PPE) is non-negotiable when handling fuel systems. Wear nitrile gloves to protect your skin from fuel exposure, as gasoline can cause irritation or chemical burns. Safety goggles are essential to shield your eyes from fuel splashes or debris. Additionally, avoid wearing loose clothing or jewelry that could get caught in tools or components. A fire extinguisher rated for Class B fires (flammable liquids) should be within arm’s reach as a precautionary measure.
Ventilation is critical when working on fuel systems to avoid inhaling gasoline vapors, which can cause dizziness, headaches, or more severe health issues. Always work in a well-ventilated area, preferably outdoors. If indoors, ensure the workspace has proper airflow or use a fume extractor. Never smoke or use open flames near the vehicle, and avoid using power tools that could generate sparks unless absolutely necessary.
When removing or installing the fuel pump, relieve the fuel system pressure first to prevent fuel from spraying or spilling. On a 1995 S10, this typically involves locating the Schrader valve on the fuel rail and pressing it with a tool to release pressure. Use a drain pan to catch any fuel that may leak during the process. After completing the work, inspect all connections thoroughly for leaks. A simple way to check for leaks is to spray soapy water around the connections and look for bubbles.
Finally, proper disposal of fuel and contaminated materials is a critical safety and environmental consideration. Never pour fuel down drains or onto the ground. Store it in an approved container and dispose of it at a designated hazardous waste facility. Clean tools and rags contaminated with fuel immediately, as they can ignite spontaneously when left unattended. By following these precautions, you minimize risks and ensure a safe working environment when addressing the fuel pump system on a 1995 S10.
Electric Fuel Pumps: Understanding the Role of Check Valves
You may want to see also
Frequently asked questions
The fuel pump on a 1995 S10 is located inside the fuel tank.
To access the fuel pump, you need to remove the fuel tank from the vehicle, as the pump is mounted inside the tank.
Yes, ensure the fuel system is depressurized, disconnect the battery, and work in a well-ventilated area to avoid fire hazards.
No, the fuel pump is an in-tank unit, so the tank must be removed to access and replace it.
You’ll need basic hand tools, a fuel line disconnect tool, a jack and jack stands, and possibly a specialty tool to lock the fuel pump retaining ring.
