The fuel pump on a 2005 Chevrolet Cavalier is located inside the fuel tank, a common placement for many modern vehicles to ensure safety and efficiency. Accessing the fuel pump requires removing the fuel tank, which is typically mounted beneath the rear seat area or the trunk floor. This design protects the pump from external damage and maintains a consistent fuel supply by submerging it in gasoline, reducing the risk of overheating. To replace or service the fuel pump, you’ll need to safely lower the fuel tank, disconnect the electrical and fuel lines, and then remove the pump assembly from the tank. Always ensure the fuel system is depressurized and work in a well-ventilated area to avoid hazards.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removal of the fuel tank for access |
| Fuel Tank Removal | Tank must be lowered or removed from the vehicle |
| Tank Straps | Two straps secure the fuel tank to the vehicle chassis |
| Pump Module | Integrated with the fuel sender unit as a single module |
| Electrical Connector | Located on top of the fuel tank, accessible without removing the tank |
| Fuel Lines | Connected to the pump module inside the tank |
| Difficulty Level | Moderate to difficult, requires specialized tools and safety precautions |
| Safety Precautions | Relieve fuel system pressure and disconnect battery before service |
| Common Issues | Pump failure, electrical connector corrosion, or fuel filter clogging |
| Replacement Considerations | Entire pump module replacement is typically recommended |
Explore related products
What You'll Learn
Fuel Pump Location Basics
The fuel pump in a 2005 Chevrolet Cavalier is located inside the fuel tank, a common placement in modern vehicles to reduce the risk of fire and maintain fuel pressure. This design ensures that the pump operates submerged in fuel, which helps in cooling the motor and preventing vapor lock, a condition where fuel vaporizes and disrupts fuel delivery. Understanding this basic layout is crucial for diagnostics, maintenance, or replacement tasks.
Analyzing the Cavalier’s fuel system reveals a modular approach: the fuel pump assembly typically includes the pump, a strainer to filter debris, and a sending unit for the fuel gauge. Accessing this assembly requires removing the fuel tank, a task that demands caution due to the flammable nature of gasoline. Always relieve fuel system pressure and disconnect the battery before proceeding. This setup contrasts with older vehicles, where external pumps were more common, and highlights the evolution of fuel delivery systems for efficiency and safety.
For DIY enthusiasts, locating the fuel pump involves identifying the fuel tank’s position beneath the rear seat or trunk area, depending on the Cavalier’s body style. Sedans usually have the tank under the rear seat, while coupes may place it in the trunk. A practical tip: use a vehicle-specific repair manual to pinpoint exact mounting points and fasteners. This knowledge streamlines the process and reduces the risk of damaging surrounding components during disassembly.
Comparatively, the 2005 Cavalier’s fuel pump design shares similarities with other GM vehicles of the same era, such as the Pontiac Sunfire. However, differences in tank size and mounting hardware may exist, emphasizing the importance of model-specific research. For instance, the Cavalier’s pump often requires a specialized locking ring tool for removal, a detail often overlooked in generic repair guides.
In conclusion, mastering the basics of the 2005 Cavalier’s fuel pump location involves recognizing its in-tank placement, understanding its integrated components, and applying model-specific techniques for access and removal. This knowledge not only aids in troubleshooting but also ensures safe and efficient repairs, making it an essential skill for both professionals and hobbyists alike.
DIY Guide: Replacing the Fuel Pump in a 2006 Saturn Ion
You may want to see also
Explore related products
Accessing the Fuel Tank
The fuel tank on a 2005 Chevrolet Cavalier is located beneath the rear seat, a design choice that maximizes cabin space while protecting the tank in a collision. This placement, however, complicates access for maintenance or fuel pump replacement. Unlike vehicles with external access panels, the Cavalier requires partial disassembly of the interior to reach the tank. This design underscores the importance of understanding the process before attempting any work, as improper handling can lead to safety hazards or damage.
To access the fuel tank, begin by relieving the fuel system pressure to prevent accidental fuel spray or fires. Locate the pressure relief valve, typically near the engine bay, and follow the manufacturer’s procedure to depressurize the system. Next, remove the rear seat by pulling up on the front edge to release the retaining clips, then lift the seat assembly out of the vehicle. This exposes the fuel tank access panel, secured by screws or bolts along its perimeter. Remove these fasteners and set the panel aside, taking care not to damage any wiring or hoses connected to the tank.

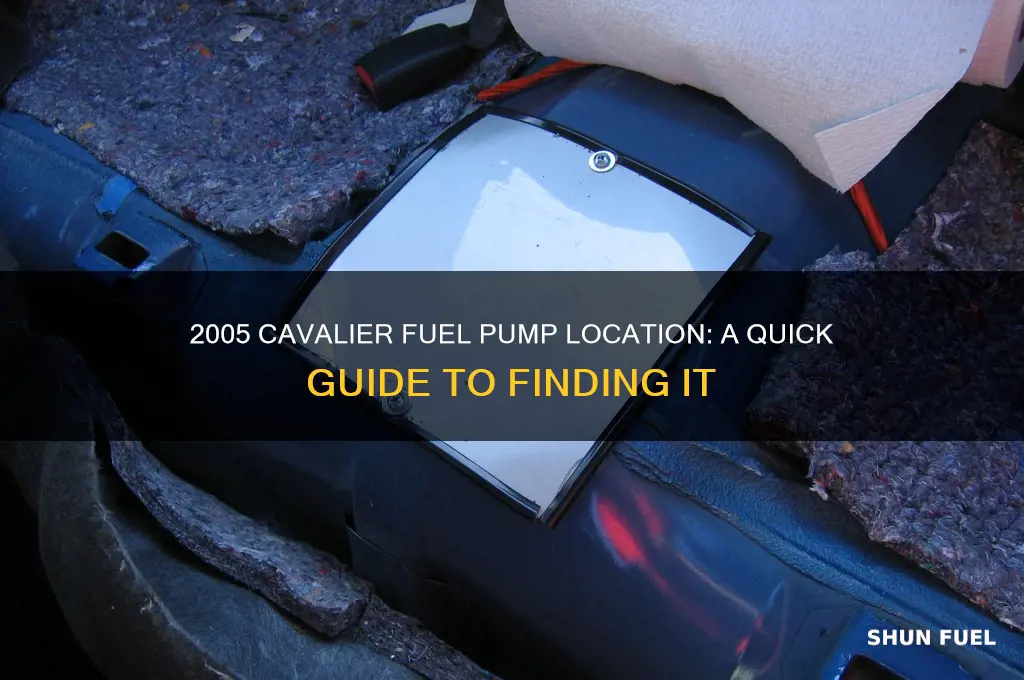

Once the access panel is removed, the fuel pump module becomes visible. This assembly typically includes the pump, sending unit, and float, all housed within the tank. Disconnect the electrical connector and fuel lines, noting their positions for reassembly. Depending on the model, a locking ring or retaining mechanism secures the module to the tank. Use the appropriate tool to release this mechanism and carefully lift the module out of the tank. Be prepared for residual fuel to spill, so have absorbent materials ready and work in a well-ventilated area.
Safety is paramount when accessing the fuel tank. Always work in a location free from open flames, sparks, or other ignition sources. Wear safety goggles and gloves to protect against fuel exposure, and ensure the vehicle is on a level surface with the ignition turned off. If the tank is more than half full, consider siphoning fuel to reduce weight and spillage risk. For those unfamiliar with fuel system mechanics, consulting a professional or detailed repair manual is advisable to avoid costly mistakes or accidents.
In comparison to vehicles with underbody fuel tanks, the Cavalier’s design offers both advantages and challenges. While the in-cabin location provides better protection from road debris and impacts, it demands more labor-intensive access for repairs. This trade-off highlights the importance of weighing safety against convenience in automotive engineering. For Cavalier owners, understanding this unique design ensures efficient maintenance and prolongs the vehicle’s lifespan. With patience and the right tools, accessing the fuel tank becomes a manageable task, even for DIY enthusiasts.
BMW E46 320d Fuel Pump Relay Location Guide
You may want to see also
Explore related products
Identifying the Pump Assembly
The fuel pump assembly on a 2005 Chevrolet Cavalier is located inside the fuel tank, a common placement for many modern vehicles to ensure the pump remains cooled by the fuel and to reduce the risk of ignition in the event of a leak. Identifying the pump assembly begins with understanding its role: it’s a modular unit that includes the electric fuel pump, a sender unit for the fuel gauge, and often a filter sock to prevent debris from entering the system. This integrated design simplifies installation and replacement but requires removing the fuel tank to access it.
To locate the assembly, start by identifying the fuel tank itself, typically positioned beneath the rear seat or trunk area. The pump assembly is attached to the top of the tank, secured by a locking ring or retaining mechanism. Visually, it appears as a cylindrical or rectangular module with electrical connectors and fuel lines leading to the engine. If you’re unsure, consult the vehicle’s service manual for a diagram or photograph of the assembly in its installed position.
When identifying the pump assembly for replacement, inspect the electrical connectors for corrosion or damage, as these are common failure points. The filter sock should also be examined for clogging, which can restrict fuel flow and mimic pump failure symptoms. If the assembly is being removed, note the orientation of the locking ring or retaining mechanism to ensure proper reassembly. Mishandling this component can lead to leaks or improper sealing.
A practical tip for confirmation: disconnect the fuel line at the engine and crank the engine briefly to check for fuel delivery. If no fuel is expelled, the issue may indeed be with the pump assembly. However, always rule out electrical faults first, such as a blown fuse or faulty relay, before assuming the pump itself is defective. This diagnostic step can save time and prevent unnecessary tank removal.
In summary, identifying the fuel pump assembly on a 2005 Cavalier involves recognizing its integrated design, locating it atop the fuel tank, and inspecting related components for signs of wear or damage. Understanding its function and accessibility ensures a more efficient diagnosis and replacement process, minimizing downtime and potential errors.
Locating Your Prius Fuel Pump: A Comprehensive Guide for Owners
You may want to see also
Explore related products
Safety Precautions for Removal
Before attempting to remove the fuel pump on a 2005 Cavalier, it's crucial to understand the potential hazards involved. Fuel is highly flammable, and even a small spark can lead to a dangerous situation. The fuel pump is located in the fuel tank, which is situated underneath the rear seat. This means you'll be working with fuel lines and electrical connections, both of which require careful handling.
Analyzing the Risks: The primary risks associated with fuel pump removal include fuel spillage, electrical shorts, and potential ignition sources. Fuel spillage can occur if the fuel lines are not properly disconnected or if the fuel tank is not adequately depressurized. Electrical shorts can happen if the wiring harness is damaged or if tools come into contact with live wires. To mitigate these risks, it's essential to follow a systematic approach. Start by relieving the fuel system pressure using the Schrader valve located on the fuel rail. This will prevent fuel from spraying out when the lines are disconnected.
Step-by-Step Safety Measures: Begin by disconnecting the battery to eliminate any chance of electrical sparks. Use a suitable wrench or pliers to loosen the fuel lines, but be cautious not to damage the fittings. Have a drain pan ready to catch any residual fuel. Once the lines are disconnected, carefully remove the fuel pump module, taking note of its orientation for reinstallation. Inspect the fuel tank and surrounding area for any signs of corrosion or damage, as this could compromise the integrity of the fuel system.
Comparative Safety Tips: Unlike working on older carbureted systems, modern fuel-injected vehicles like the 2005 Cavalier require more precise safety measures. The higher fuel pressures and electronic components demand a more meticulous approach. For instance, using non-conductive tools can reduce the risk of electrical shorts, and wearing safety goggles can protect against fuel splashes. Additionally, working in a well-ventilated area can minimize the inhalation of fuel vapors, which can be harmful over time.
Practical Takeaways: Always have a fire extinguisher nearby when working on fuel systems. If a spill occurs, use an absorbent material to clean it up immediately. Avoid smoking or using open flames in the vicinity. After completing the removal, double-check all connections and ensure the fuel system is properly sealed before reapplying power. By adhering to these safety precautions, you can significantly reduce the risks associated with fuel pump removal on a 2005 Cavalier, ensuring a safer and more successful repair process.
Mastering Fuel Pump Sales: Proven Strategies to Boost Your Profits
You may want to see also
Explore related products
Tools Needed for Replacement
Replacing the fuel pump on a 2005 Cavalier requires a specific set of tools to ensure the job is done efficiently and safely. The fuel pump is located in the fuel tank, which means you’ll need tools to access and remove the tank, as well as specialized equipment to handle the fuel lines and electrical connections. Here’s a breakdown of the essential tools you’ll need for this task.
Step 1: Accessing the Fuel Tank
To begin, you’ll need a jack and jack stands to safely lift the vehicle and access the underside. A wrench set, including both standard and metric sizes, is crucial for removing bolts securing the tank straps. Additionally, a flathead screwdriver or pry bar can help loosen any stubborn components. For safety, ensure the vehicle is on a level surface and the ignition is off to prevent accidental sparks.
Cautionary Note: Handling Fuel
Before proceeding, invest in a fuel line disconnect tool to safely release pressure in the lines and avoid spills. A drain pan is also essential to catch any residual fuel when removing the tank. If you’re unsure about handling fuel systems, consider wearing safety goggles and nitrile gloves to protect against spills and fumes.
Specialized Tools for the Fuel Pump
Once the tank is removed, you’ll need a fuel pump module removal tool to extract the pump assembly without damaging the locking ring. A torque wrench is critical for reinstalling the new pump to manufacturer specifications, typically around 20-25 ft-lbs. For electrical connections, a multimeter can verify power and ground before reassembly, ensuring the new pump functions correctly.
Practical Tips for Efficiency
To streamline the process, organize your tools in a tray or toolbox for easy access. Label bolts and components as you remove them to simplify reassembly. If you’re replacing the pump due to a failure, consider replacing the fuel filter and tank seal simultaneously to prevent future issues. Finally, always refer to a repair manual or online guide specific to the 2005 Cavalier for detailed instructions tailored to your vehicle.
By gathering these tools and following these steps, you’ll be well-prepared to tackle the fuel pump replacement with confidence and precision.
Step-by-Step Guide: Testing Your Volvo Fuel Pump Relay Easily
You may want to see also
Frequently asked questions
The fuel pump on a 2005 Cavalier is located inside the fuel tank.
To access the fuel pump, you need to remove the fuel tank. This involves draining the fuel, lowering the tank, and then removing the pump assembly from the top of the tank.
Yes, always relieve the fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards.
No, the fuel pump is an in-tank unit, so the tank must be removed to access and replace it.
Common signs include difficulty starting, sputtering at high speeds, loss of power, and a whining noise from the fuel tank area.
