Testing a Volvo fuel pump relay is a crucial diagnostic step to ensure your vehicle’s fuel system operates efficiently. The fuel pump relay acts as a switch, controlling the power supply to the fuel pump, and a faulty relay can lead to engine stalling, difficulty starting, or poor performance. To test it, you’ll need a multimeter and a basic understanding of electrical circuits. Start by locating the relay, typically found in the fuse box under the hood or inside the cabin. With the ignition off, remove the relay and inspect it for physical damage. Next, use the multimeter to check for continuity across the relay’s terminals, ensuring the circuit is complete when activated. If the relay fails the test, it’s likely defective and should be replaced. Always refer to your Volvo’s service manual for specific relay locations and testing procedures to ensure accuracy.
| Characteristics | Values |
|---|---|
| Relay Location | Typically found in the fuse box under the hood or near the battery. |
| Tools Required | Multimeter, screwdriver, jumper wires (optional). |
| Testing Method 1: Visual Inspection | Check for corrosion, damage, or loose connections. |
| Testing Method 2: Continuity Test | Use a multimeter to test continuity between relay terminals (e.g., 30 to 87). |
| Testing Method 3: Power Supply Test | Apply power to the relay coil (terminals 85 and 86) and check for voltage at terminals 30 and 87. |
| Testing Method 4: Activation Test | Listen for the fuel pump humming sound when turning the ignition to the "ON" position. |
| Common Symptoms of Failure | Engine cranks but doesn’t start, no fuel pressure, or intermittent starting issues. |
| Replacement Relay | Ensure the replacement relay matches the original part number and specifications. |
| Safety Precautions | Disconnect the battery before testing to avoid electrical hazards. |
| Applicable Volvo Models | V70, S60, XC90, S80, and other models with similar fuel pump relay systems. |
| Diagnostic Codes | Check for error codes related to fuel pump or relay issues (e.g., P0087). |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay's position in the fuse box
- Check for Power: Use a multimeter to test input and output voltage
- Inspect Connections: Ensure all relay terminals are clean and securely connected
- Swap Relays: Test by replacing with a known-good relay for functionality
- Listen for Operation: Activate the pump and listen for relay clicking sounds
Locate the Relay: Identify the fuel pump relay's position in the fuse box
The fuel pump relay in a Volvo is a critical component, often tucked away in the fuse box, which can be a maze of similar-looking parts. Locating it is the first step in any diagnostic or testing process. Volvo models typically house the fuse box under the hood or occasionally inside the cabin, near the driver’s side dashboard. Start by consulting your vehicle’s manual, which provides a diagram labeling the fuse box layout, including the fuel pump relay’s exact position. This step is non-negotiable, as misidentifying the relay can lead to testing errors or accidental damage to other components.
Analyzing the fuse box layout reveals a systematic organization, with relays and fuses grouped by function. The fuel pump relay is usually labeled as "FUEL PUMP" or "FP RELAY" and is often located near other engine management components. If your Volvo is an older model, the relay might be less conspicuously marked, requiring a closer inspection. A practical tip is to use a flashlight and a magnifying glass to scrutinize the labels, especially in low-light conditions. Understanding this layout not only speeds up the process but also builds familiarity with your vehicle’s electrical system.
Persuasively, locating the fuel pump relay correctly is the linchpin of any testing procedure. Without precise identification, subsequent steps like voltage testing or resistance checks become futile. For instance, mistakenly testing a different relay could yield false results, leading to unnecessary part replacements or misdiagnoses. Volvo owners should approach this step methodically, cross-referencing the manual with the physical layout to ensure accuracy. This diligence saves time and prevents frustration down the line.
Comparatively, while some vehicles place the fuel pump relay in a standardized location, Volvo’s design varies across models and years. For example, a 2005 Volvo S60 may have the relay in a different position than a 2012 XC90. This variability underscores the importance of model-specific research. Online forums and Volvo enthusiast communities can provide additional insights, but always verify information against your vehicle’s manual. This comparative approach ensures you’re working with the correct data for your specific car.

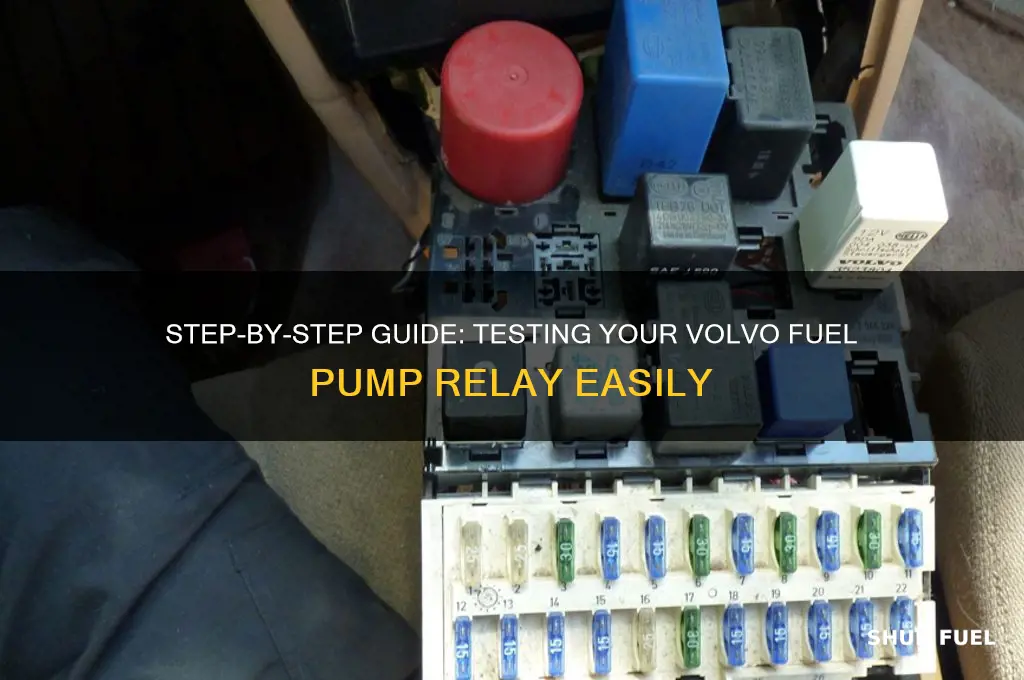

Descriptively, the fuse box is a compact yet intricate hub of electrical activity. The fuel pump relay, often a small black or gray rectangular component, is nestled among rows of fuses and other relays. Its position may be slightly elevated or recessed, depending on the design. Once located, gently probe around it to familiarize yourself with its placement. This tactile understanding aids in future maintenance tasks and reinforces your confidence in handling vehicle diagnostics. By mastering this step, you transform a potentially daunting task into a straightforward process.
Understanding Fuel Pumps: How They Work and Keep Engines Running
You may want to see also
Explore related products
Check for Power: Use a multimeter to test input and output voltage
A faulty fuel pump relay can leave your Volvo stranded, but before replacing it, verify the issue with a multimeter. This essential tool allows you to check for power at the relay, pinpointing whether the relay itself is the culprit or if the problem lies elsewhere in the circuit.
Understanding the Relay’s Role: The fuel pump relay acts as a switch, controlling power delivery to the fuel pump. When you turn the ignition, the relay receives input voltage from the battery and, if functioning correctly, sends output voltage to the fuel pump. Testing both input and output voltage ensures the relay is receiving power and transmitting it properly.
Step-by-Step Testing: Begin by locating the fuel pump relay in your Volvo’s fuse box. Consult your vehicle’s manual for its exact position. With the multimeter set to DC voltage, connect the black probe to a good ground (like the battery negative terminal) and the red probe to the relay’s input terminal. Turn the ignition to the “on” position (not start) and check for 12 volts—the standard operating voltage for most vehicles. If no voltage is present, the issue lies upstream of the relay, such as a blown fuse or faulty ignition switch.
Next, move the red probe to the relay’s output terminal. With the ignition still on, you should read 12 volts here if the relay is functioning. If voltage is absent, the relay is likely defective. However, if voltage is present at the output but the fuel pump isn’t operating, the problem may be with the pump itself or the wiring between the relay and pump.
Practical Tips: Always ensure the vehicle is off when connecting the multimeter to avoid short circuits. If testing with the ignition on, be cautious of moving parts under the hood. For precise readings, use a digital multimeter with a minimum resolution of 0.1 volts. If you’re unsure about relay terminal designations, refer to a wiring diagram specific to your Volvo model.
By systematically checking input and output voltage, you can diagnose fuel pump relay issues with confidence, saving time and money on unnecessary repairs. This methodical approach ensures you address the root cause, not just the symptoms.
Can-Am Commander Fuel Pump Float: Troubleshooting and Maintenance Tips
You may want to see also
Explore related products
Inspect Connections: Ensure all relay terminals are clean and securely connected
Corroded or loose relay terminals can mimic a faulty fuel pump relay, leading to misdiagnosis and unnecessary part replacements. Before condemning the relay itself, inspect the connections for cleanliness and security. This simple step often resolves intermittent fuel pump operation or no-start conditions.
A thorough inspection begins with disconnecting the relay and examining each terminal. Look for signs of corrosion, such as greenish deposits or a white, powdery residue. These indicate oxidation, which increases electrical resistance and disrupts current flow. Gently clean the terminals using a wire brush or fine-grit sandpaper, ensuring you remove all contaminants without damaging the metal.
After cleaning, reassemble the relay, ensuring each terminal is firmly seated. A loose connection can cause voltage drops, leading to insufficient power reaching the fuel pump. Wiggle each terminal slightly to check for play; if any feel loose, bend the terminal tabs slightly to create a tighter grip. Avoid over-bending, as this can weaken the metal and cause future issues.
For added protection, apply a small amount of dielectric grease to the terminals. This non-conductive lubricant displaces moisture, prevents corrosion, and ensures a stable connection. Use a minimal amount, as excess grease can attract dirt and debris, counteracting its benefits.
By prioritizing clean and secure relay connections, you eliminate a common source of fuel pump relay issues. This simple yet crucial step saves time, money, and frustration, ensuring accurate diagnosis and reliable vehicle operation.
Voltage Regulator Failure: The Hidden Cause of Fuel Pump Power Loss?
You may want to see also
Explore related products
Swap Relays: Test by replacing with a known-good relay for functionality
A straightforward yet effective method to diagnose a faulty Volvo fuel pump relay is to swap it with a known-good relay. This approach eliminates guesswork by directly comparing the performance of the suspected relay against a verified functional one. If the issue resolves after the swap, the original relay is likely the culprit. This method is particularly useful when other diagnostic tools or symptoms point to the relay but don’t provide definitive proof of failure.
Begin by locating the fuel pump relay in your Volvo’s fuse box, typically found in the engine bay or under the dashboard. Consult your vehicle’s manual or online resources specific to your Volvo model to identify the correct relay. Once located, carefully remove the relay by pulling it straight out of its slot. Ensure the ignition is off to avoid electrical hazards. Have a known-good relay ready—either from another part of your vehicle (if compatible) or a trusted source. Insert the replacement relay into the same slot, ensuring it clicks securely into place.
After the swap, start the vehicle and observe its behavior. If the fuel pump engages and the engine runs smoothly, the original relay is confirmed faulty. However, if the issue persists, the problem may lie elsewhere, such as the fuel pump itself, wiring, or another component in the fuel system. In this case, further diagnostics are necessary. Always retest the known-good relay in its original position to ensure it wasn’t damaged during the test.
This method is cost-effective and time-efficient, requiring no specialized tools beyond a replacement relay. It’s a practical first step before investing in more complex diagnostics or parts replacements. However, exercise caution when handling electrical components, and ensure the replacement relay is compatible with your Volvo’s system to avoid damage. By systematically swapping relays, you can isolate the issue with confidence and proceed with the appropriate repair.
Does the 1987 IROC-Z Camaro Feature Dual Fuel Pumps?
You may want to see also
Explore related products
Listen for Operation: Activate the pump and listen for relay clicking sounds
One of the simplest yet most effective ways to test a Volvo fuel pump relay is to listen for its operation. When the relay is functioning correctly, it produces a distinct clicking sound as it activates the fuel pump. This auditory cue is a direct indicator of the relay’s mechanical and electrical engagement, making it a valuable diagnostic tool for both professionals and DIY enthusiasts. By focusing on this sound, you can quickly determine whether the relay is receiving power and responding as intended, narrowing down potential issues in the fuel system.
To perform this test, start by locating the fuel pump relay, typically found in the fuse box under the hood or inside the cabin. Consult your Volvo’s manual for the exact location, as it varies by model and year. Once identified, have an assistant turn the ignition key to the "on" position (without starting the engine). As they do this, place your ear close to the relay or use a mechanic’s stethoscope to amplify the sound. A healthy relay will emit a sharp, audible click, signaling that it has engaged and sent power to the fuel pump. If no sound is heard, the relay may be faulty or not receiving the necessary signal to activate.
It’s important to note that the absence of a clicking sound doesn’t always confirm a defective relay. Other factors, such as a blown fuse, a faulty ignition switch, or a malfunctioning fuel pump control module, could prevent the relay from operating. Therefore, this test should be part of a broader diagnostic process. For instance, if the relay doesn’t click, check the fuse associated with the fuel pump circuit and verify that power is reaching the relay’s input terminal. This step-by-step approach ensures you don’t prematurely replace parts.
For added precision, you can use a multimeter to confirm the relay’s operation while listening for the click. With the ignition on, measure the voltage at the relay’s output terminal. If the click is heard and voltage is present, the relay is likely functioning correctly. However, if the click is absent and no voltage is detected, the relay or its circuit may be at fault. This combination of auditory and electrical testing provides a comprehensive assessment, reducing the risk of misdiagnosis.
In conclusion, listening for the relay’s clicking sound is a straightforward yet powerful method to test a Volvo fuel pump relay. It offers immediate feedback on the relay’s operational status, guiding further diagnostic steps. By combining this auditory test with basic electrical checks, you can efficiently troubleshoot fuel system issues and ensure your Volvo’s engine receives the fuel it needs to run smoothly.
Bypassing Fuel Pump Control Module: A Step-by-Step DIY Guide
You may want to see also
Frequently asked questions
The fuel pump relay is typically located in the fuse box under the hood or inside the cabin. Refer to your Volvo’s manual for the exact location, as it varies by model and year.
You’ll need a multimeter, a relay puller (optional), and a wiring diagram for your Volvo to identify the correct pins for testing.
With the ignition on, check for voltage at the relay’s power input pin. Then, activate the relay (e.g., by cranking the engine) and verify if voltage is present at the output pin. If no voltage is detected, the relay may be faulty.
Common symptoms include difficulty starting the engine, stalling, or a complete failure to start. You may also hear the fuel pump not priming when the key is turned to the "on" position.
Yes, you can temporarily bypass the relay by connecting the fuel pump directly to the battery (with a fused wire). If the pump works, the relay is likely faulty. However, this is a temporary diagnostic step and not a permanent fix.
